Program overview
Diamond wire, also known as diamond cutting wire, mainly used in the field of cutting hard and brittle materials such as silicon wafers, sapphire, magnetic materials, crystal materials, etc.

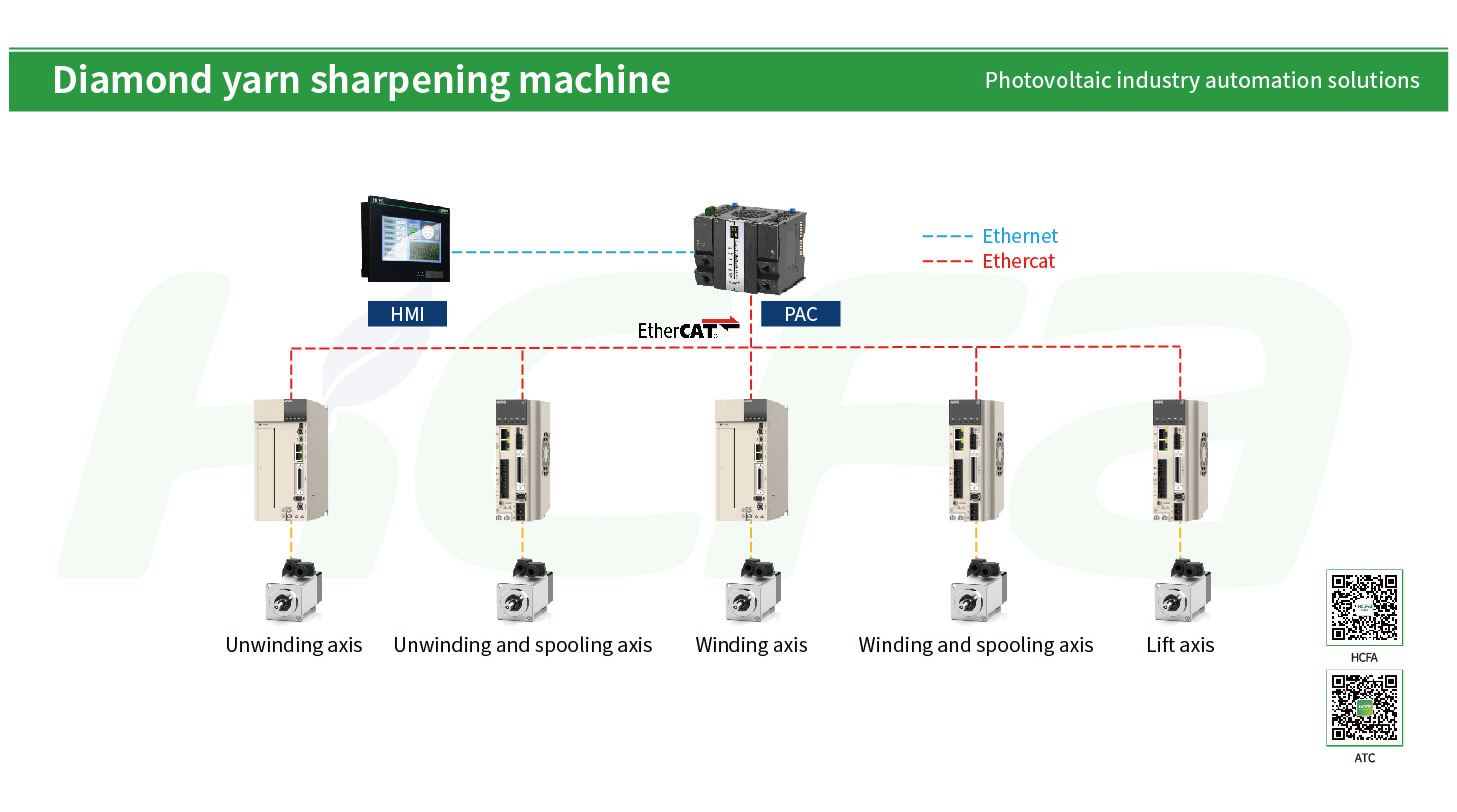

Our solution
Program Features
-
-
Production line diameter
Production line diameter：ф0.03-ф0.5mm，Pendulum tension：0-10N
-
-
-
Production rate
Production rate：<=1200m/min
-
-
-
Take-up and payoff reel diameter
Real-time calculation, through the algorithm plus PID control, to achieve the pendulum jitter ± 1 degree
-
-
-
High stability
Adopt gear lining, which can automatically correct the deviation and keep the lining stable, including trapezoidal lining and R angle compensation function
-
-
-
Real-time date export
HMI can record production information in real time and export via U disk
-
