V315E
Supports RS232/485/422 serial communication
Support Ethernet communication, program download
Support USB program download
Supports WIFI/4G
Product Features
-
-
4G network
Mobile/Telecom/Unicom, more convenient networking
-
-
-
WIFI
Local network, hotspot networking, high cost-effectiveness, simple and easy to use
-
-
-
HCFA Cloud
Cloud based data monitoring and maintenance
-
-
-
Remote control
Program maintenance, monitoring, uploading and downloading
-
-
-
MQTT
Third party cloud platform data monitoring and maintenance
-
-
-
Program penetration
Program local and remote penetration, faster programming
-
-
-
Label communication
Supports both Chinese and English labels, making data interaction more intuitive and improving programming efficiency
-
-
-
Tool password
Random passwords and installment passwords allow sales machines to operate freely
-

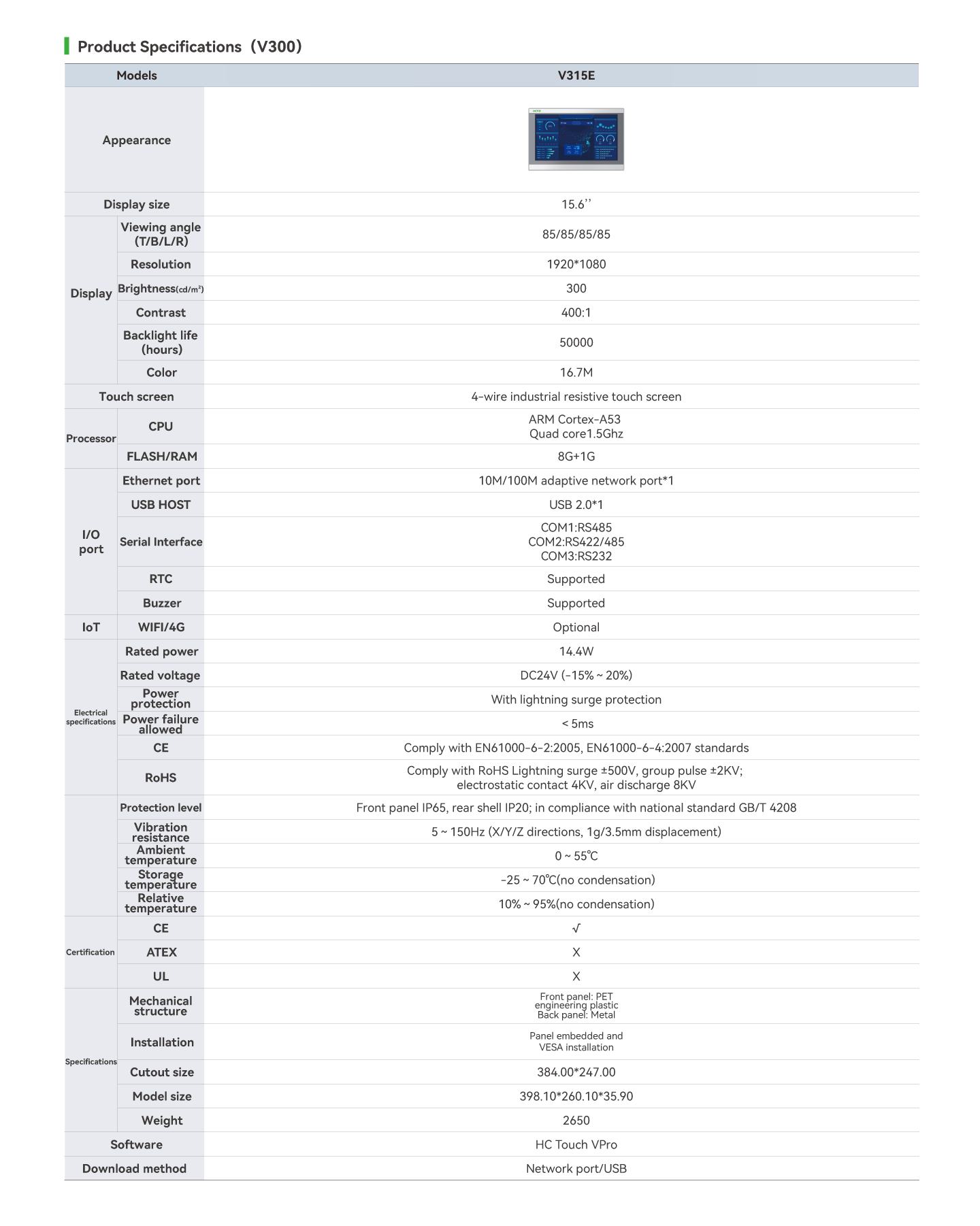

Product Specifications

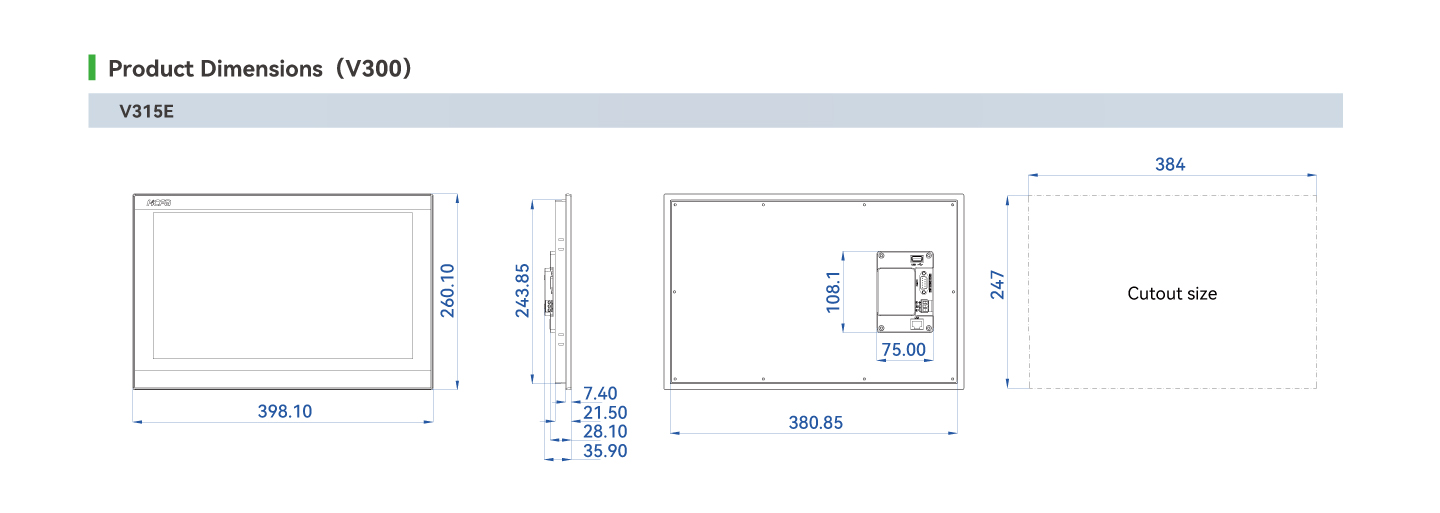

Product Size

Data Download
Download Type | Name | Updated | Operation |
---|---|---|---|
Catalog | V300 Series HMI Catalog 2024-V1.0(EN) | 2024.11.20 | Download |
Download Type | Name | Updated | Operation |
---|
Download Type | Name | Updated | Operation |
---|
Download Type | Name | Updated | Operation |
---|---|---|---|
Drawing | HMI V300 Series(3D) | 2024.11.20 | Download |
Download Type | Name | Updated | Operation |
---|
Download Type | Name | Updated | Operation |
---|
