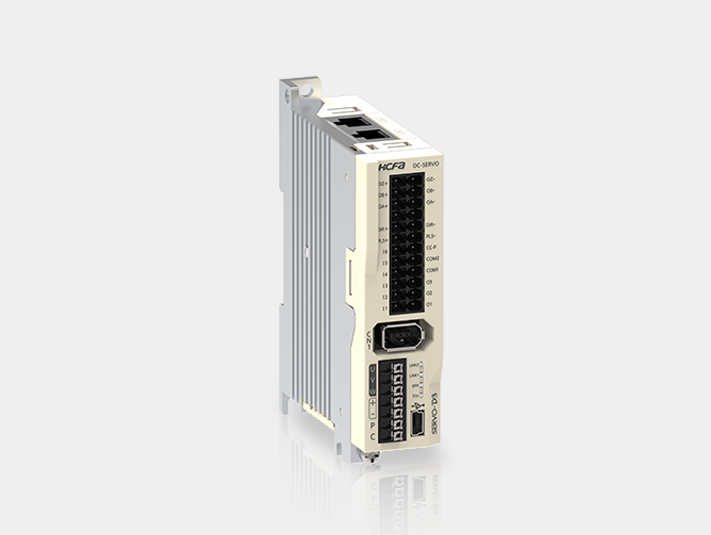

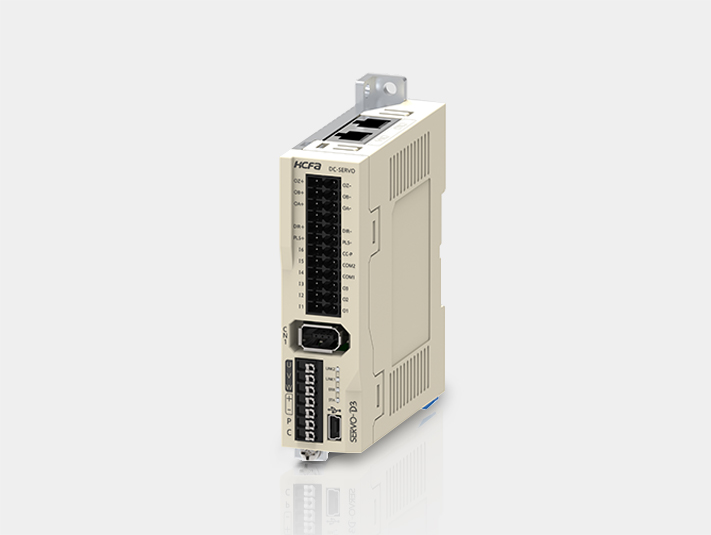

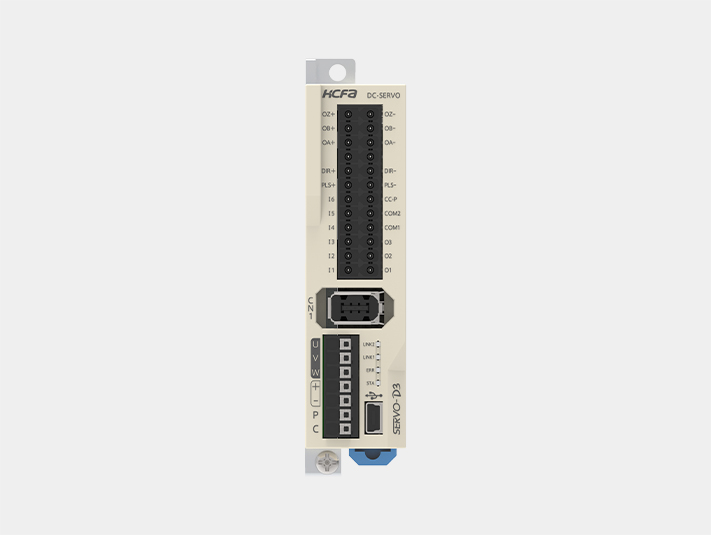

D3E

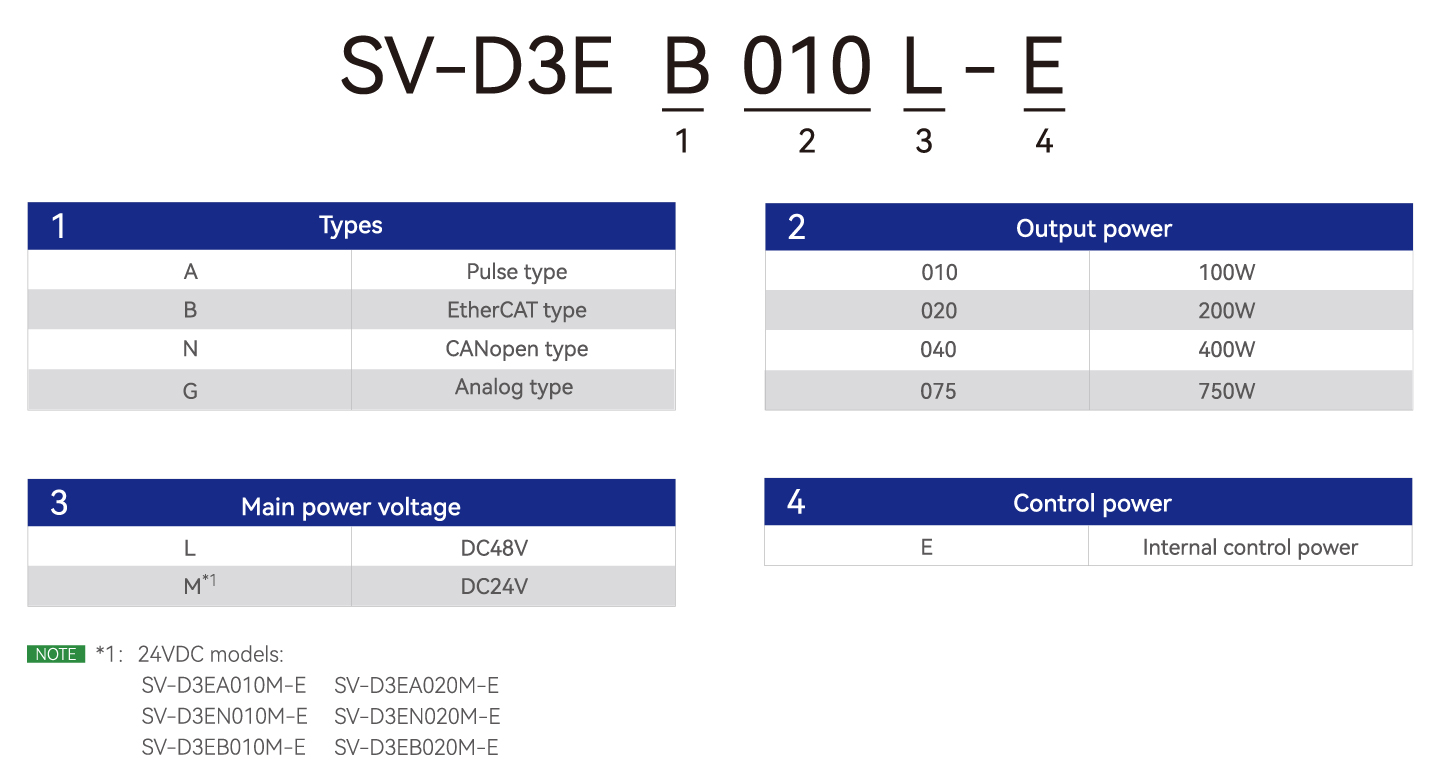

Product series：D3E low voltage servo drive
Driver type：a-pulse command type, b-ethercat bus type, n-canopen bus type
Power coverage：100w~750w
Supporting protocols：Modbus RTU, EtherCAT, CANopen
Product Features
-
-
Support Notch Filter, low frequency resonance suppression, adaptive filter for fast vibration suppression
Small and exquisite to meet the ultimate installation space requirements
Complete position control mode, real-time gain adjustment technology, high ease of use
-
-
-
Rich communication protocols, support EtherCAT, CANopen, Modbus RTU
PUSH-IN connector, no additional accessories required, easy to plug and unplug, greatly reducing wiring time
-

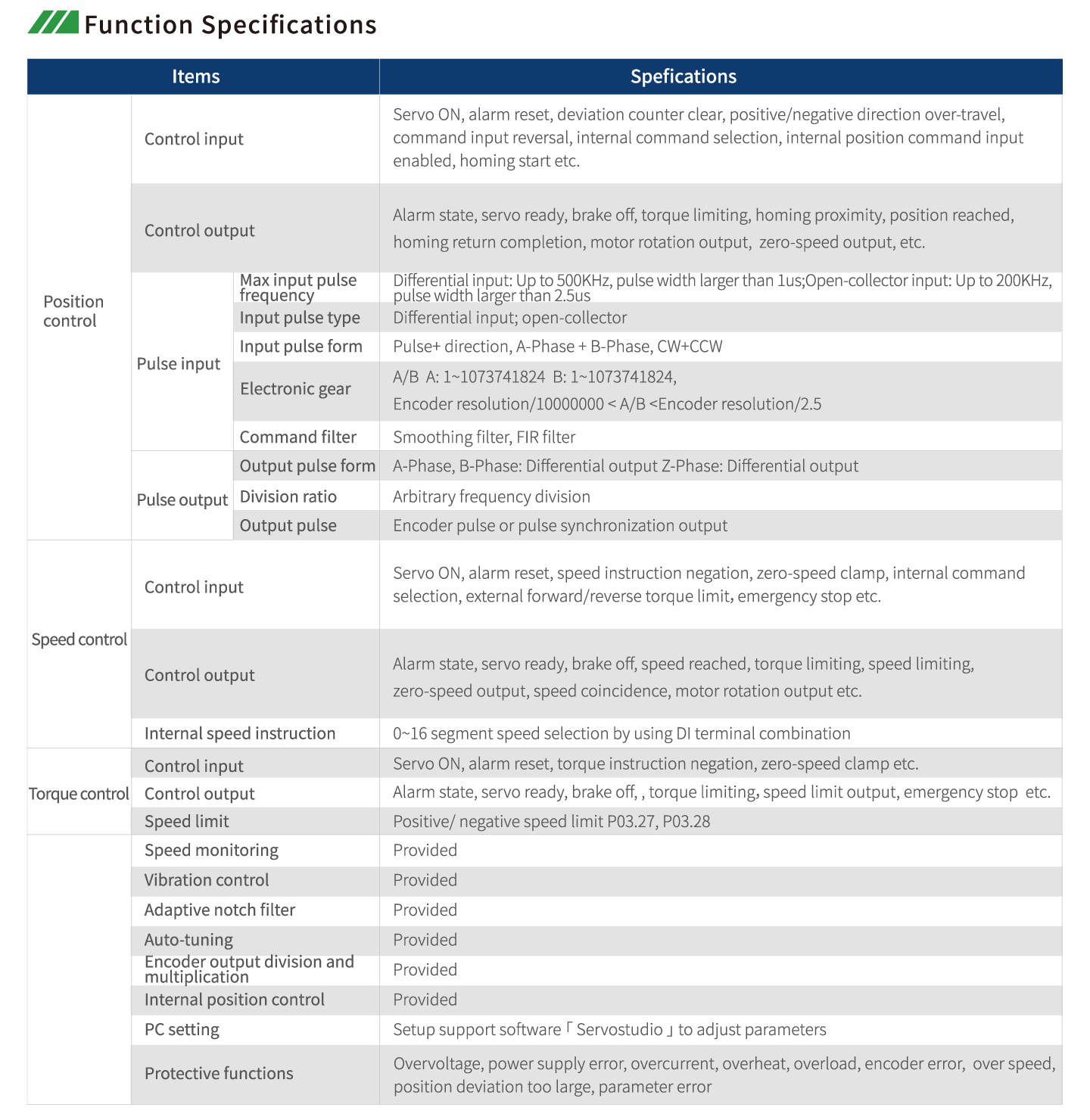

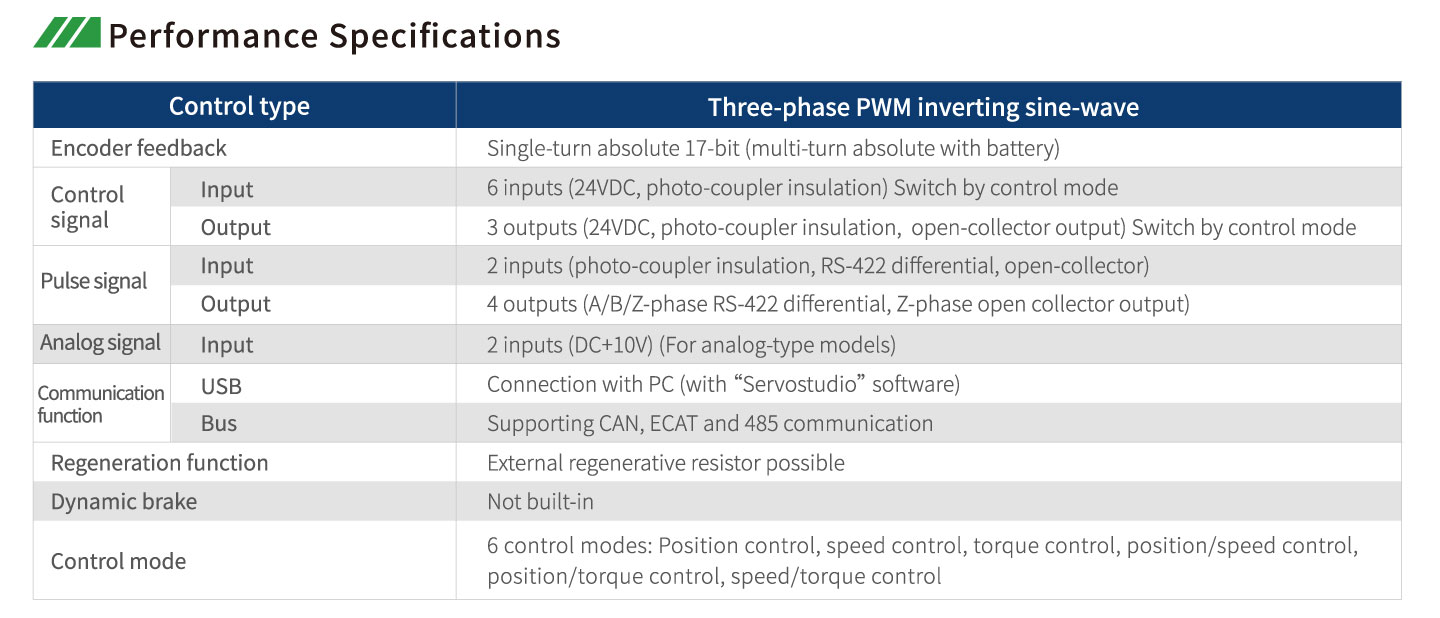

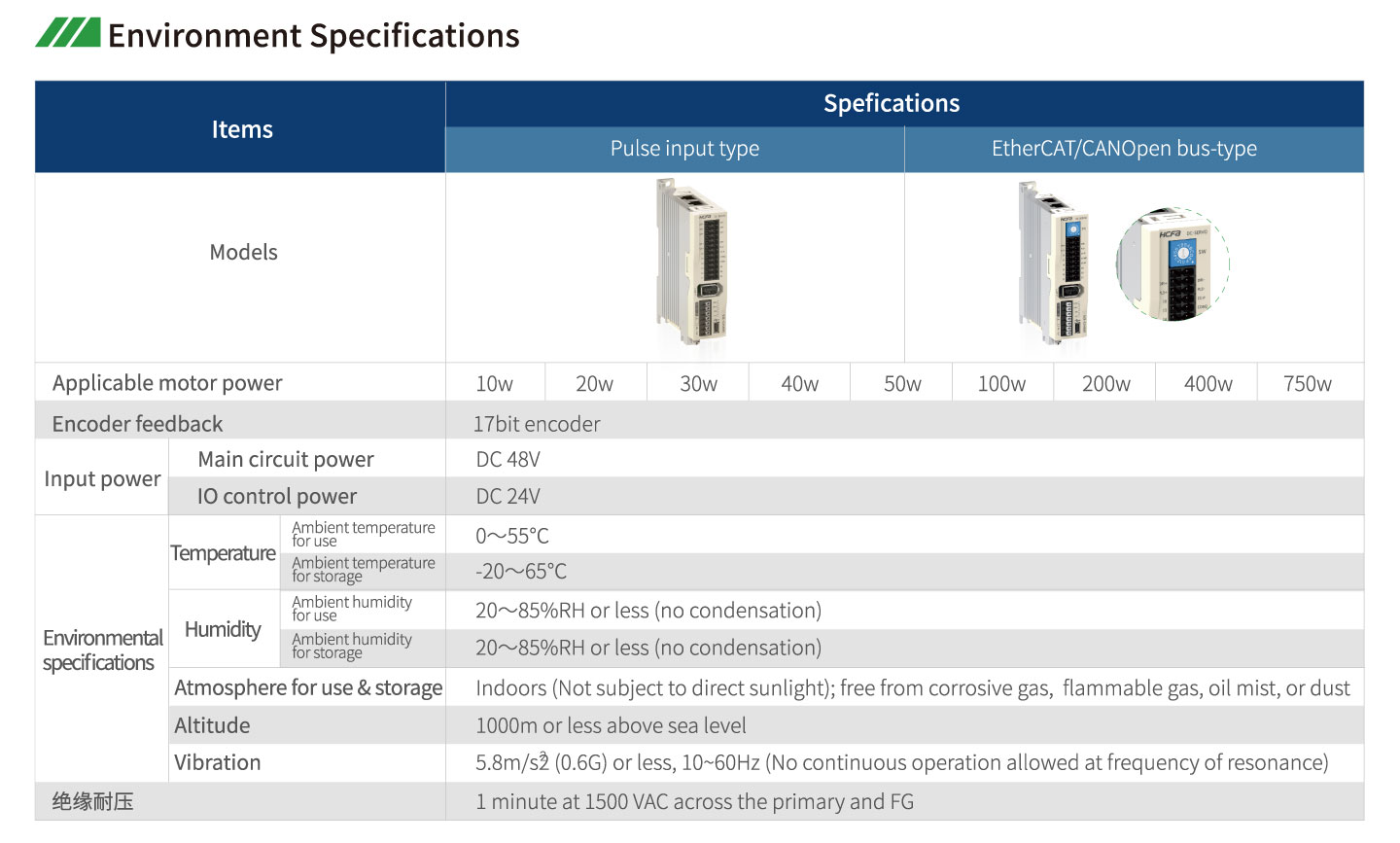

Product Specifications

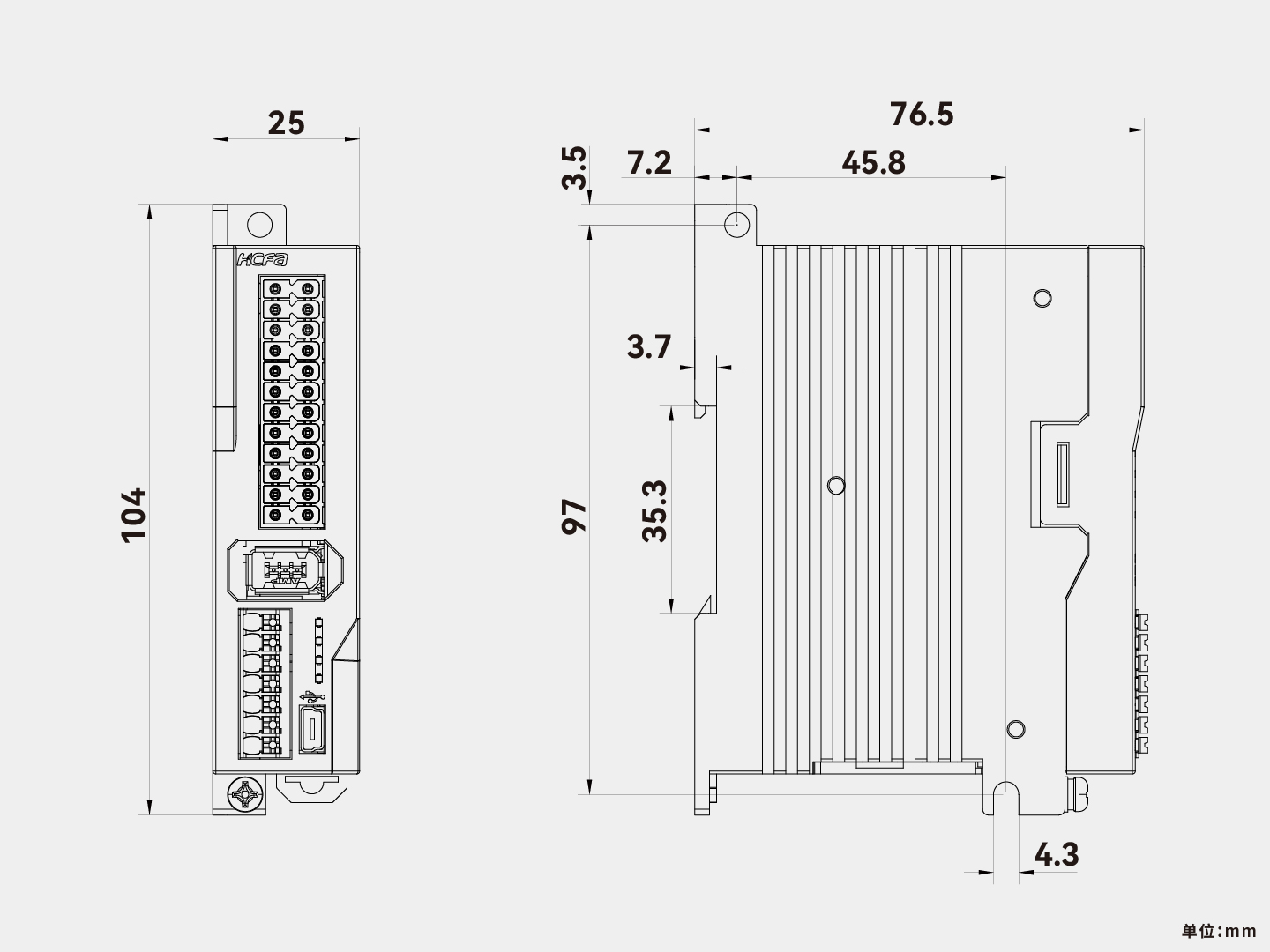

Product Size
Data Download
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Catalog | D3E Low-voltage Servo Catalog 2023.6 -V1.0(EN) | 2024.03.07 | Download |
