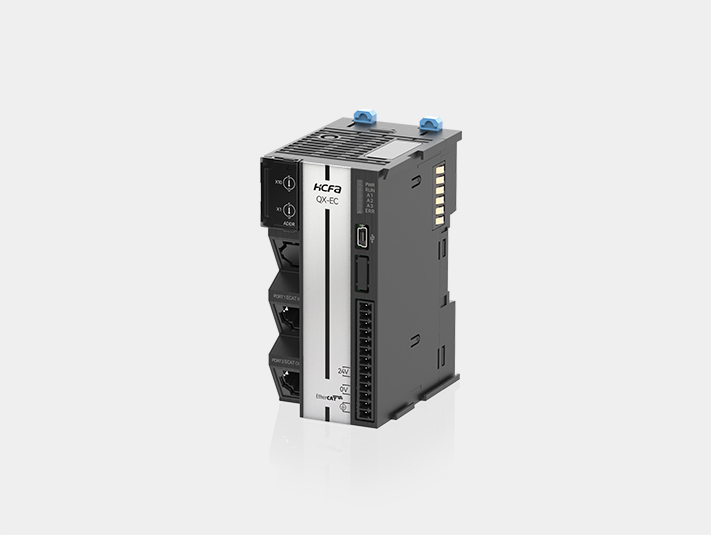

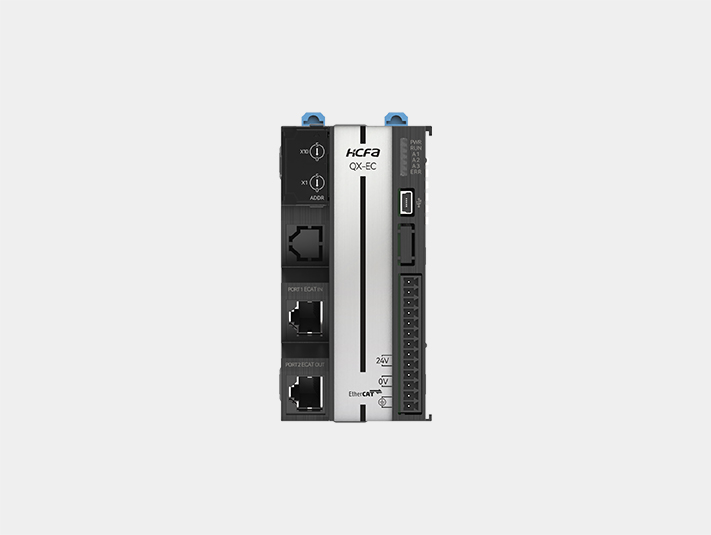

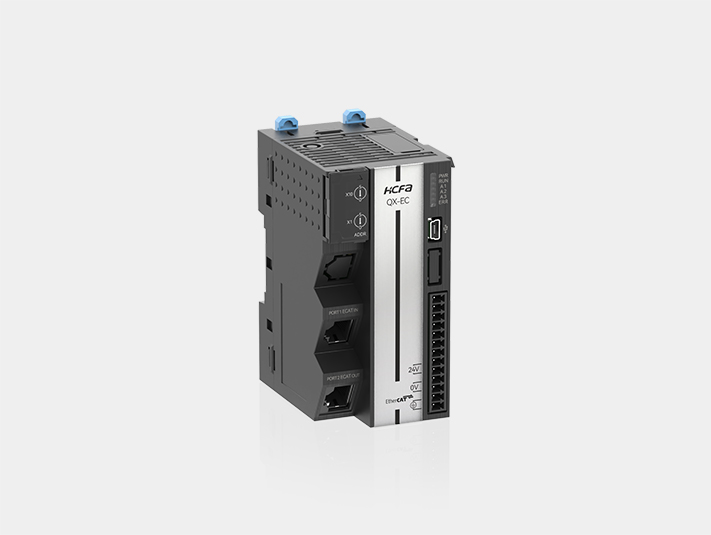

Coupler module

Product Series: Q Series Remote Expansion Modules
Module Type: EC Coupler Module
Module role: The EtherCAT Coupler is the connection between the fieldbus-level EtherCAT protocol and the EtherCAT Terminals. The coupler converts the transmitted telegrams from Ethernet 100BASE-TX to Q-bus signal representation.
Output specifications: 12V 16V

Product Features

  • 2 x RJ45 interfaces; the upper Ethernet interface is used to connect the coupler to the network and the lower Ethernet interface is used to connect other EtherCAT devices. In addition, EtherCAT nodes or EtherCAT extensions can be used to extend or set up a line or star topology.

  • Maximum connection distance:100m

  • Flexible system configuration with up to 65535 slaves

Product Specifications

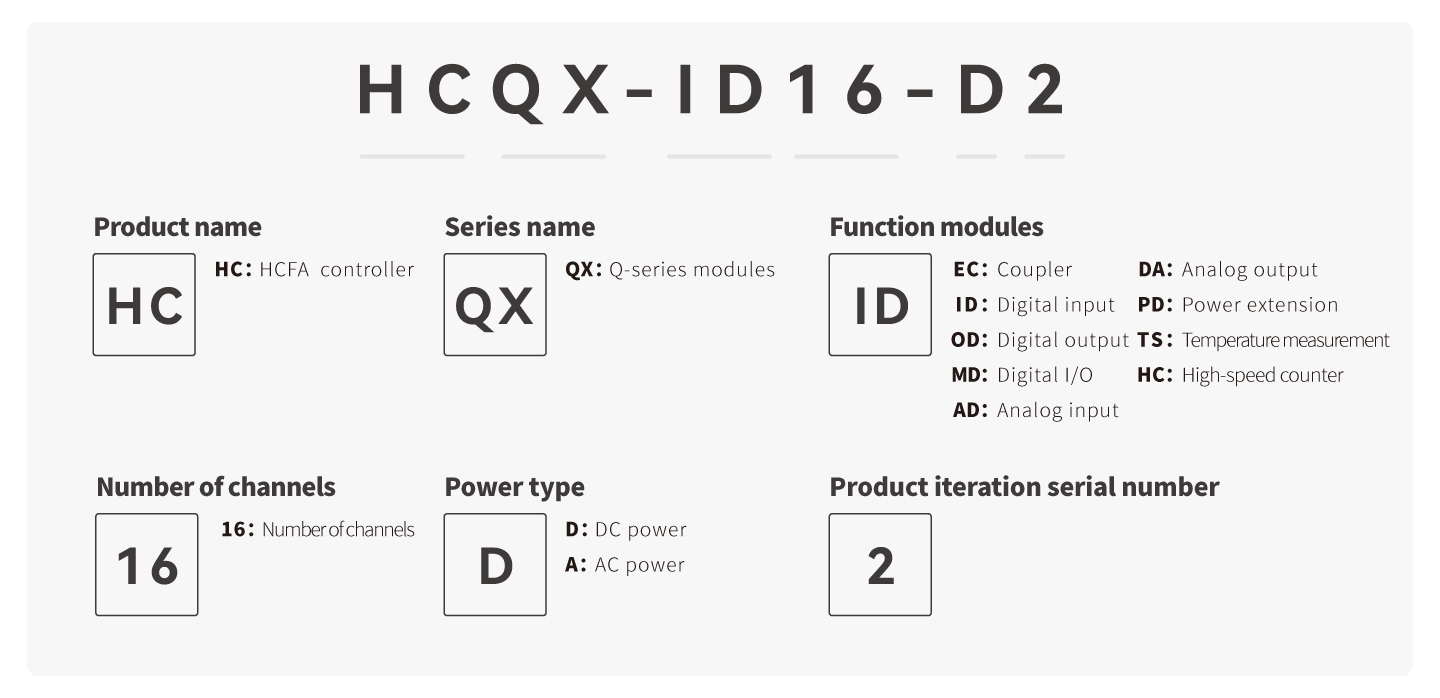

  • NAMING RULE

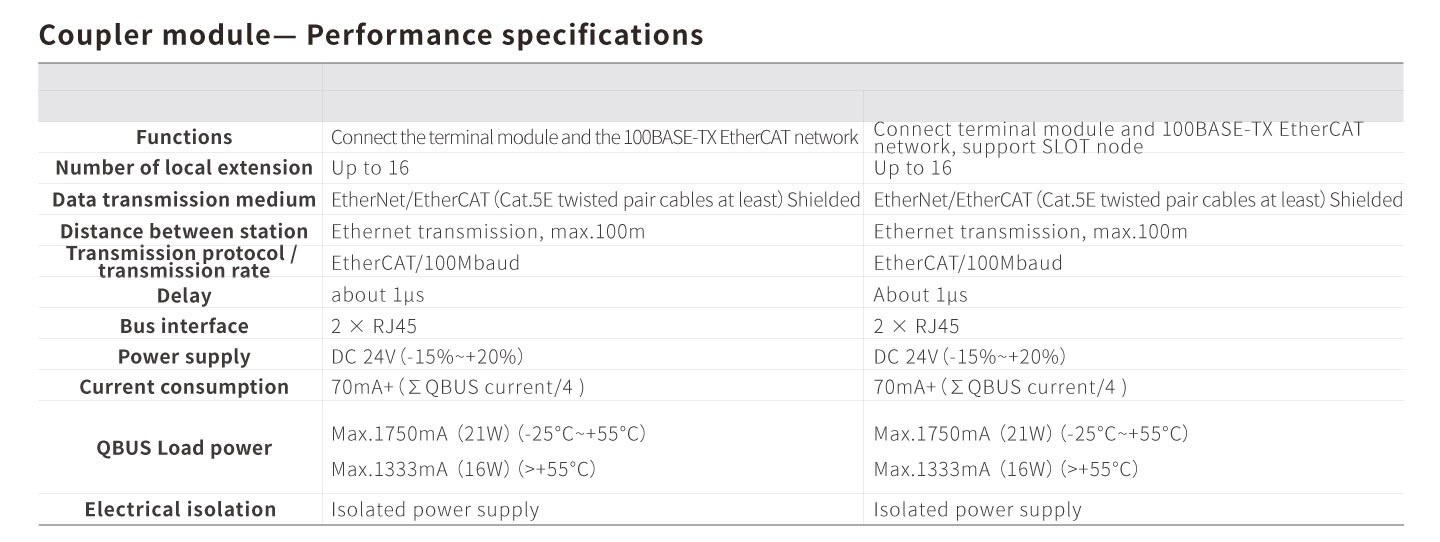

  • PERFORMANCE SPECIFICATIONS

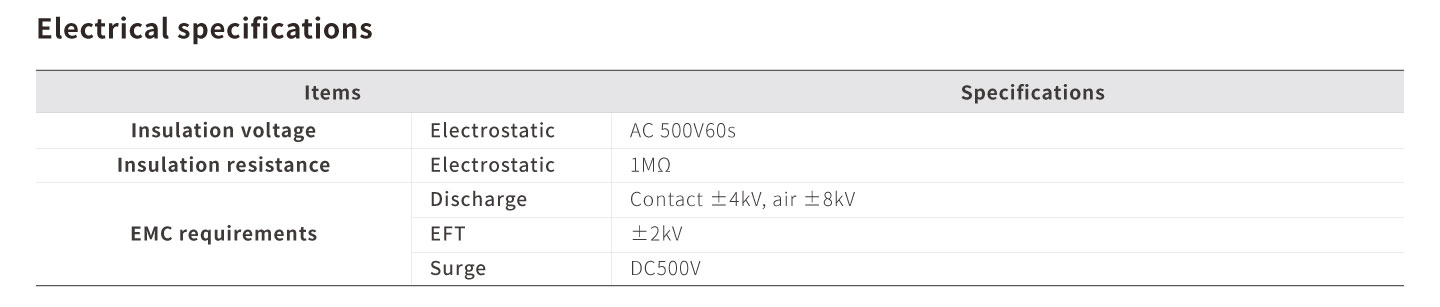

  • ELECTRICAL SPECIFICATIONS

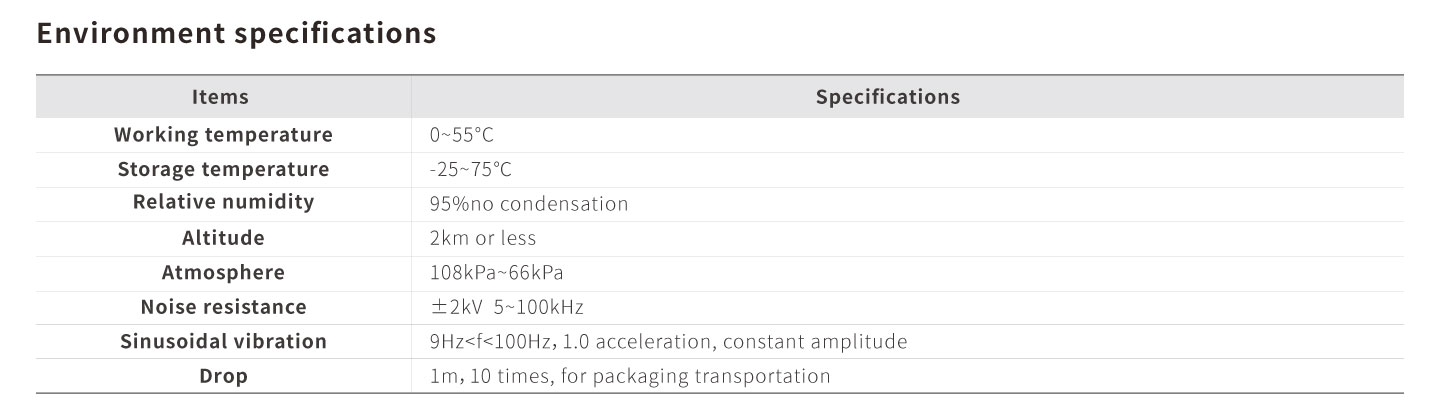

  • ENVIRONMENT SPECIFICATIONS

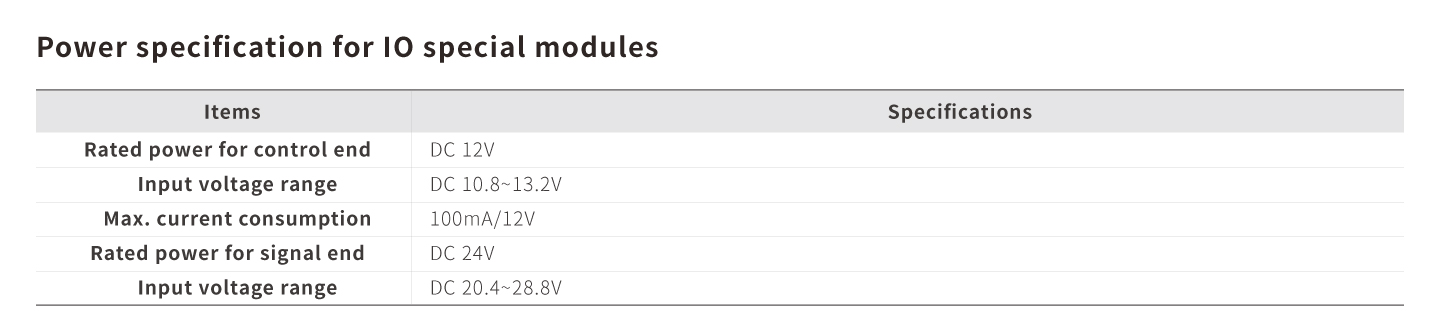

  • POWER SPECIFICATIONS

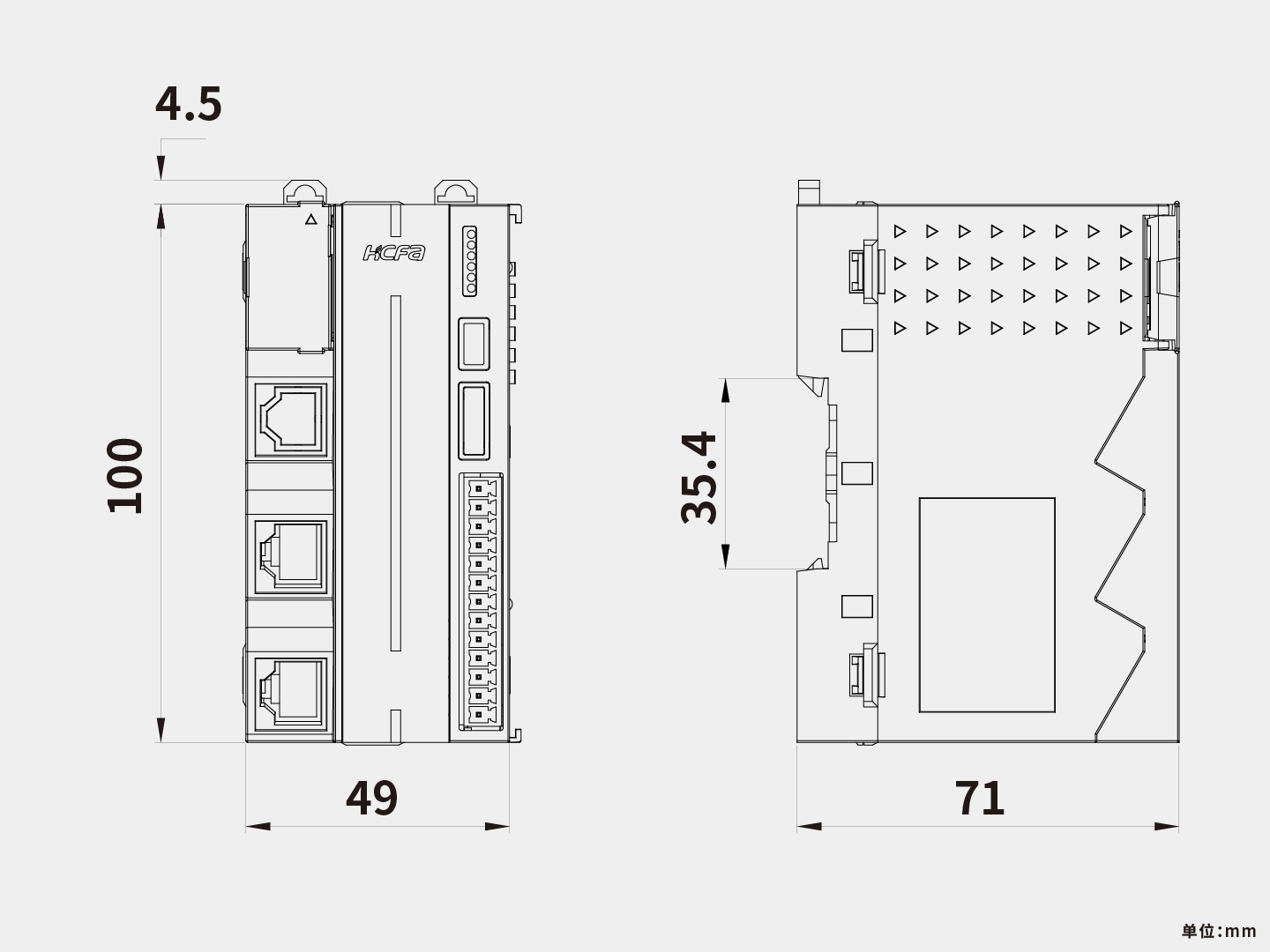

Product Size



Data Download

  • Catalog
  • Manual
  • Instruction
  • Drawing
  • Software
  • Others
