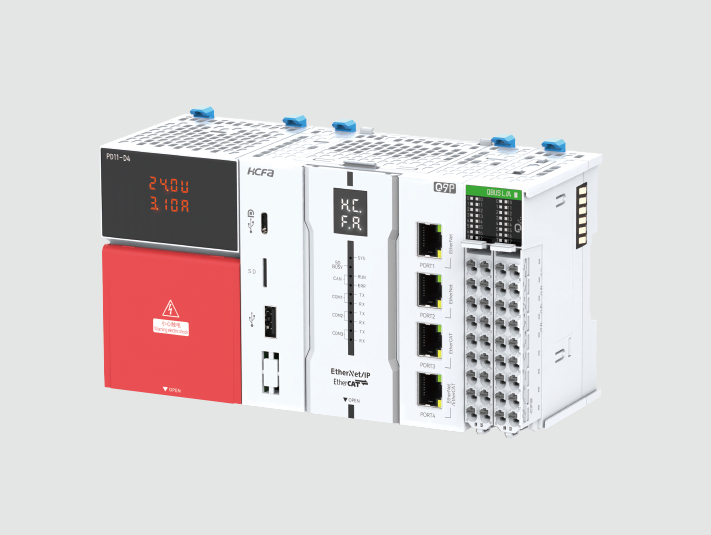

Q Plus Series

Product Series: Intelligent Mechanical Controller
Module type: CPU unit/CPU unit+power module
Processor: ARM, Celeron, Intel I5, Intel I7
Supported protocols: EtherCAT, Modbus, OPC UA, EtherNet/IP, CANopen

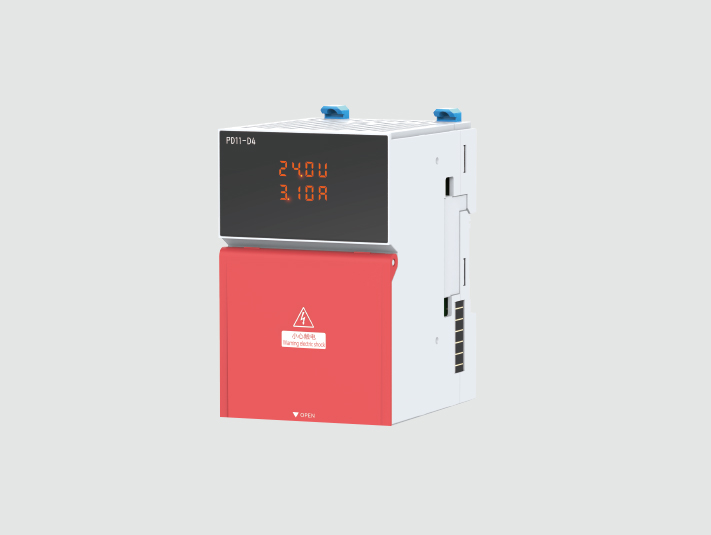

Power module: HCQX-PD11-D4 (model)

Product Features

  • High performance control

    Intel high-performance quad core processor

    Supports dual EtherCAT master stations, capable of supporting 128+128 axes in 1ms

    Minimum 125us scanning cycle

  • High integration

    Integrated rich hardware interfaces: The controller provides multiple communication interface options, including Ethernet, serial port, CAN bus, etc. The rich communication interface enables the Hechuan HCQP series controller to exchange and communicate data quickly and reliably with other devices and systems.

    3-channel Gigabit Ethernet, no gateway module required, achieving independent IP.

    The controller supports multiple bus protocols, including Modbus, CANopen, EtherCAT, OPC UA, EtherNet/IP. Users can easily interconnect with other devices, sensors, and actuators.

  • Easy Development

    New secondary development IDE - HCP Works3

    Supports IEC 61131-3 standard programming language and follows PLCopen2.0 specification

    Built in servo parameter debugging interface, one click addition of slave devices, resource usage table and other functions, enhancing user convenience

    Clear topology structure, graphical device configuration interface, local configuration interface

  • Strong operation control

    Support linear/arc/spiral interpolation/electronic cam&flying shear&chasing shear/CNC G code control/Robot control

Product Specifications

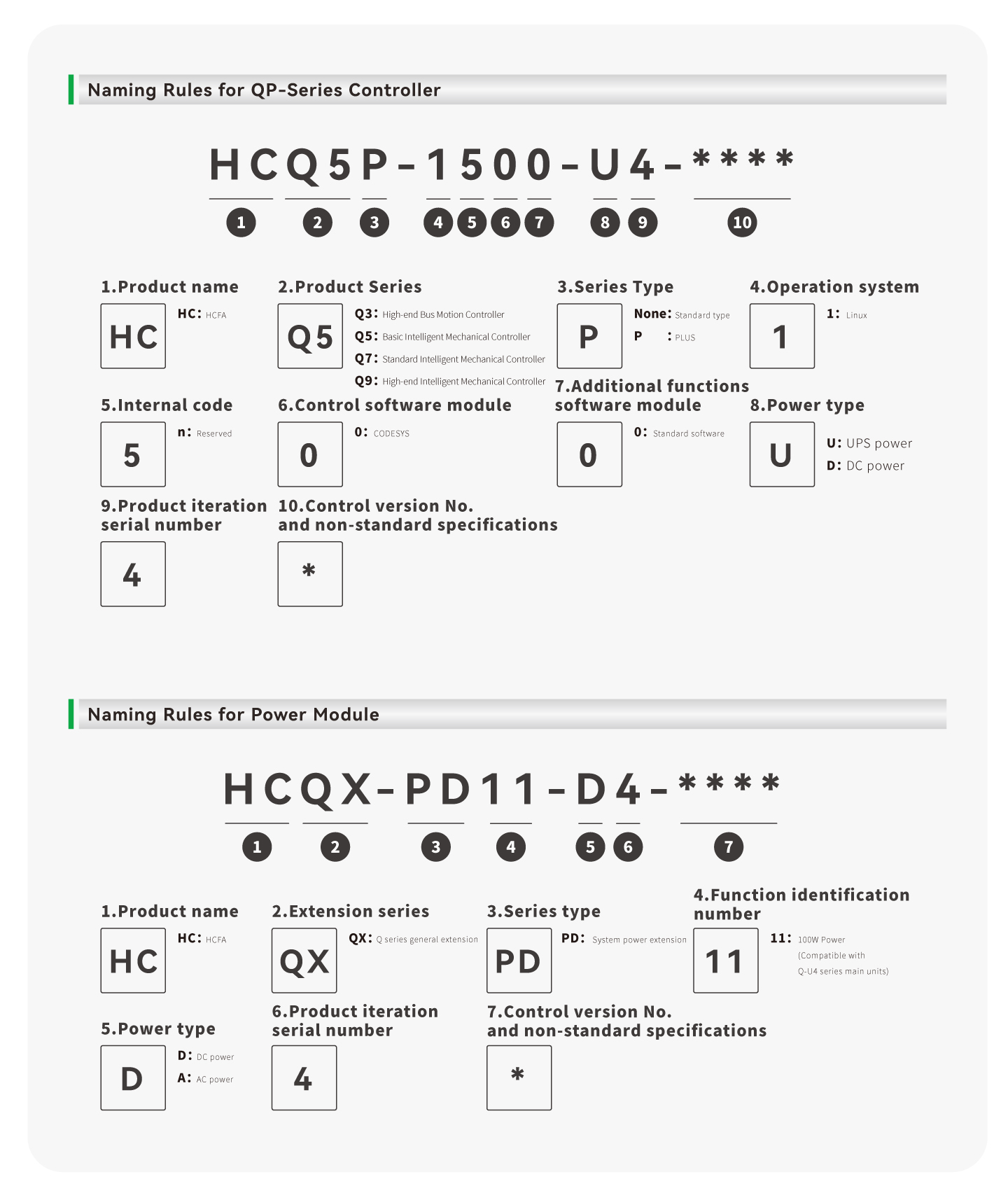

  • Naming

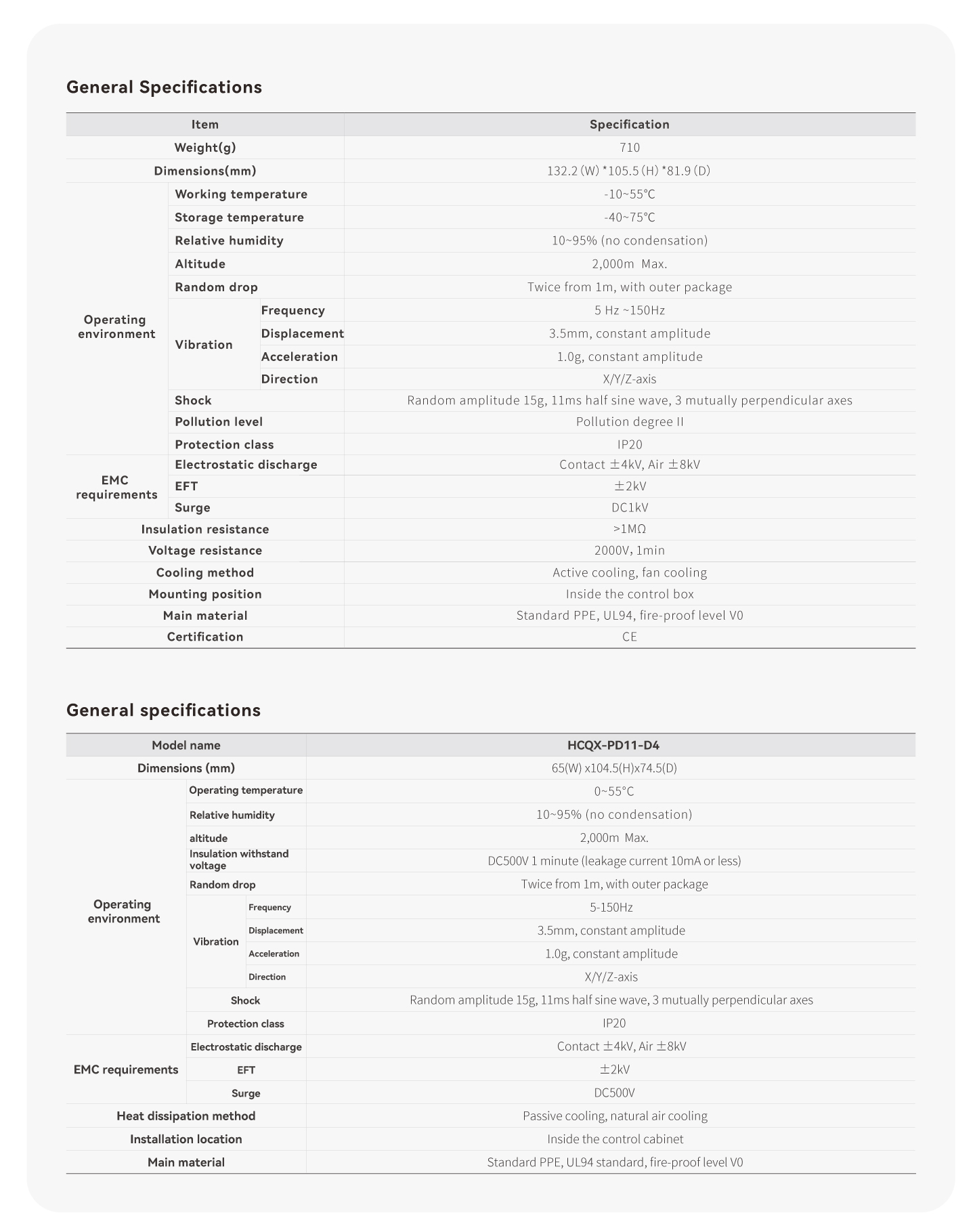

  • General

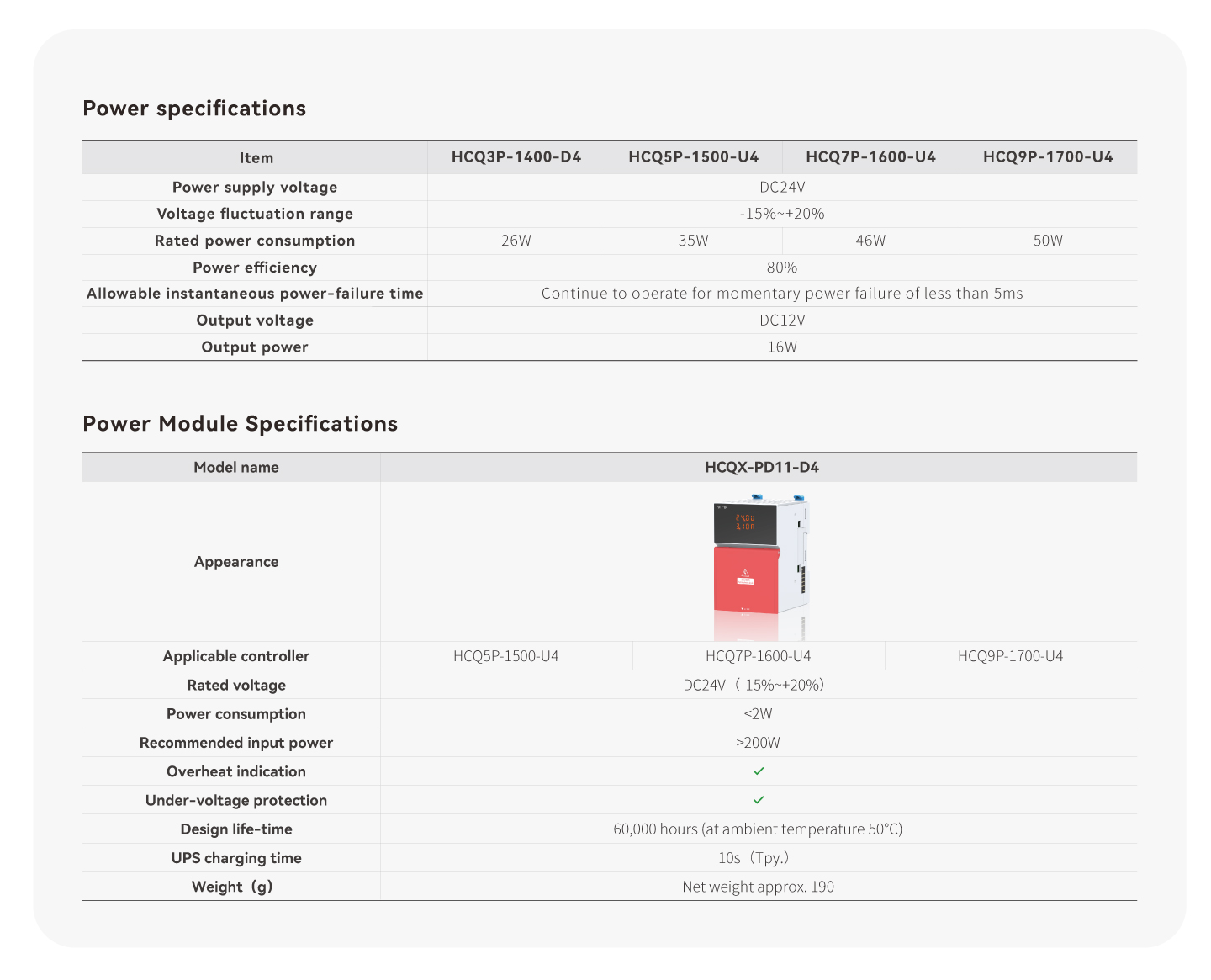

  • Power

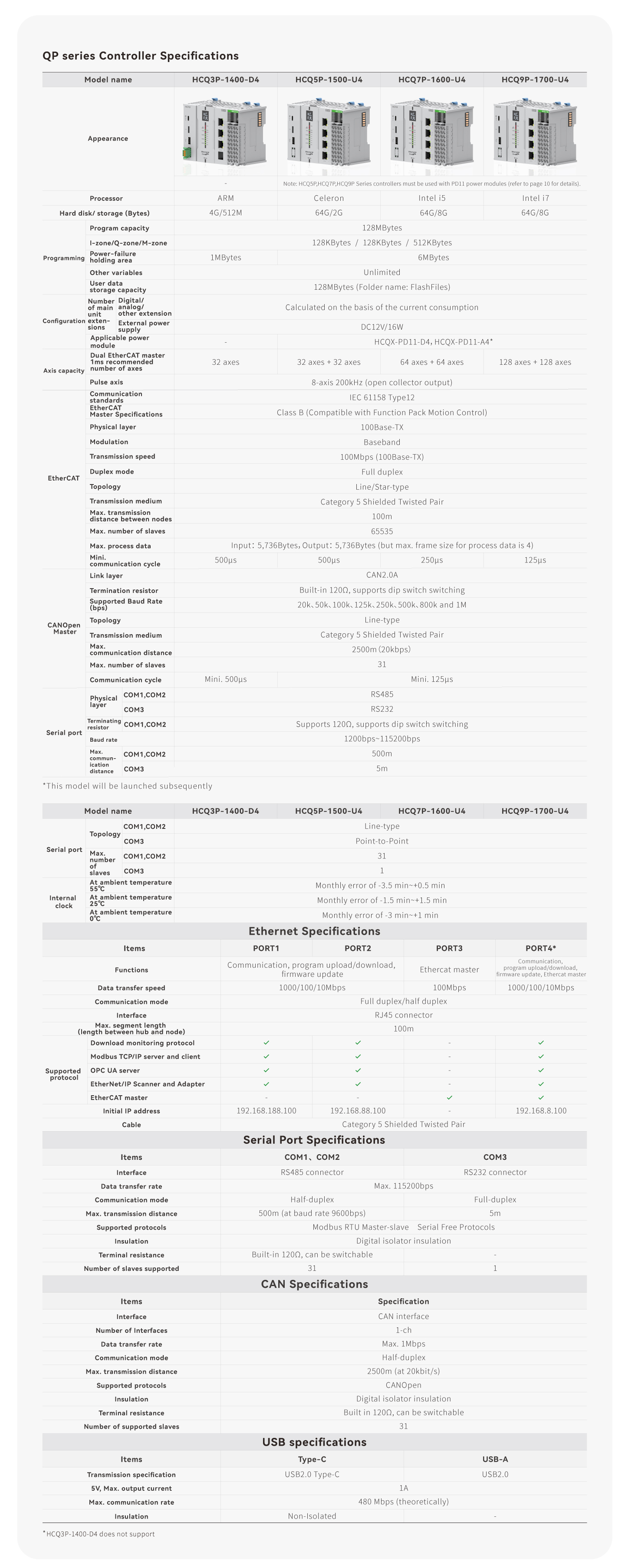

  • Performance

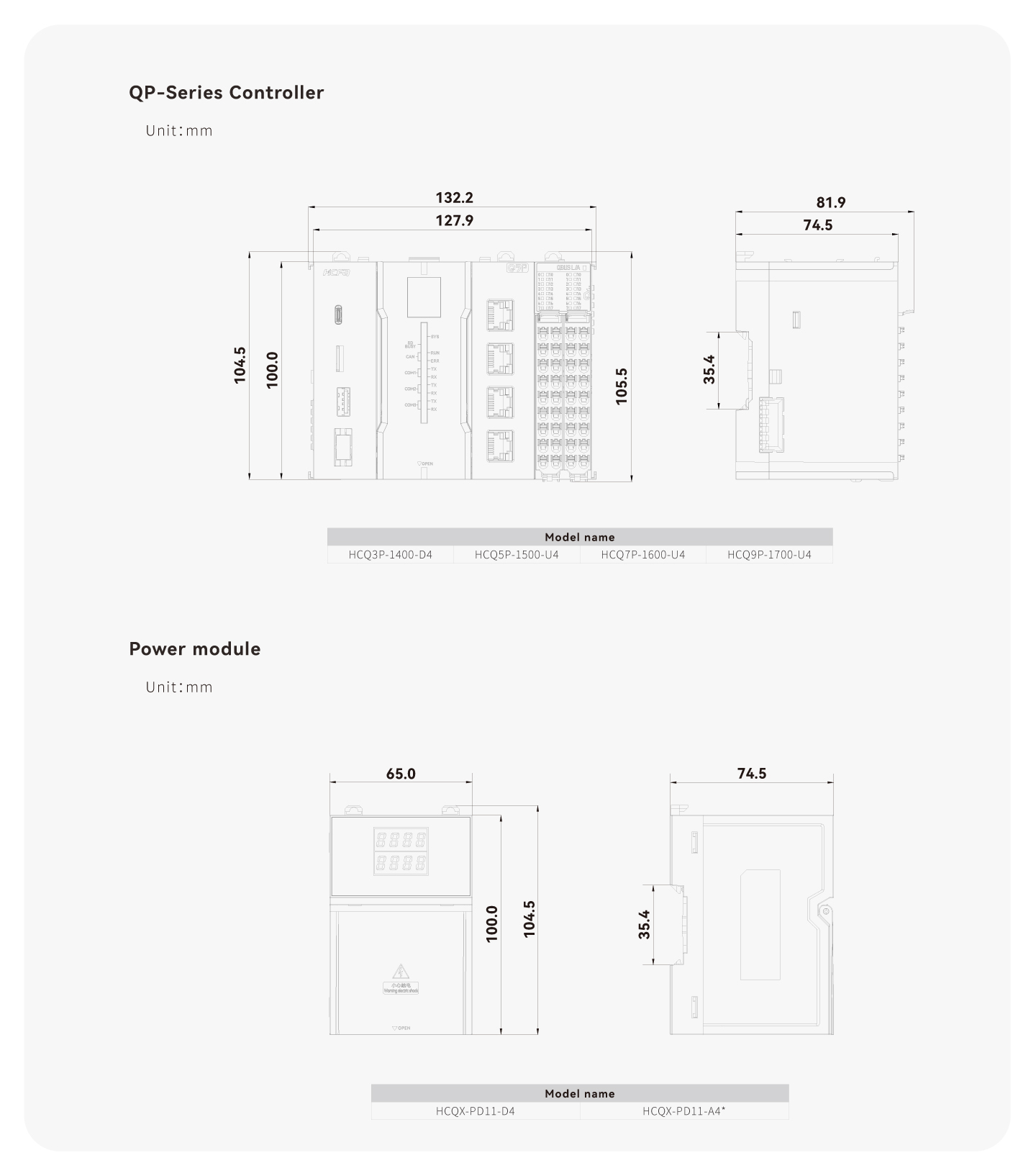

Product Size

Data Download

  • Catalog
  • Instruction
  • Manual
  • Drawing
  • Software
  • Others
Download Type Name Updated Operation
Catalog QP-series Controller Catalog 2024.7 V1.0(EN) 2024.11.19 Download
Download Type Name Updated Operation
Instruction HCQ0P Q1P Series CPU Unit Universal Installation and Use Instruction V1.0 2025.03.13 Download
