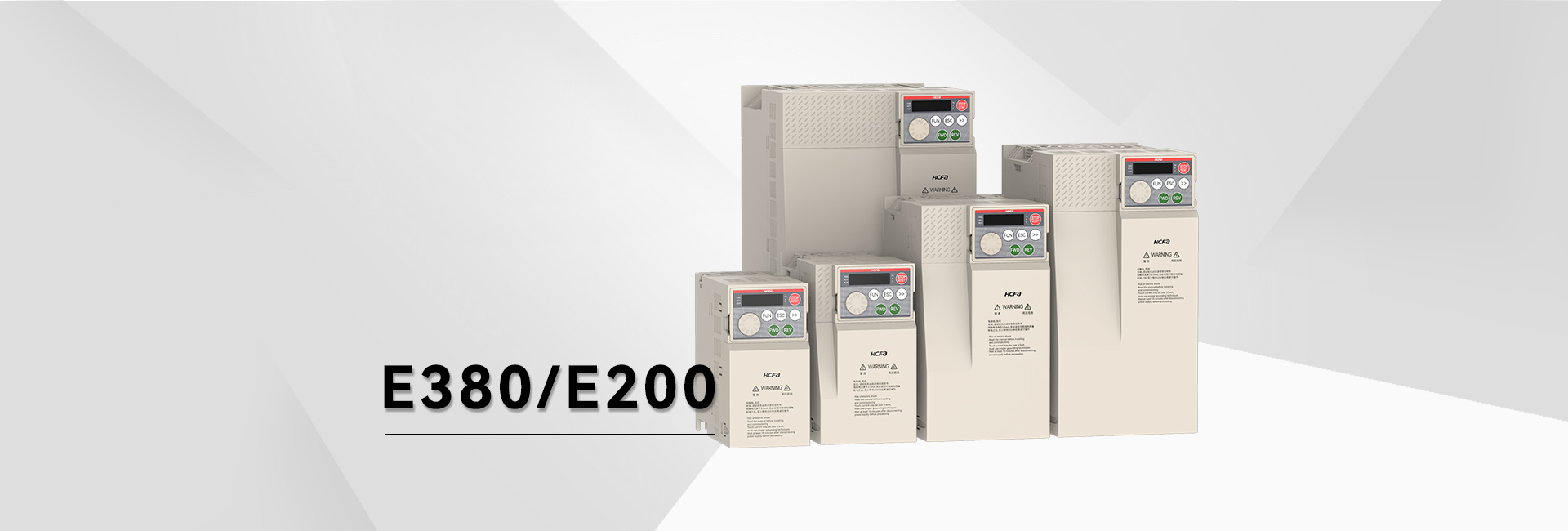

E380/E220 Inverters
Product Type: Inverters
Voltage specification: AC220V, AC380V
Power coverage: 0.75kW~37kW
Hardware interface: 7-way DI, including 1 high-speed input, 3-way DO, including 1 high-speed output, 3-way analog input, 2-way analog output
Input/output current specification: 0~20mA
Input voltage specification: 0~10V, -10~+10V
Output voltage specification: 0~10V
Product Features
-
-
New design
Full series of control boards, keyboard boards and expansion cards are available for use
-
-
-
Powerful function
Excellent overvoltage suppression, fast start/stop and overcurrent suppression
-
-
-
Compact appearance
Up to 40% reduction in size to improve space utilization
-
-
-
Stable performance
Increased life span of major components and 100% coating of circuit boards
-

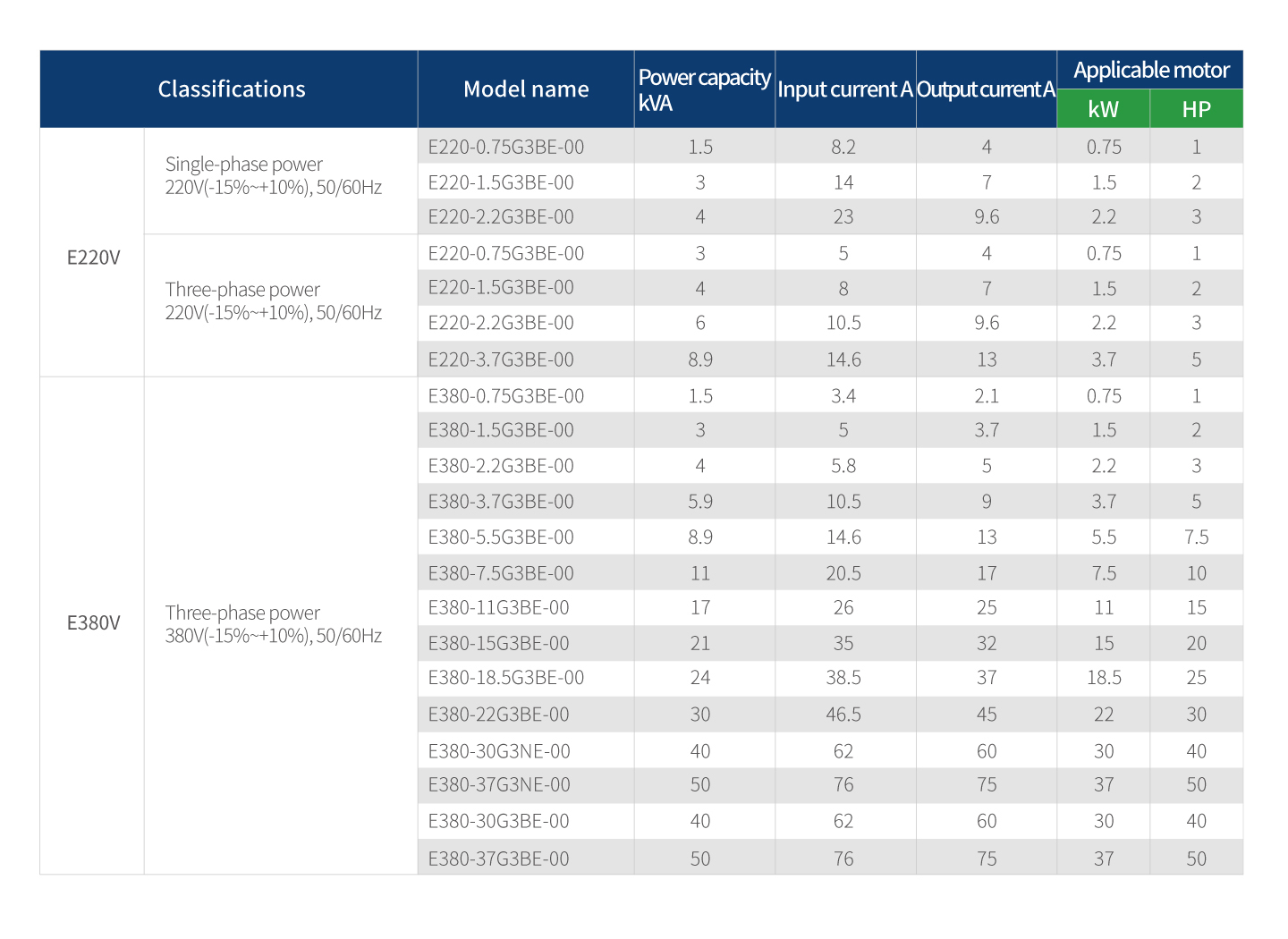

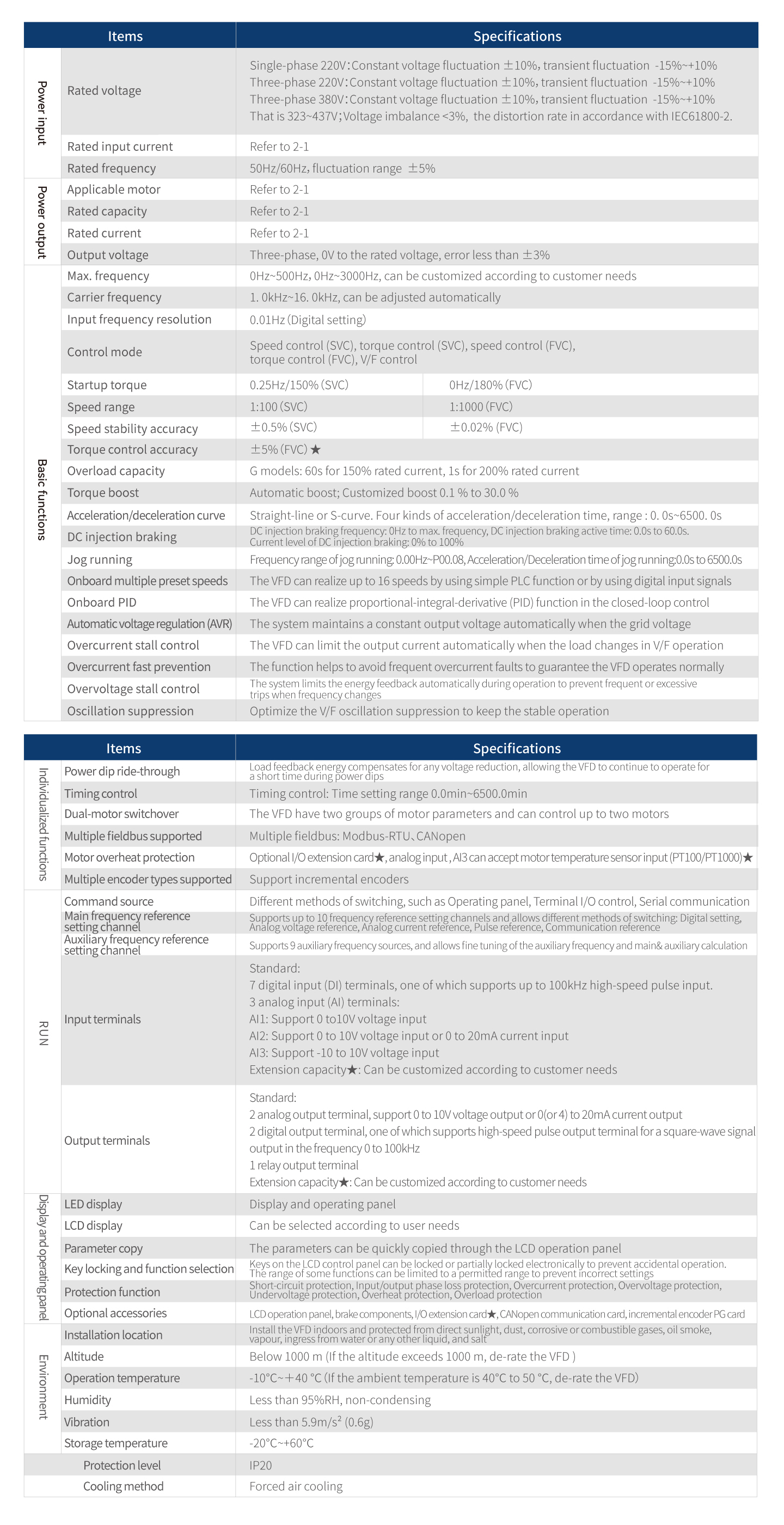

Product Specifications
Data Download
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Catalog | E220E380 Series VFDs' Catalog 2023.6 -V1.0(EN) | 2024.03.07 | Download |
