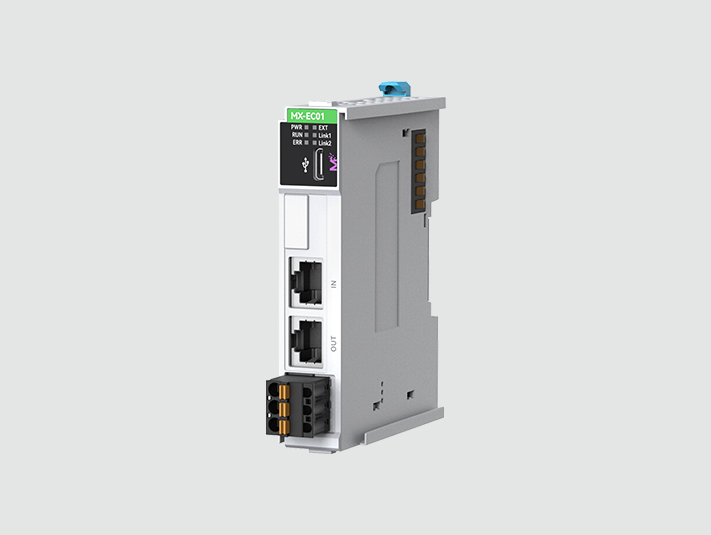

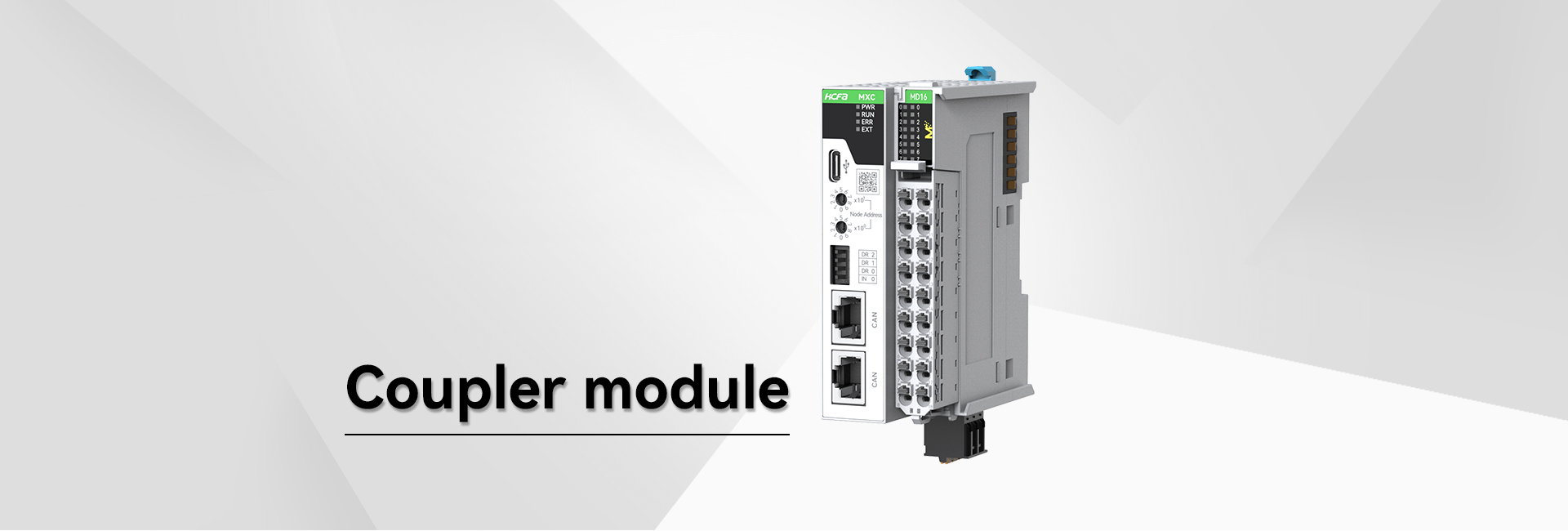

Coupler

Product series: M-series new generation expansion module
Module type: coupler module
Module function: It can be paired with M-series remote expansion modules and upper computers that support EtherCAT/CANopen protocols. Currently, it supports pairing with all M-series expansion modules.

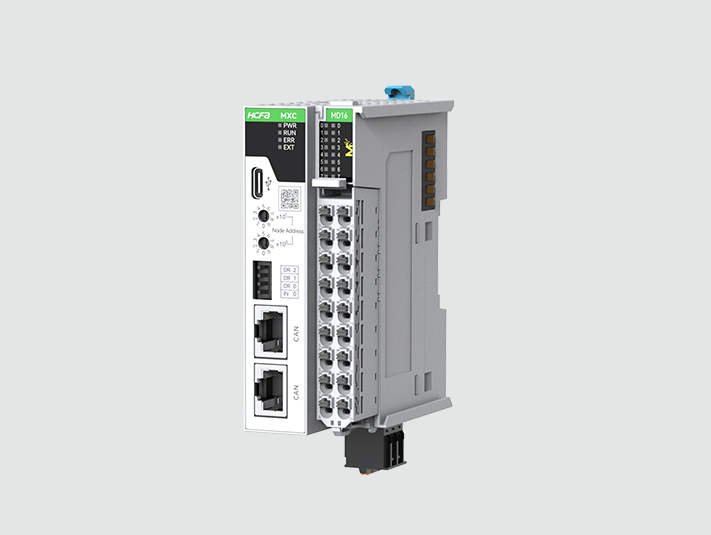

Module models: HCMX-EC01-D, HCMX-E-MD16-D, HCMXC-MD16-D

Product Features

  • Efficient assembly, lightweight size

    Can directly replace terminals without dismantling wiring, PUSH IN tool free direct insertion wiring

    20mm lightweight size, easily adaptable to narrow usage environments

  • Support CANopen network cascading

    The main body comes with 8 inputs and 8 outputs

    High cost-effective distributed expansion solution

    CANopen station number can be set, baud rate can be adjusted

    When communication is abnormal, the output status can be set

  • Flexible and open

    Support pairing with Hechuan and third-party EtherCAT main stations

    Supports 3 operating modes: FreeRun, SM Synchron, DC Synchron

  • High speed response, one network to the end

    100M high-speed EtherCAT bus, high response, high real-time

    EtherCAT bus integration, control+IO+driver, one network to the end

    Supports 16 expansion modules, supporting both digital and analog types

Product Specifications

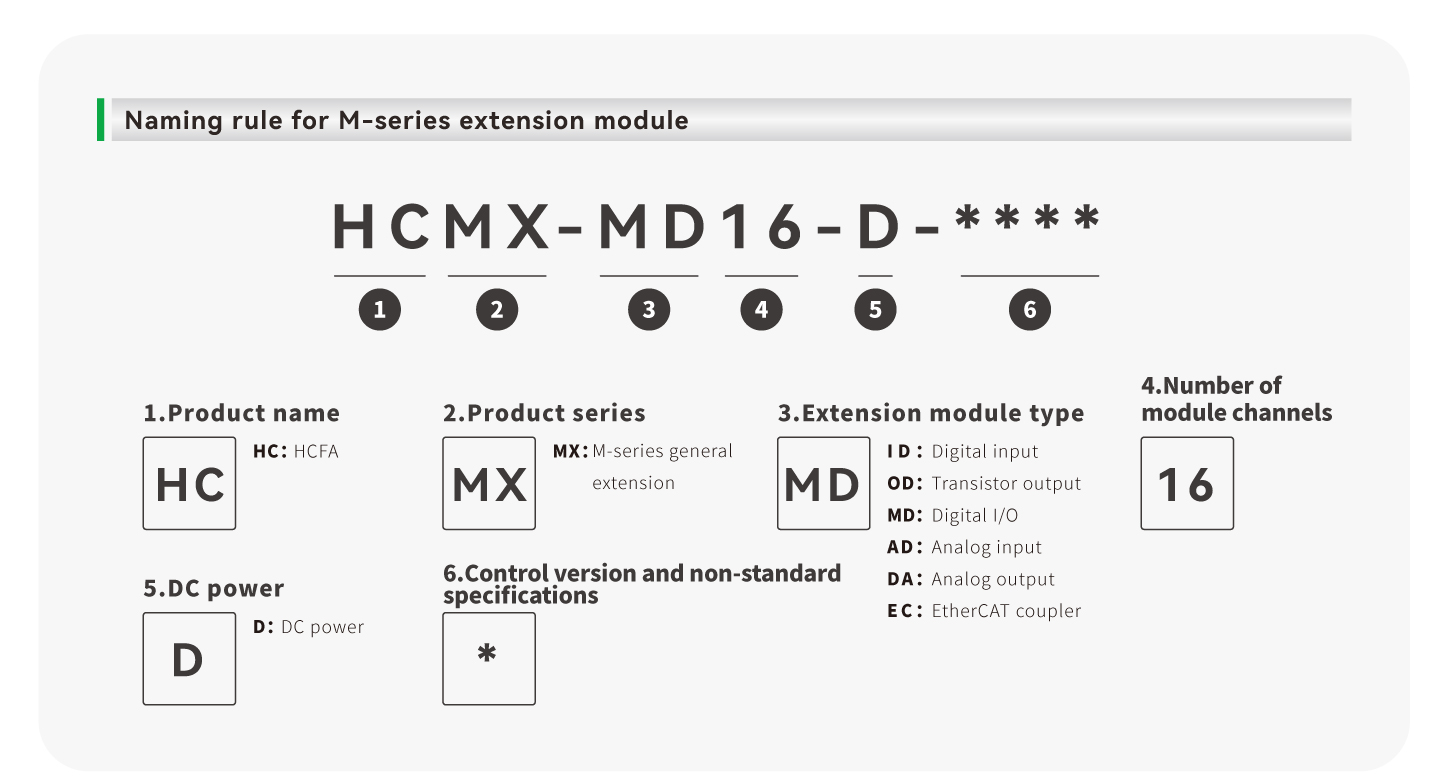

  • Naming

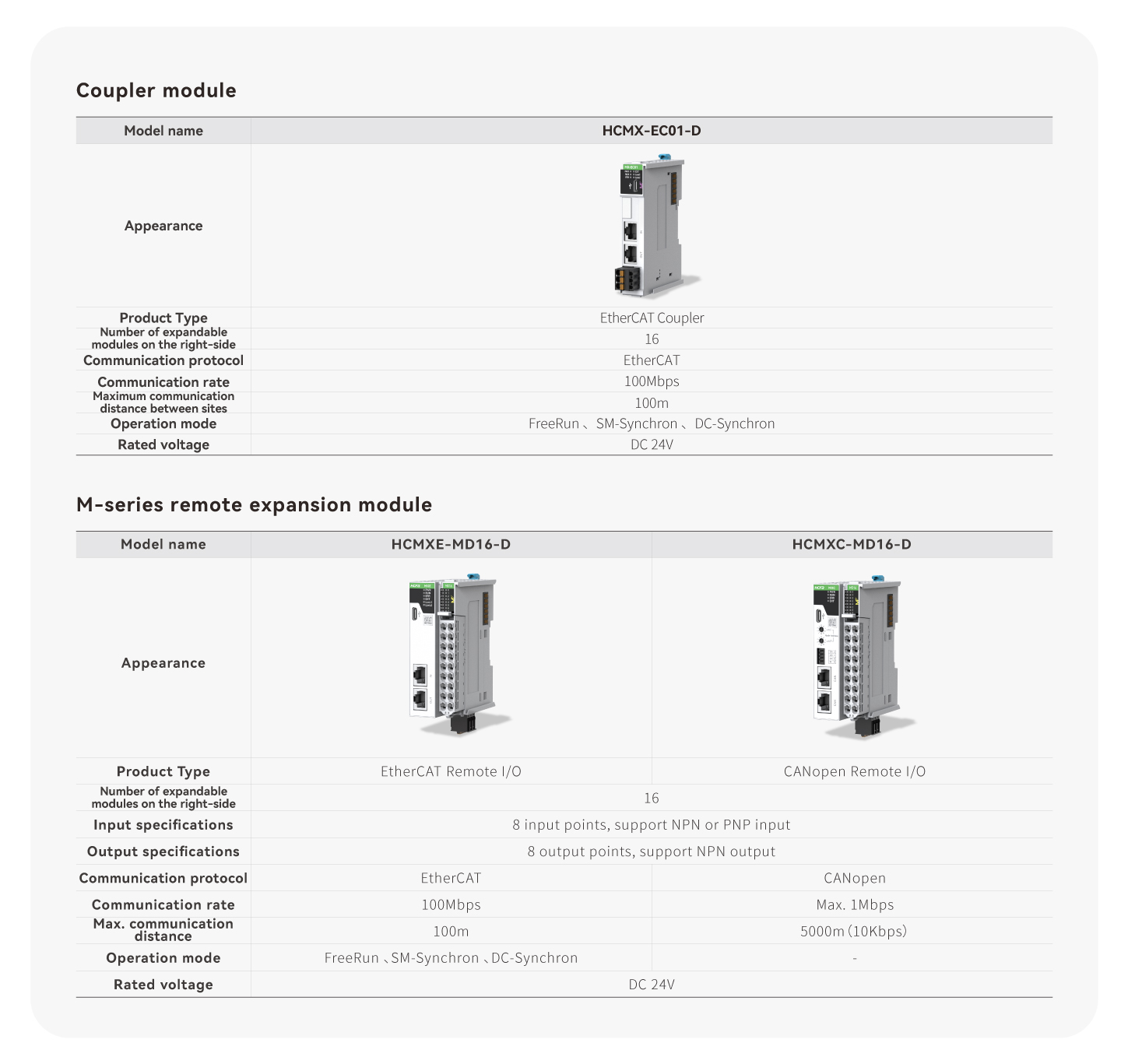

  • Performance

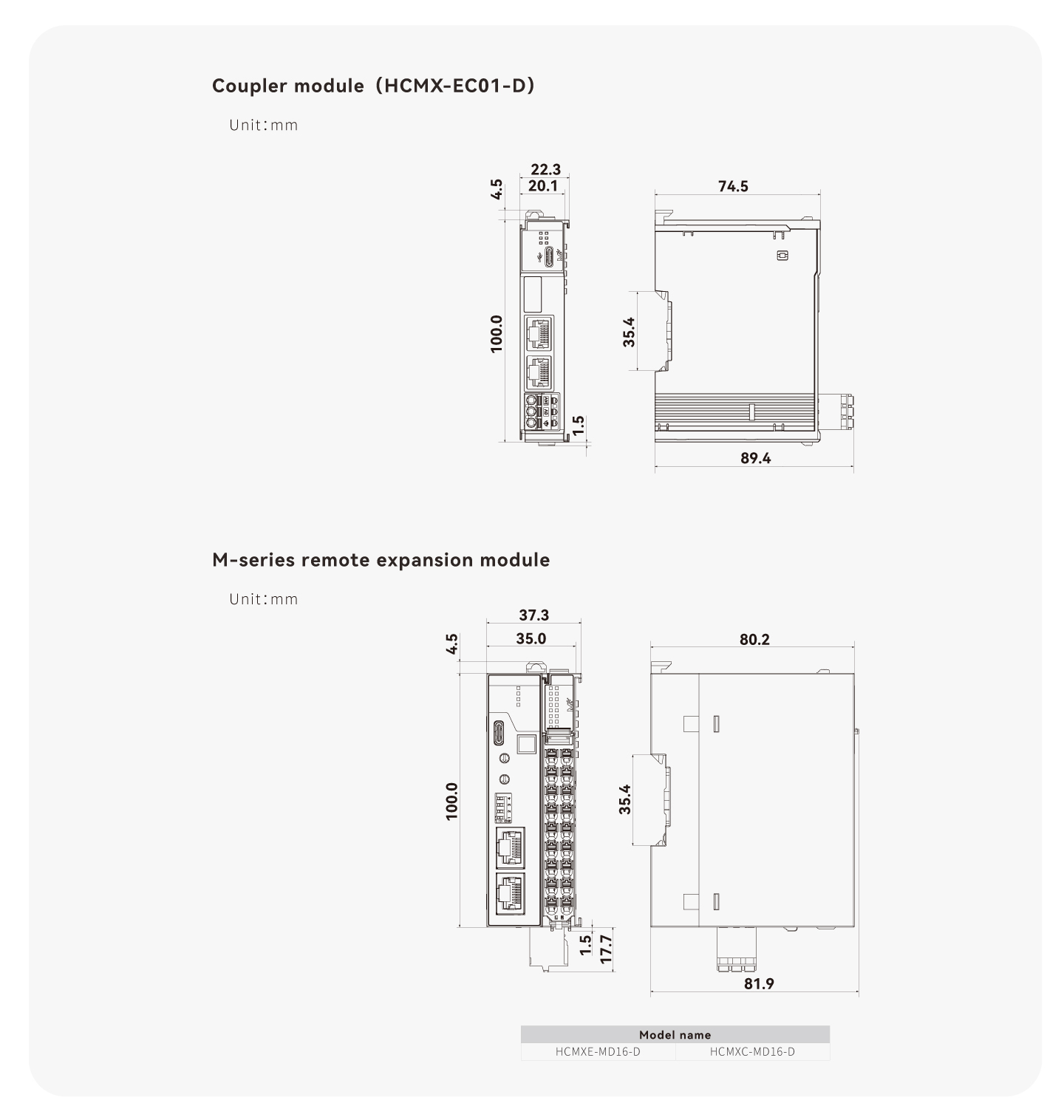

Product size

Data Download

  • Catalog
  • Instruction
  • Manual
  • Drawing
  • Software
  • Others
Download Type Name Updated Operation
Download Type Name Updated Operation
Download Type Name Updated Operation
Manual Hardware Manual for HCMXP-MD16-D Module V1.0 2025.04.25 Download
Manual Hardware Manual for HCMX-EC01-D Module V1.0 2025.04.25 Download
