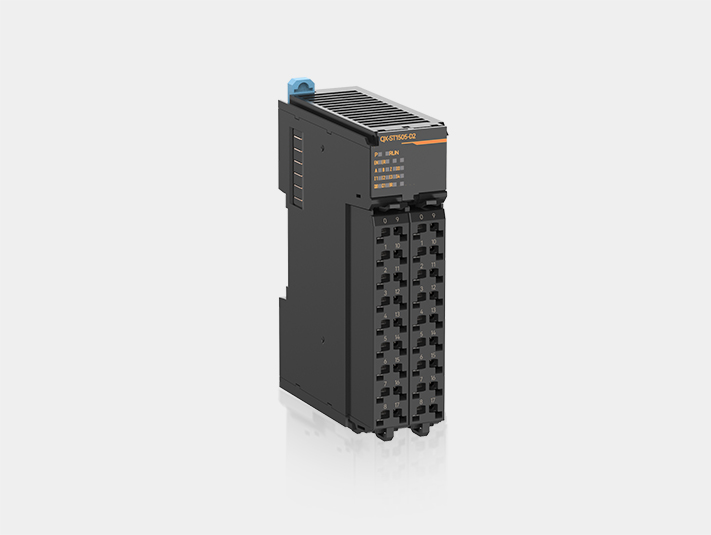

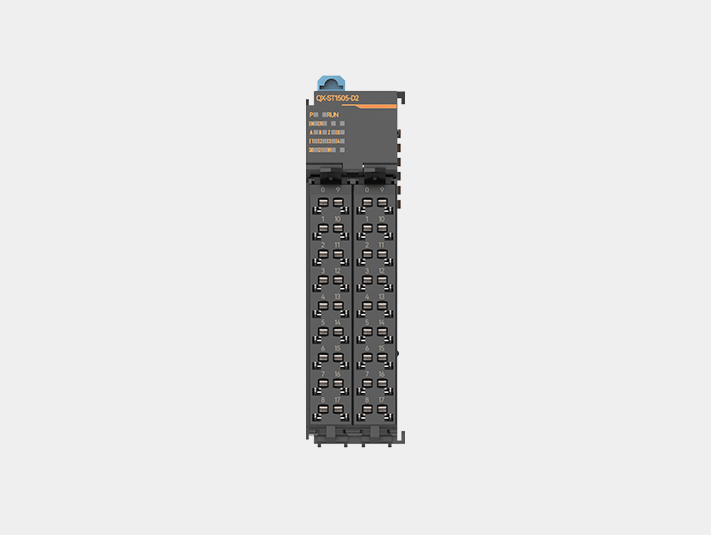

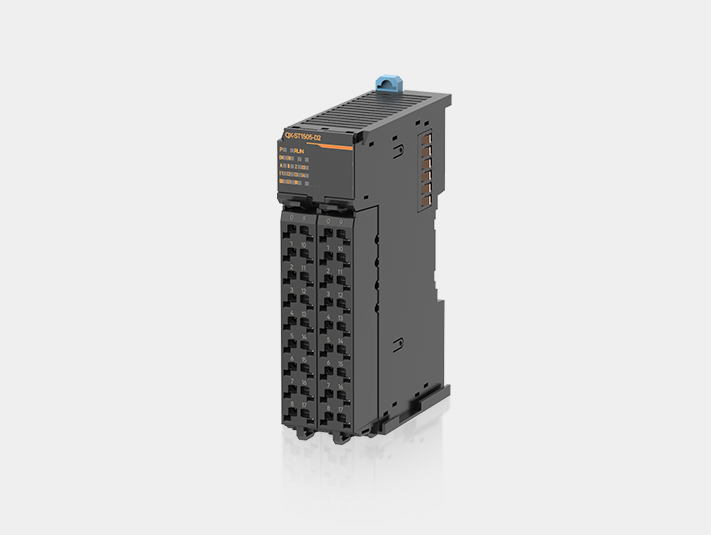

step driver
Product series: Q series remote expansion module
Module type: stepper driver module
Number of channels: single axis
Motor control mode: PP, PV, CSP, Homing
Maximum output current: max. not more than 5A (peak)
Input supply voltage: 20/50V
Product Features

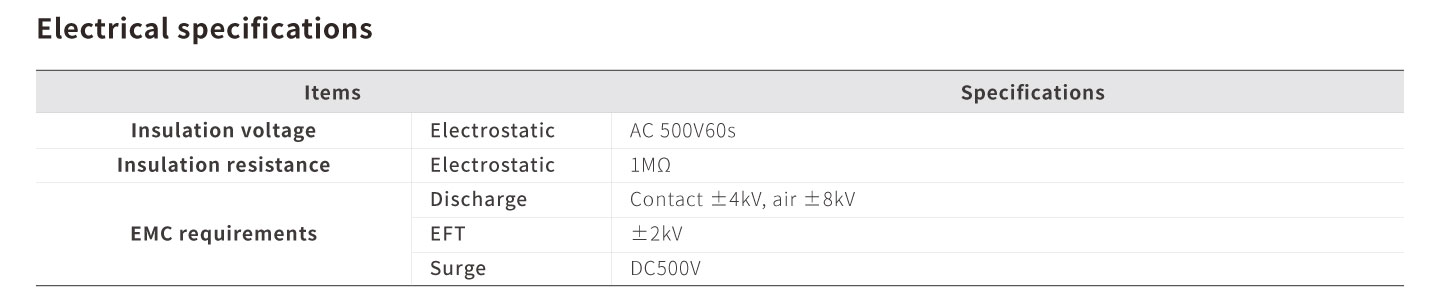

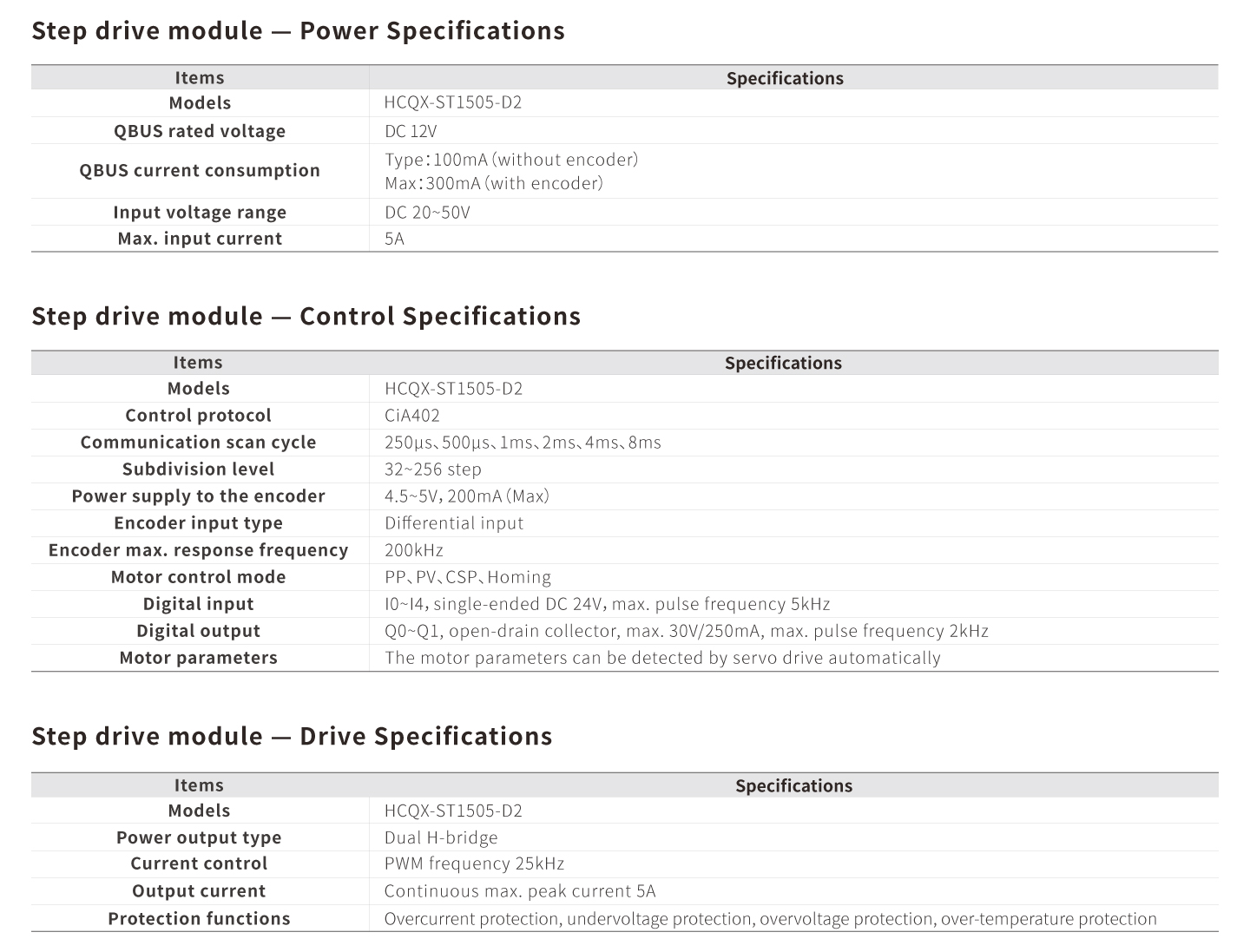

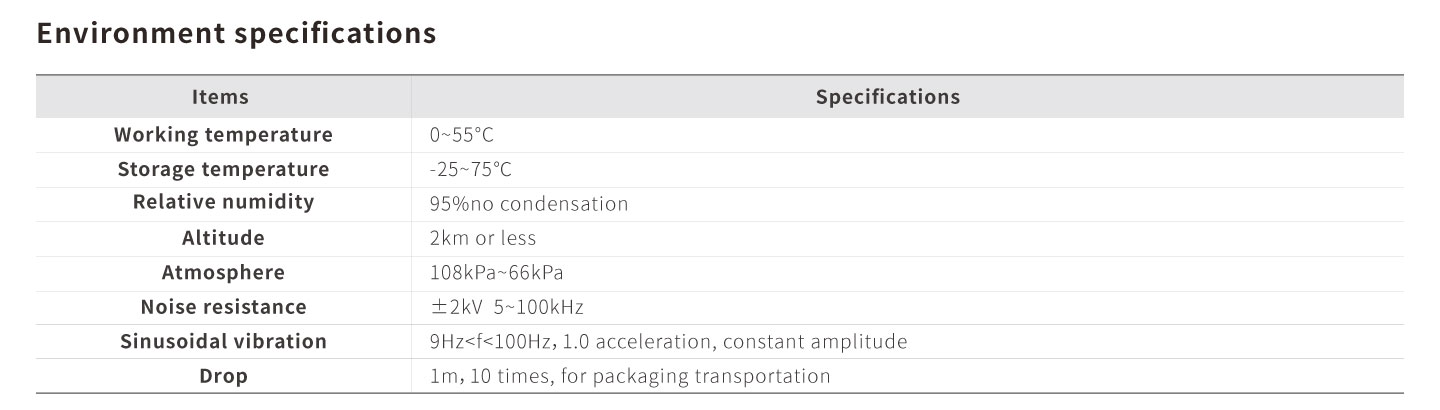

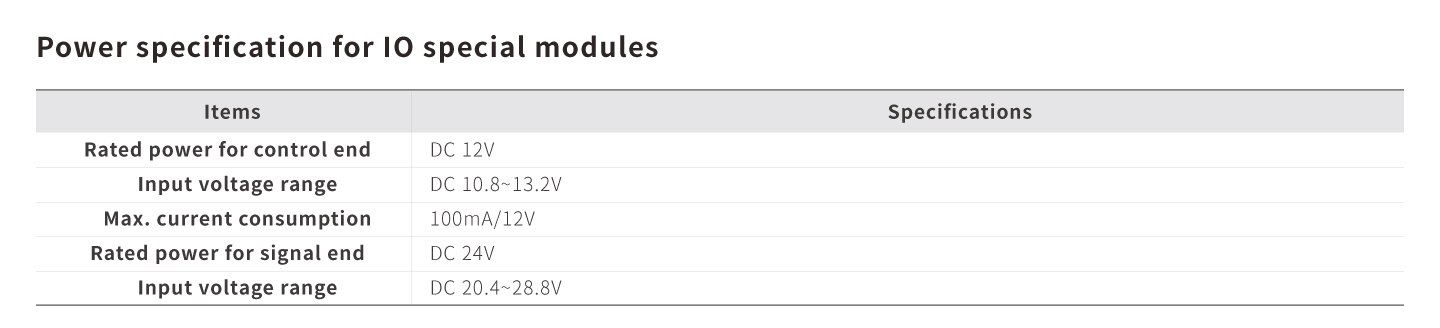

Product Specifications

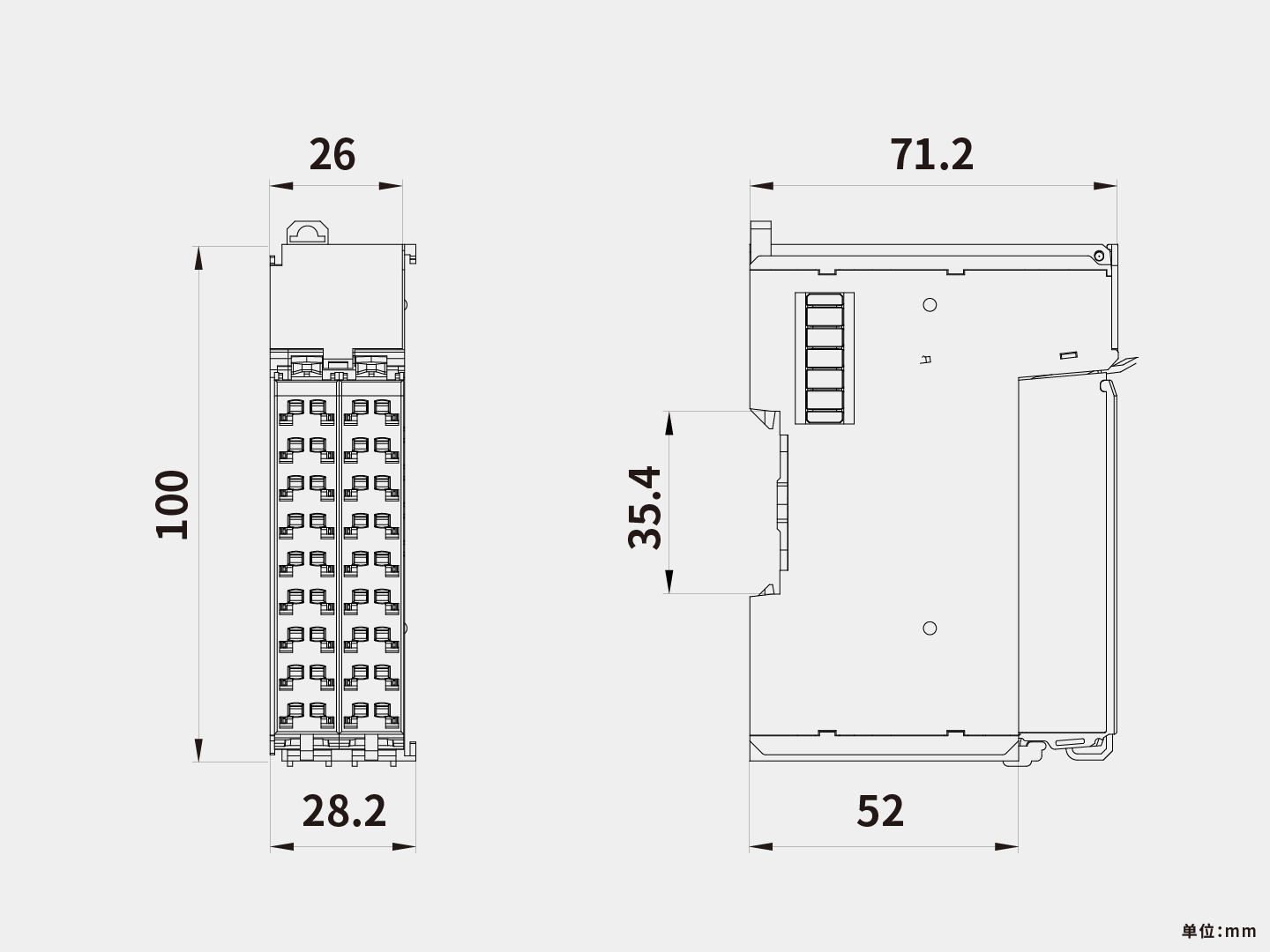

Product Size
Data Download
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Catalog | Control Products Catalog 2023.6-V1.0(EN) | 2024.03.07 | Download |
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Manual | HCQX Series Extension Module HW INS V3.1(EN) | 2022.06.07 | Download |
| Download Type | Name | Updated | Operation |
|---|
| Download Type | Name | Updated | Operation |
|---|
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Description file | Q series and extension modules | 2023.09.01 | Download |
