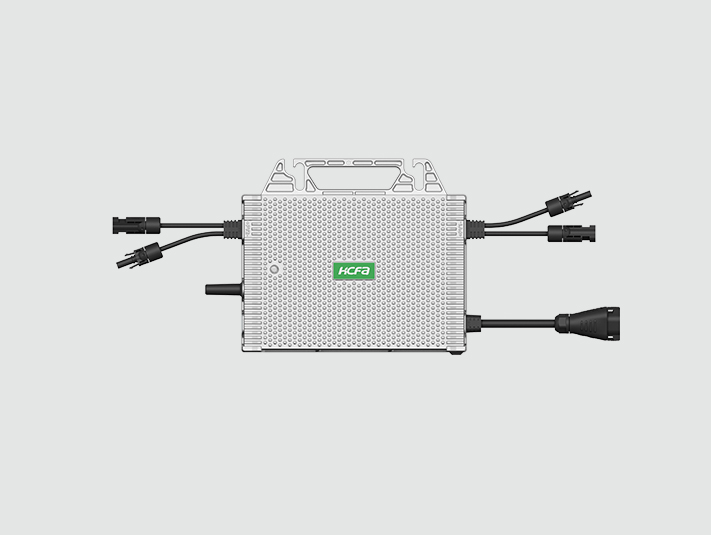

EQ3-series Microinverter

Product series:EQ3 Microinverter
EQ3 series Microinverters are single-phase output inverter, which include: one channel input, two channels input and four channels input.

Power coverage:

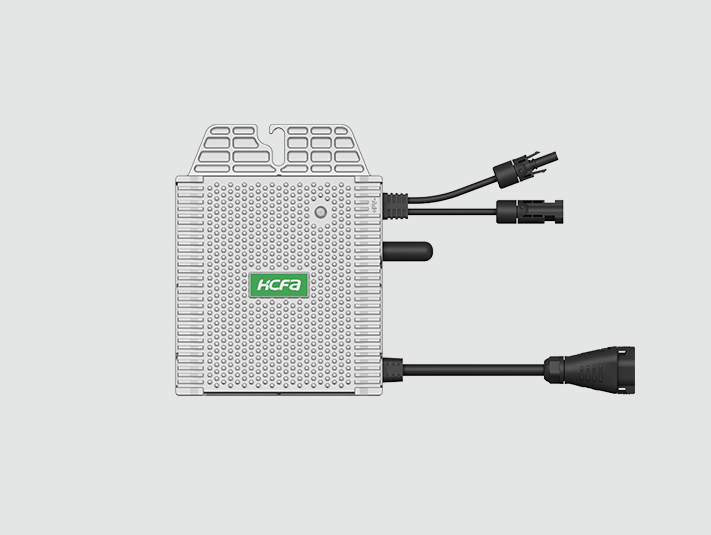

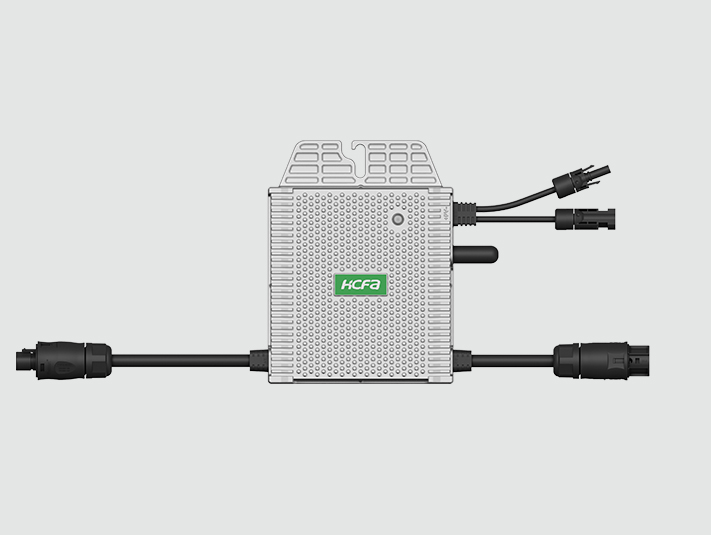

EQ3-IN1:350VA;  400VA;   450VA;   500VA

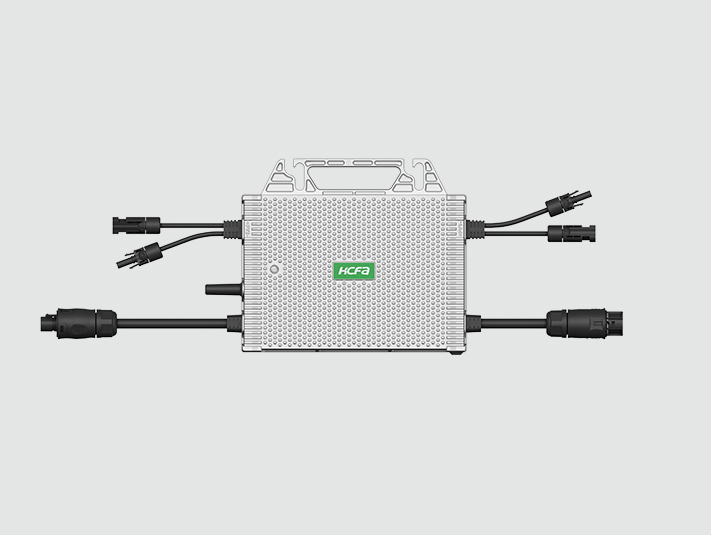

EQ3-IN2:700VA;800VA;   900VA;  1000VA

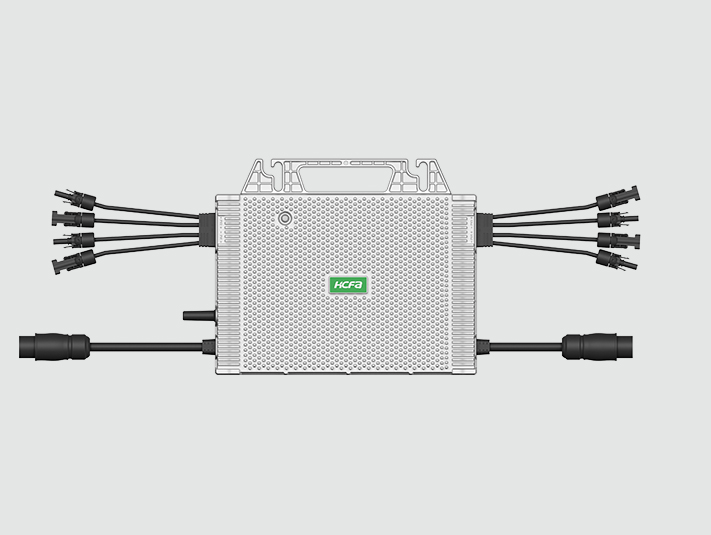

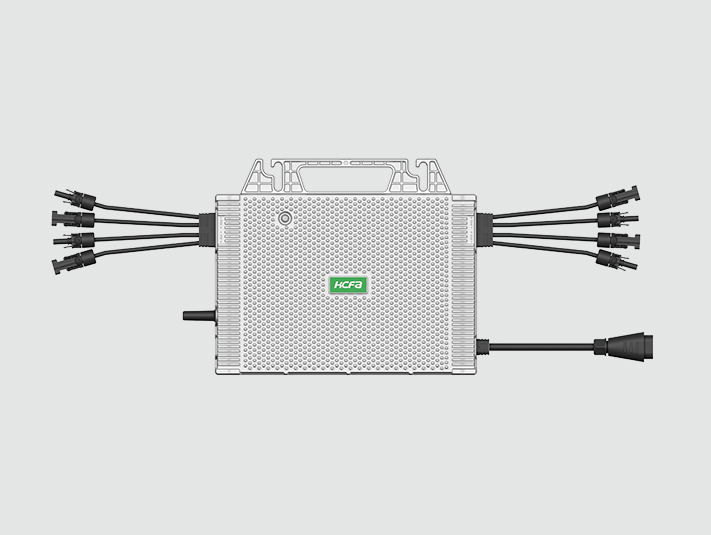

EQ3-IN4:1400VA; 1600VA; 1800VA; 2000VA

Product Features

  • Safe

    Input DC voltage less than 60V, to avoid the risk of DC high-voltage arcing fire, built-in relay, can achieve physical disconnection with multiple grounding protection for better protection of your safety.

  • Efficient

    Superior conversion efficiency-peak conversion efficiencies can up to 96.5%; MPPT conversion efficiencies can up to 99.8%.

  • Intelligent

    The use of WIFI communication to provide string-level monitoring which can be concerned about each piece of component power generation at the same time; Supporting remote upgrading and maintenance.

  • Concise

    Compact and concise appearance design; smaller volume is more convenient for mounting.

  • Reliable

    Totally sealed, fanless, natural cooling method; IP67 protection.

  • Stable

    Continuous and stable operation for more than 12 years, and even up to 25 years without quality problems.

Product Specifications

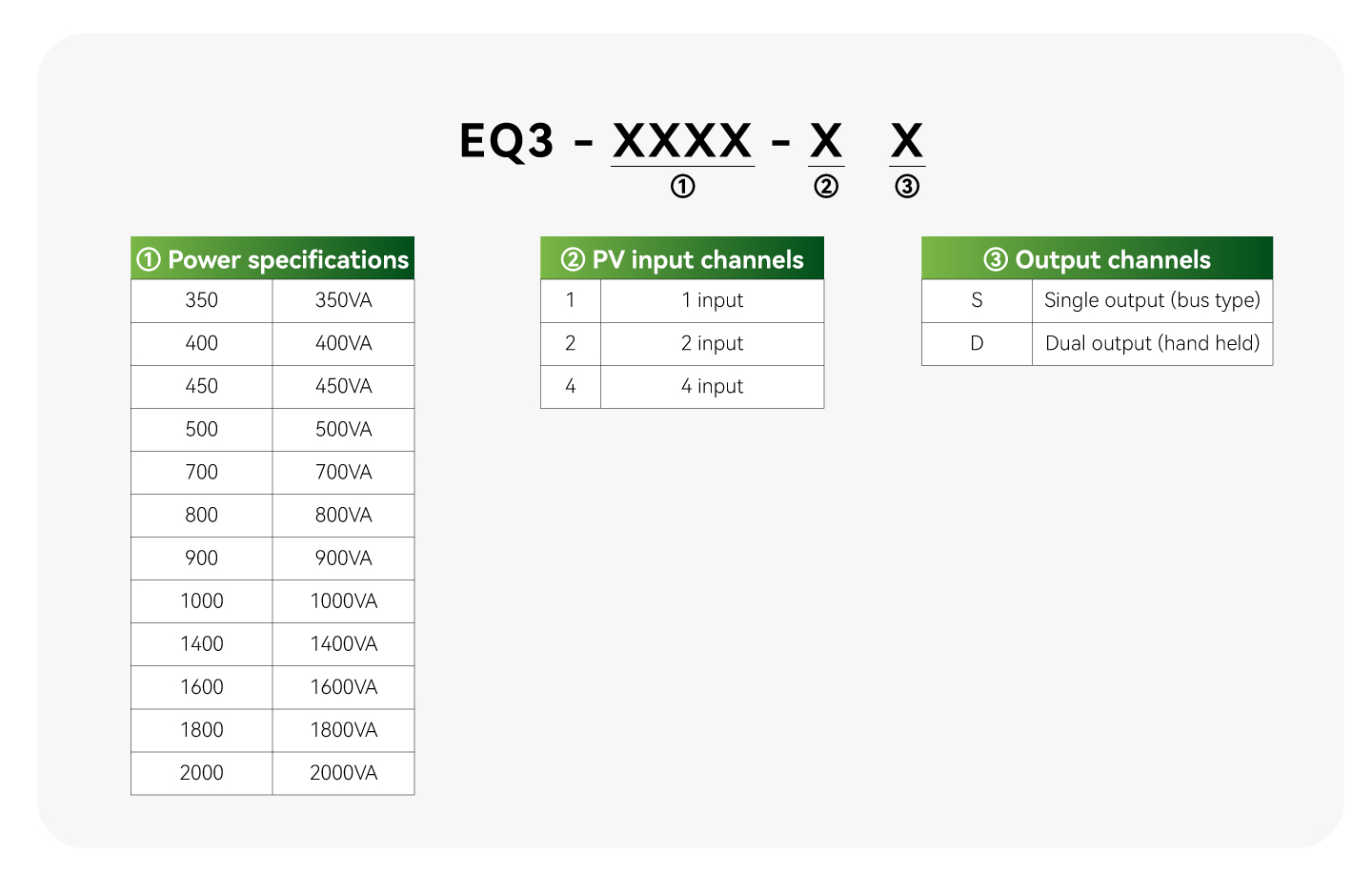

  • NAMING RULE
  • Technical Specifications(350-500W)

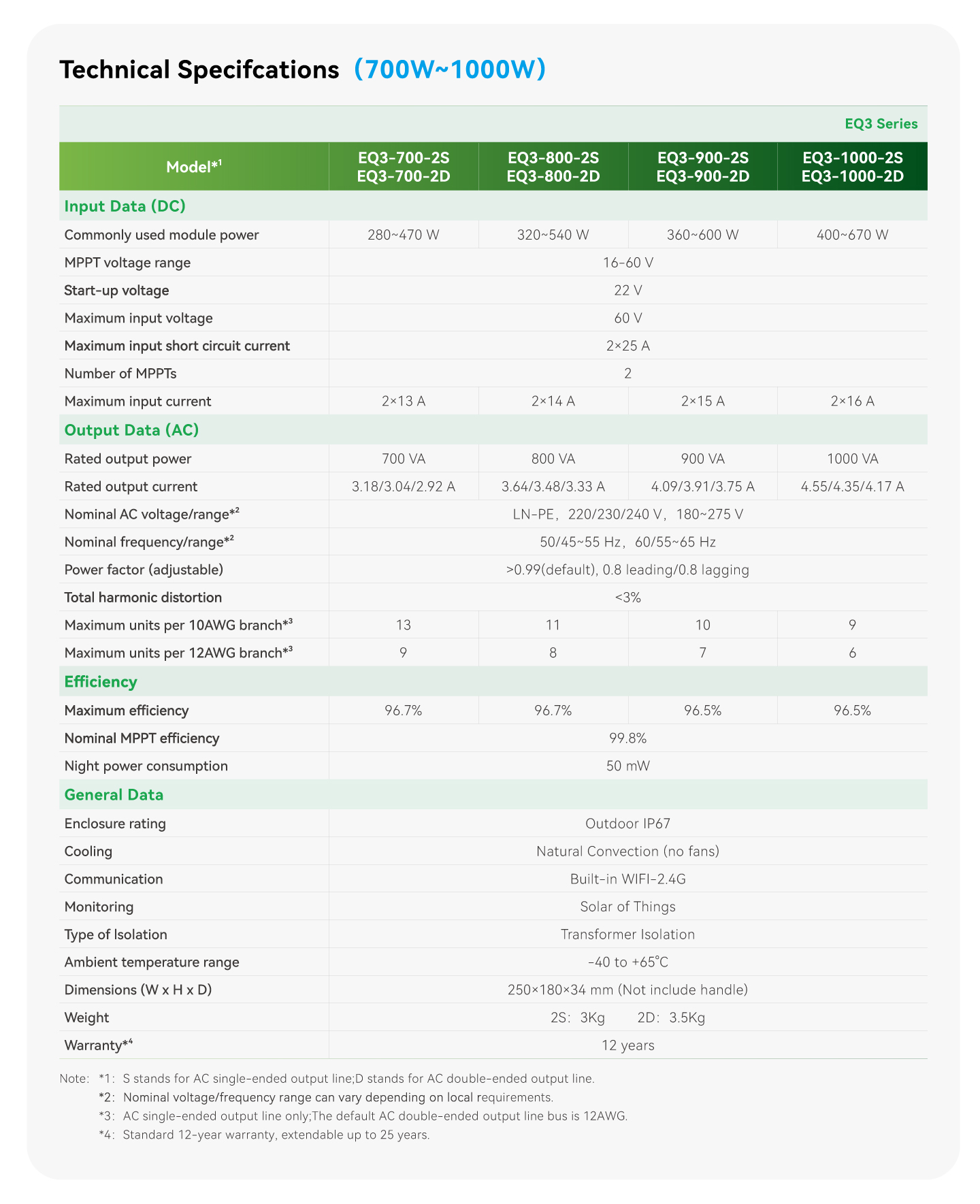

  • Technical Specifications(700-1000W)

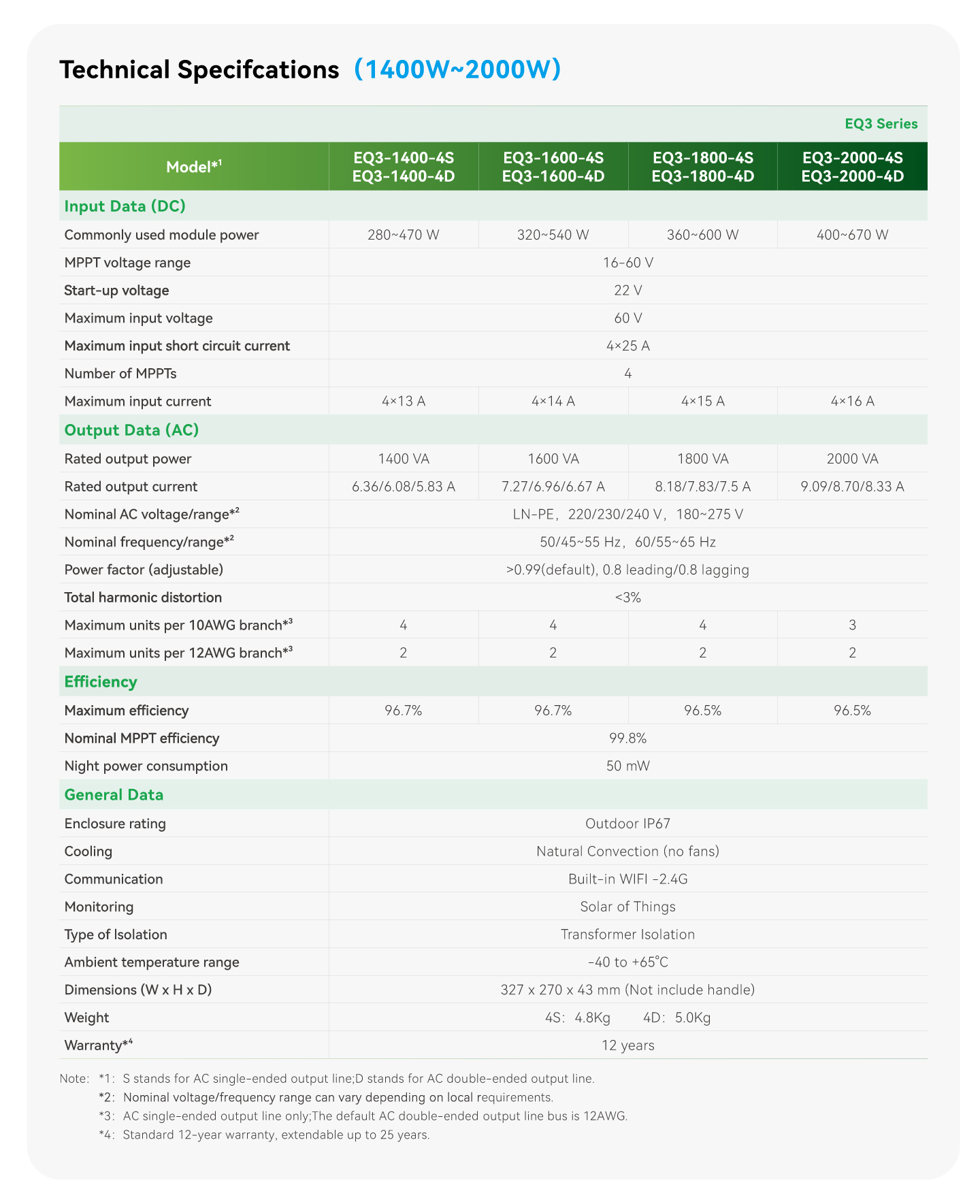

  • Technical Specifications(1400-2000W)



Data Download

  • Catalog
  • Instruction
  • Manual
  • Software
Download Type Name Updated Operation
Catalog EQ3 Series 350-500W(EN) 2024.05.30 Download
Catalog EQ3 Series 700-1000W(EN) 2024.05.30 Download
Catalog EQ3 Series 1400-2000W(EN) 2024.05.30 Download
Download Type Name Updated Operation
Instruction EQ3 Series PV Microinverter instructions(EN) 2024.09.13 Download
Instruction EQ3 Series PV Microinverter installation and use instructions V3.0(EN) 2024.09.13 Download
Download Type Name Updated Operation
Manual HCFA Micro Photovoltaic Inverter Mobile APP User Manual(EN) 2024.11.06 Download
Manual HCFA Micro Photovoltaic Inverter Mobile APP Dealer Manual(EN) 2024.11.06 Download
Download Type Name Updated Operation
HC Solar APP iOS APP(EN) 2024.11.06 Download
HC Solar APP Android APP(EN) 2024.11.06 Download
