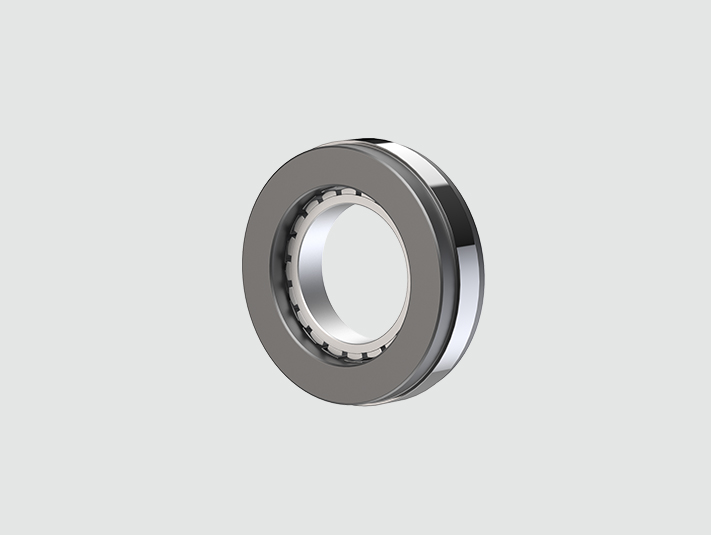

Hu-MDB Series

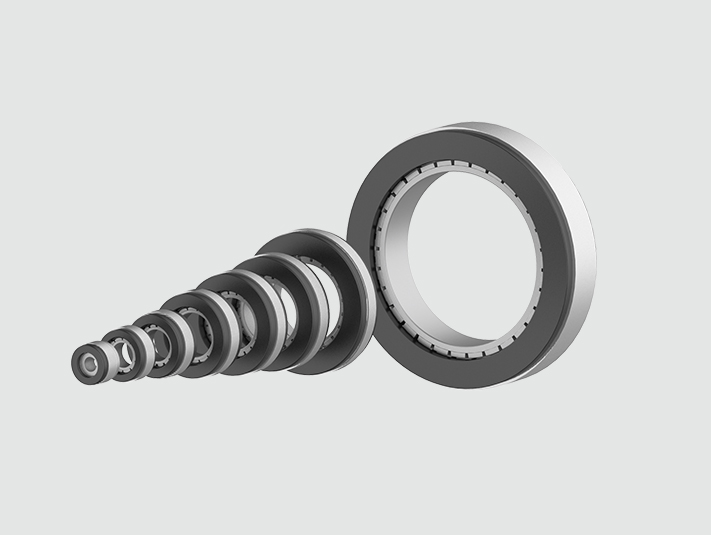

The Hu MDB series is designed specifically for high-power motor applications that require small size, light weight, low inertia. The entire series offers a variety of frame sizes ranging from 14mm to 160mm, with rated torque values covering 0.012N. m to 12N. m.

Product Features

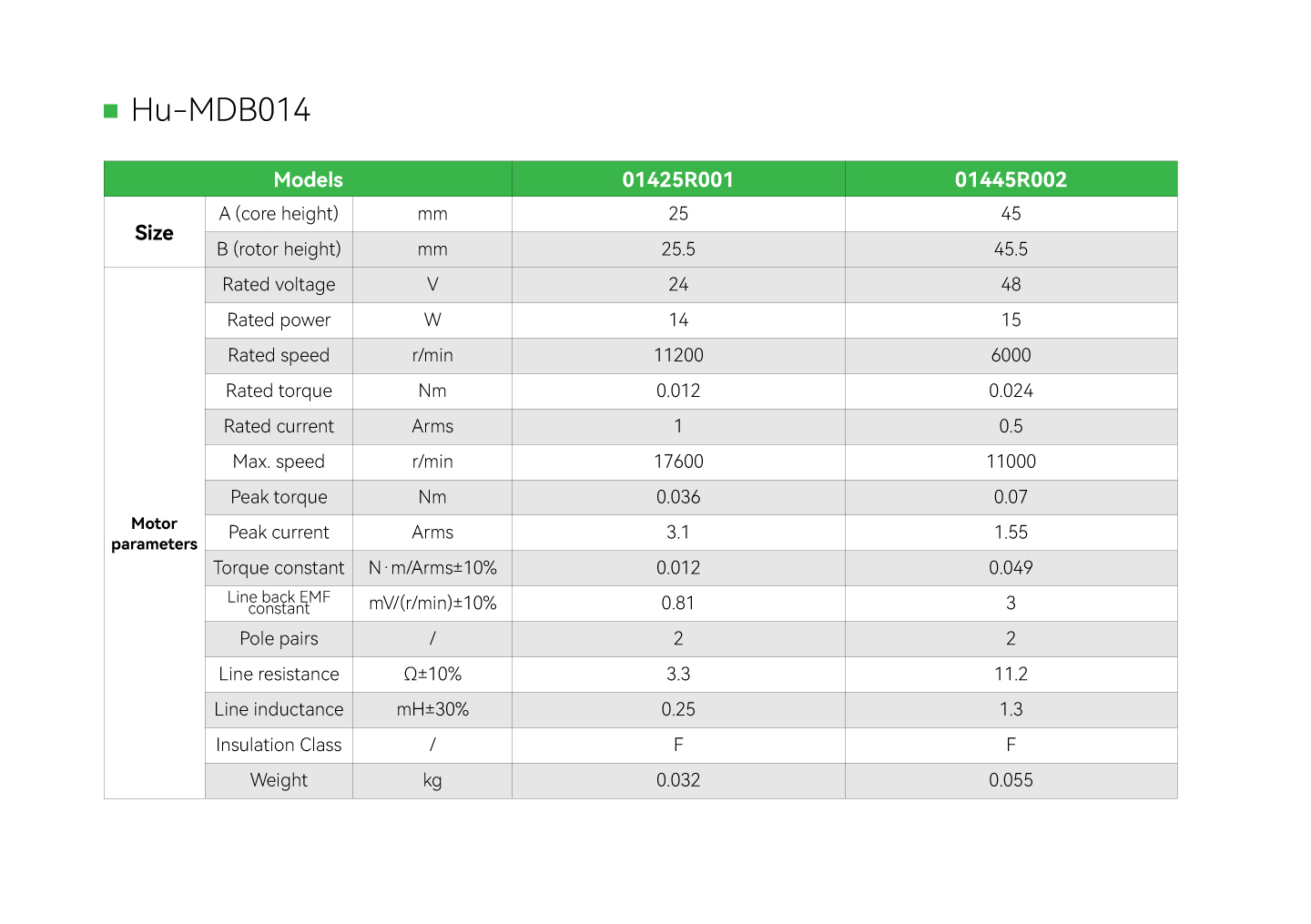

  • Hu-MDB014

    Motor diameter: 14.5mm

    Rated torque: 0.012~0.024N m

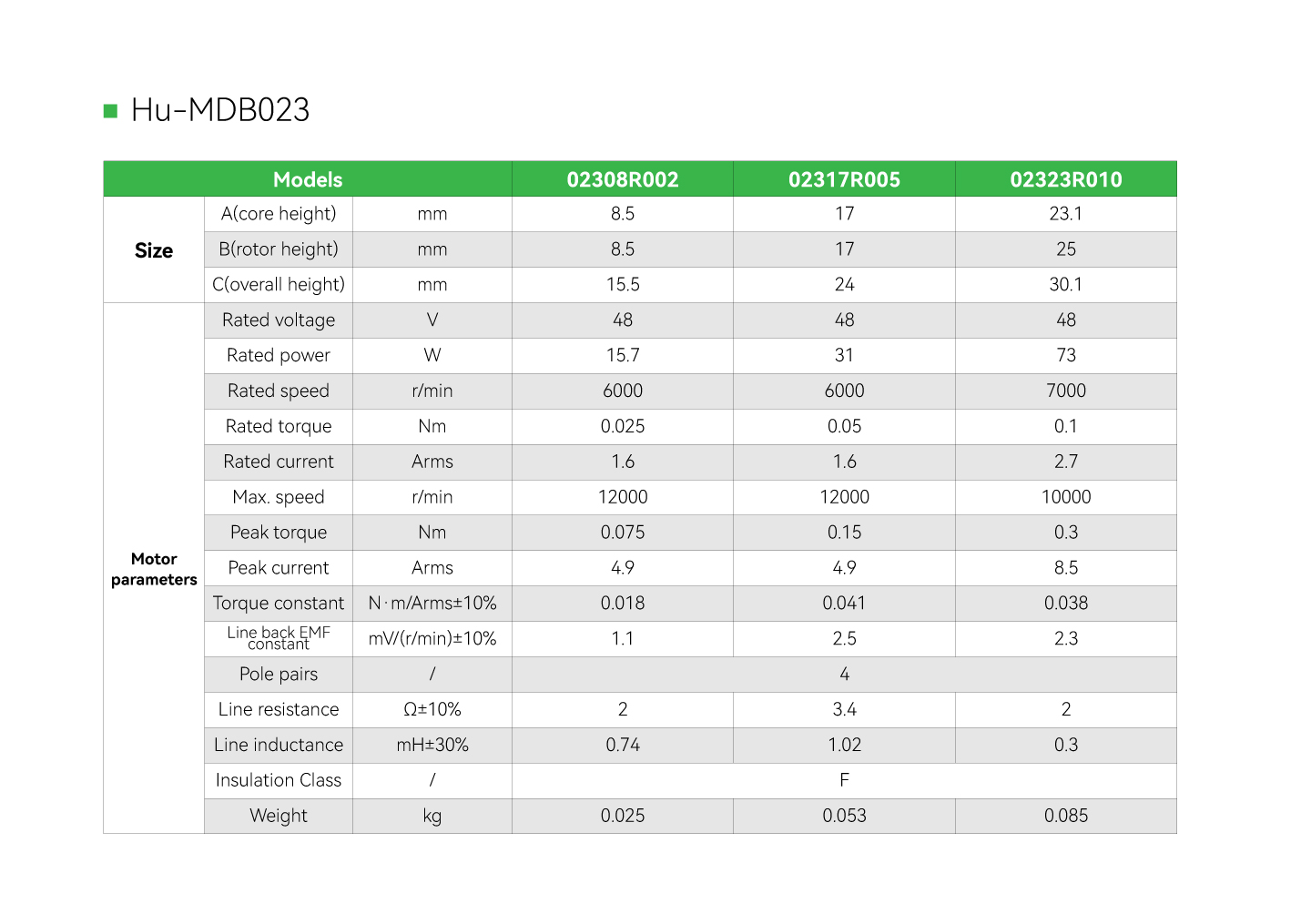

  • Hu-MDB023

    Motor diameter: 23.5mm

    Rated torque: 0.025~0.1N m

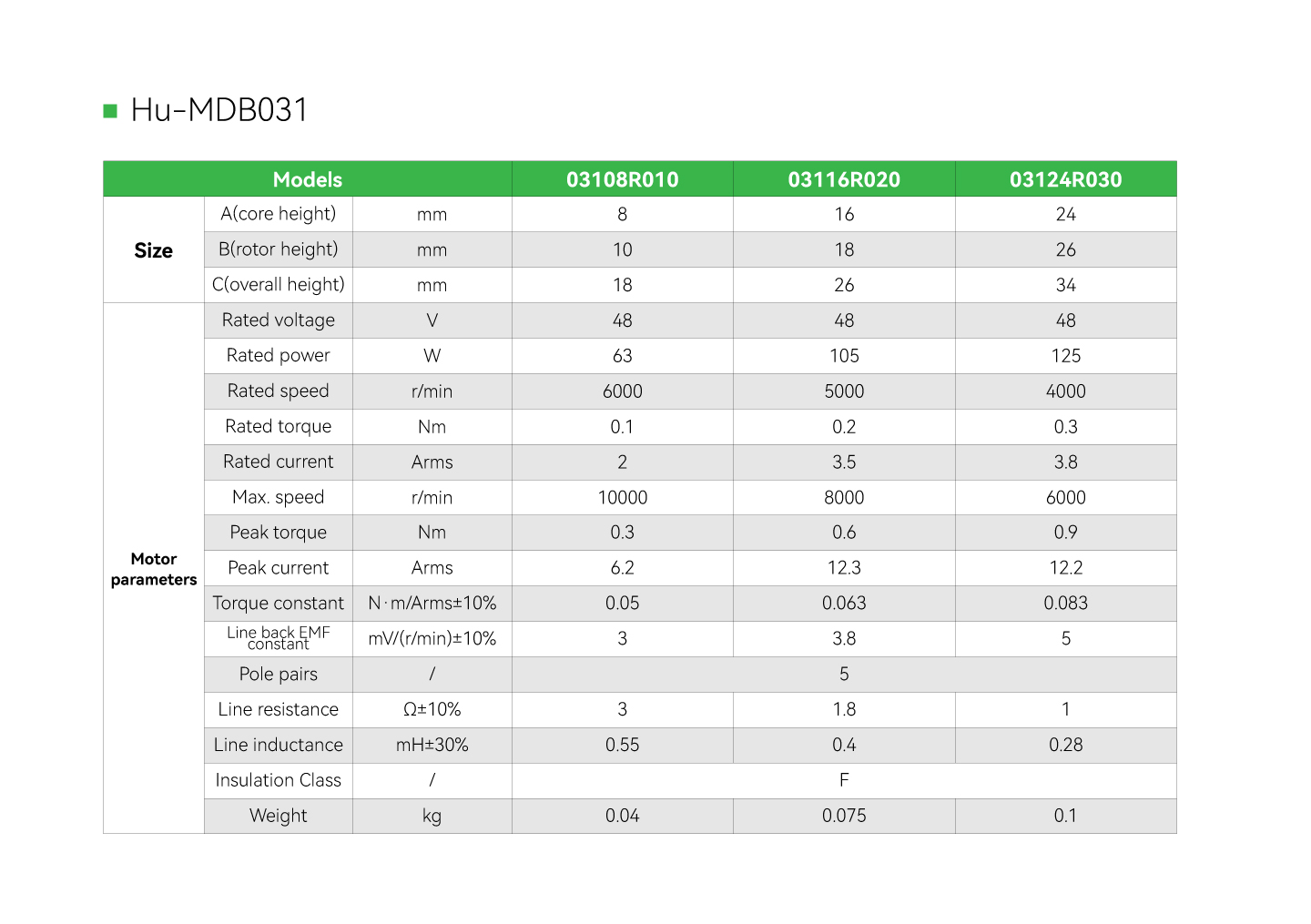

  • Hu-MDB031

    Motor diameter: 31mm

    Rated torque: 0.1~0.3N m

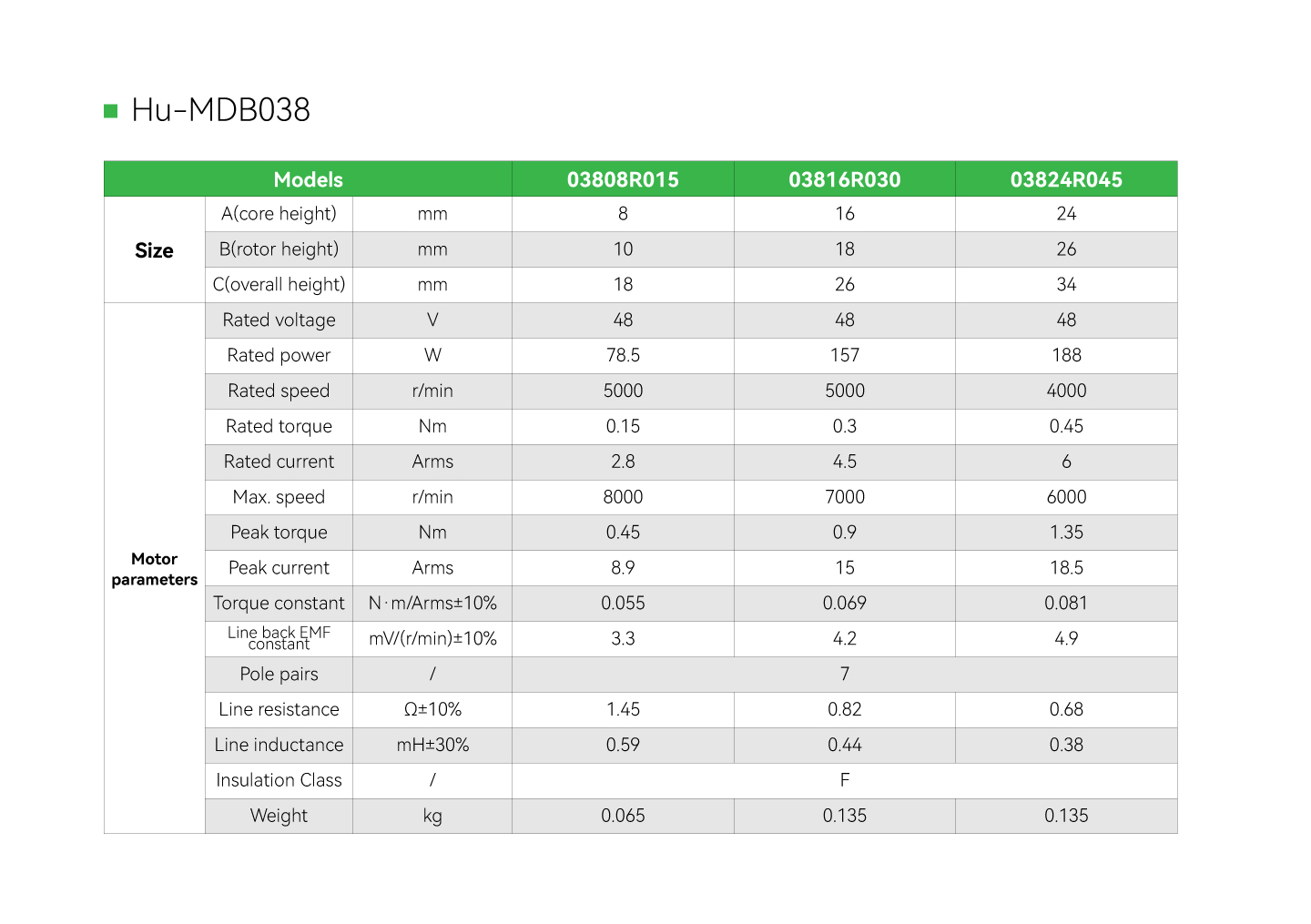

  • Hu-MDB038

    Motor diameter: 38mm

    Rated torque: 0.15~0.35N m

  • Hu-MDB050

    Motor diameter: 50mm

    Rated torque: 0.3~0.9N m

  • Hu-MDB060

    Motor diameter: 60mm

    Rated torque: 0.4~1.2N. m

  • Hu-MDB068

    Motor diameter: 68mm

    Rated torque: 0.6~1.8N m

  • Hu-MDB085

    Motor diameter: 85mm

    Rated torque: 0.9~2.7N m

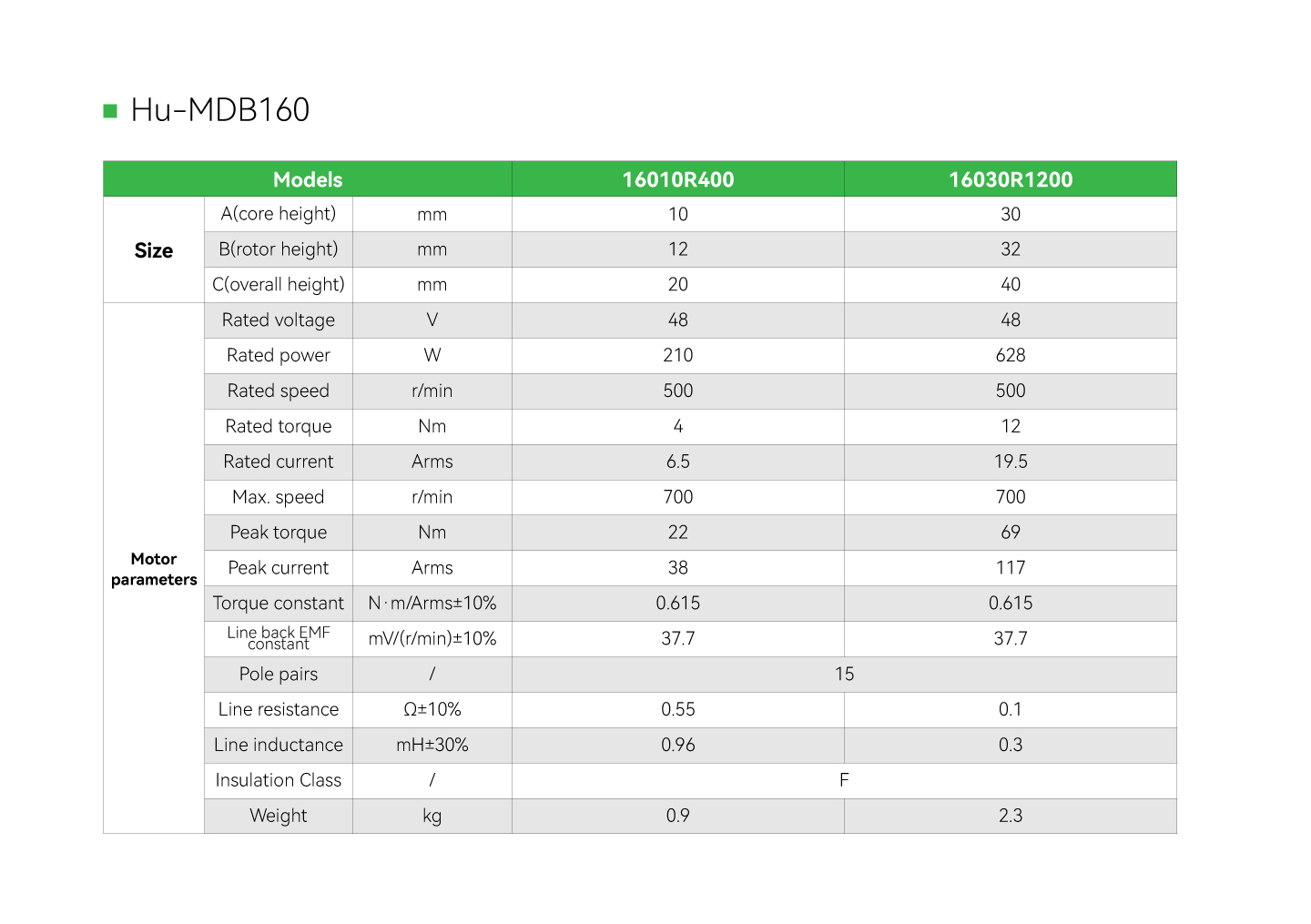

  • Hu-MDB160

    Motor diameter: 160mm

    Rated torque: 4-12N. m

Product Specifications

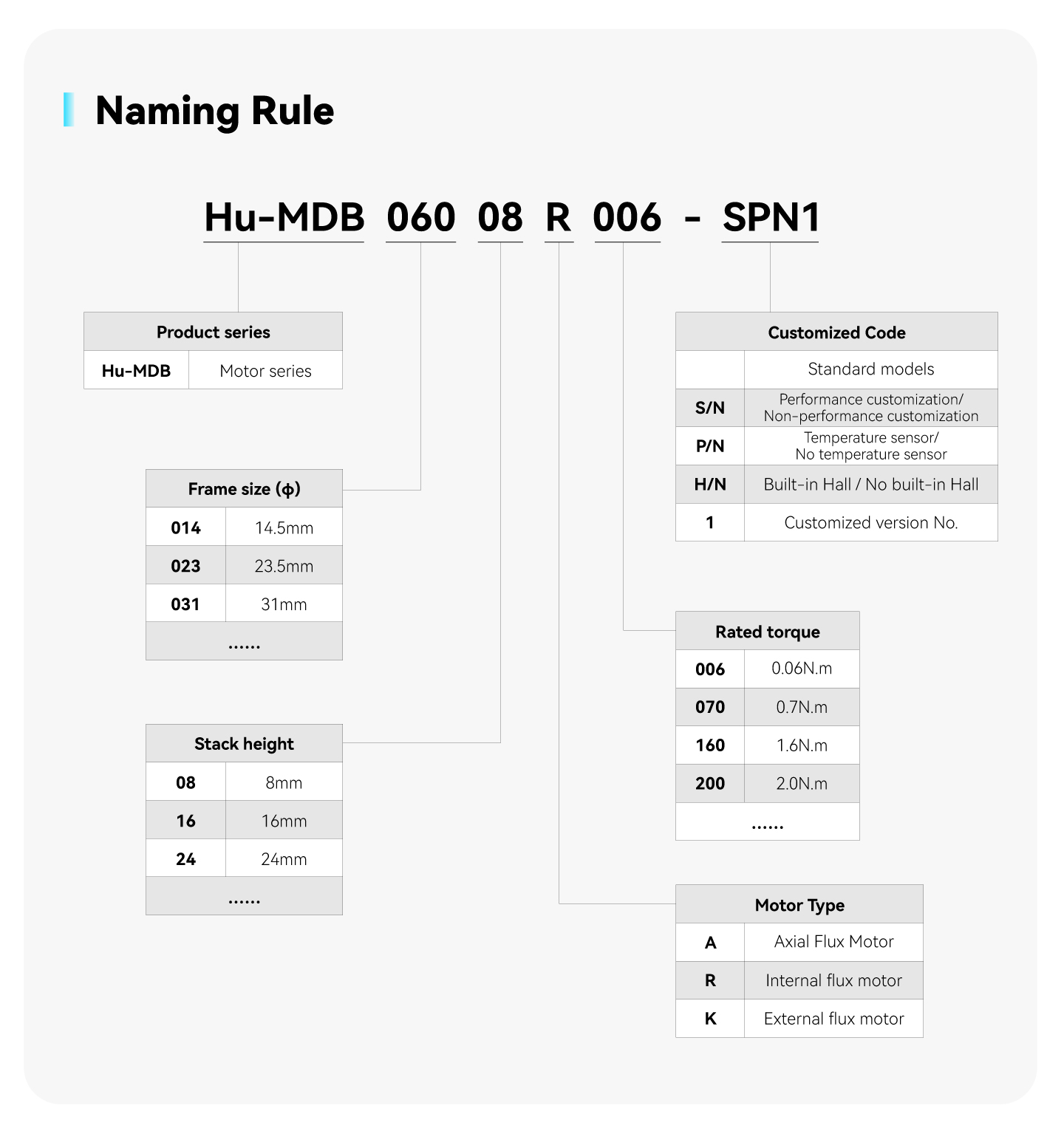

  • Naming rules
  • Specification parameters

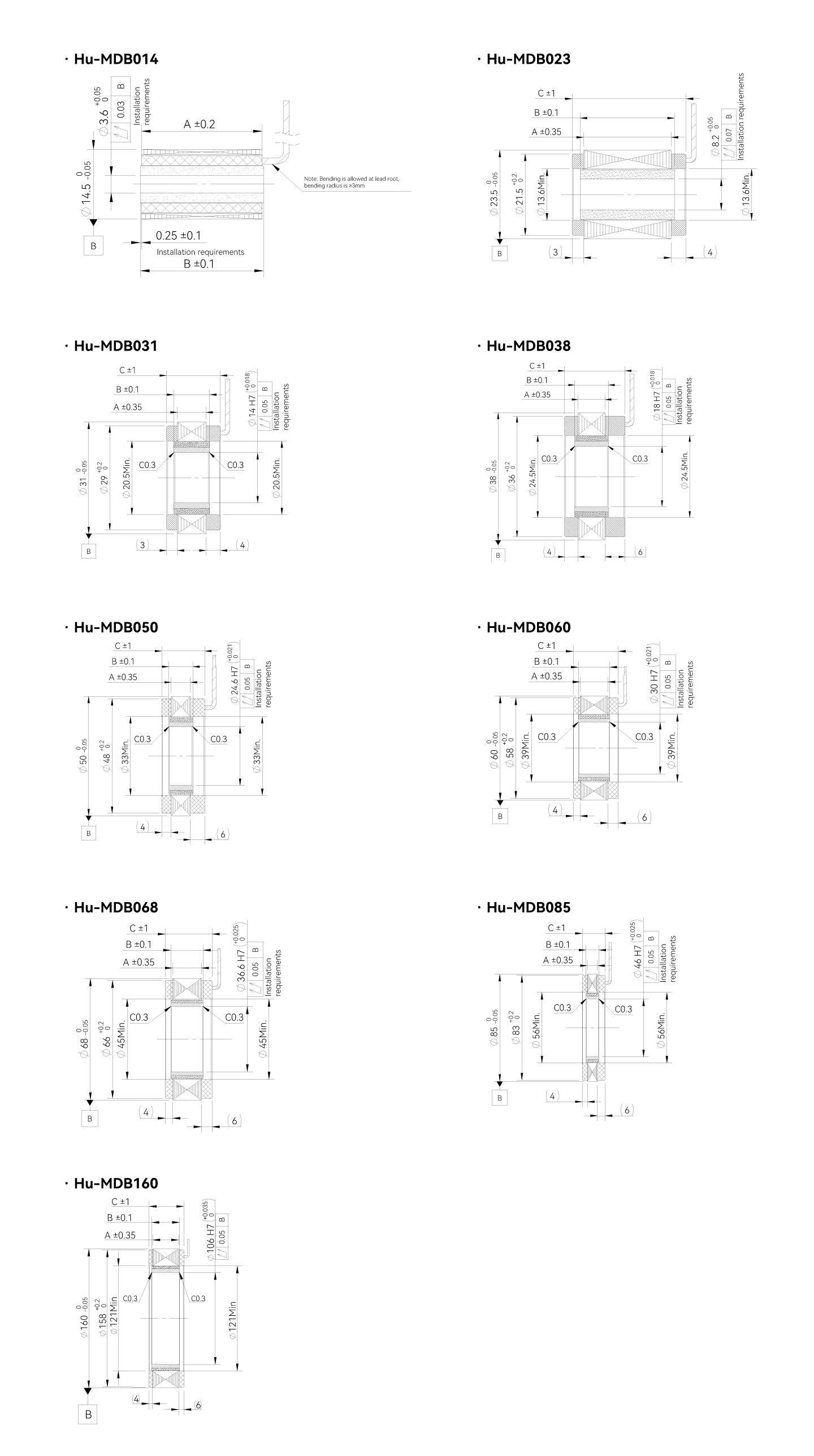

Product size

Data Download

  • Catalog
  • Instruction
  • Manual
  • Software
Download Type Name Updated Operation
Catalog Frameless Torque Motor Catalog 2024.5 V1.0(EN) 2024.12.06 Download
