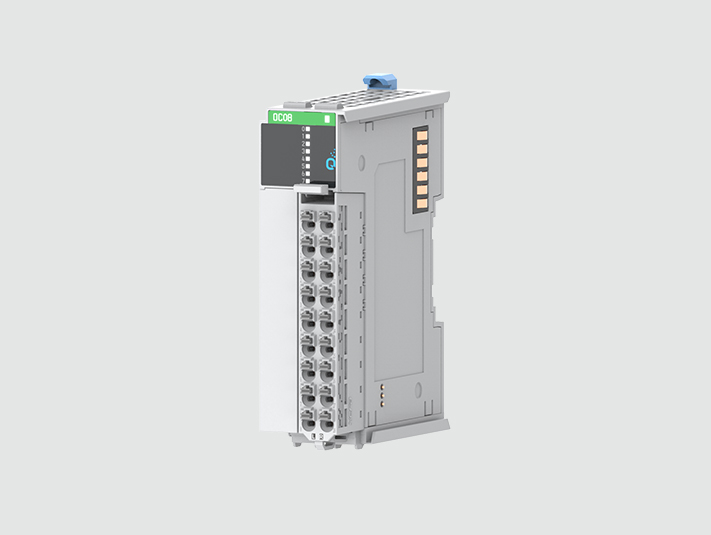

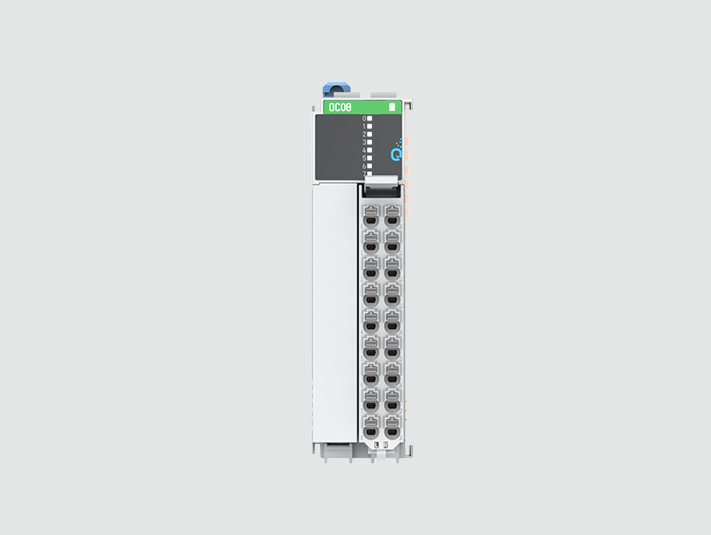

Relay output module

Product Series: QX-D4 Series New Generation Extended IO
Module type: Relay output module
Output points: 8
Output form: Relay output
Module model: HCQX-OC08-D4

Product Features

  • Load specifications

    Inductive load: 48W/channel, 384W/module

    Lamp load: 6W/channel, 48W/module

  • Lightweight size

    13mm slim and light size, easy to handle small usage environments

  • Efficient assembly

    Removable terminals, direct replacement of terminals without dismantling wiring

    PUSH IN tool free direct insertion wiring

  • Stable, reliable, reassuring and easy to use

    Detailed fault diagnosis, quick positioning and analysis of problem causes

    To ensure the safe operation of the equipment, when disconnecting from the master station, users can choose whether to maintain the output data of the expansion module

Product Specifications

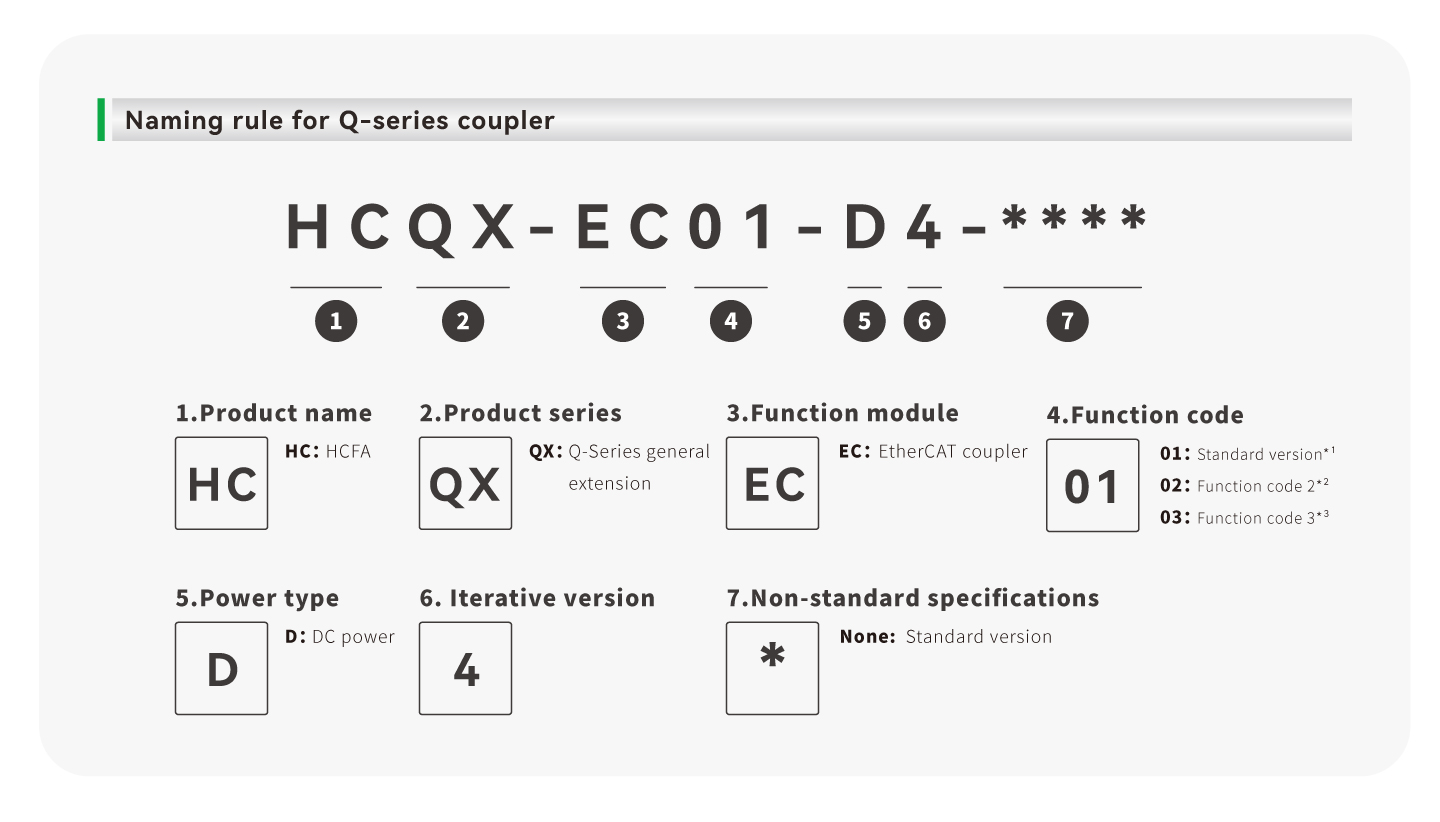

  • Naming

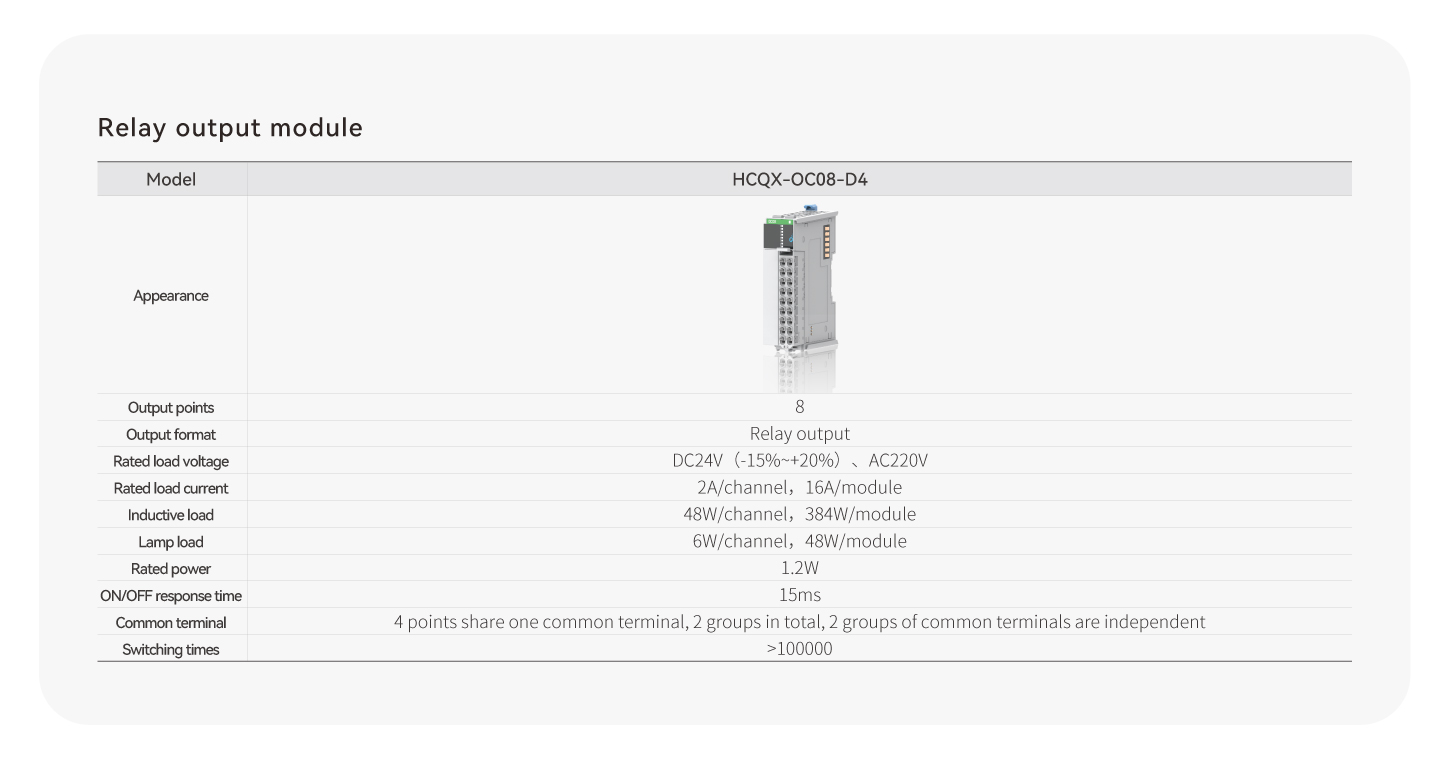

  • Performance

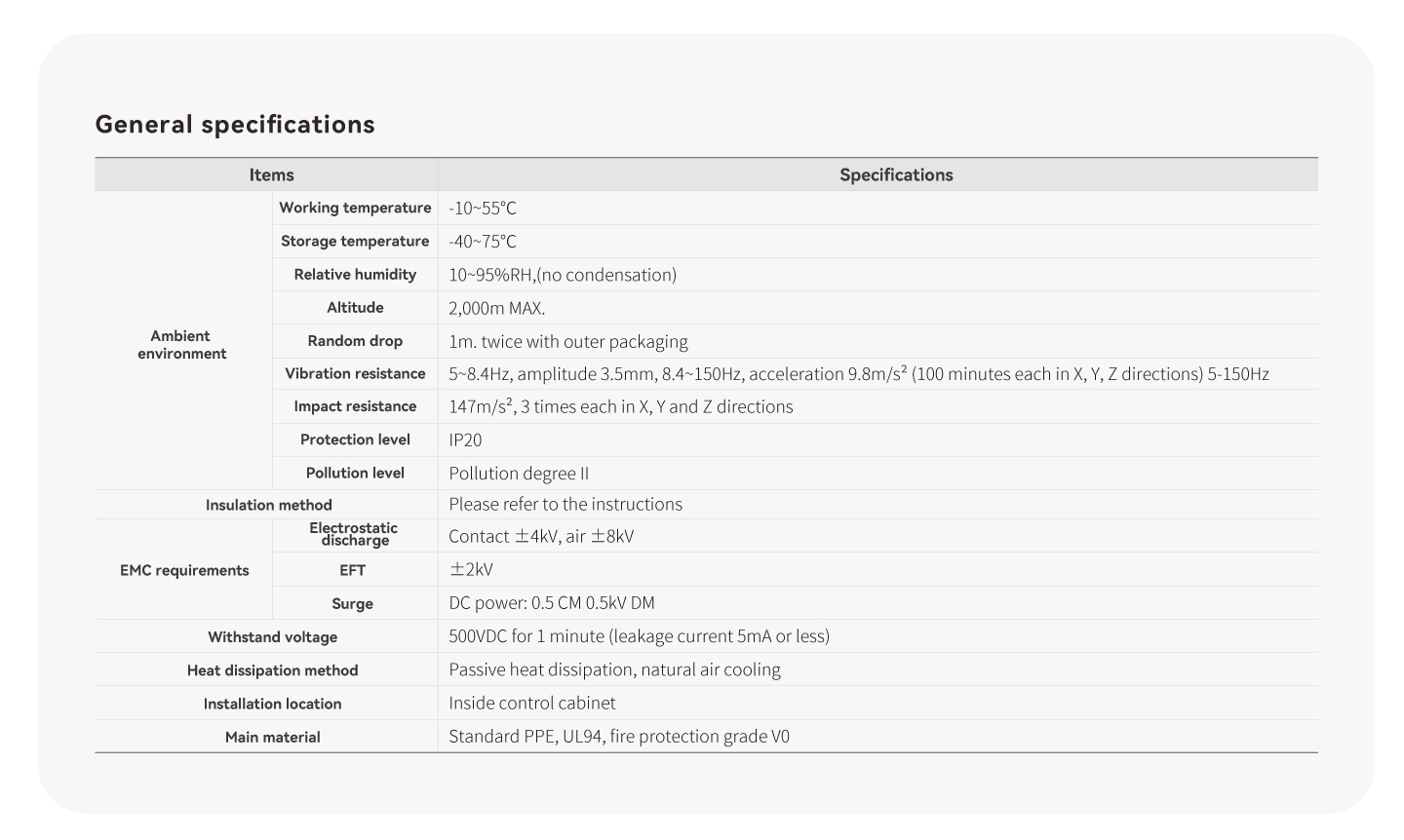

  • General

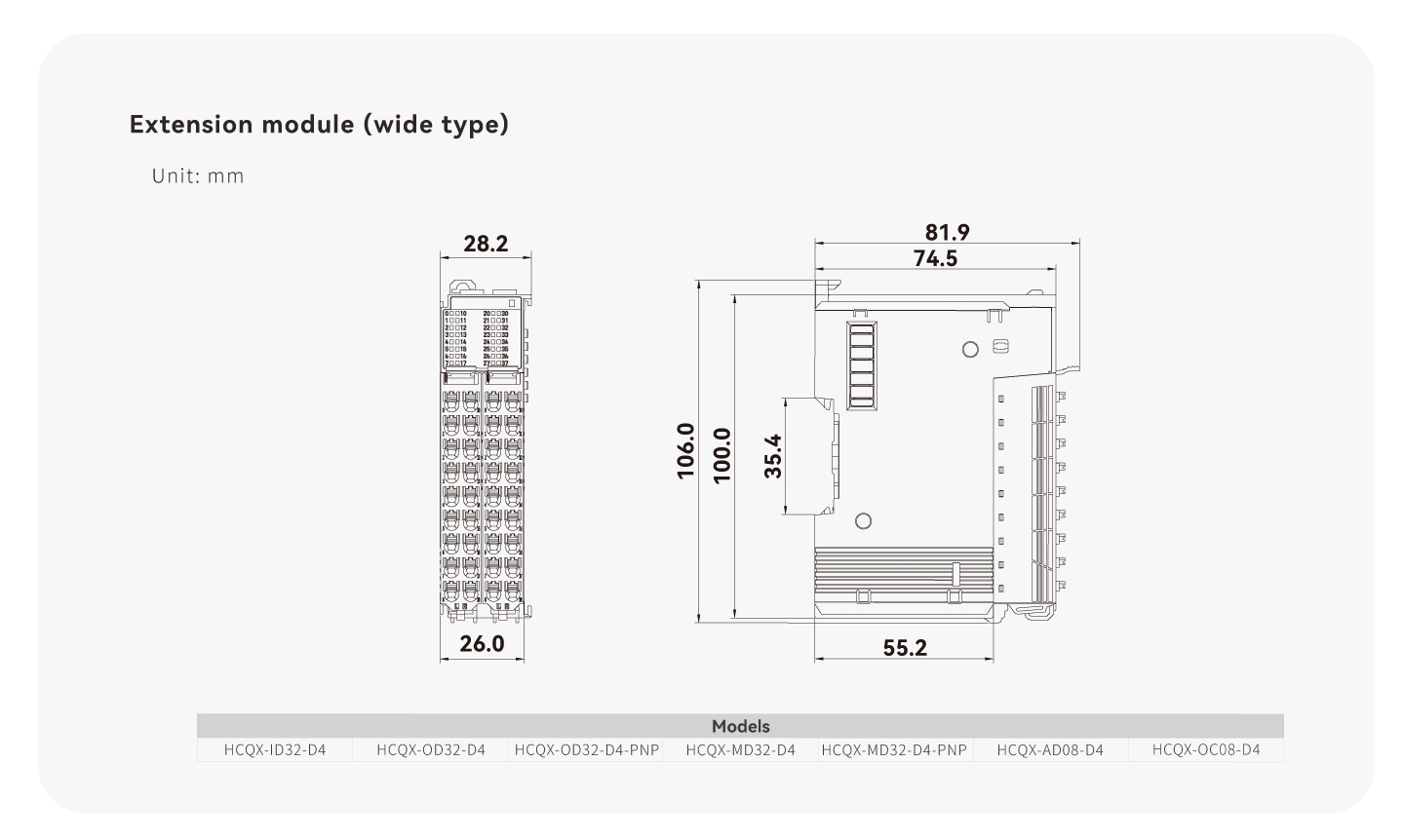

Product size
