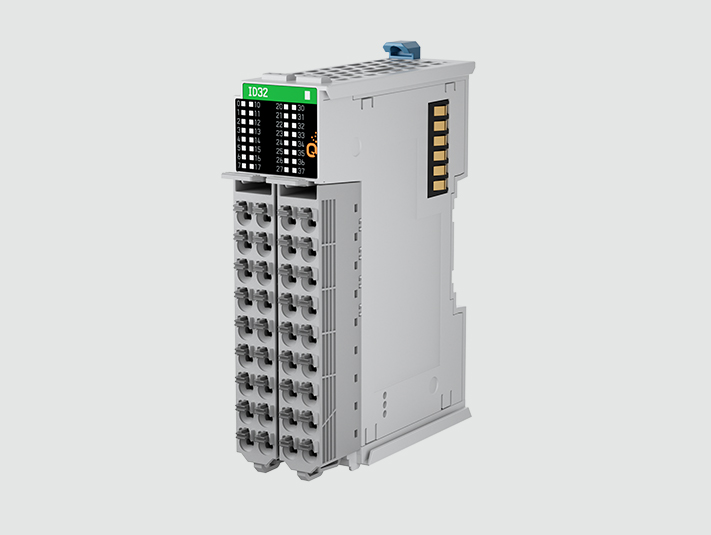

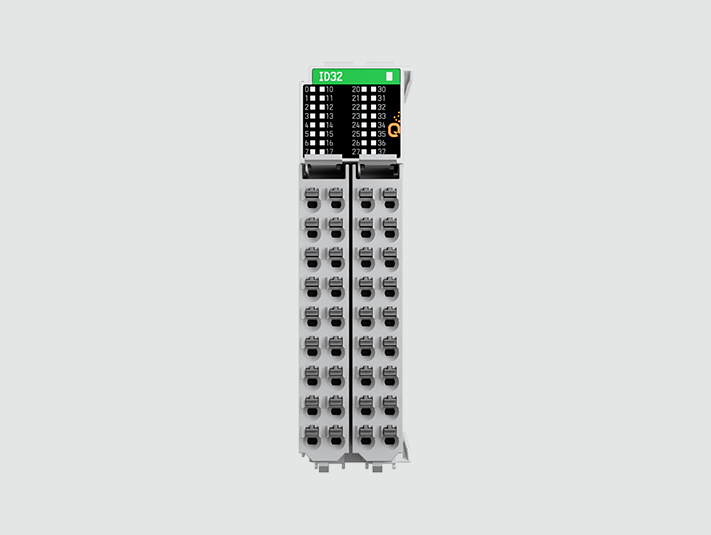

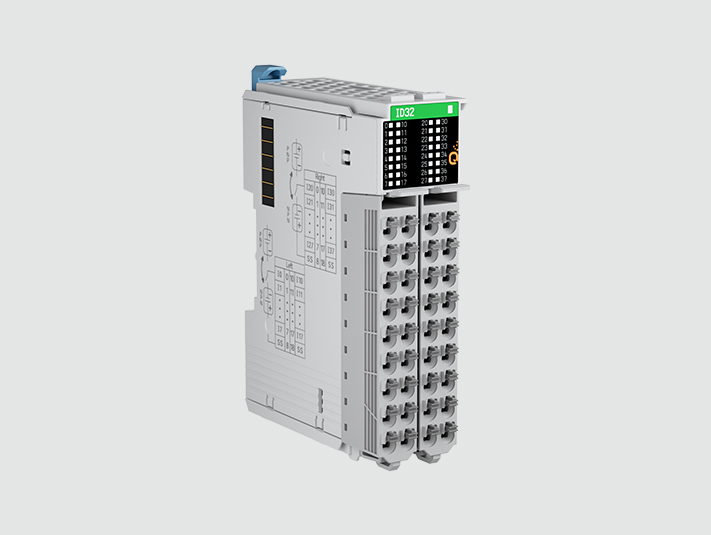

Digital input

· Product series: QX-D4 series new extension IO
· Module type: Digital input module
· Number of channels: 16/32-ch
· Model: HCQX-ID16-D4、HCQX-ID32-D4
· Input format: NPN/PNP

Product Features

  • Quick response

    ON/OFF response time 125us.

  • Hardware protection

    Multiple hardware protection, over current and over voltage protection.

  • Ultra-thin module

    13mm ultra-thin module, effectively saving space.

  • Removable terminal

    No wiring when replacing modules,PUSH IN, direct plug-in wiring.

Product Specifications

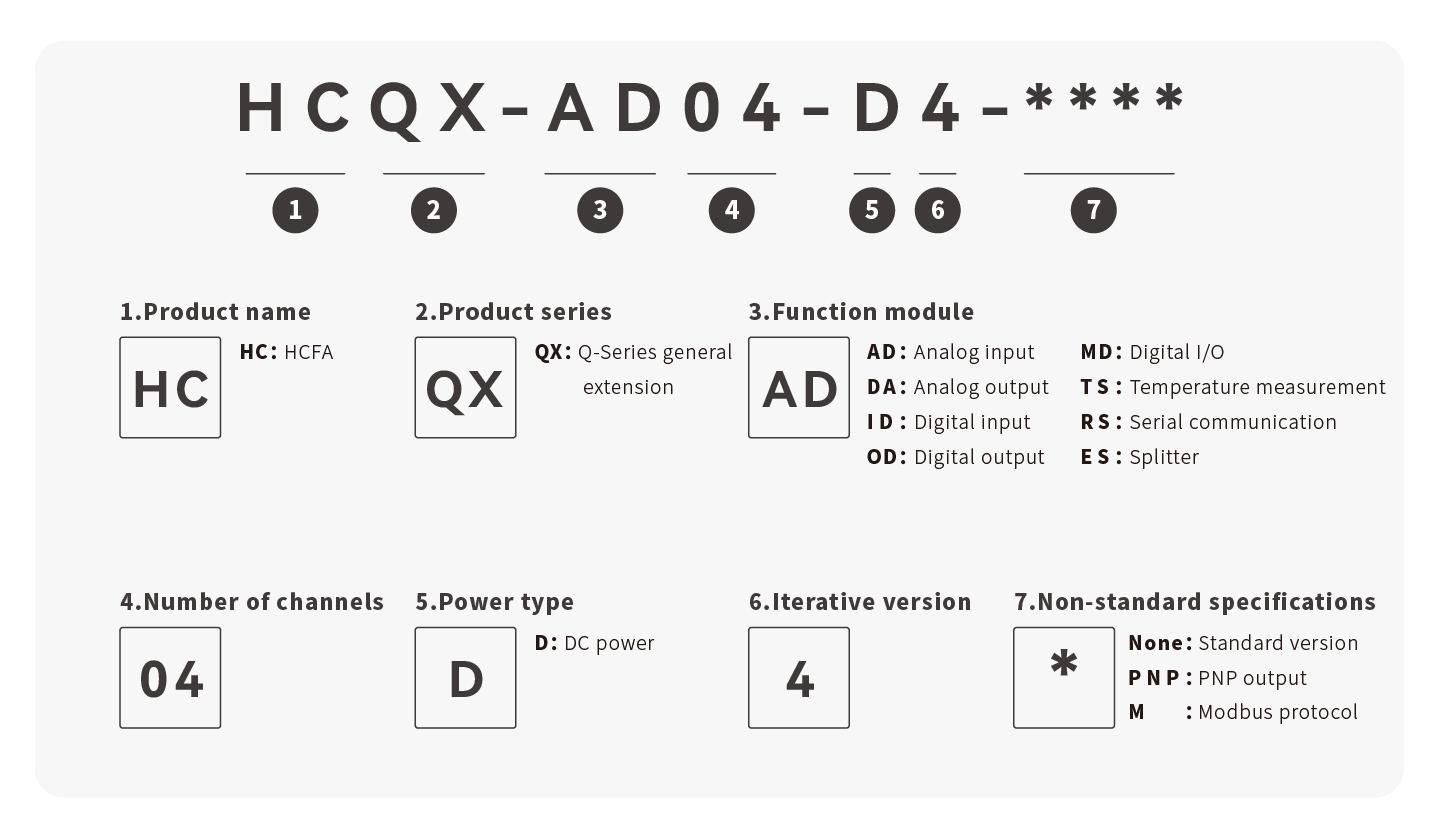

  • Naming rules

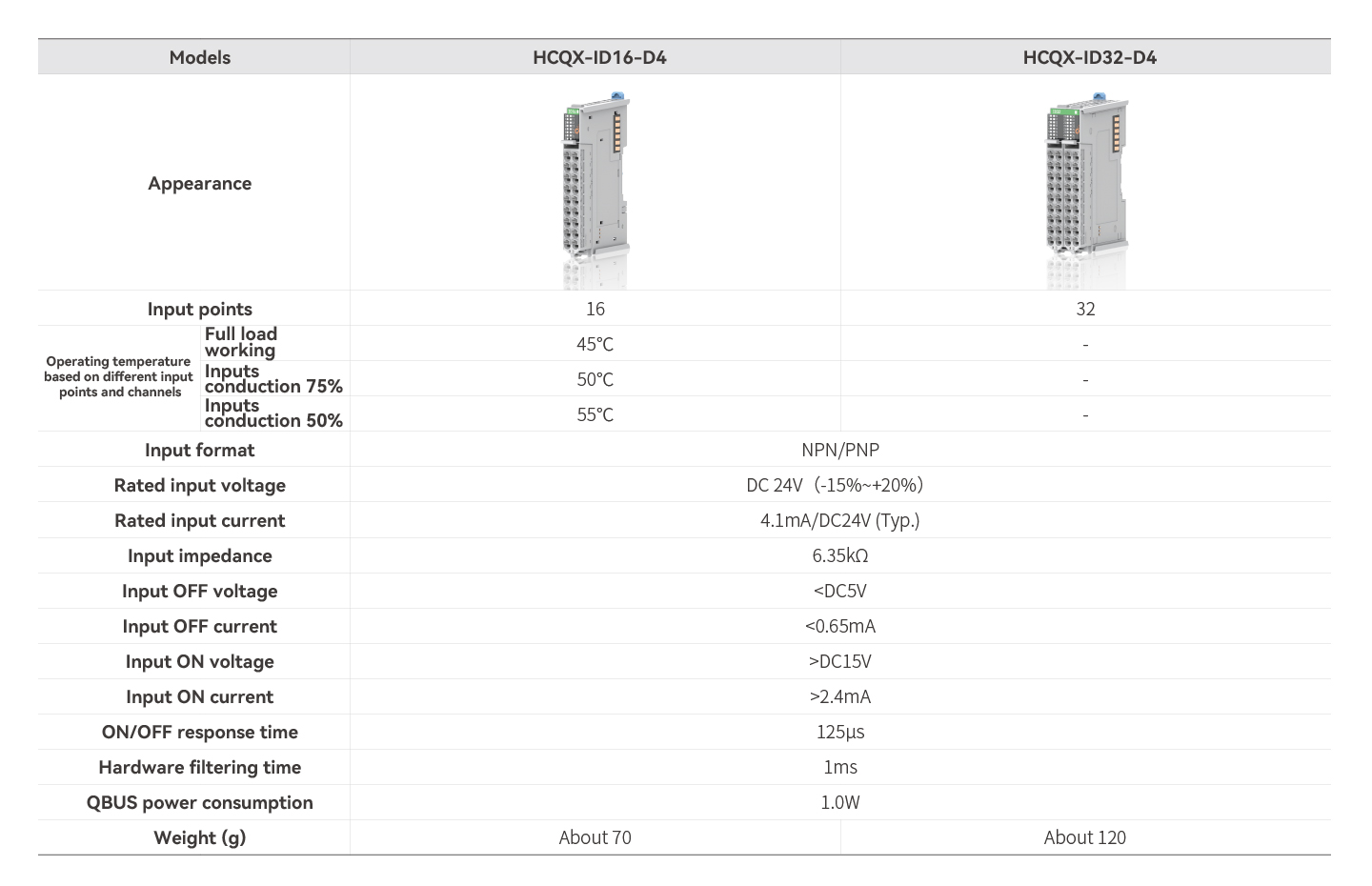

  • Specifications

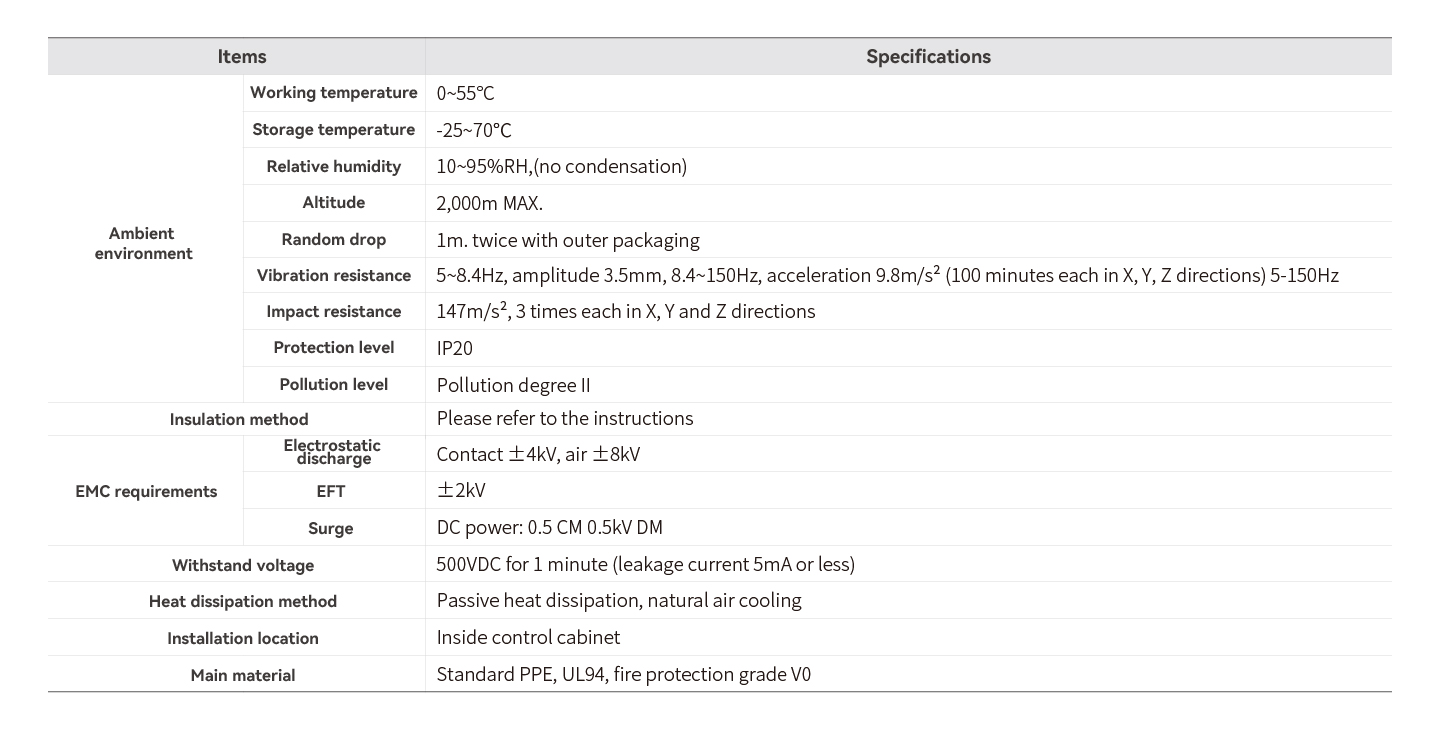

  • General specifications

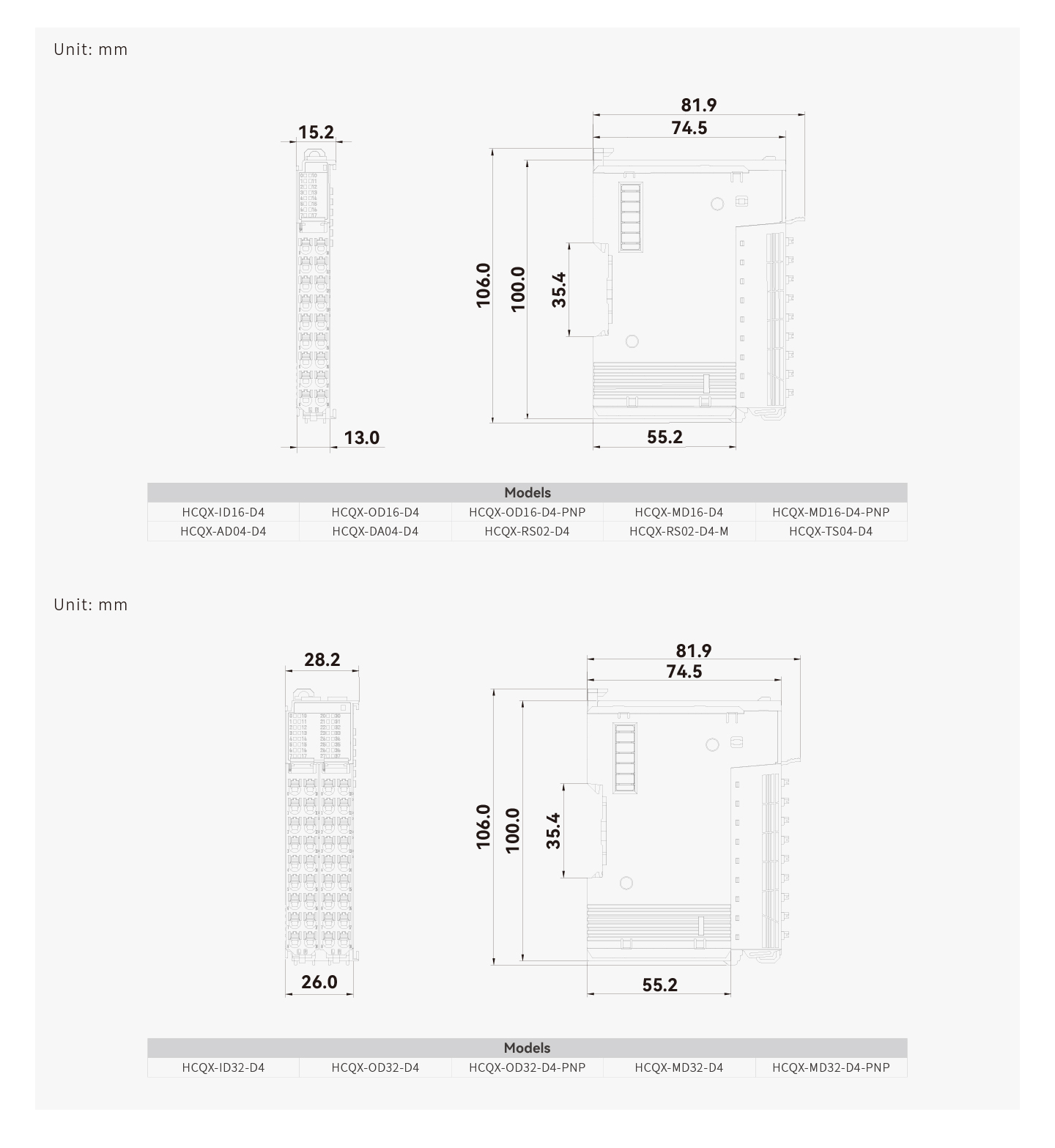

Product Size

Data Download

  • Catalog
  • Instruction
  • Drawing
  • Others
Download Type Name Updated Operation
Catalog Q-series Module Catalog 2023.8-V1.0（EN） 2024.07.01 Download
