VT-HDX

Support 4G/WIFI/WAN networking
Support PLC serial port and network port protocols
Support remote loading and downloading of programs
Supports HDMI high-definition display interface
HMDI connects to televisions, monitors, projectors, etc., providing wider and clearer information display

Product Features

  • Three network ports

    1 WAN/2 LAN

  • 4G full network connectivity

    Mobile/Telecom/Unicom

  • Serial port

    1 RS232/2 RS485

  • WIFI communication

    Data transmission/unlimited configuration

  • Edge computing

    Data Collection/Data Analysis

    Logic processing/linkage control

  • HDMI

    1080P ultra-high definition picture quality

  • USB

    2-channel USB 2.0

  • SD card

    Can increase storage capacity

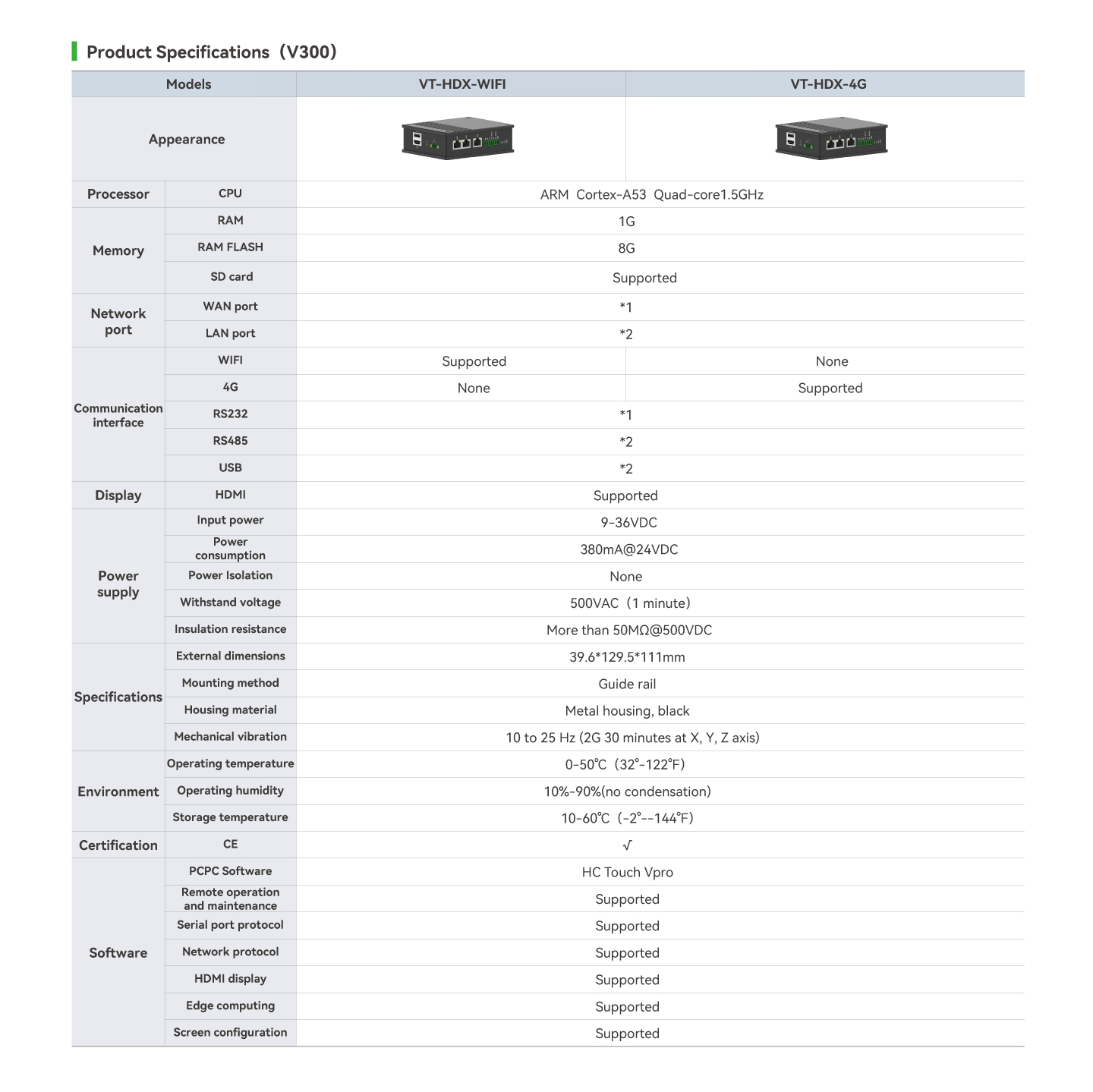

Product Specifications

  • technical specifications

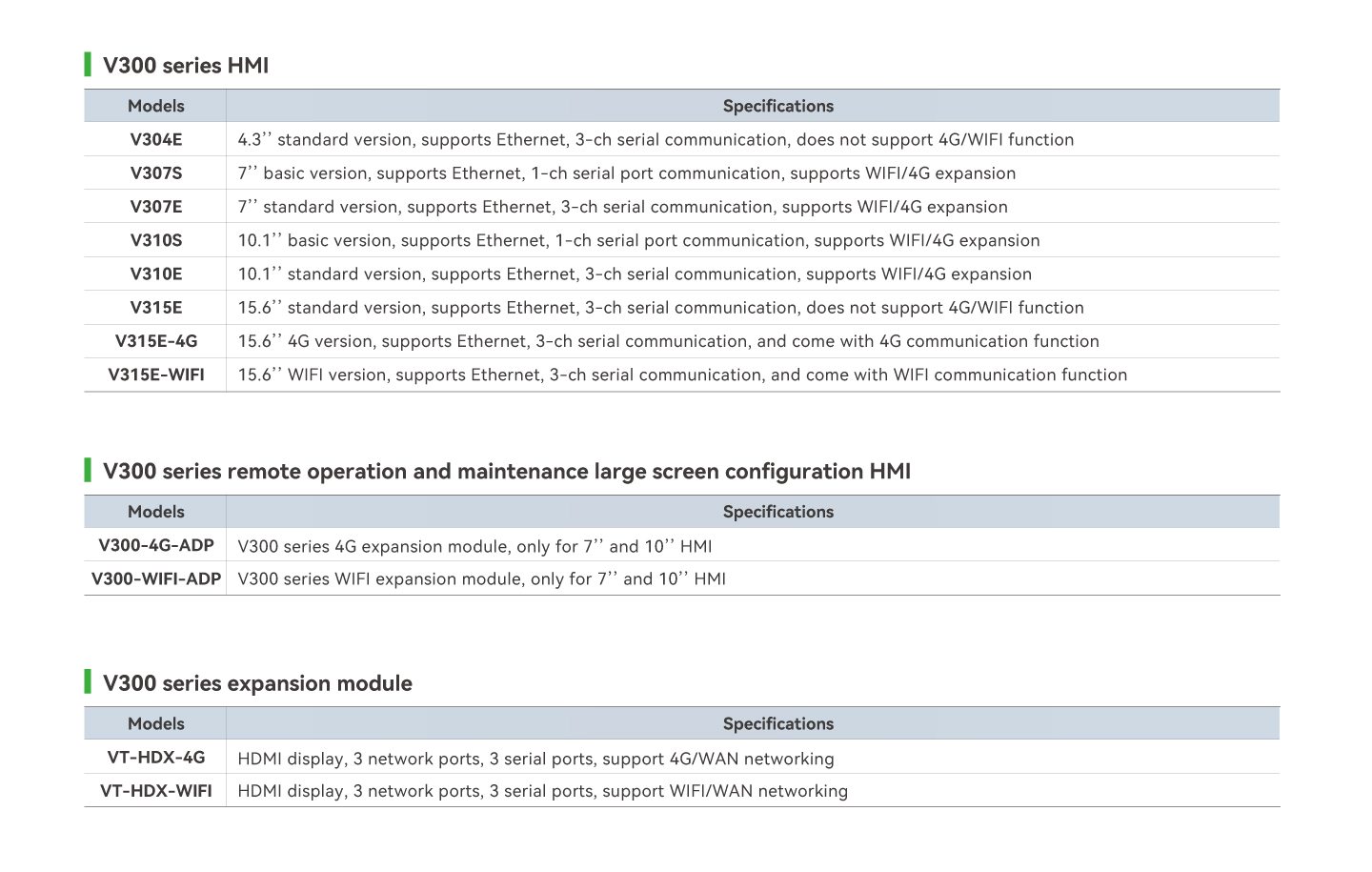

  • Selection Table

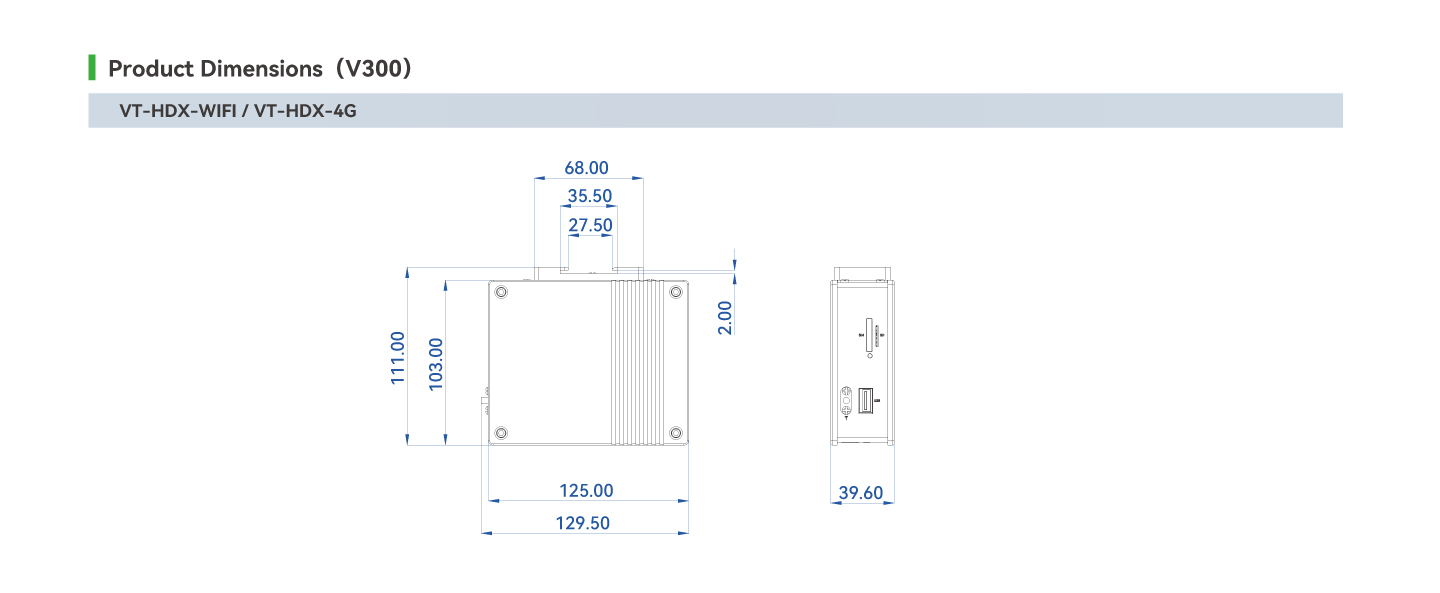

Product Size

Data Download

  • Catalog
  • Instruction
  • Manual
  • Drawing
  • Software
  • Others
Download Type Name Updated Operation
Catalog V300 Series HMI Catalog 2024-V1.0(EN) 2024.11.20 Download
Download Type Name Updated Operation
Download Type Name Updated Operation
Download Type Name Updated Operation
Drawing HMI V300 Series(3D) 2024.11.20 Download
Download Type Name Updated Operation
Download Type Name Updated Operation
