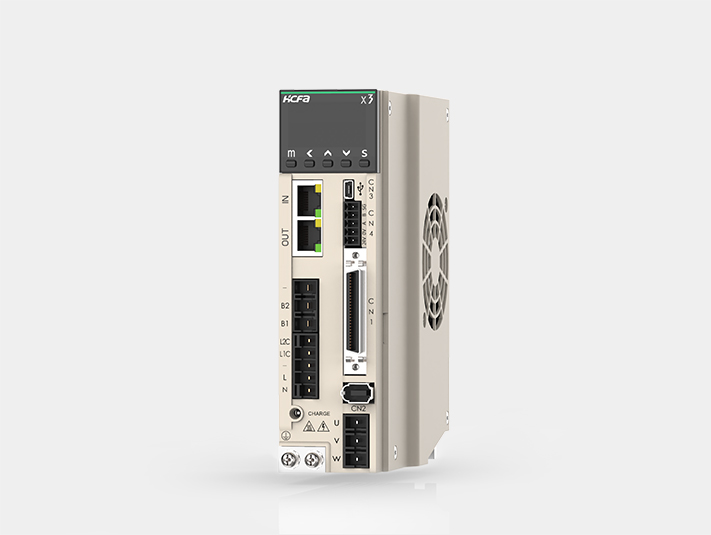

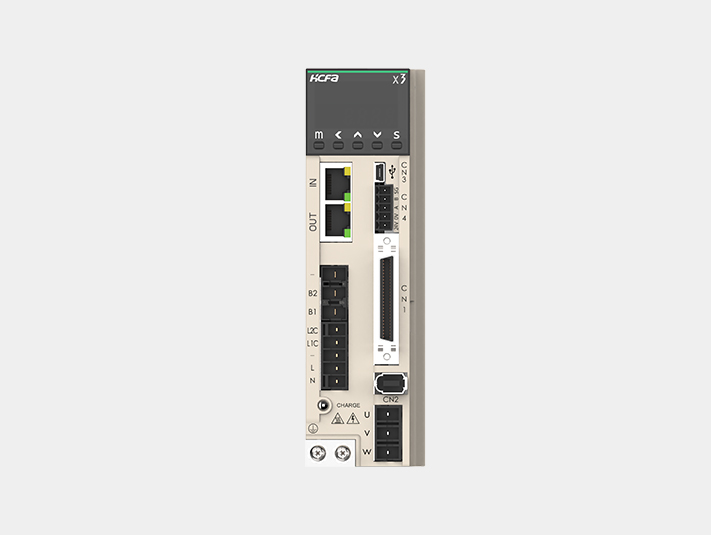

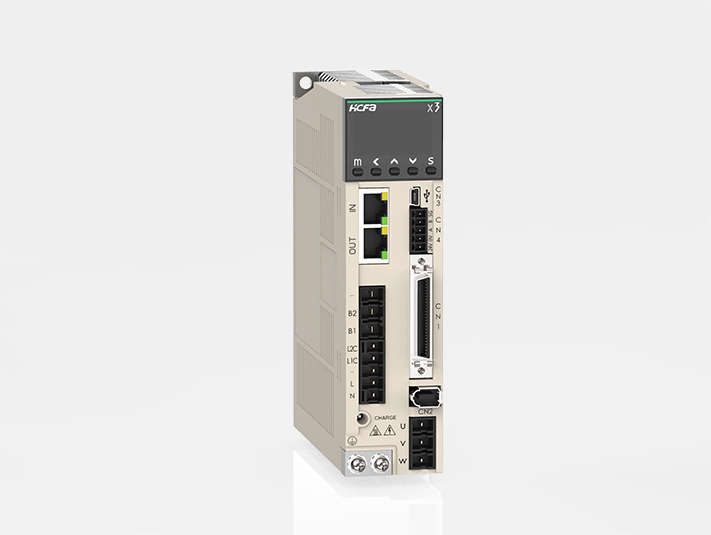

X3E

Drive type: A-pulse command type, B-EtherCAT bus type, N-CANOpen bus type
Power coverage: 50W~750W single-phase 220V, 1.0kW~2.5kW, three-phase 220V
Protocol support: Modbus RTU, EtherCAT, CANOpen, etc.
Special features: full closed loop, gantry synchronization



Product Features

  • LCD display, compact design architecture, in line with industrial aesthetic design

    Support 17BIT and 23BIT high precision motors, stable and reliable performance, covering OEM industry applications

    Complete position control mode, real-time gain adjustment technology, high ease of use

  • Rich communication protocols, support EtherCAT, CANopen, Modbus RTU

    Support industry features, reduce the threshold of industry applications: full closed loop, gantry synchronization

Product Specifications

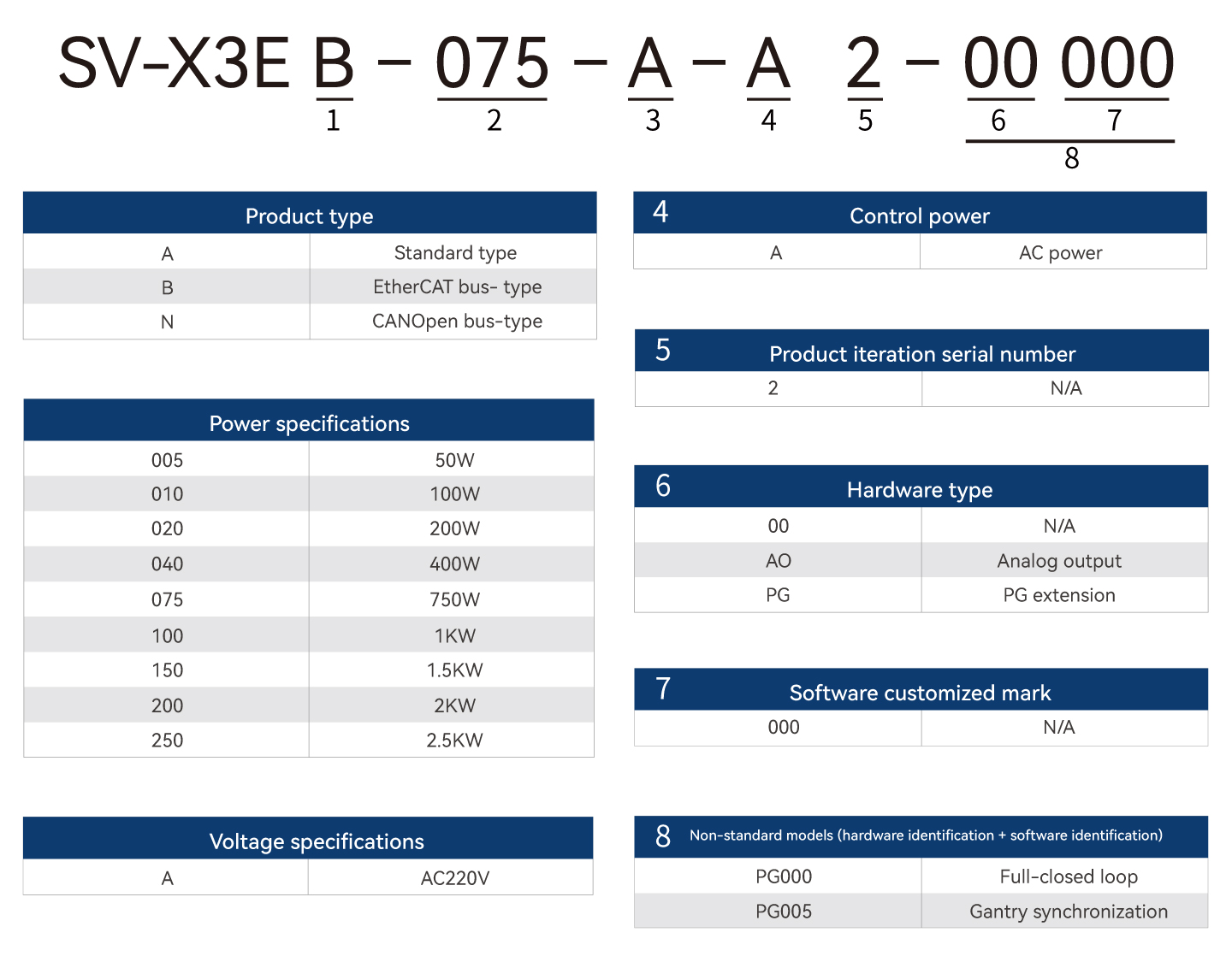

  • NAMING RULE

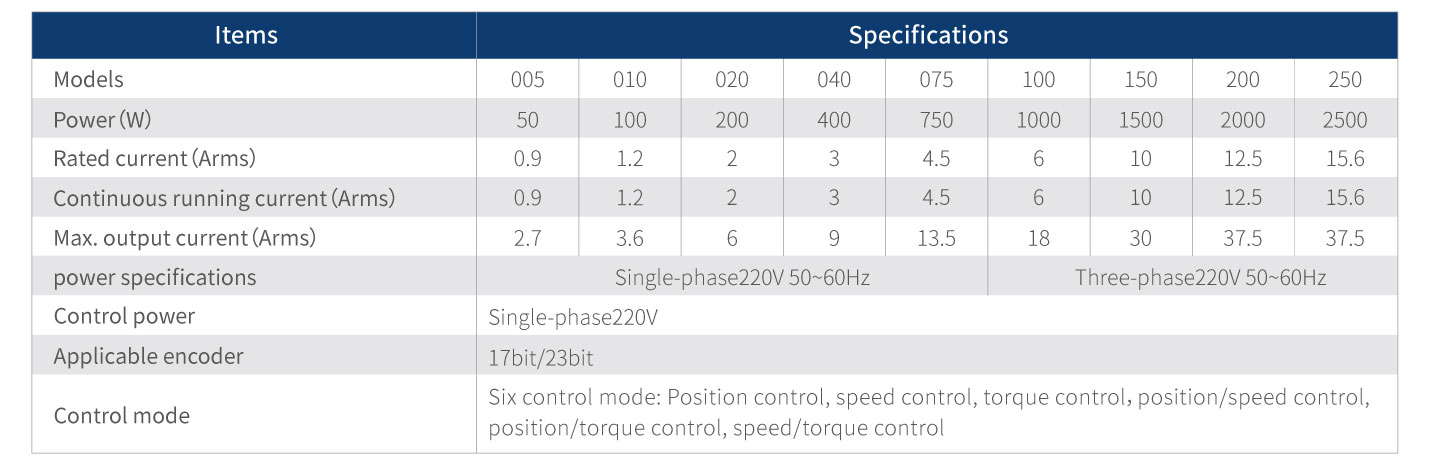

  • GENERAL SPECIFICATIONS

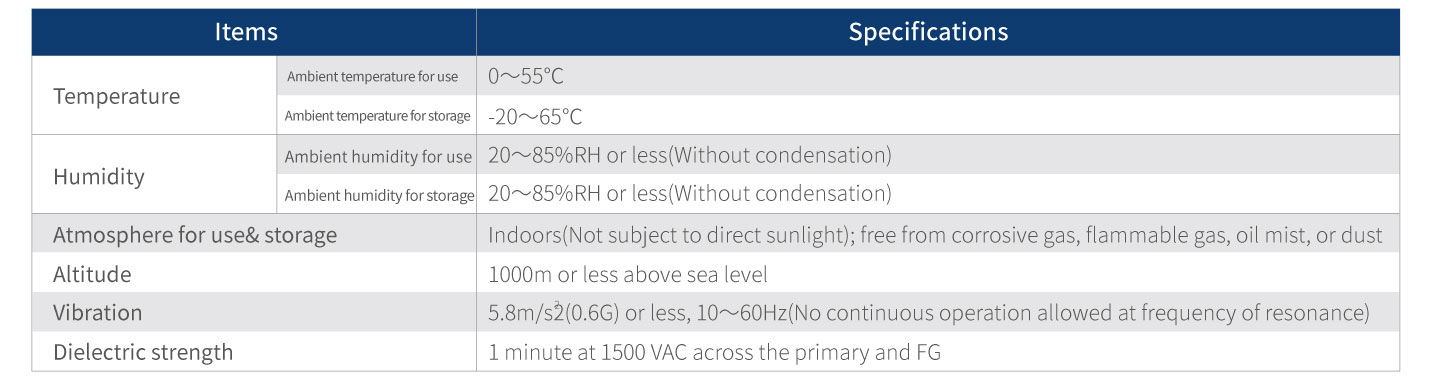

  • ENVIRONMENT SPECIFICATIONS

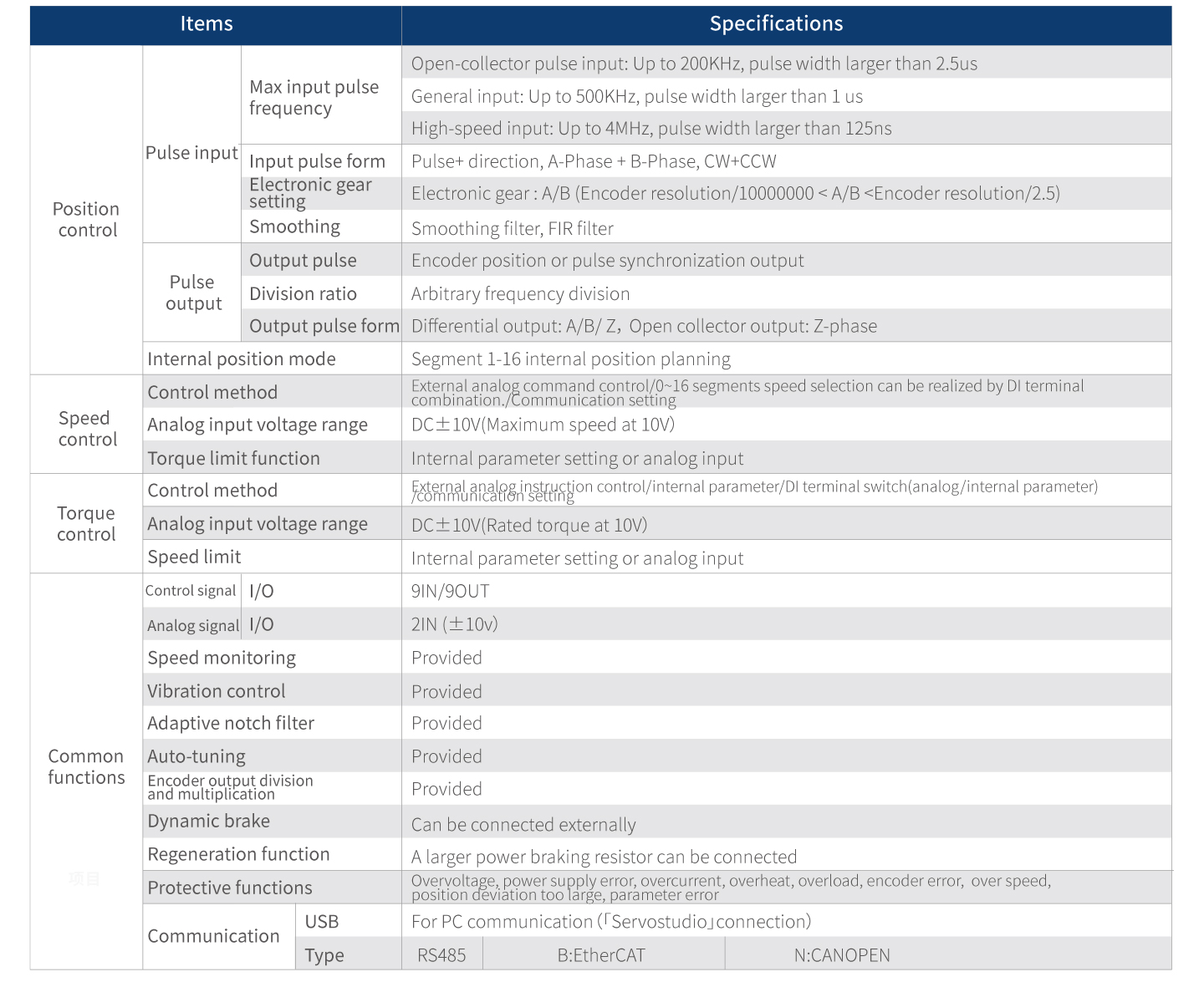

  • TECHNICAL SPECIFICATIONS

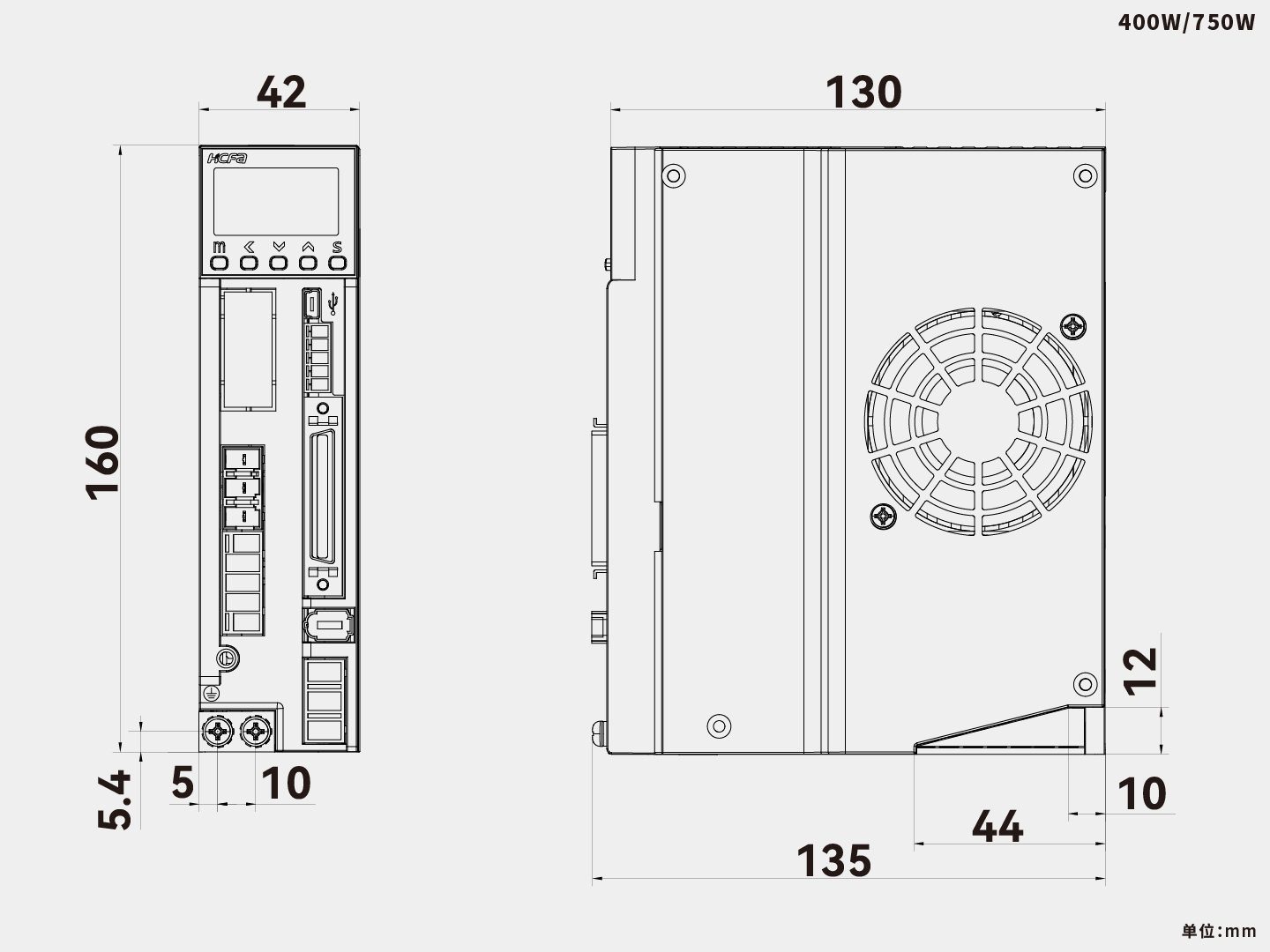

Product Size


Data Download

  • Catalog
  • Manual
  • Instruction
  • Drawing
  • Software
  • Others
Download Type Name Updated Operation
Catalog X2EX3E Servo Catalog 2023.6 -V1.0 2023.06.05 Download
Download Type Name Updated Operation
Manual X3E Series Servo Drive User Manual V5.1(EN) 2022.06.08 Download
Download Type Name Updated Operation
Instruction X3E Series Servo Drive Param. INS V5.0（EN） 2022.06.08 Download
Instruction X3E Series Servo Drive HW INS V5.0(EN) 2022.06.08 Download
Download Type Name Updated Operation
Download Type Name Updated Operation
Software HCS-Studio(En) V2.08 2022.06.08 Download
Download Type Name Updated Operation
Description file X Series Servo Drive 2023.12.04 Download
CE Certificate X3E Series Servo Drive 2022.06.08 Download
