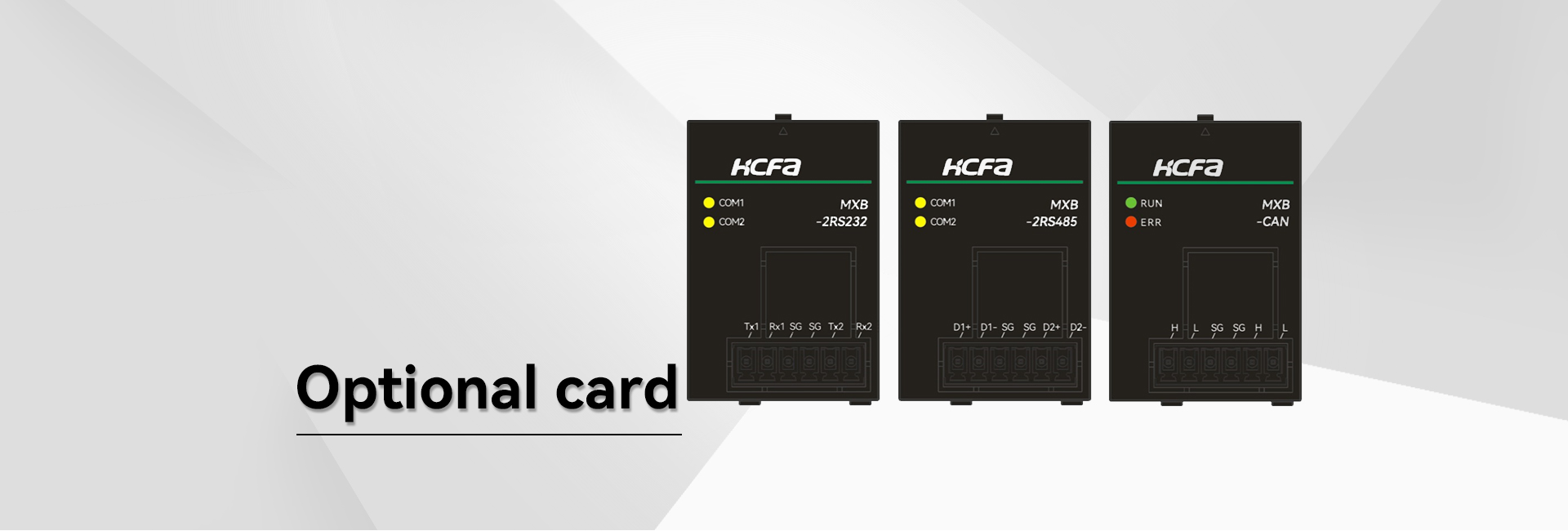

Optional card

Product series: M-series optional card
Optional card type: CAN/RS232/RS485/RTC
Applicable models: M-series controller

Product Features

  • Rich specifications

    Provide optional cards for CAN, RS232, RS485, and RTC

  • Accurate adaptation

    The controller achieves multi scenario application and cost savings by selecting specific functional optional cards

  • Performance specifications

    CAN: CAN optional card, used to expand one CAN communication channel

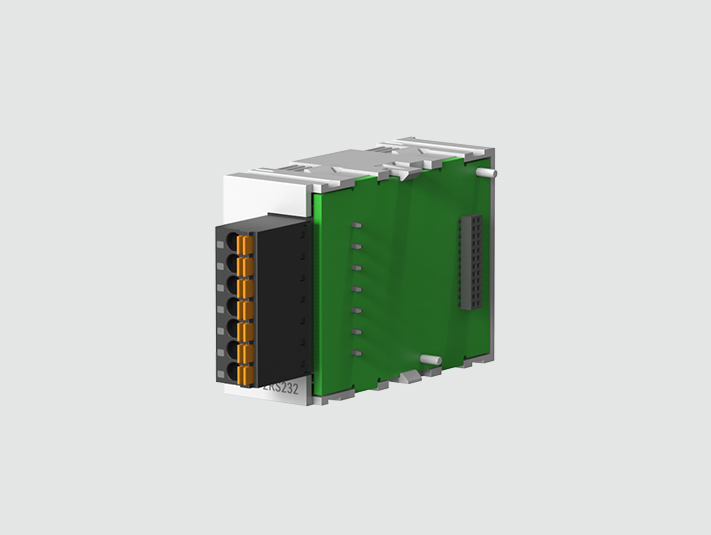

    RS232: 2-channel RS232 optional card, can be used as a master or slave station separately

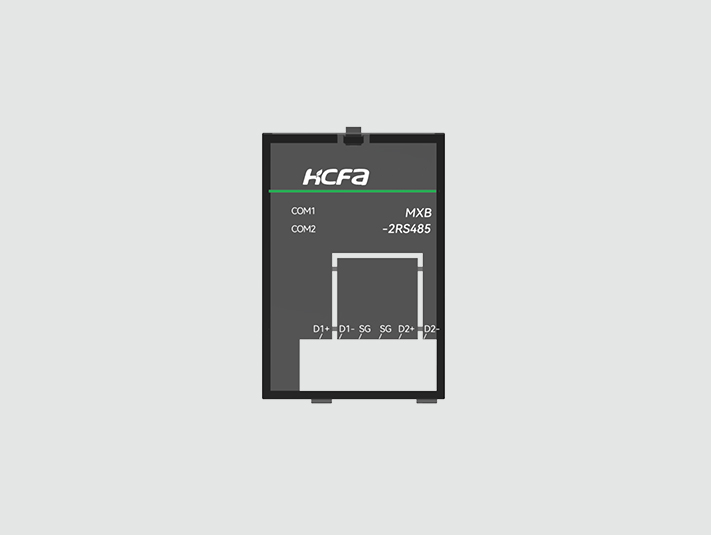

    RS485: 2-channel RS485 optional card, can be used as a master or slave station separately

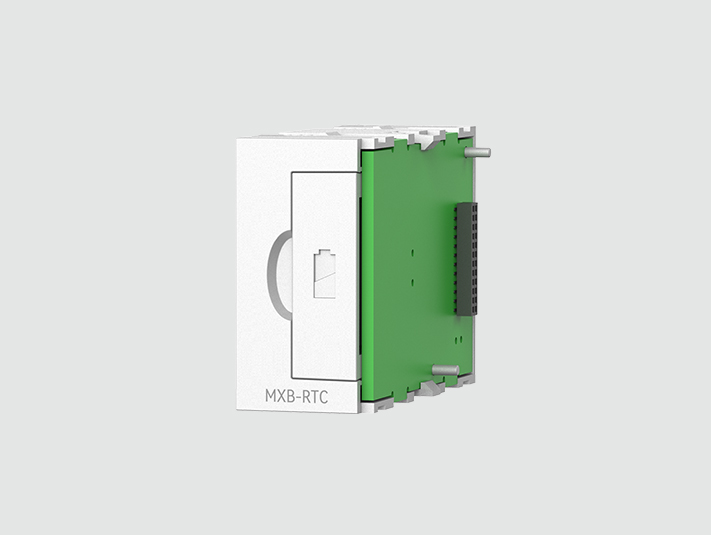

    RTC: Perpetual Calendar Battery Card (After the controller is powered off, the perpetual calendar time can continue to count)

  • Stable and reliable

    Detailed fault diagnosis, quick positioning and analysis of problem causes

Product Specifications

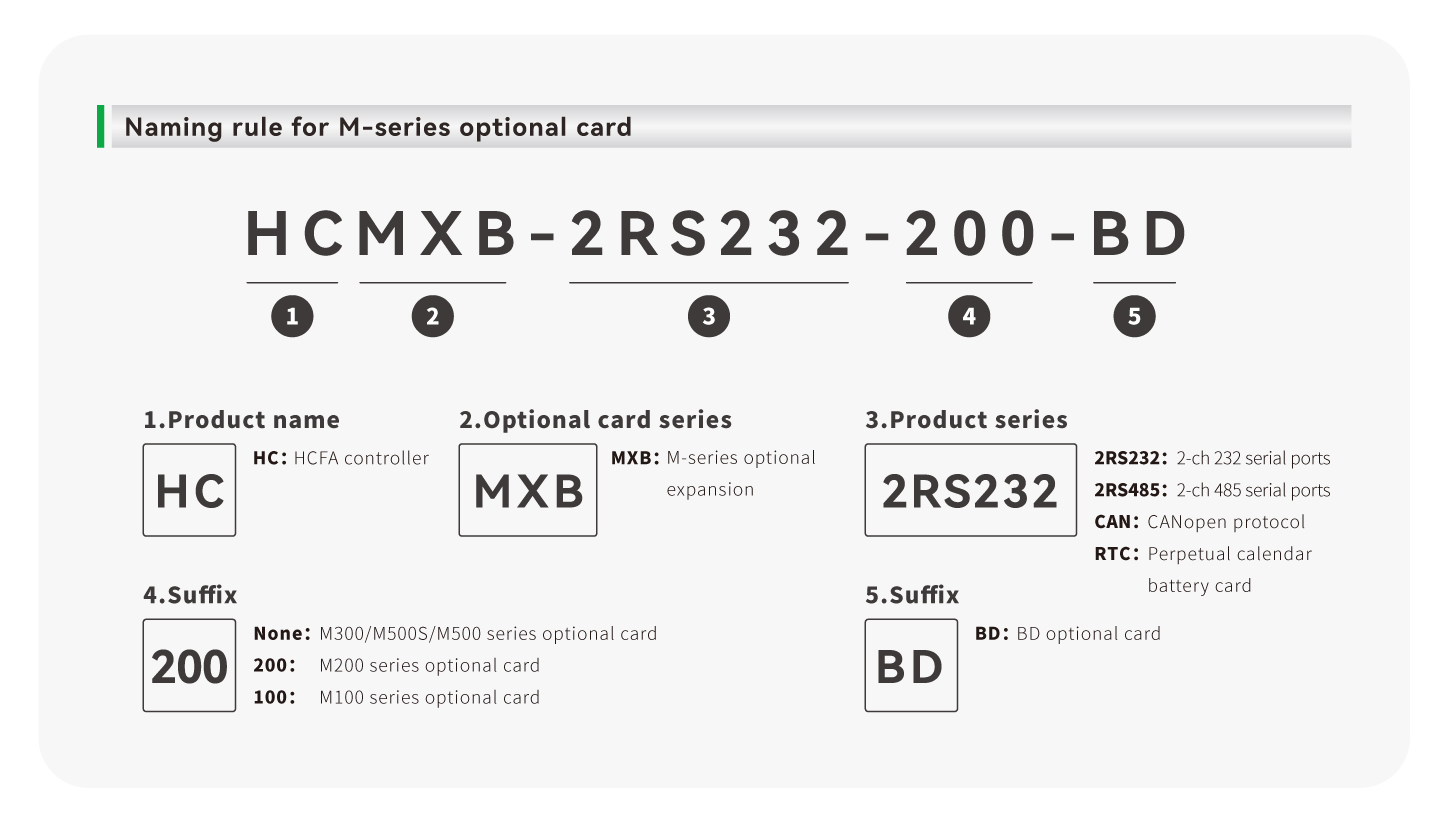

  • Naming

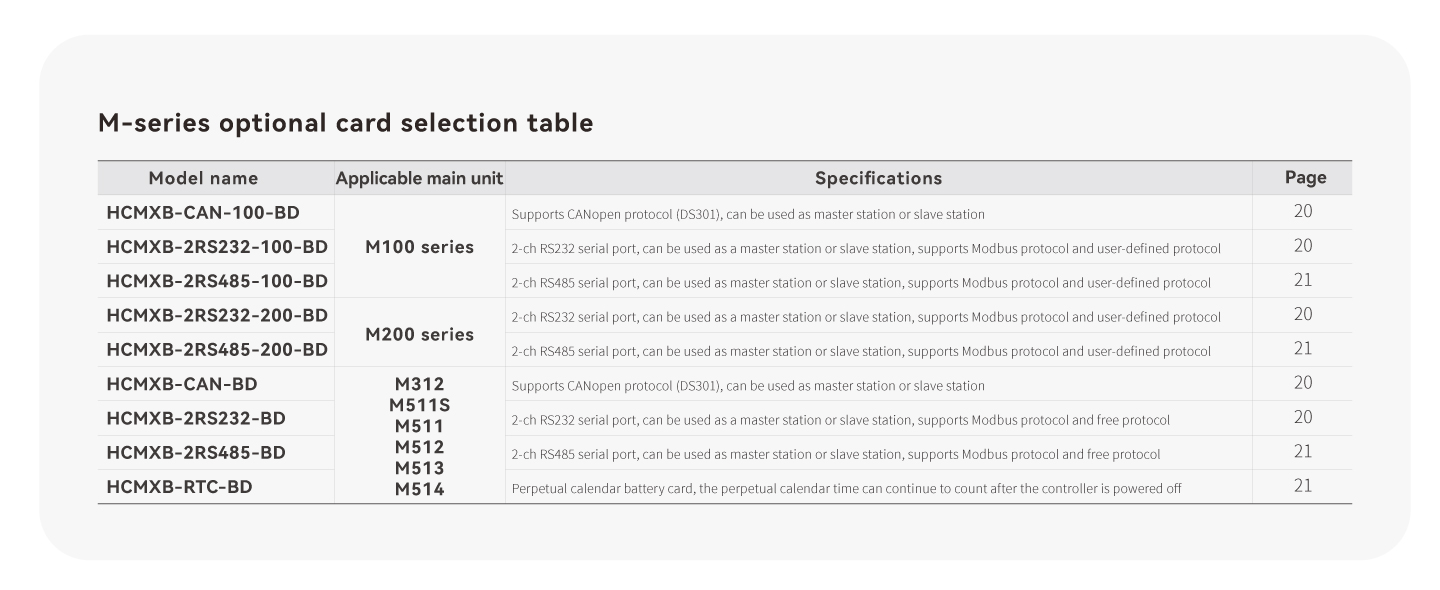

  • Selection Table

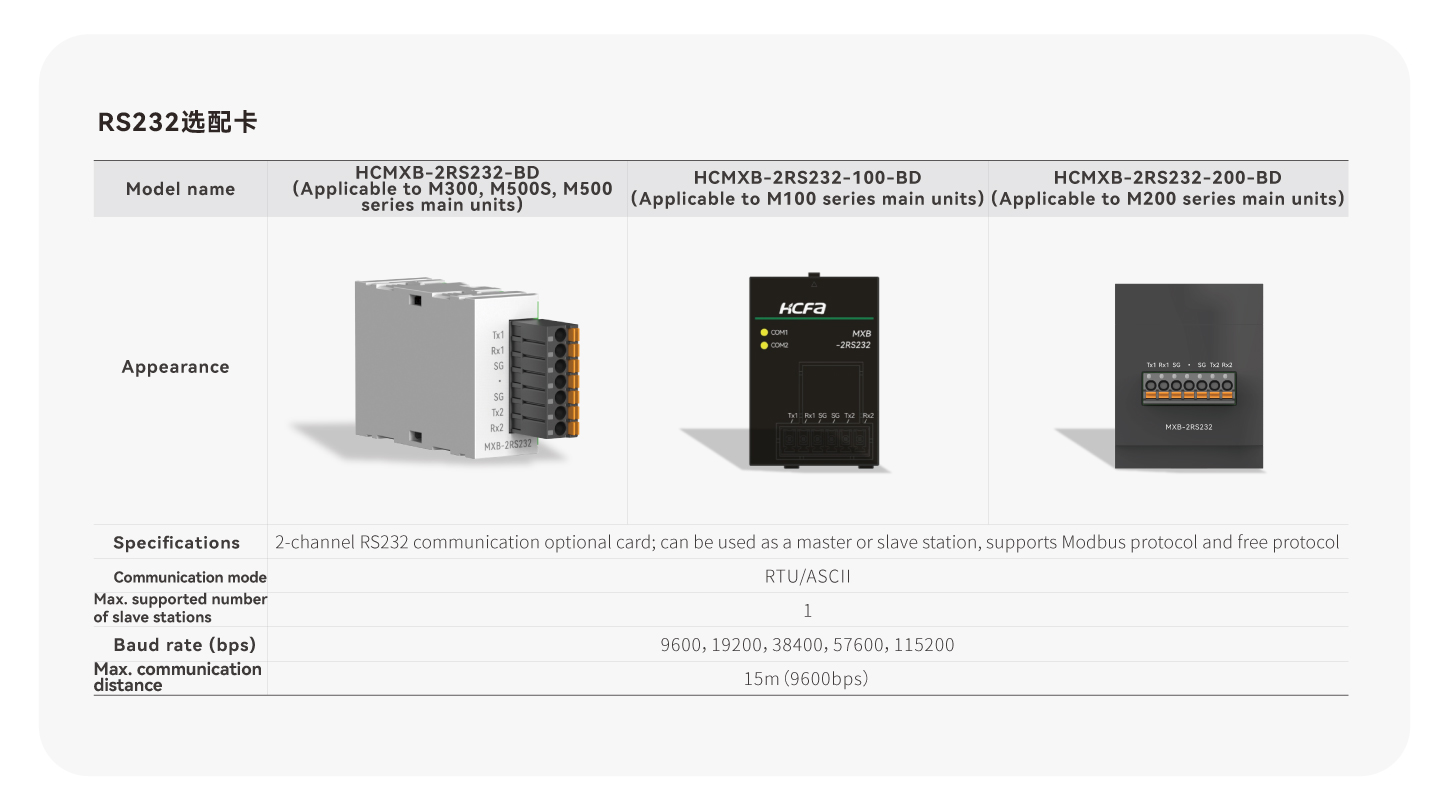

  • RS232

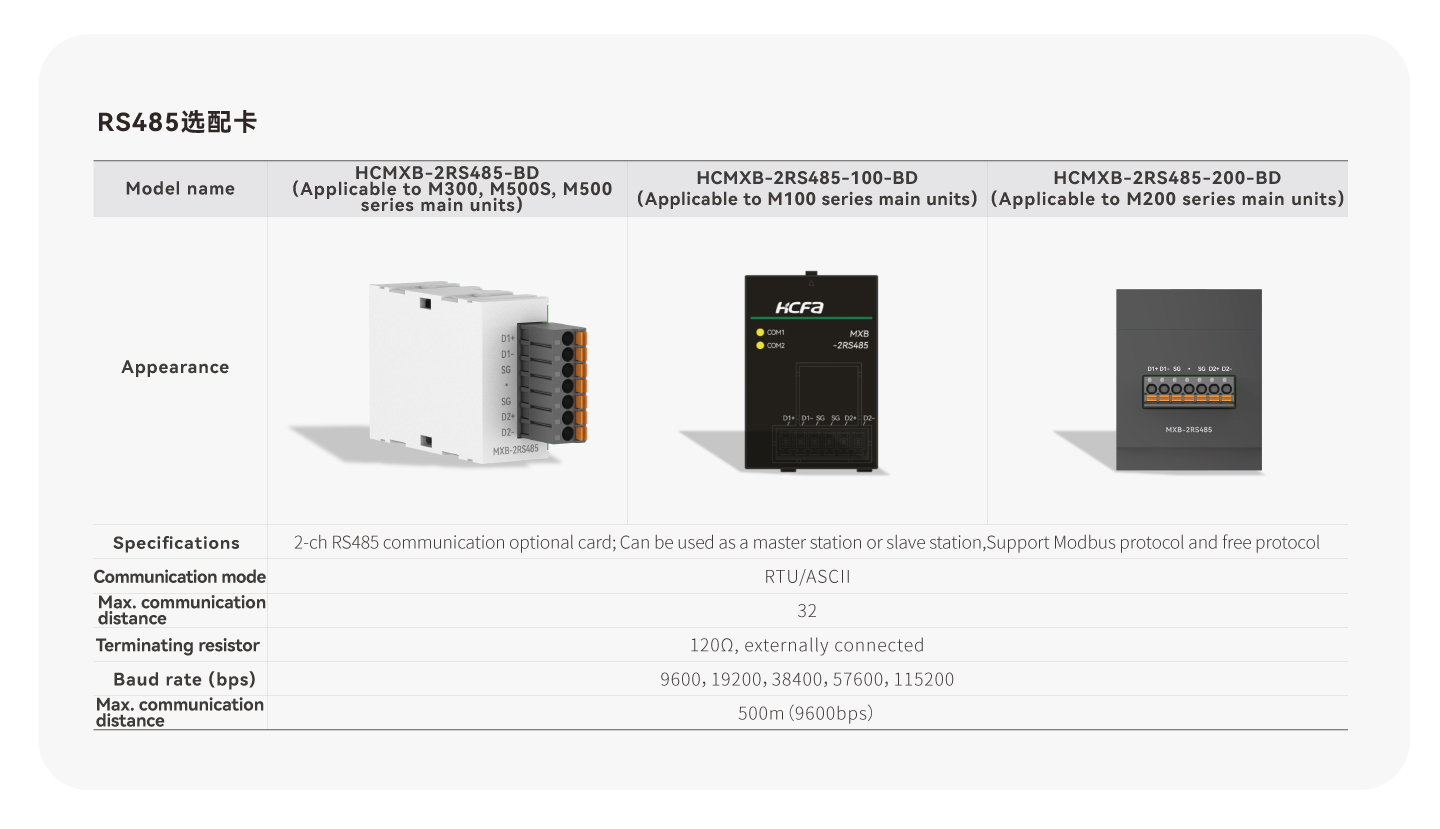

  • RS485

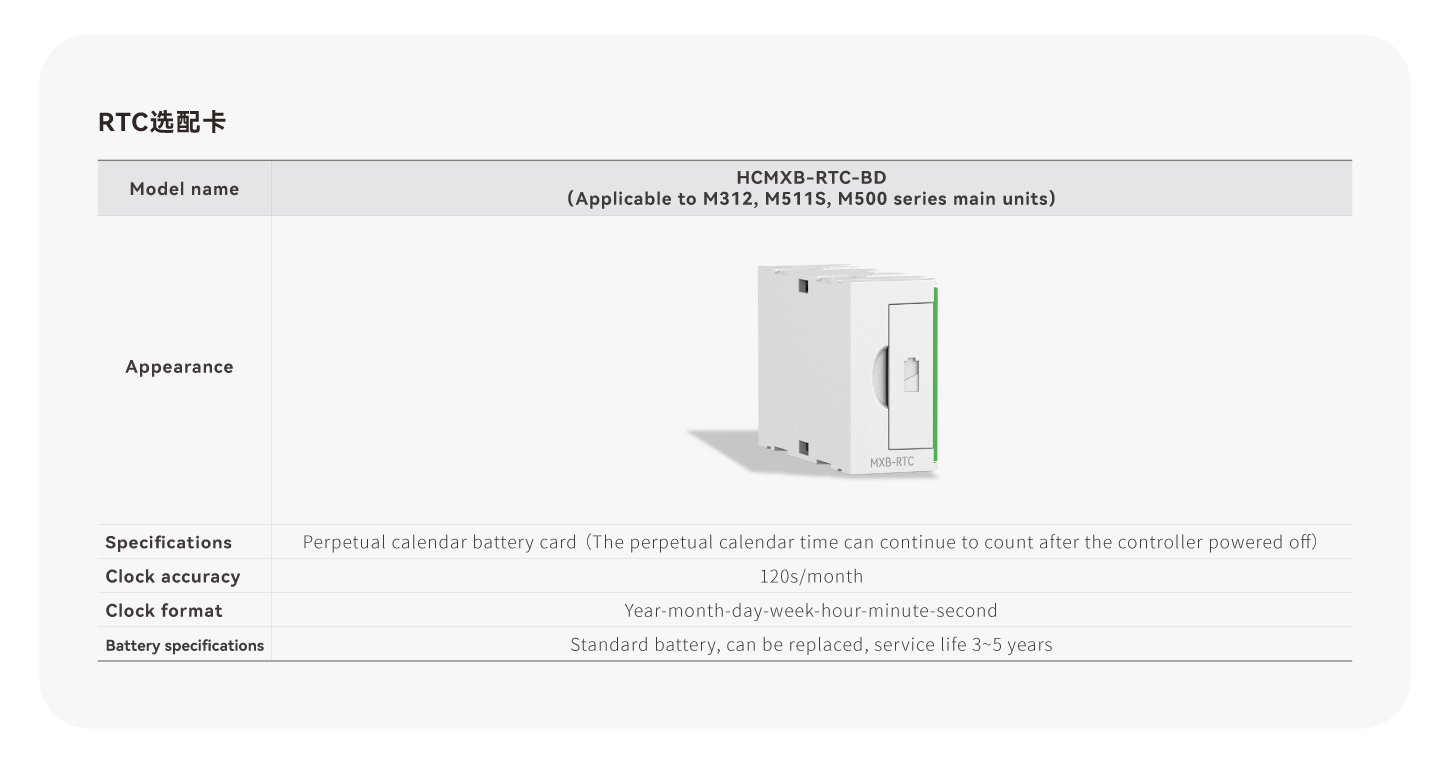

  • RTC
  • CAN

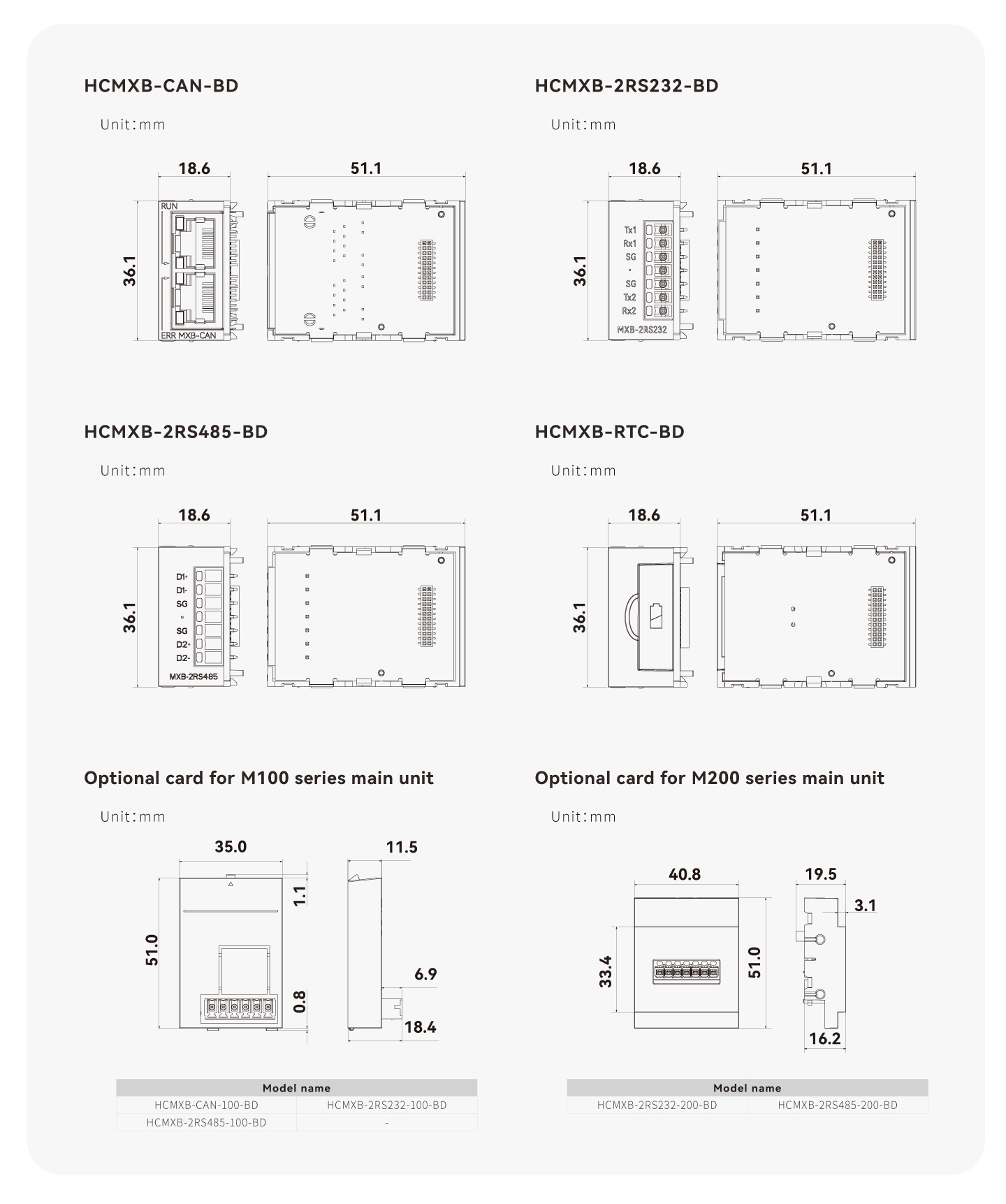

Product size
