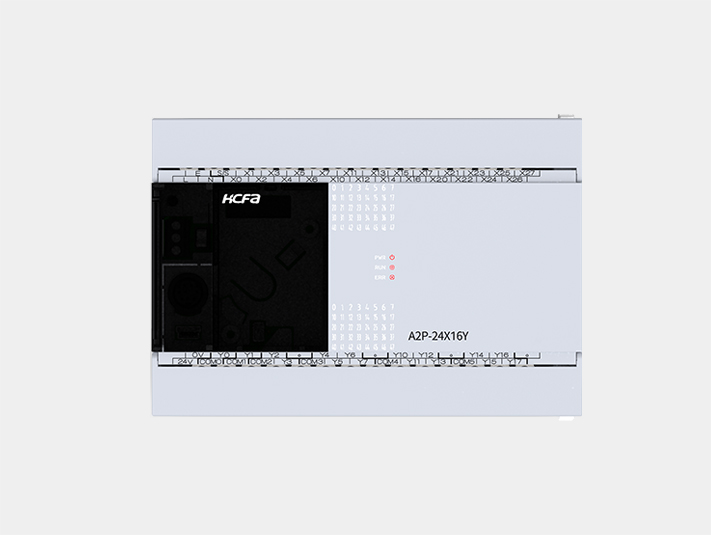

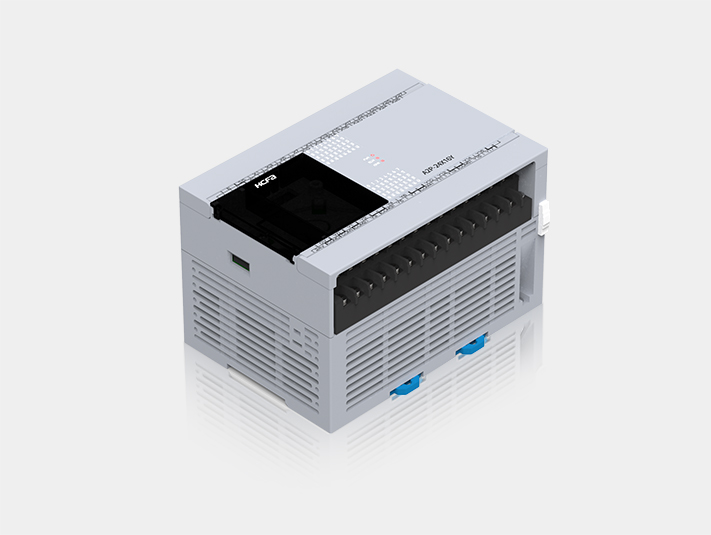

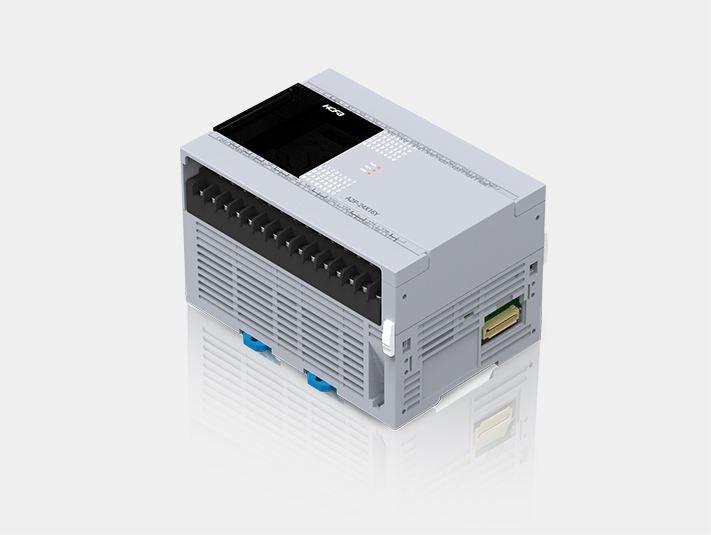

A2P

Product series：A series general controller
 Module type：CPU Unit
Operation speed：LD 20ns
Control points：256点2560 points
Program capacity ：8k steps
Support high-speed pulse output：2 axis 100kHz high-speed pulse output
 Hardware interface：RS422/RS485
Transistor output：HCA2P-14X10YT-A、HCA2P-14X10YT-D、HCA2P-24X16YT-A、HCA2P-24X16YT-D、HCA2P-36X24YT-A、HCA2P-36X24YT-D
Relay output：HCA2P-14X10YR-A、HCA2P-14X10YR-D、HCA2P-24X16YR-A、HCA2P-24X16YR-D、HCA2P-36X24YR-A、HCA2P-36X24YR-D

Product Features

  • Basic performance

    8k-step program capacity, memory box with program transfer function can be installed (max. 8k steps)

    Basic instruction operation speed: 0.5~0.7μs/instructions, application instruction operation speed: 3.7μ~100μs/instructions

    Supports high-speed pulse input and output

  • Communication compatibility

    Support serial port free protocol and dedicated protocol

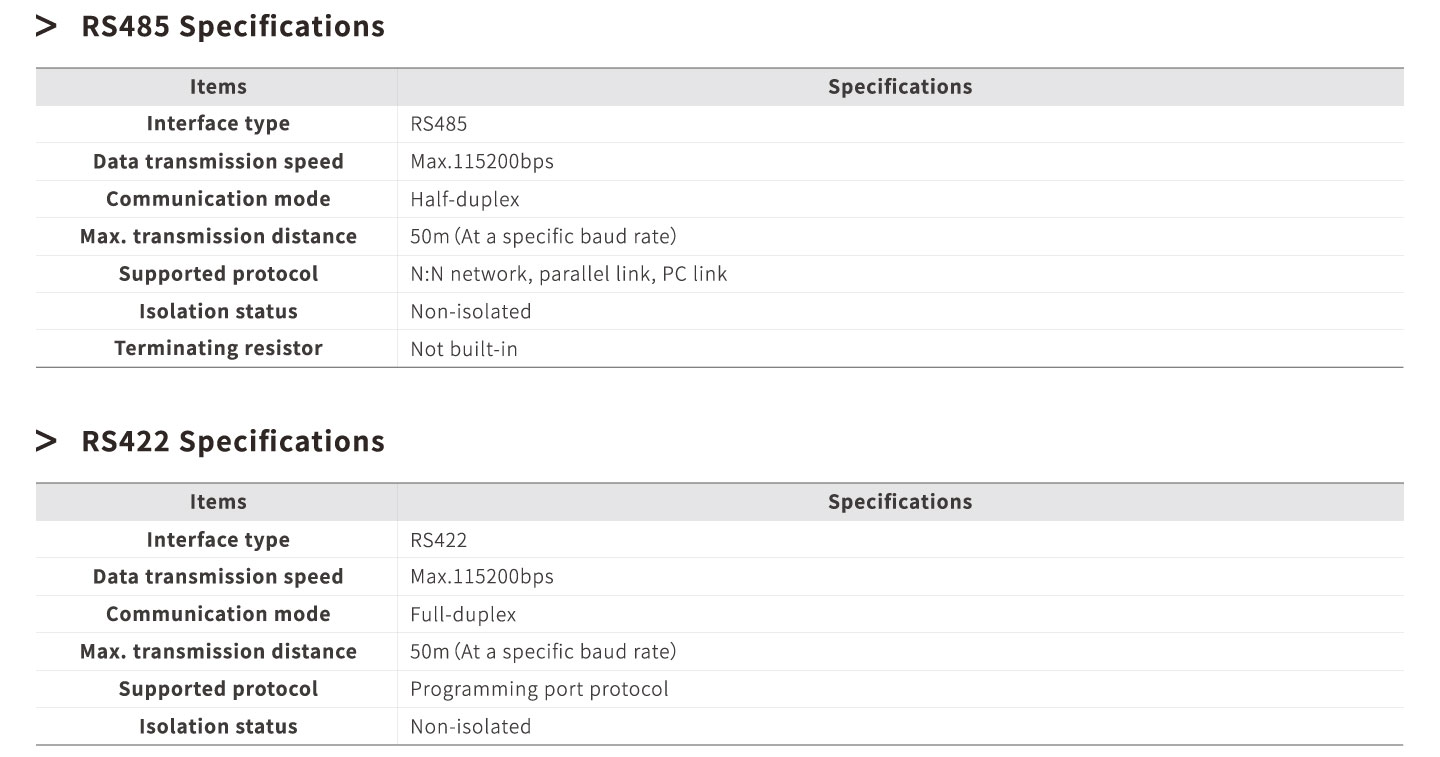

    Support RS485/RS422 interface

    Support Modbus master-slave mode

  • High Ease of Use

    Support BD board to expand a small number of input and output points or analog input and output

  • Motion control

    Support 2 axis motion

    256 Control points

Product Specifications

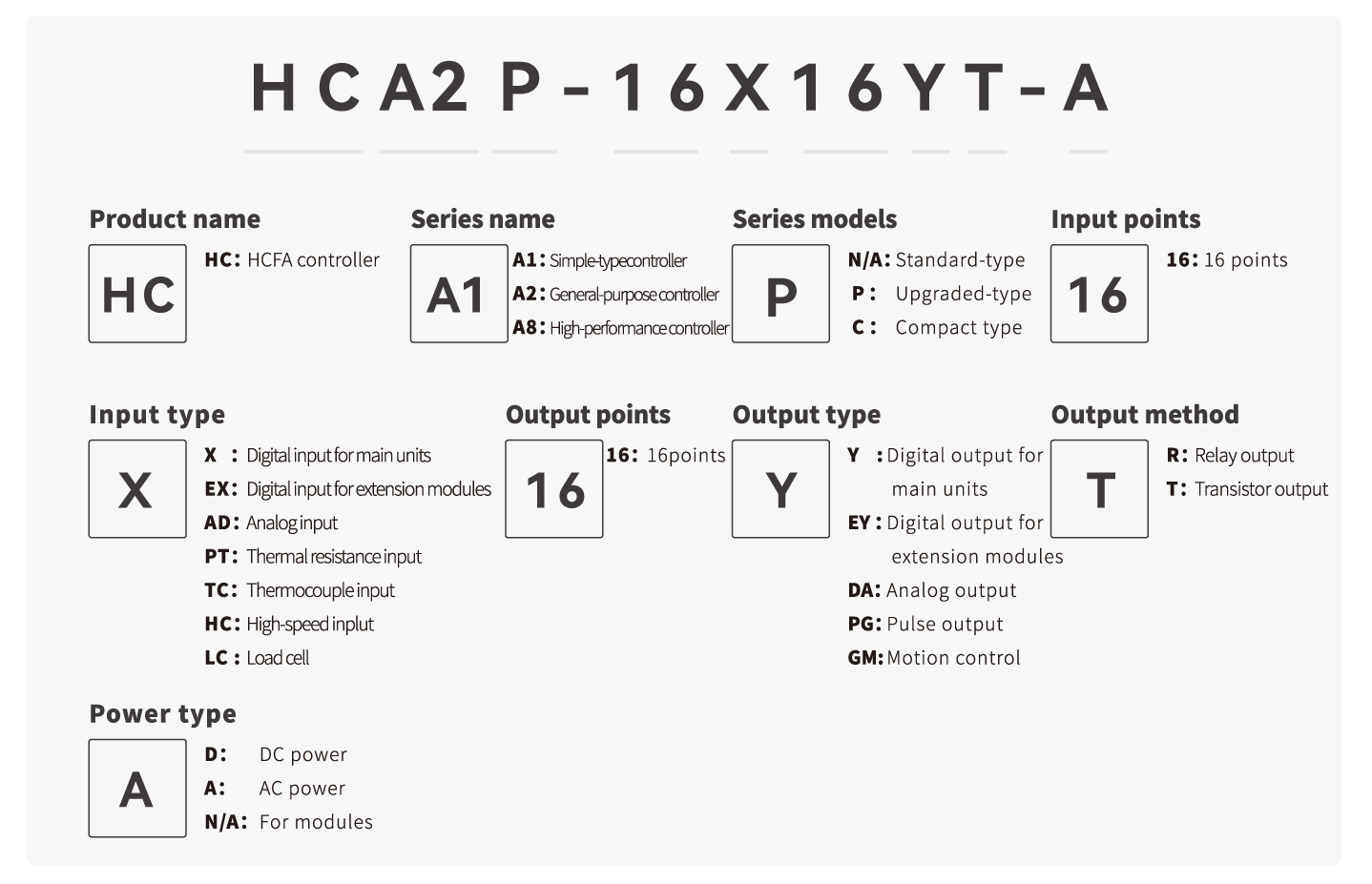

  • Naming rule

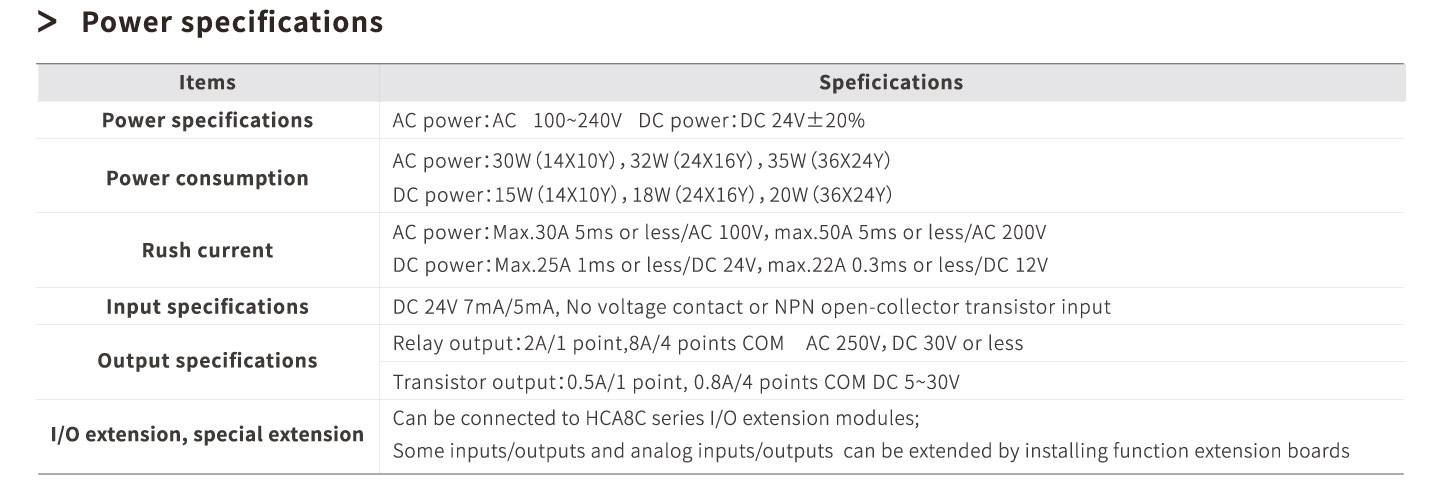

  • Basic specifications

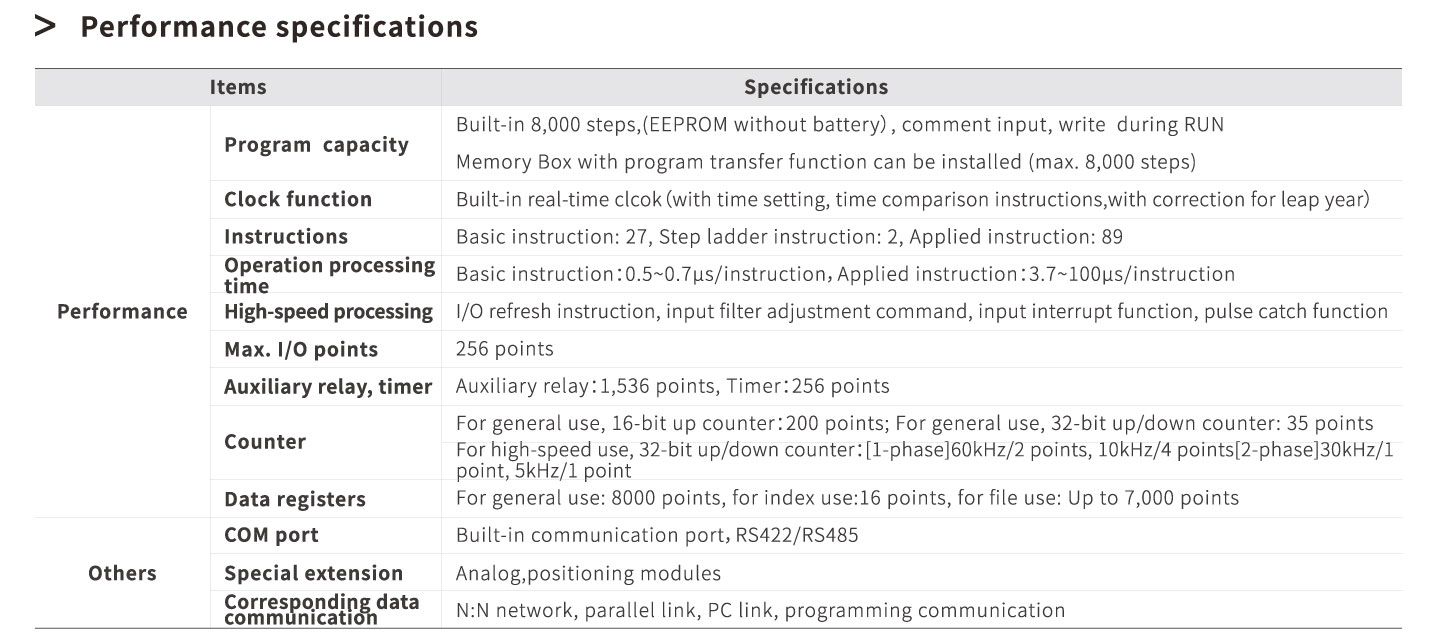

  • Performance specifications

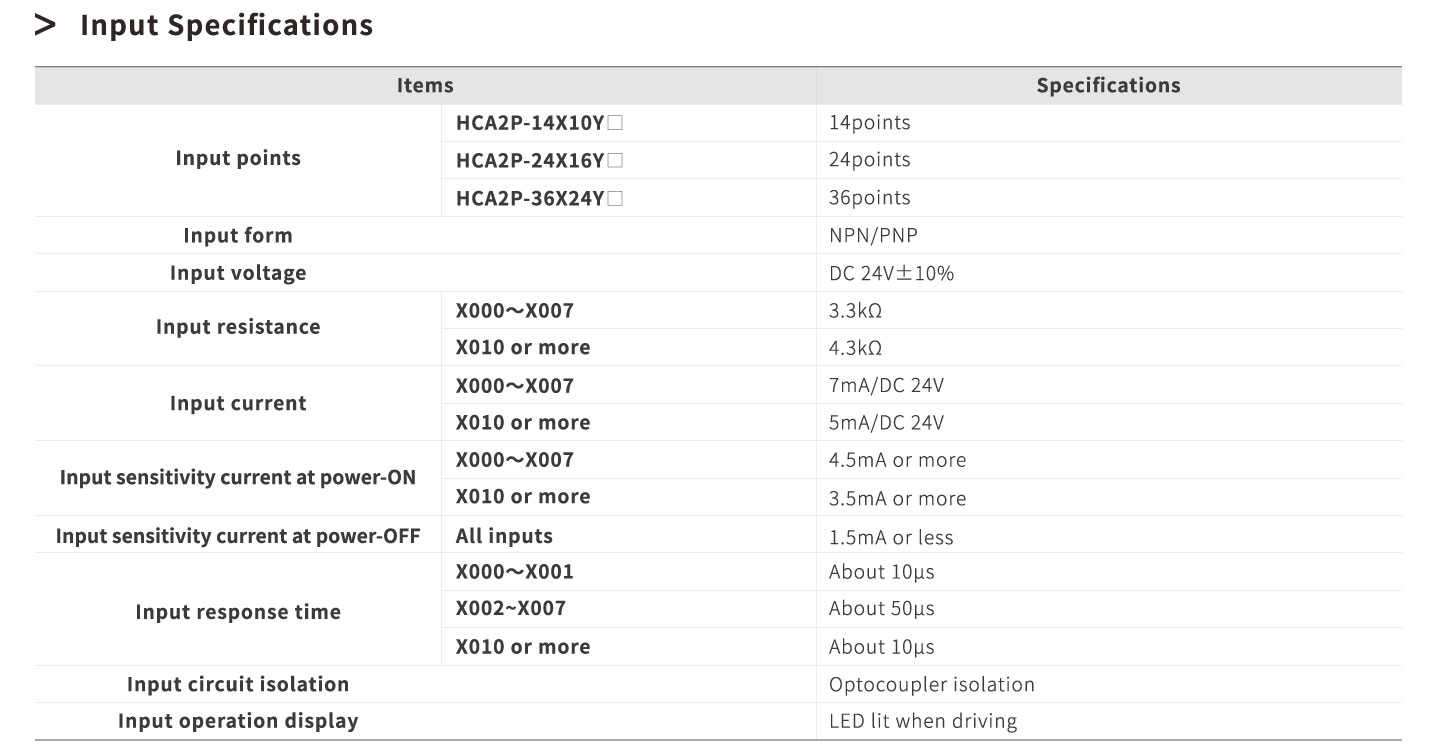

  • Input specifications

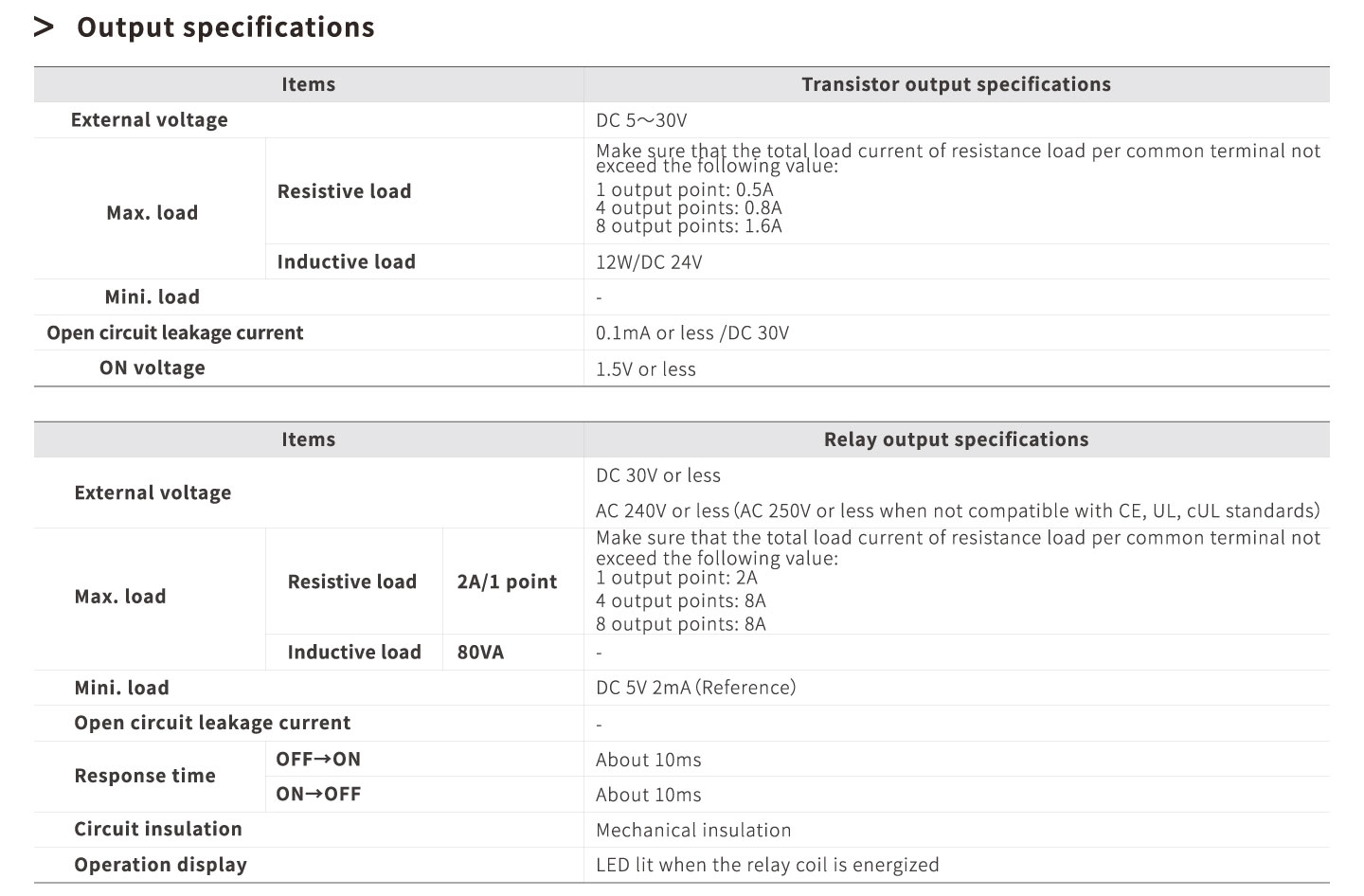

  • output specifications

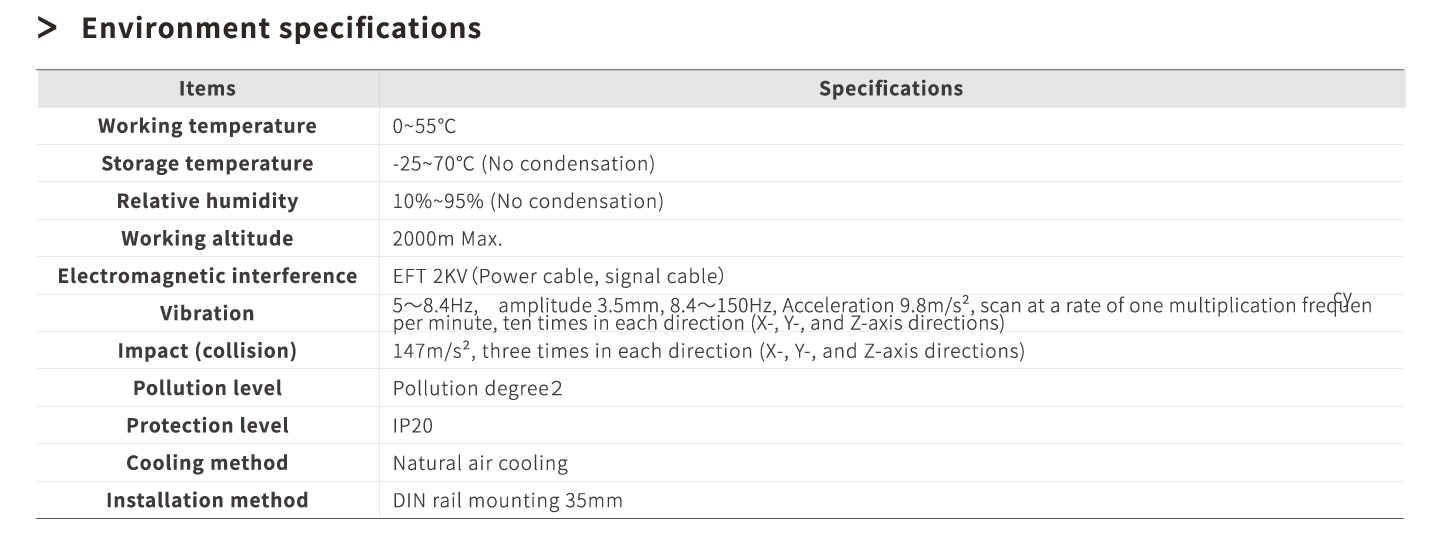

  • Other specifications

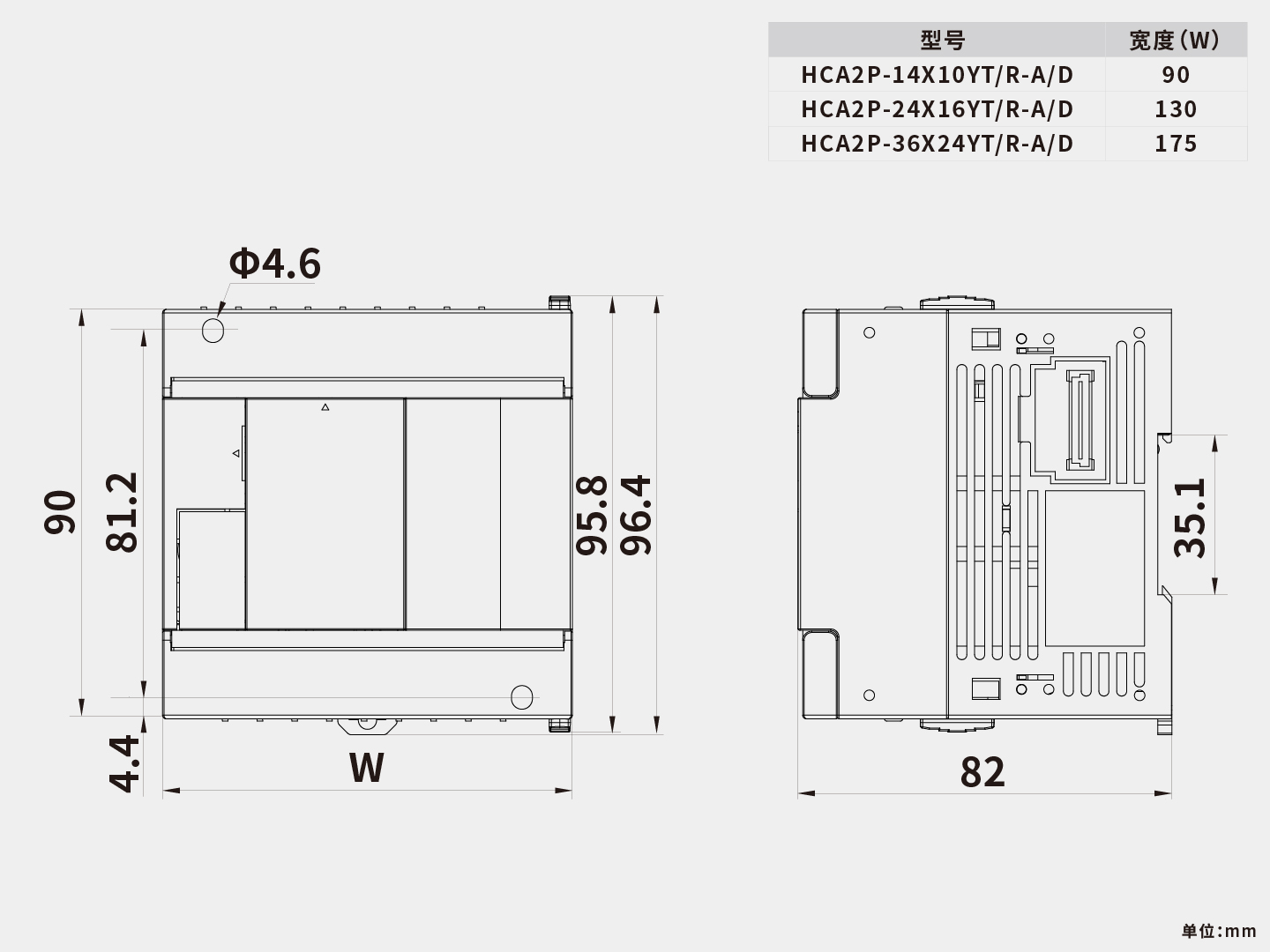

Product size
