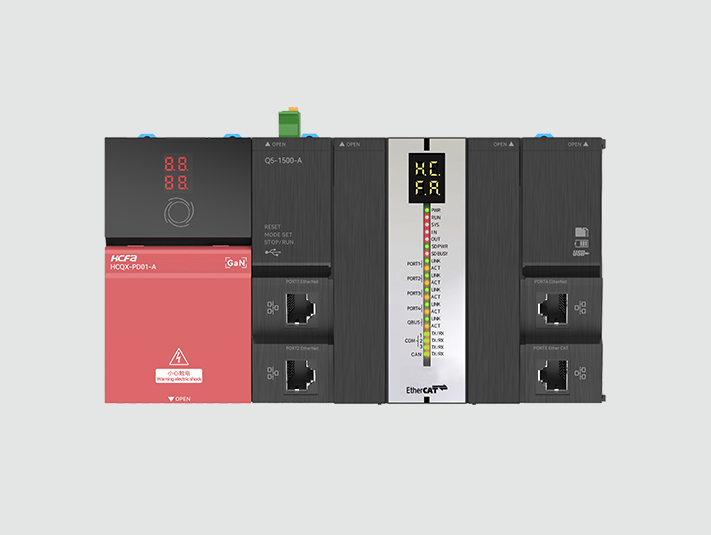

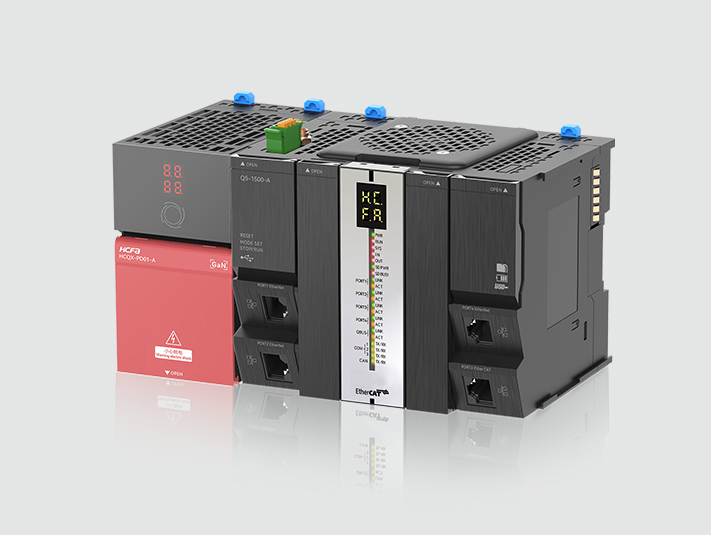

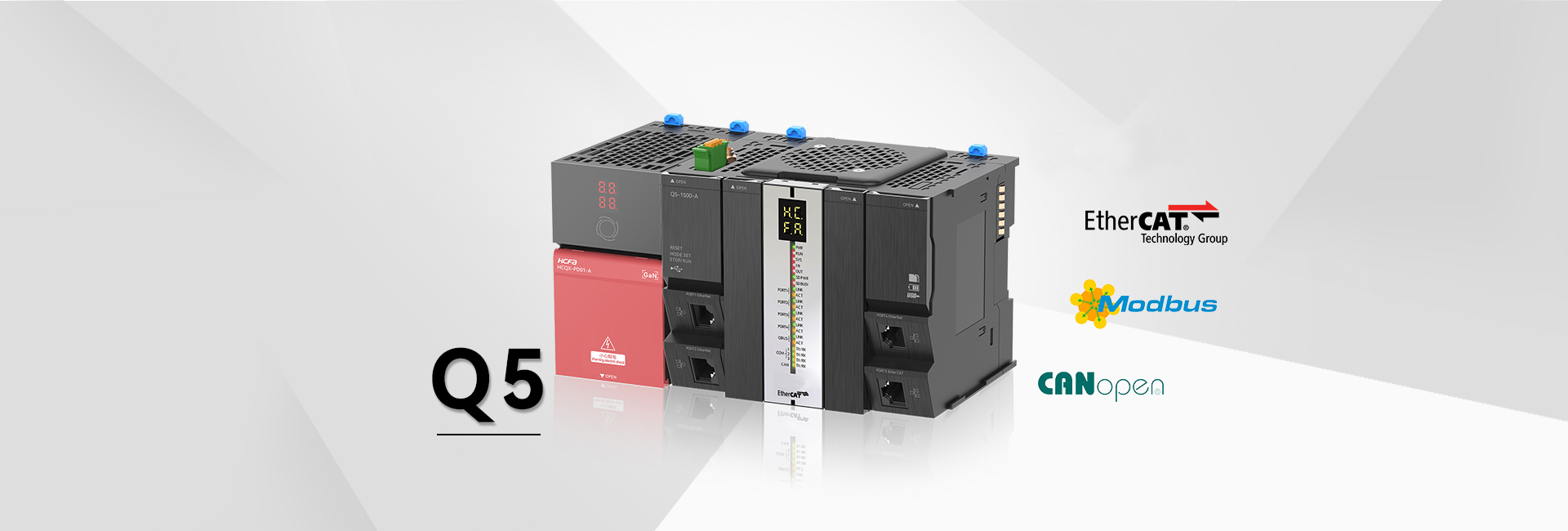

Q5
Product series: Basic intelligent mechanical controller
Module Type: CPU units
Processor: X86-CE*4, 2GHz, 4G DDR+64G SSD
Support protocols: EtherCAT, CANOpen(Follow-up support), Modbus,TCP/PTU, etc
Product Features
-
-
High speed and high configuration
Built-in 4-core processor + X86 Platform architecture
64G SSD+SD card+USB3.0+4G DDR3 Accelerator
Built-in 32 high-speed IO (16IN/16OUT)
-
-
-
Communication compatibility
Supports standard EtherCAT/CANOpen/Modbus TCP/Modbus RTU protocols
Complete communication interface
Ethernet Gps*2/EtherCAT interface/CAN and 3-way serial port built-in (RS485/RS232) WiFi and other options
Support Modbus Master-Slave mode
-
-
-
High ease of use
Standardized programming development: IEC61131-3 specification in 6 programming languages, using CODESYS platform
Flexible system configuration, up to 65535 slave stations
USB driver-free
12mm ultra-narrow direct pull module & push-in terminal
-
-
-
Motion Control
PLC OPEN-based standard motion control: linear/arc/spiral interpolation/electronic cam & flying shear & chasing shear/CNCG code control/Robot control
Ultra-short synchronization cycle: command execution can reach 1ns; 1ms with 32 axes, 4ms with 128 axes
-

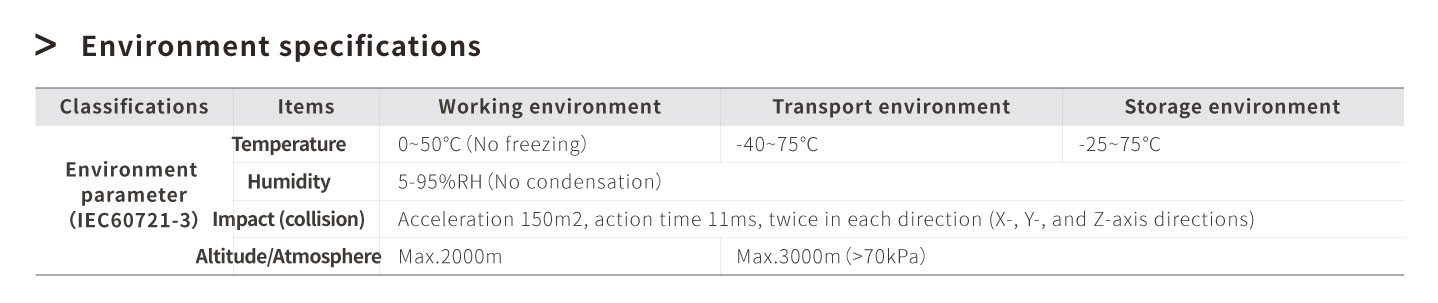

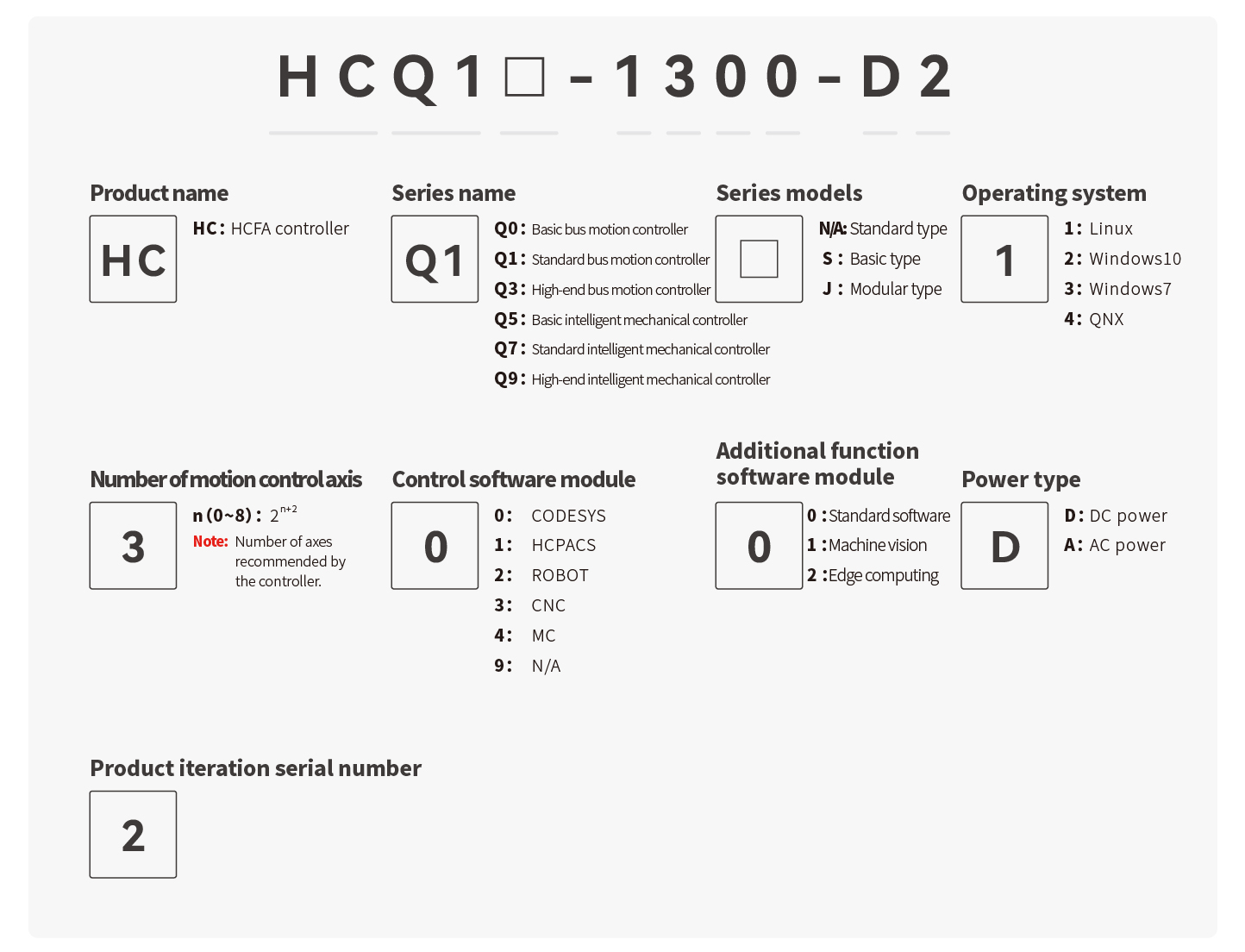

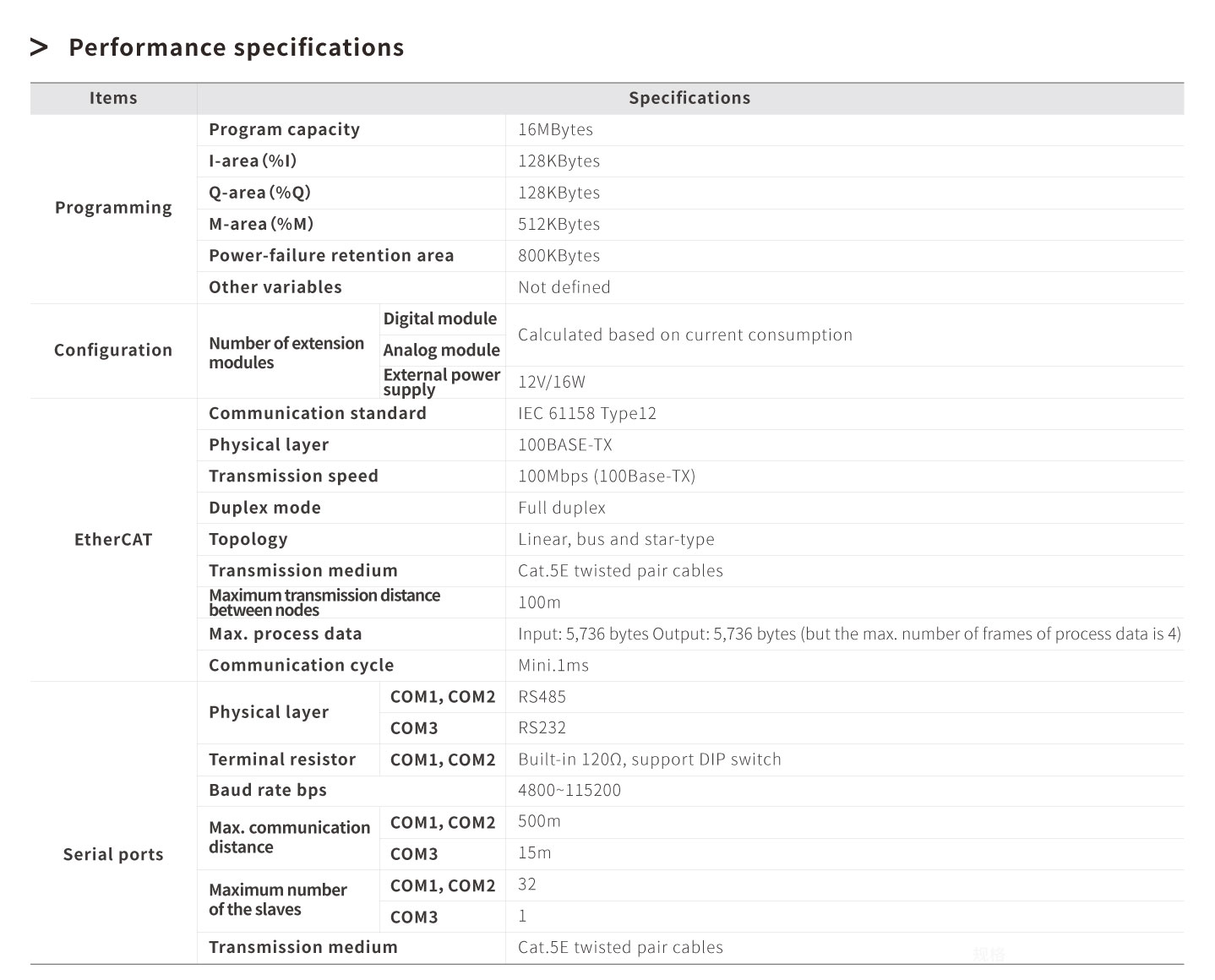

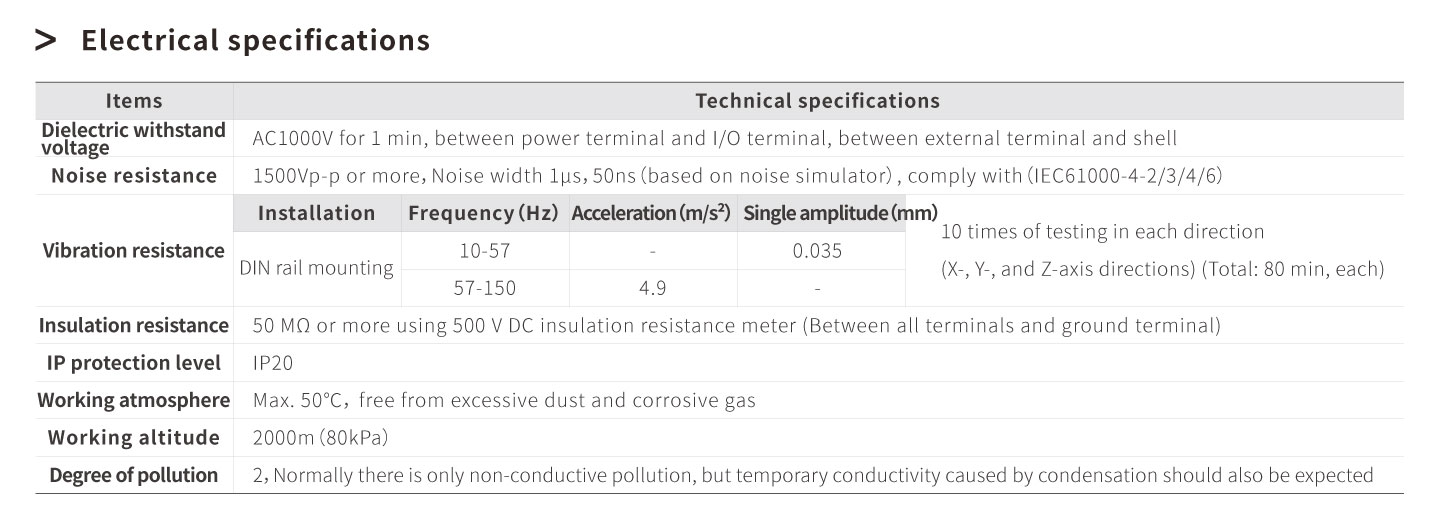

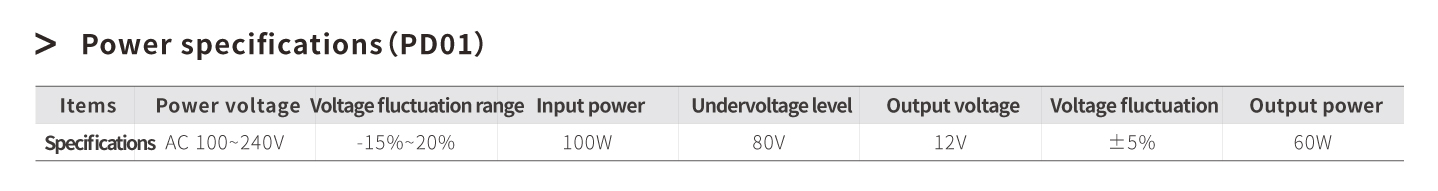

Product Specifications

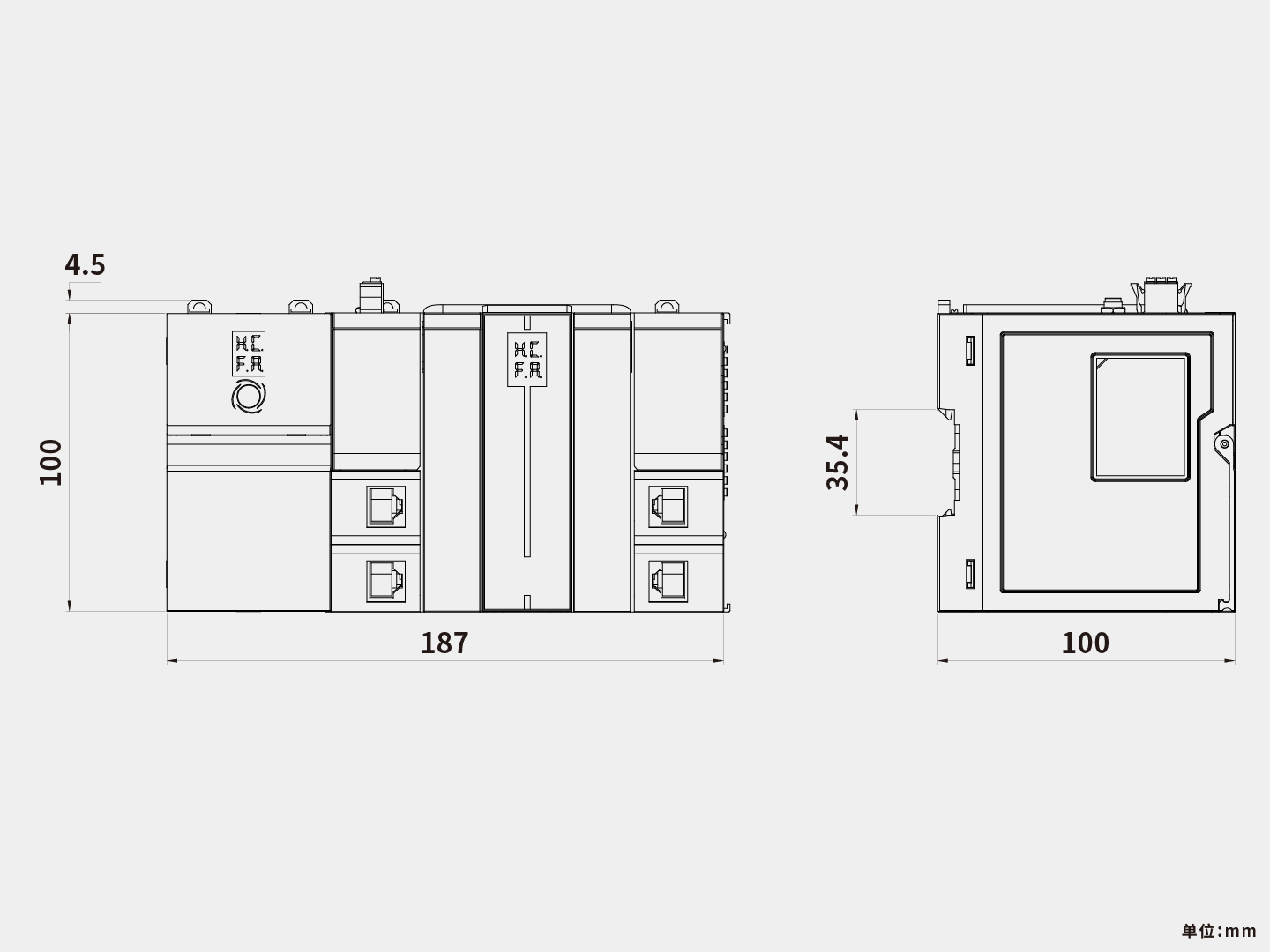

Product Size
Data Download
