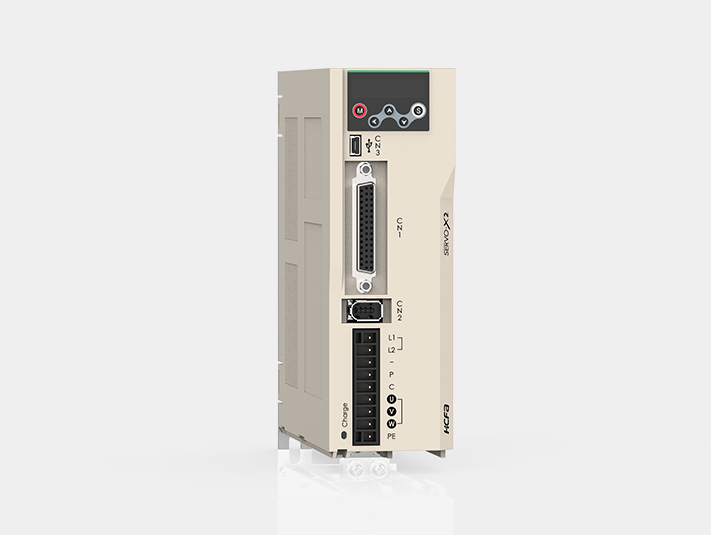

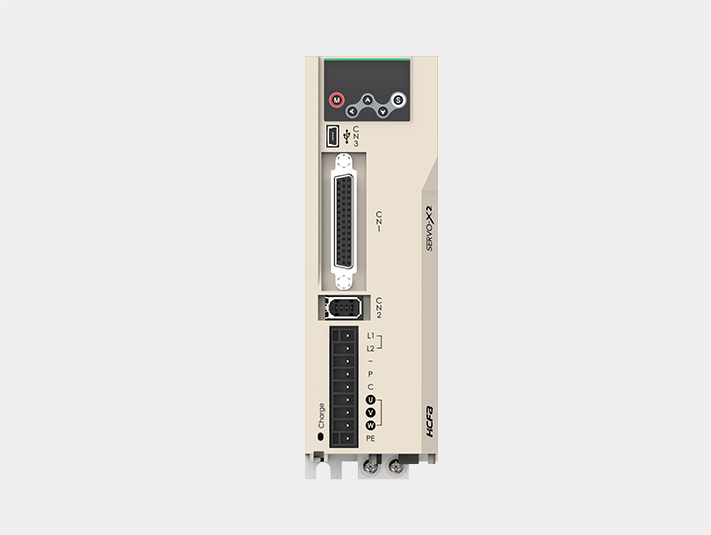

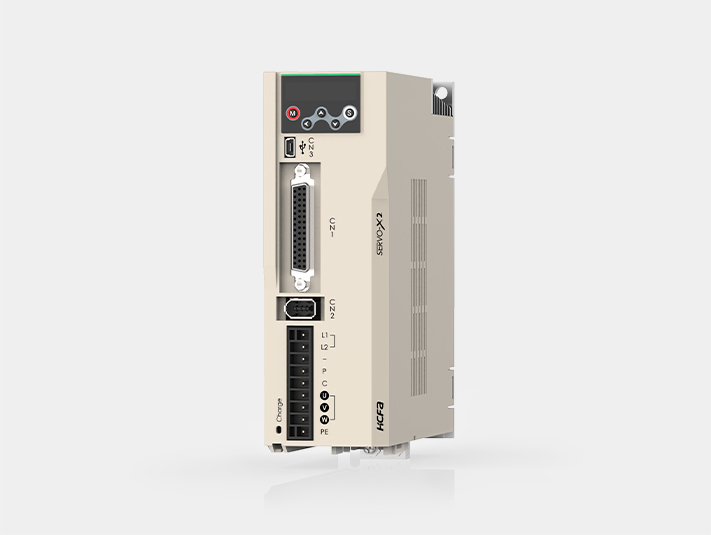

X2E
Product Series: X2E simple type servo drive
Drive type: A-pulse command type, N-CANOpen bus type
Power coverage: 50W~1.0kW single-phase 220V, 1.5kW~2.5kW, three-phase 220V
Protocol support: Modbus RTU, CANOpen
Product Features
-
-
More optimized hardware space and compact machine size
-
-
-
Reliable electromagnetic protection design, perfect drive protection function: over-voltage, under-voltage, over-current, overload, flying car protection, etc.
-
-
-
DO output high voltage, effectively deal with relay break pull arc, to avoid breakdown
-
-
-
Support 17bit X2 series motor, resistant to vibration, oil and dust, stable and reliable performance
-

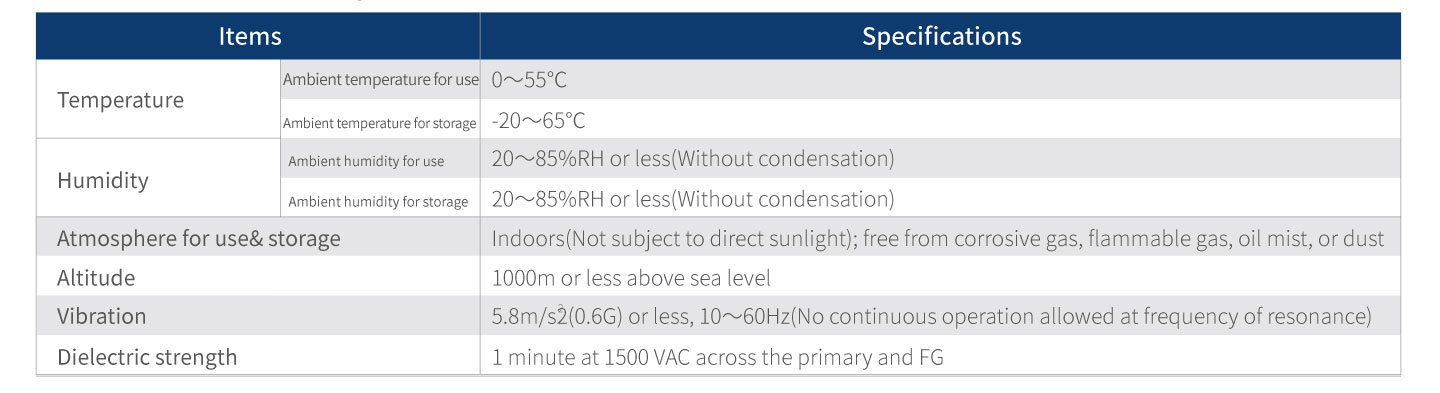

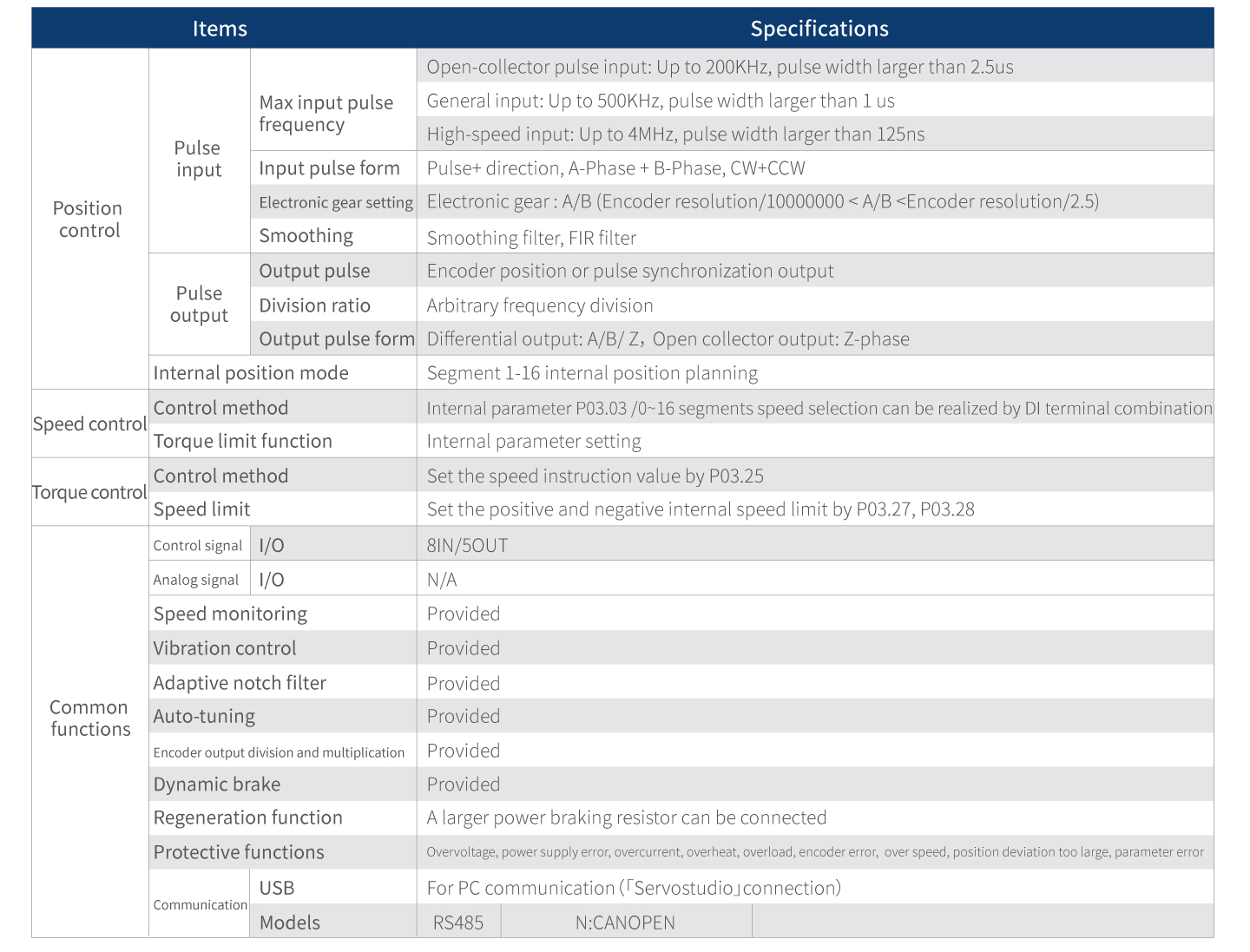

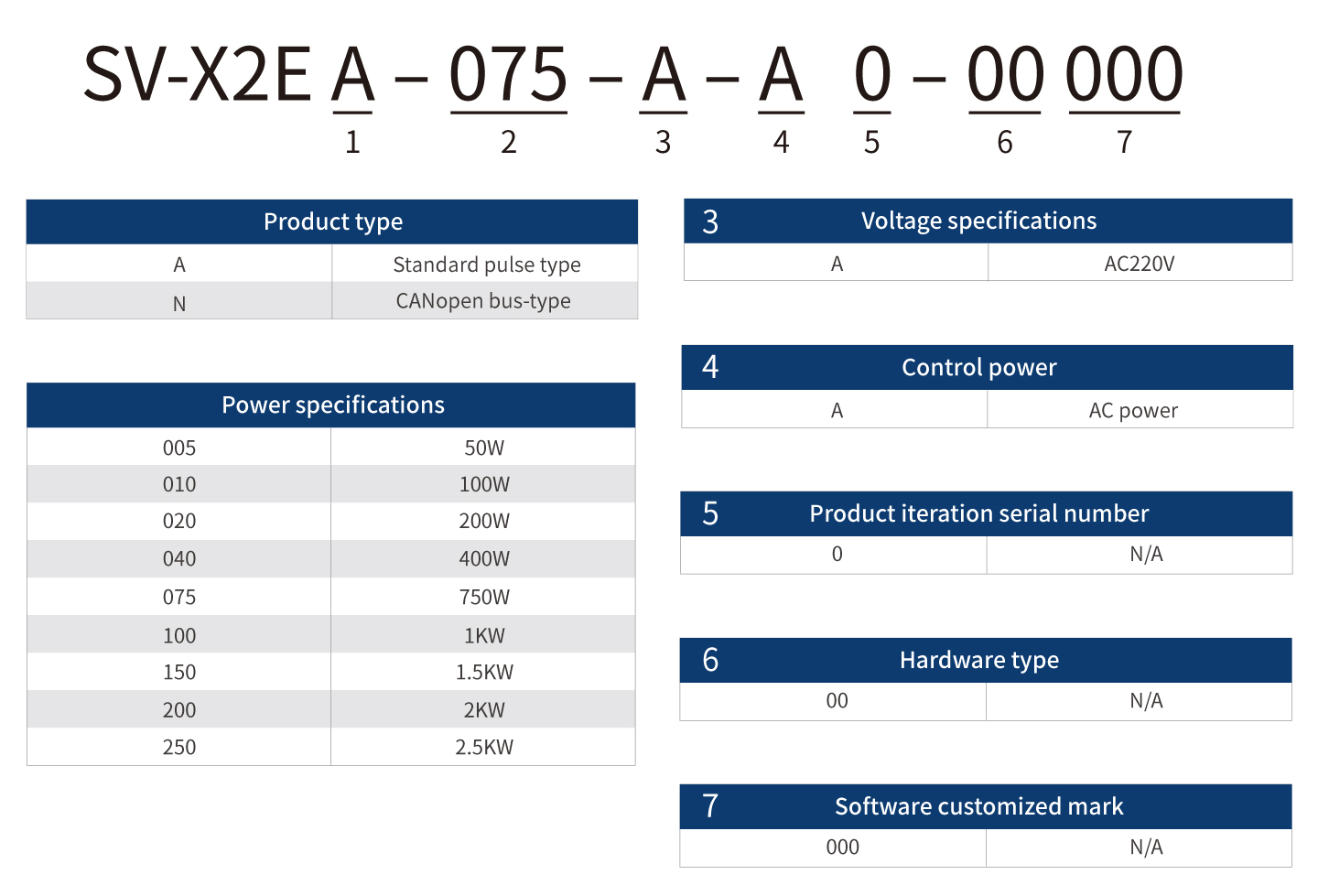

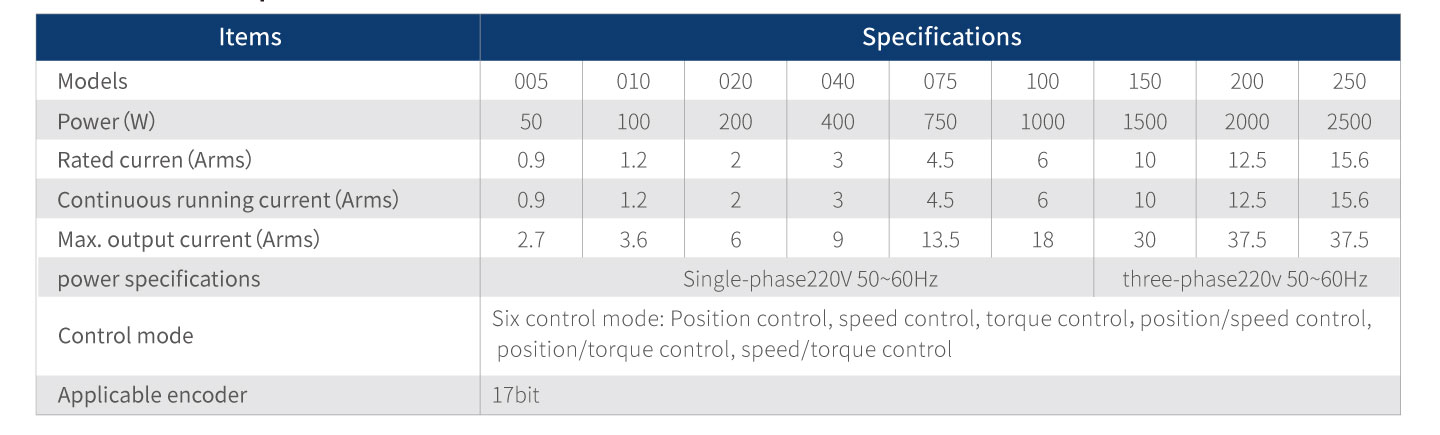

Product Specifications

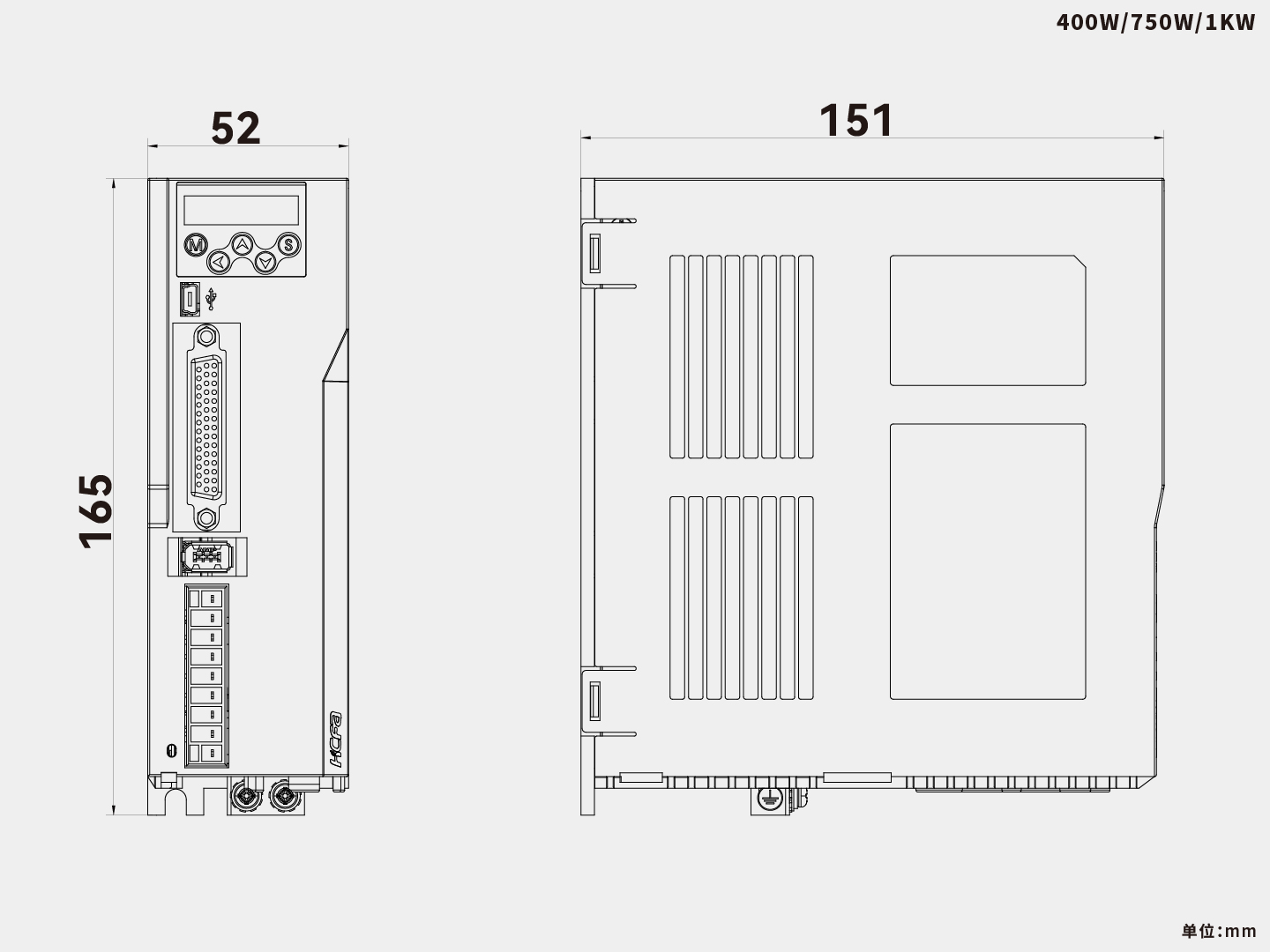

Product Size
Data Download
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Catalog | X2EX3E Servo Catalog 2023.6 -V1.0 | 2023.06.05 | Download |
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Manual | X2E Series Servo Drive User Manual V2.0(EN) | 2022.06.08 | Download |
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Instruction | X2E Series Servo Drive HW INS V2.2(EN) | 2022.06.08 | Download |
| Download Type | Name | Updated | Operation |
|---|
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Software | HCS-Studio(En) V2.08 | 2022.06.08 | Download |
