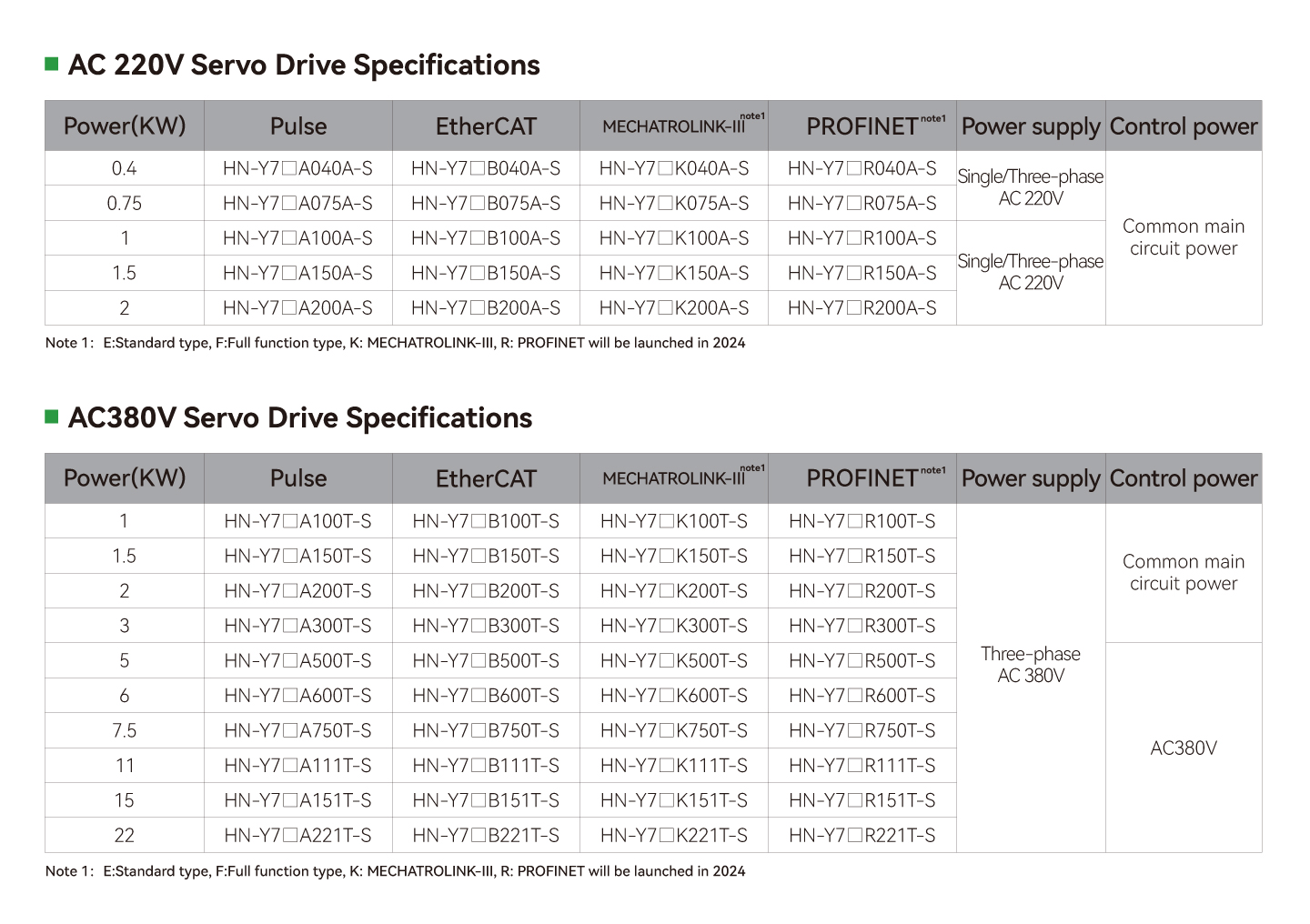

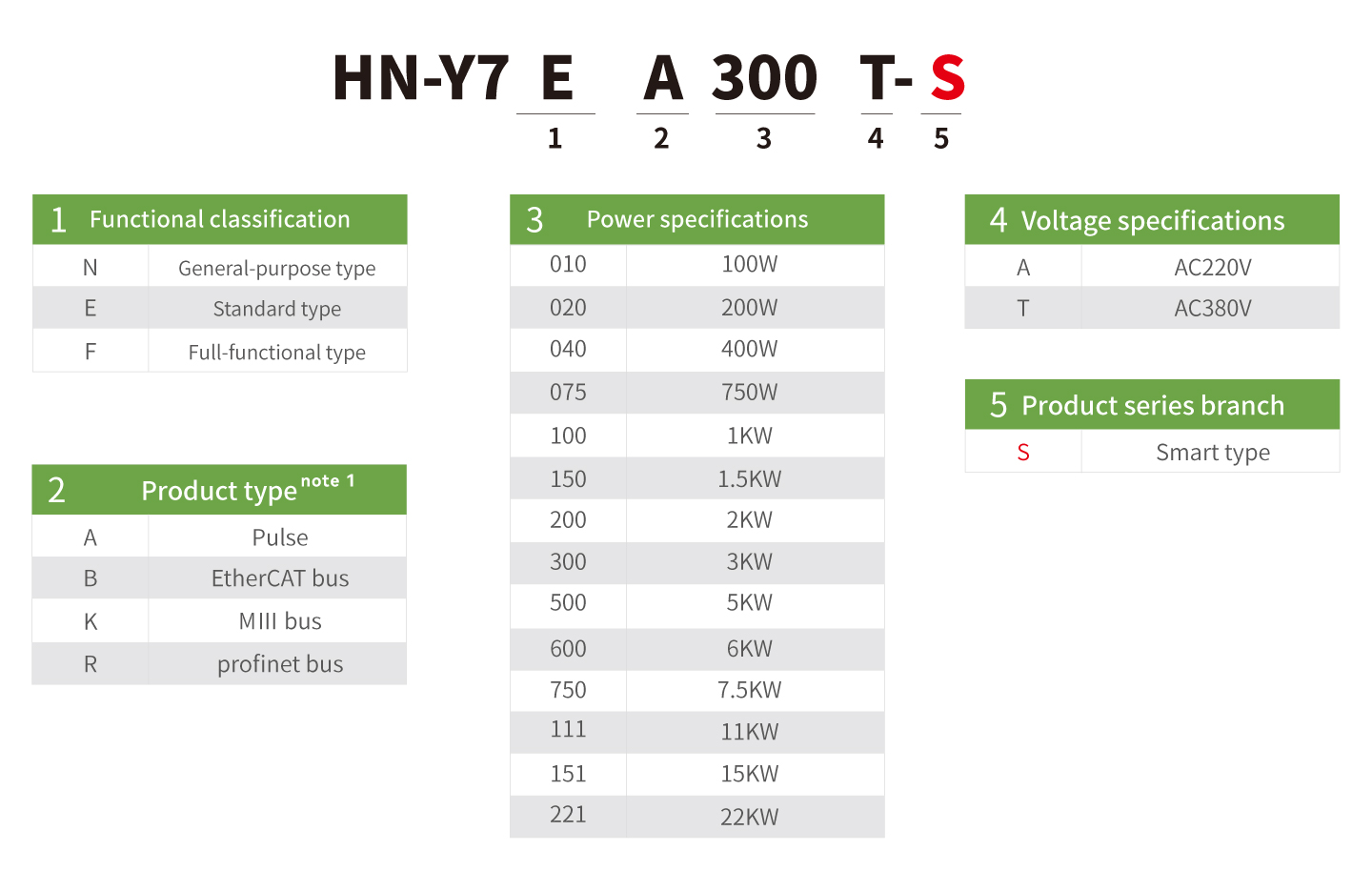

Rich voltage levels and power specifications, including 14 drive power specifications and 76 motor specifications

Same model for 400W or below -- Easier model selection and shorten delivery time

Speed loop 3.5kHZ, higher response

Maximizing the performance of the system and equipment with higher accuracy

The accuracy of the encoder is increased to 20bit with X2 series servo motor

The accuracy of the encoder is increased to a higher 25bit with X6 series servo motor

Low power motor speed up to 6500 rpm, 3.5 times overload

One button auto-tuning, resonance suppression, model tracking, and friction compensation features make the comissioning easy and save the time

Super motion bus controlled by "Chip"

Multiple bus communication supported by HCFA self-developed chips

Smart end devices can be connected through IoT function, supporting remote comissioning

EtherCAT bus minimum synchronization period of 125us for faster command response and higher trajectory accuracy

Optimized independent heat dissipation air duct design to perfectly cope with complex application environment

STO, Dynamic brake(DB), Temperature detection(TD), Brake detection(BD) and breakage detection functions keeps safe and sound

No external relay required with holding brake interface to save wiring and cost
