X5E

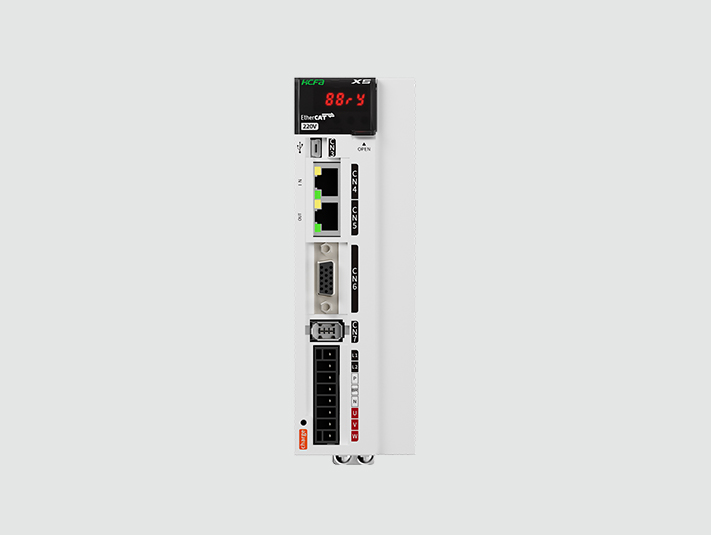

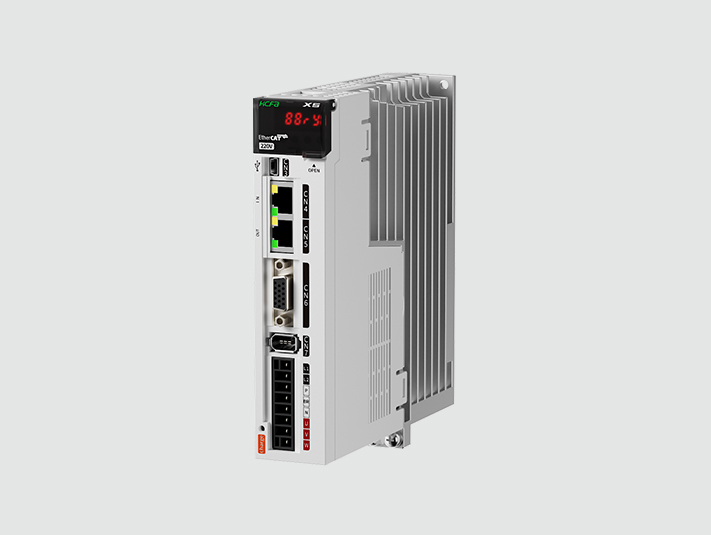

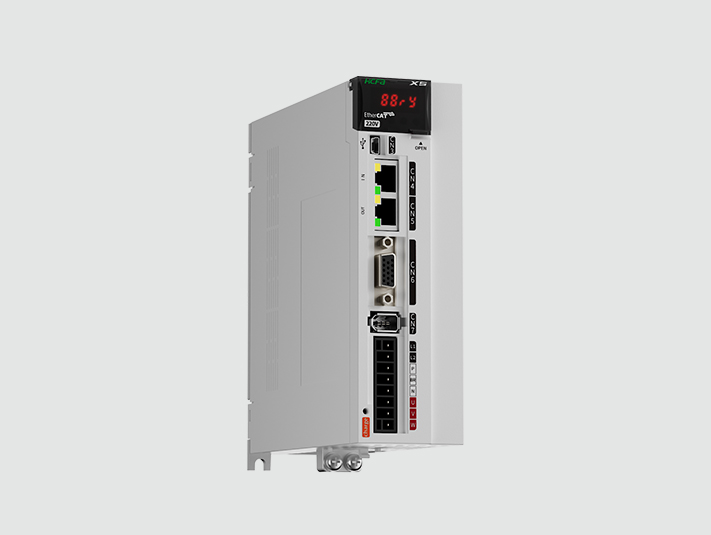

SV-X5E Advanced Servo
Product series: X5 advanced servo drive
Drive type: A-pulse command type, B-EtherCAT bus type, N-CANOpen bus type
Power coverage:
220V model: 100W-1kW, single phase 220VAC
220V model: 1.5kW-2.5kW, three phase 220VAC
Protocol support: Modbus RTU, EtherCAT, CANOpen etc.

Product Features

  • LCD display, compact design architecture with industrial aesthetics

    Reliable electromagnetic protection design, comprehensive drive protection function: over-voltage, under-voltage, over-current, overload, flying protection, etc.

    Complete position control mode, real-time gain adjustment technology, high ease of use

  • Support 17bit and 23bit high precision motors, stable and reliable performance, covering OEM industry applications

    Support CANOpen, ModbusRTU

Product Specifications

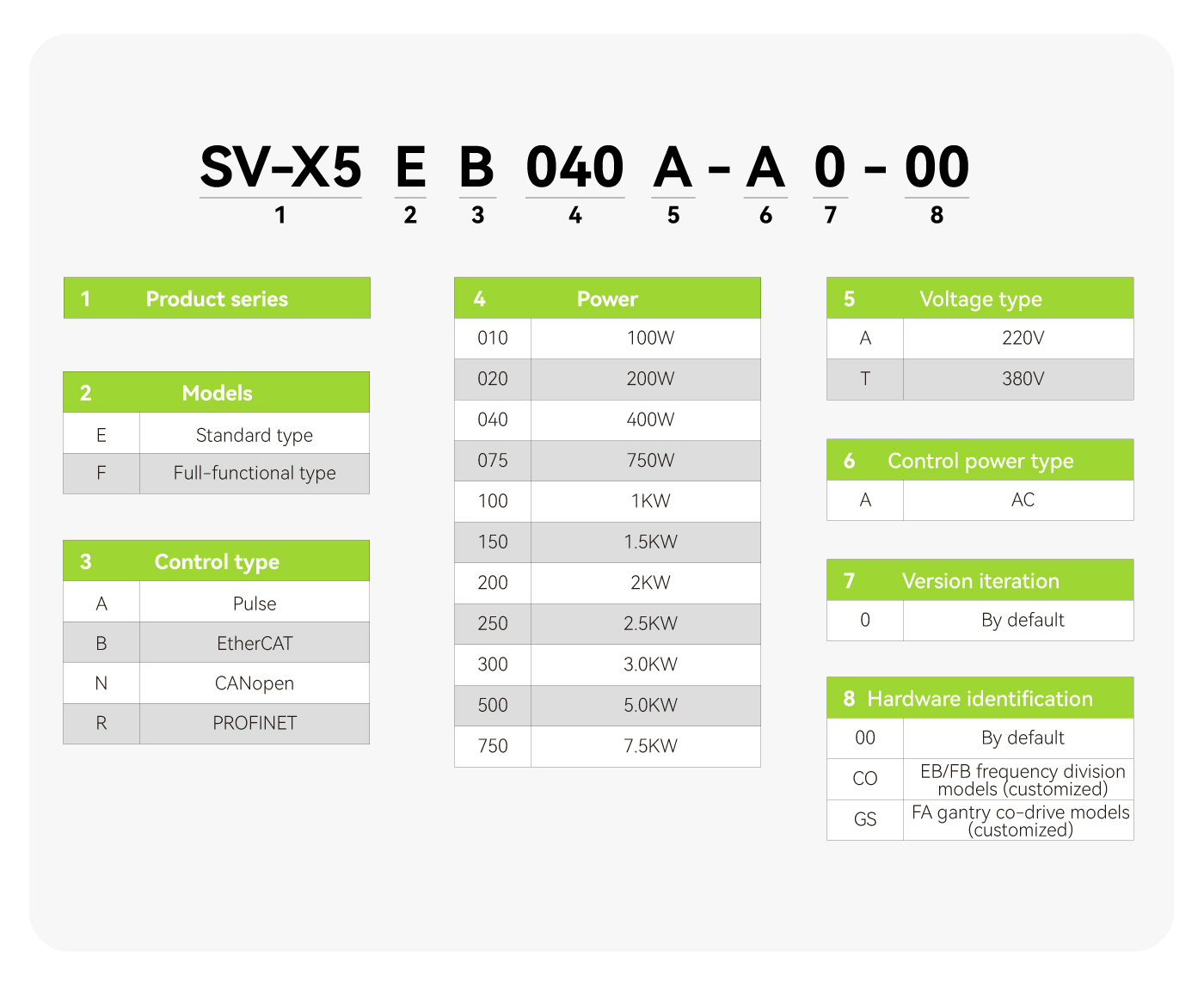

  • Naming-rules

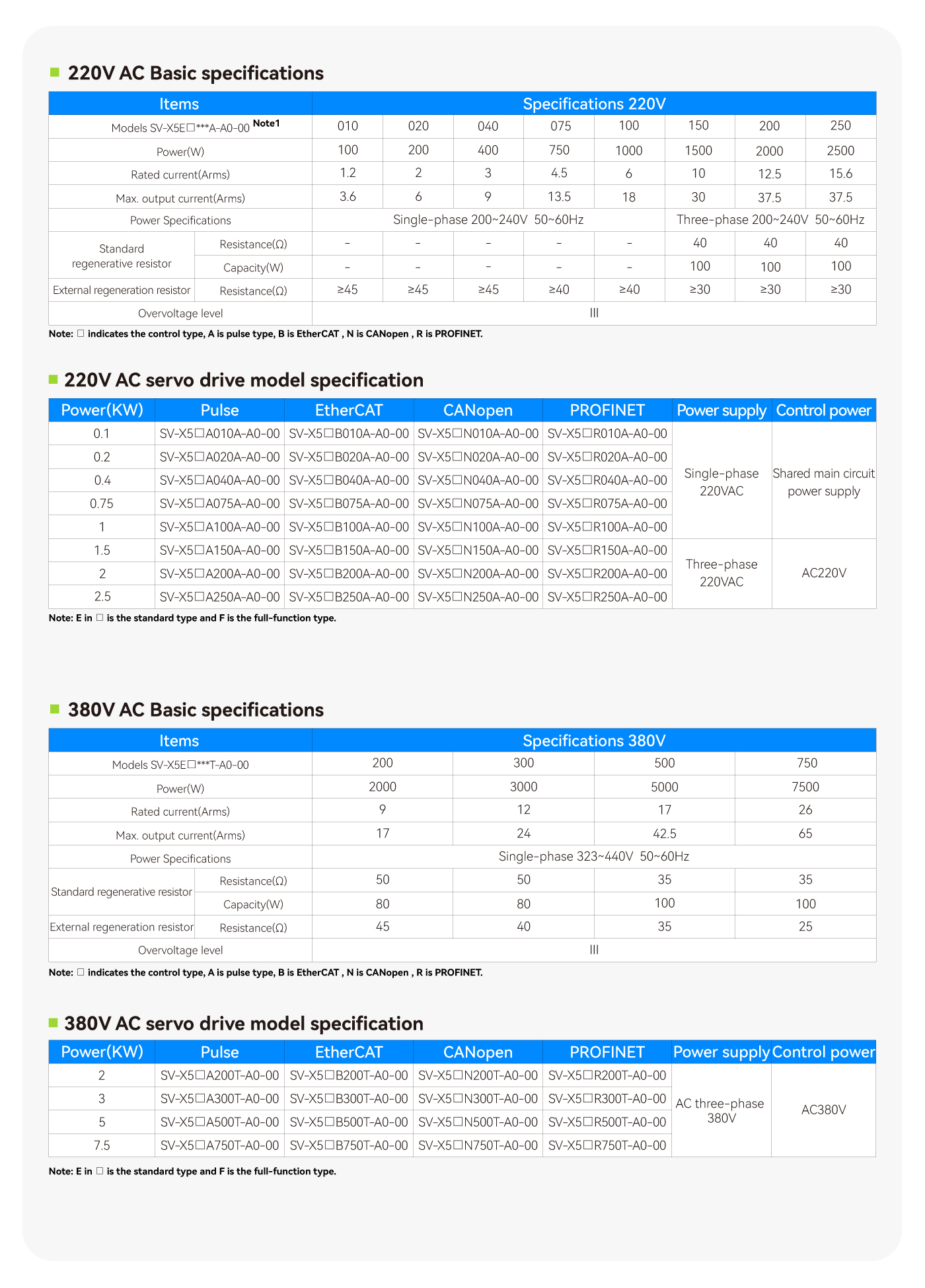

  • Basic-specifications

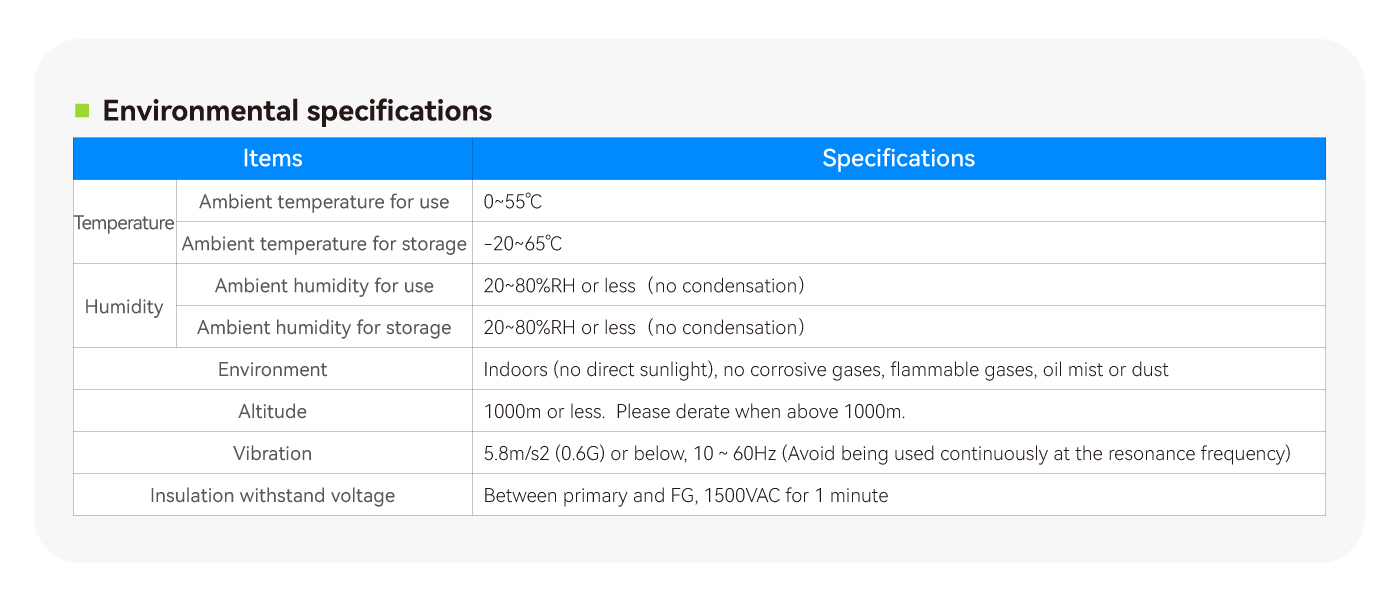

  • Environmental-specifications

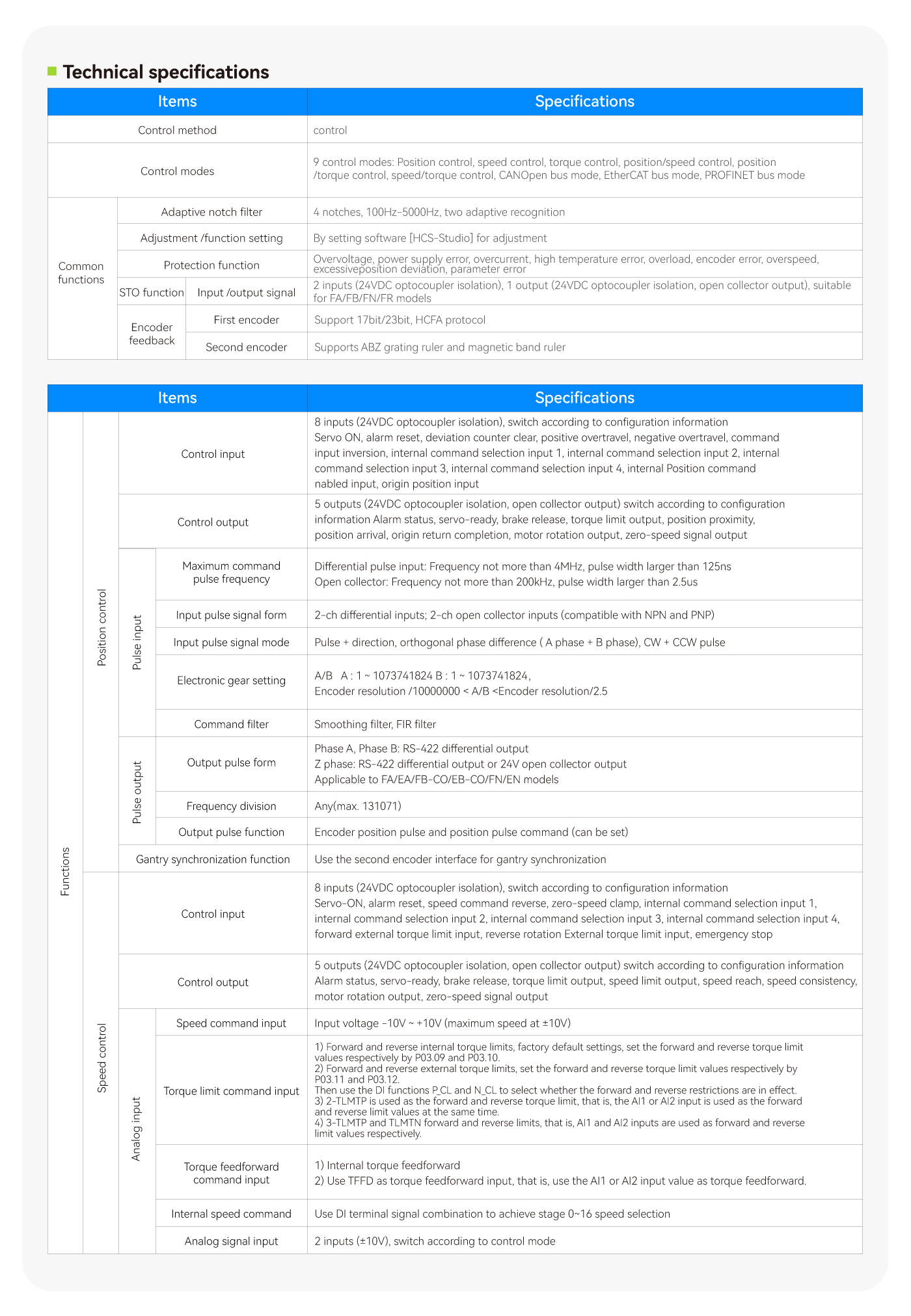

  • Technical-specifications

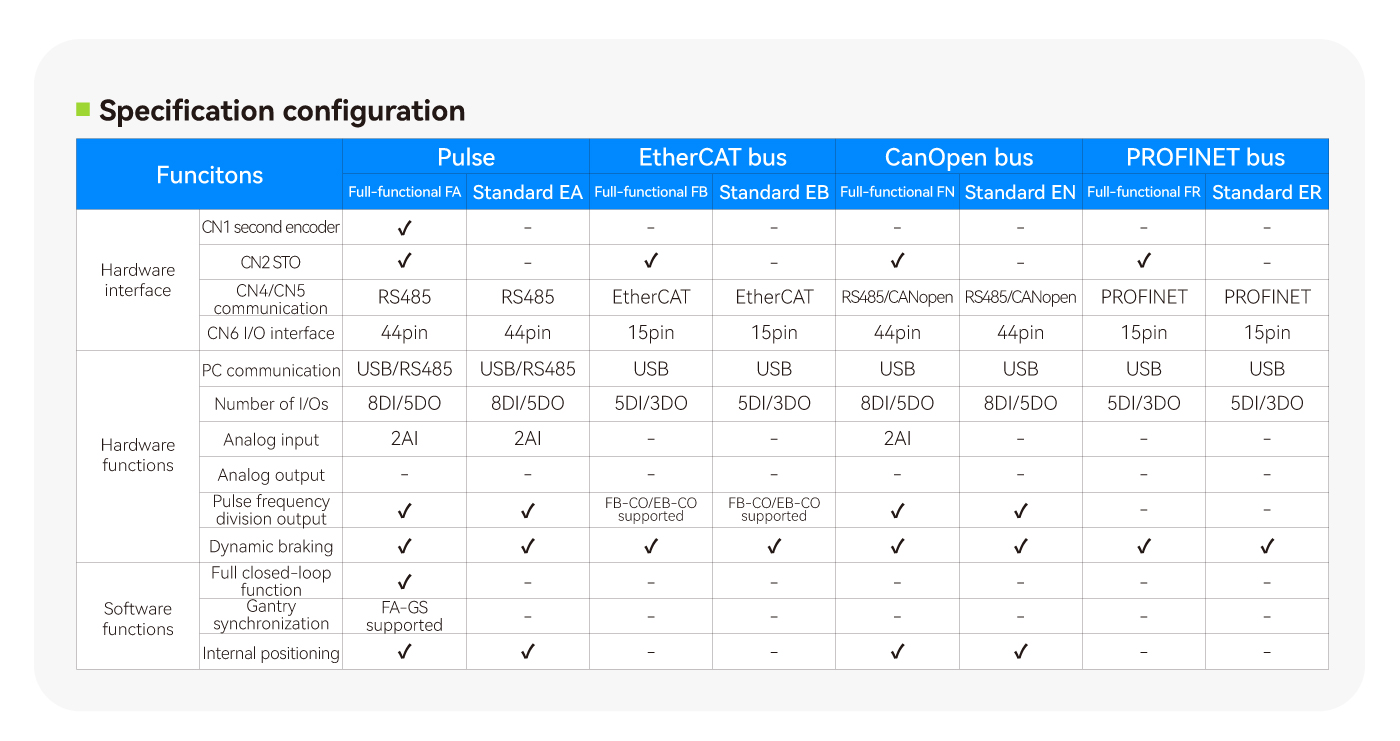

  • Specification-configuration



Product Size

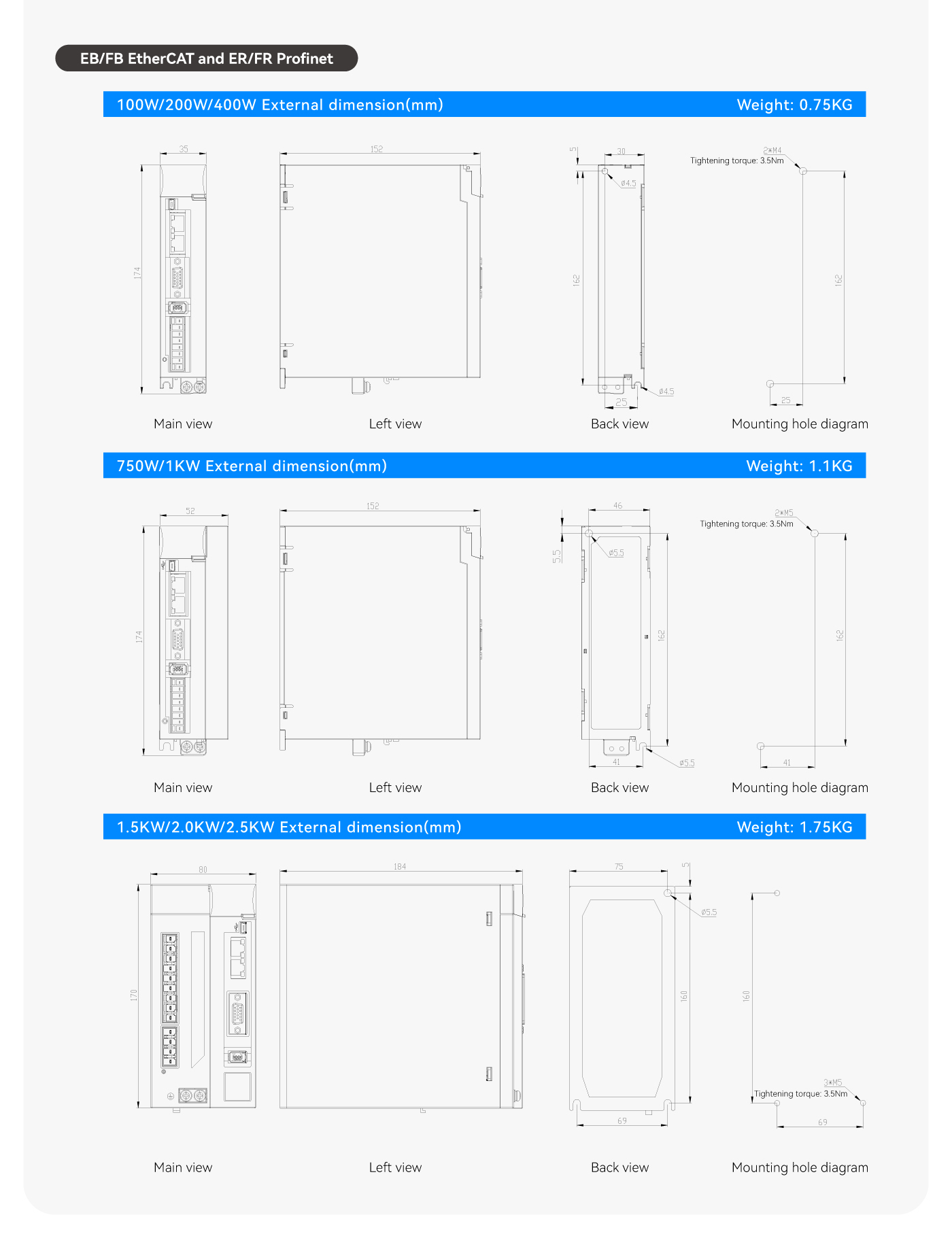

External-dimension_01

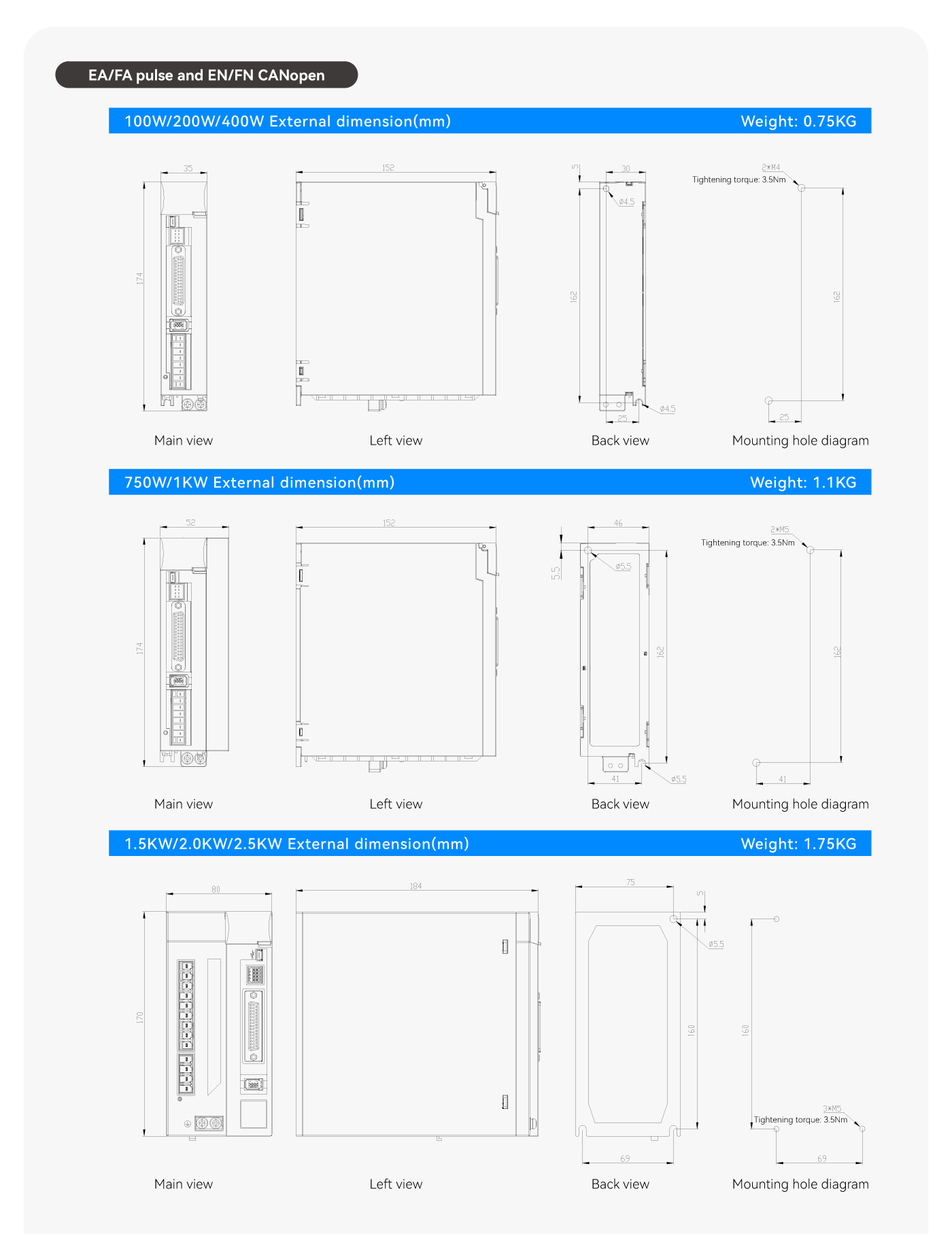

External-dimension_02


Data Download

  • Catalog
  • Manual
  • Instruction
  • Drawing
  • Software
  • Others
Download Type Name Updated Operation
Catalog X5 Series Servo Drive Catalog 2024.2-V2.0 2024.08.22 Download
Download Type Name Updated Operation
Manual SV-X5 series pulse drive instruction manual V1.0(EN) 2025.02.07 Download
Manual SV-X5 series PROFINET bus servo product Instruction manual V1.0(EN) 2025.02.07 Download
Manual SV-X5 series EtherCAT bus servo product Instruction manual V1.5(EN) 2025.02.07 Download
Manual SV-X5 series CANopen bus servo product Instruction manual V1.0(EN) 2025.02.07 Download
Download Type Name Updated Operation
Download Type Name Updated Operation
图纸 X5E图纸(3D) 2022.05.18 Download
Download Type Name Updated Operation
伺服调试软件 HCS-Studio(Cn) V2.08 2022.05.18 Download
软件使用说明 HCS Studio软件说明 2022.05.18 Download
Download Type Name Updated Operation
EMC Certificate SV-X5E Advanced Servo 2024.07.22 Download
