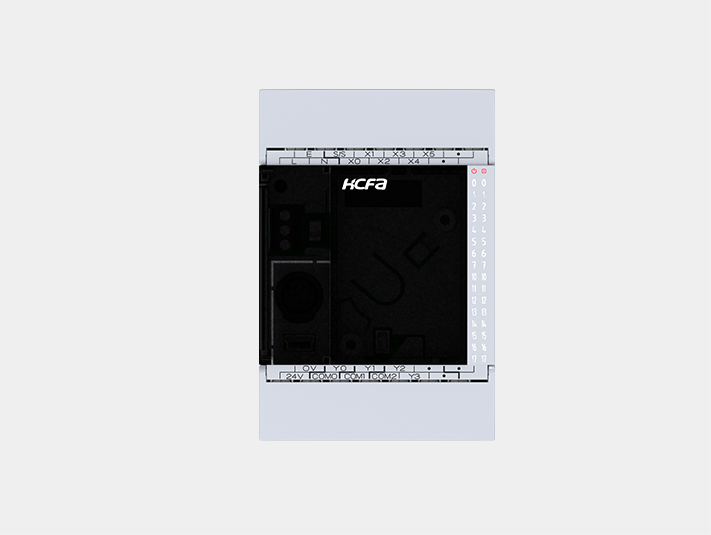

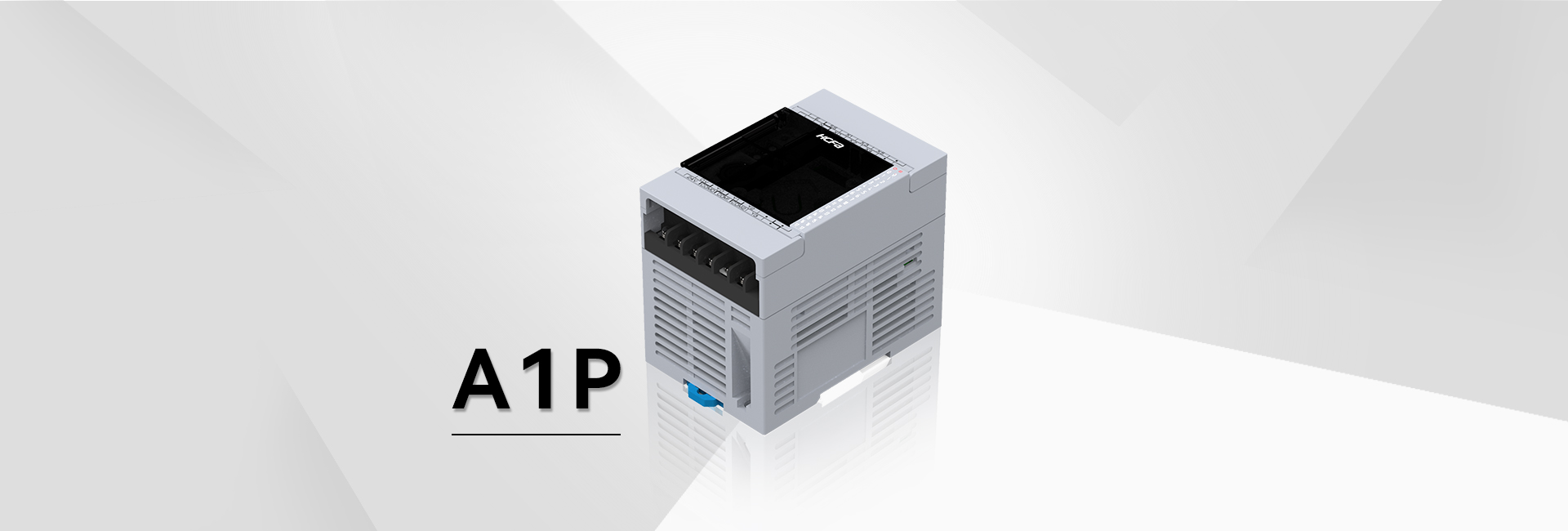

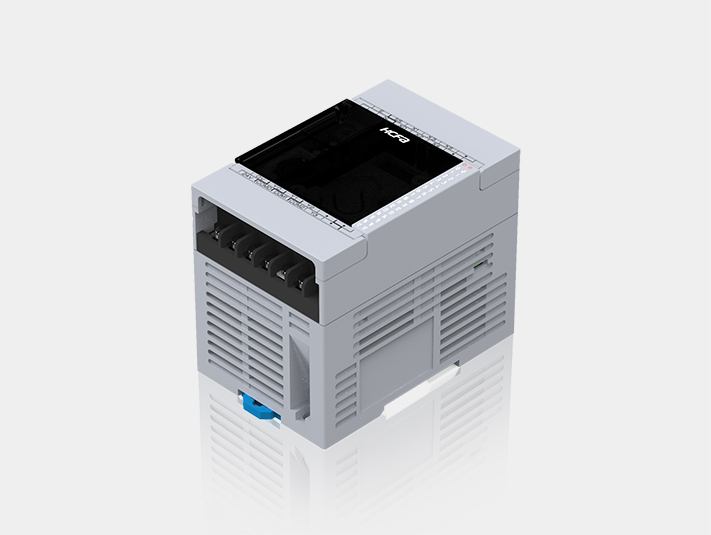

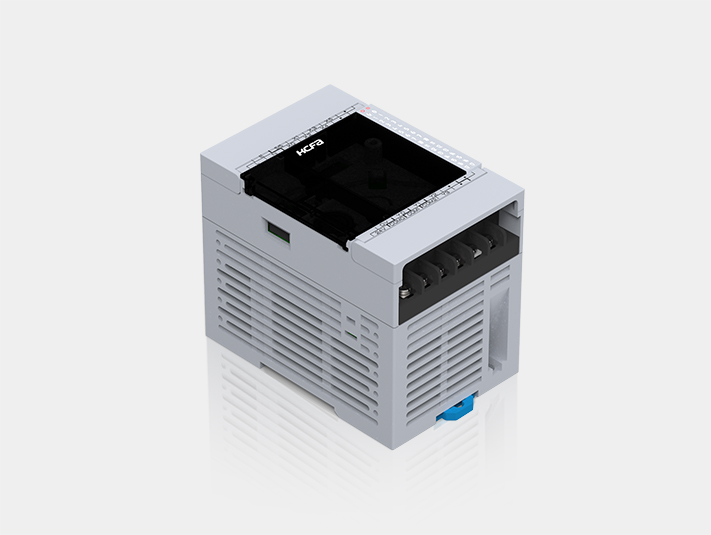

A1P

Product series：A series simple controller

Module type：CPU Unit

Operation speed：LD 20ns

Control points：30 points

Program capacity：2k steps

Support high-speed pulse output：2 axis 100kHz high-speed pulse output

Hardware interface：RS422/RS485

Transistor output：HCA1P-8X6YT-A、HCA1P-8X6YT-D、HCA1P-12X8YT-A、HCA1P-12X8YT-D、HCA1P-16X14YT-A、HCA1P-16X14YT-D

Relay output：HCA1P-8X6YR-A、HCA1P-8X6YR-D、HCA1P-12X8YR-A、HCA1P-12X8YR-D、HCA1P-16X14YR-A、HCA1P-16X14YR-D


Product Features

  • High speed and high configuration

    2kb program capacity, memory box with program transfer function can be installed (max. 2k steps)

    Basic instruction operation speed: 0.5~0.7μs/instructions, application instruction operation speed: 3.7μ~100μs/instructions

    Supports high-speed pulse input and output

  • Communication compatibility

    Support serial port free protocol and dedicated protocol

    Support RS485/RS422 interface

    Support Modbus master-slave mode

  • High Ease of Use

    Support BD board to expand a small number of input and output points or analog input and output

  • Motion Control

    Support 2-axis motion

    30 control points

Product Specifications

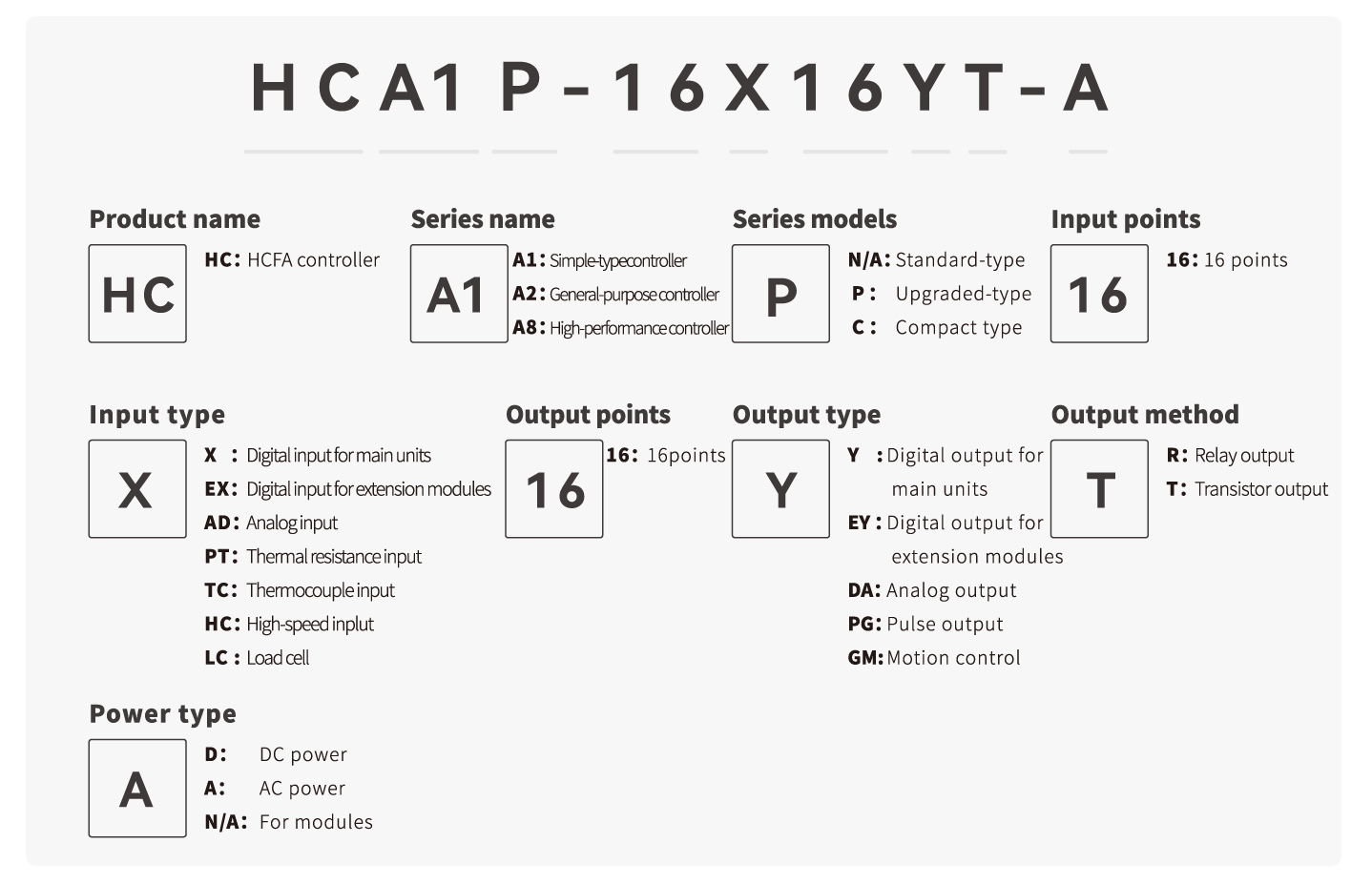

  • Naming rule

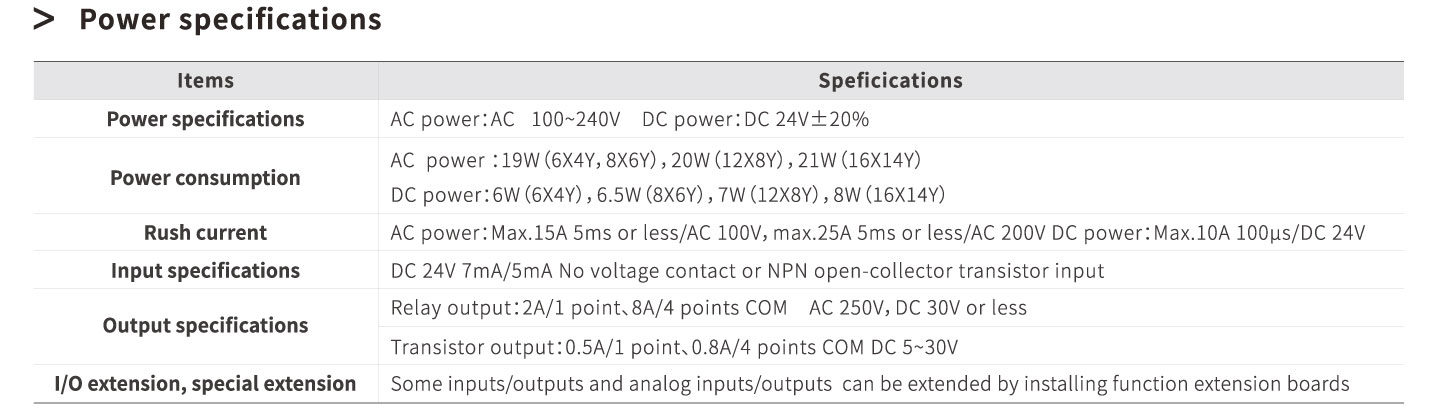

  • Basic specifications

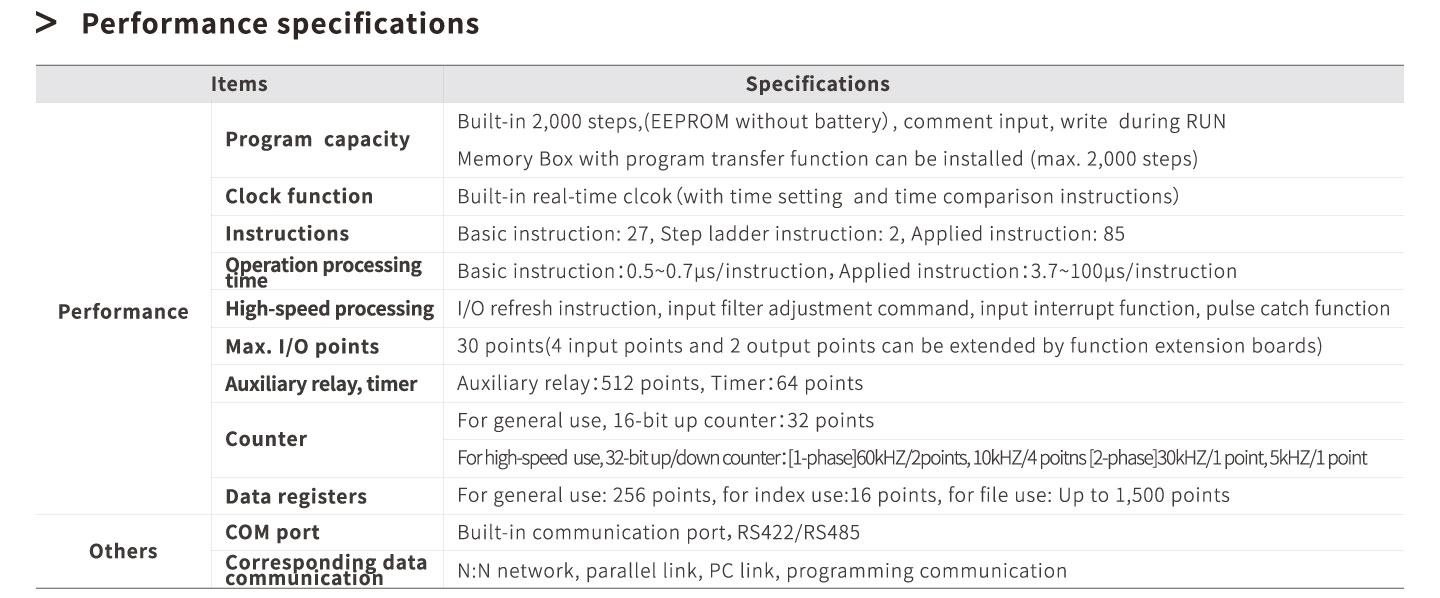

  • Performance specifications

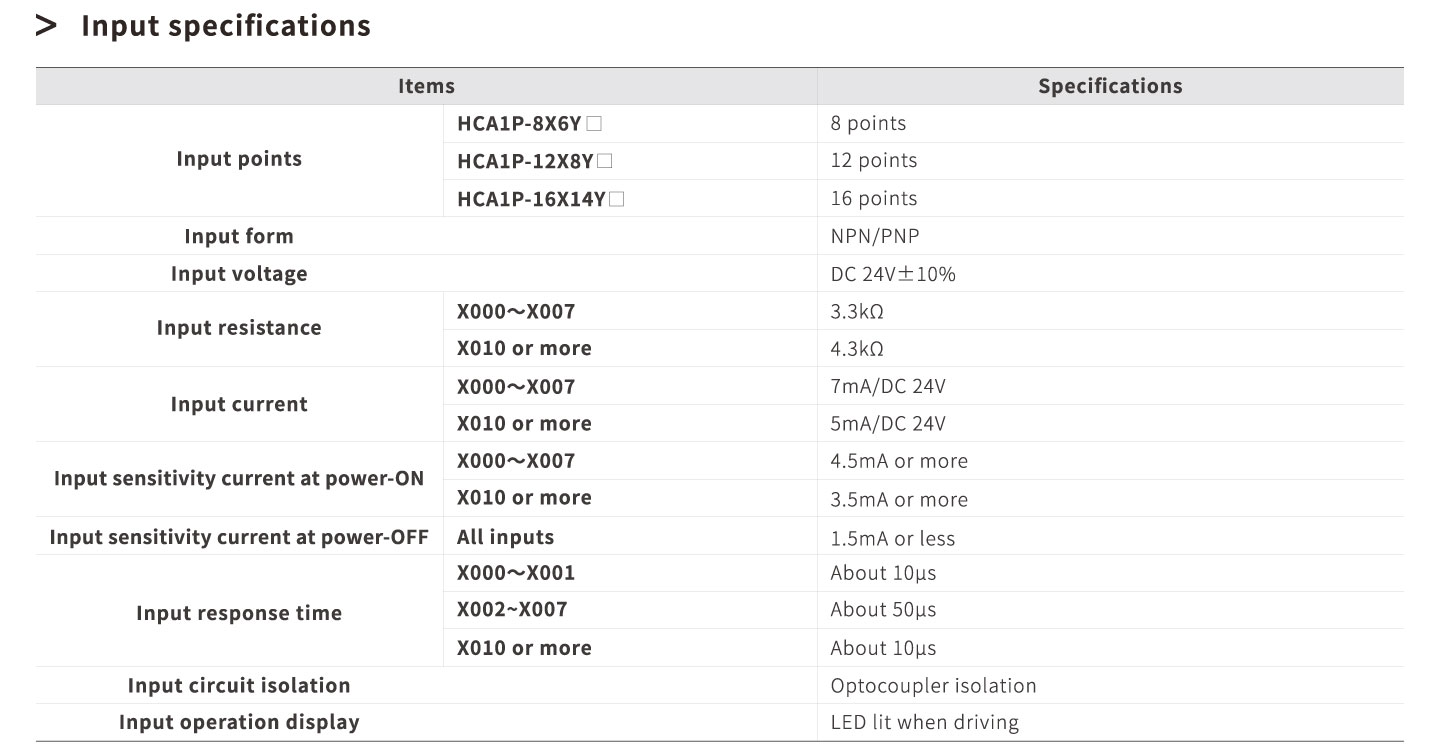

  • Input specifications

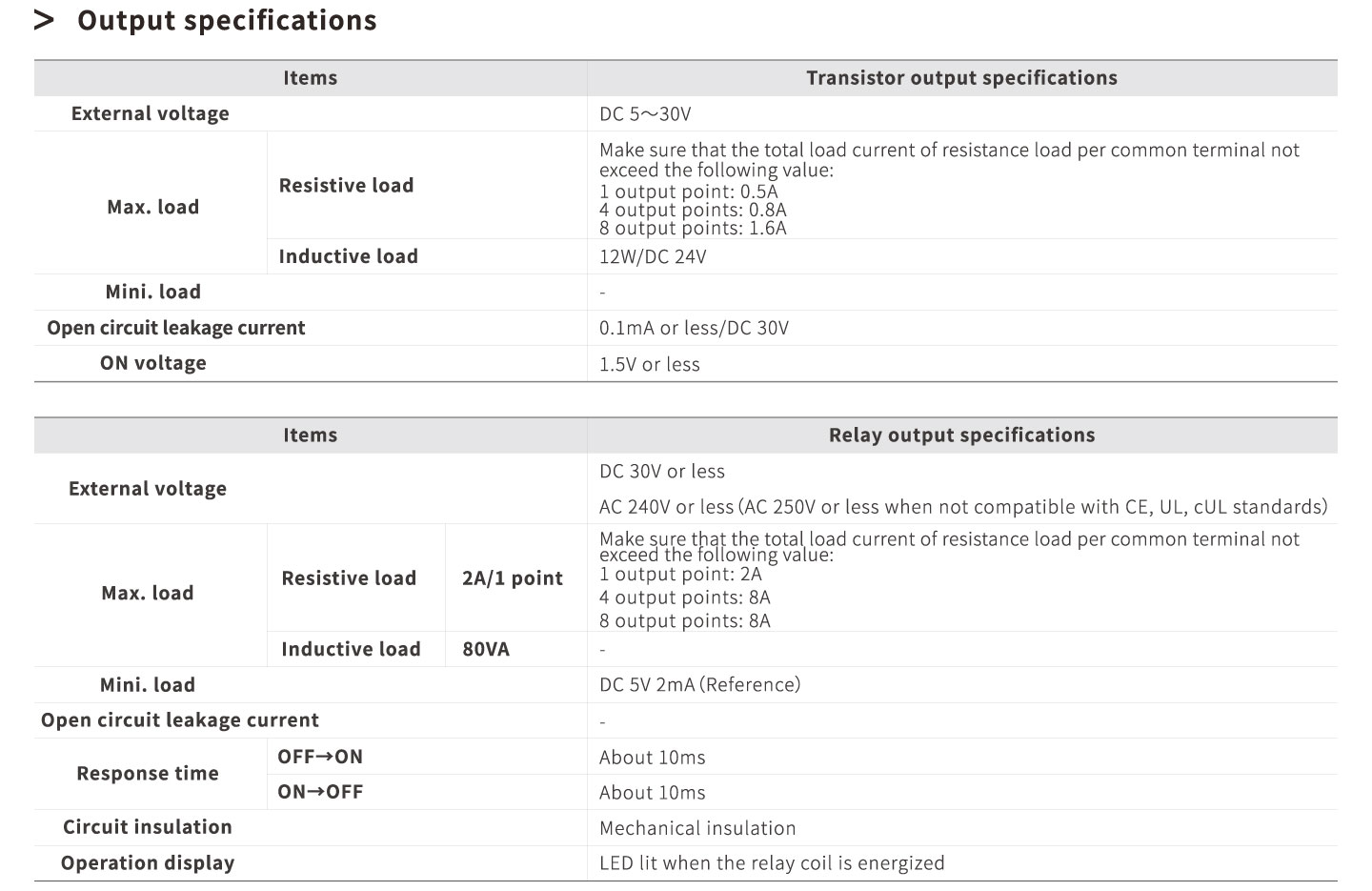

  • output specifications

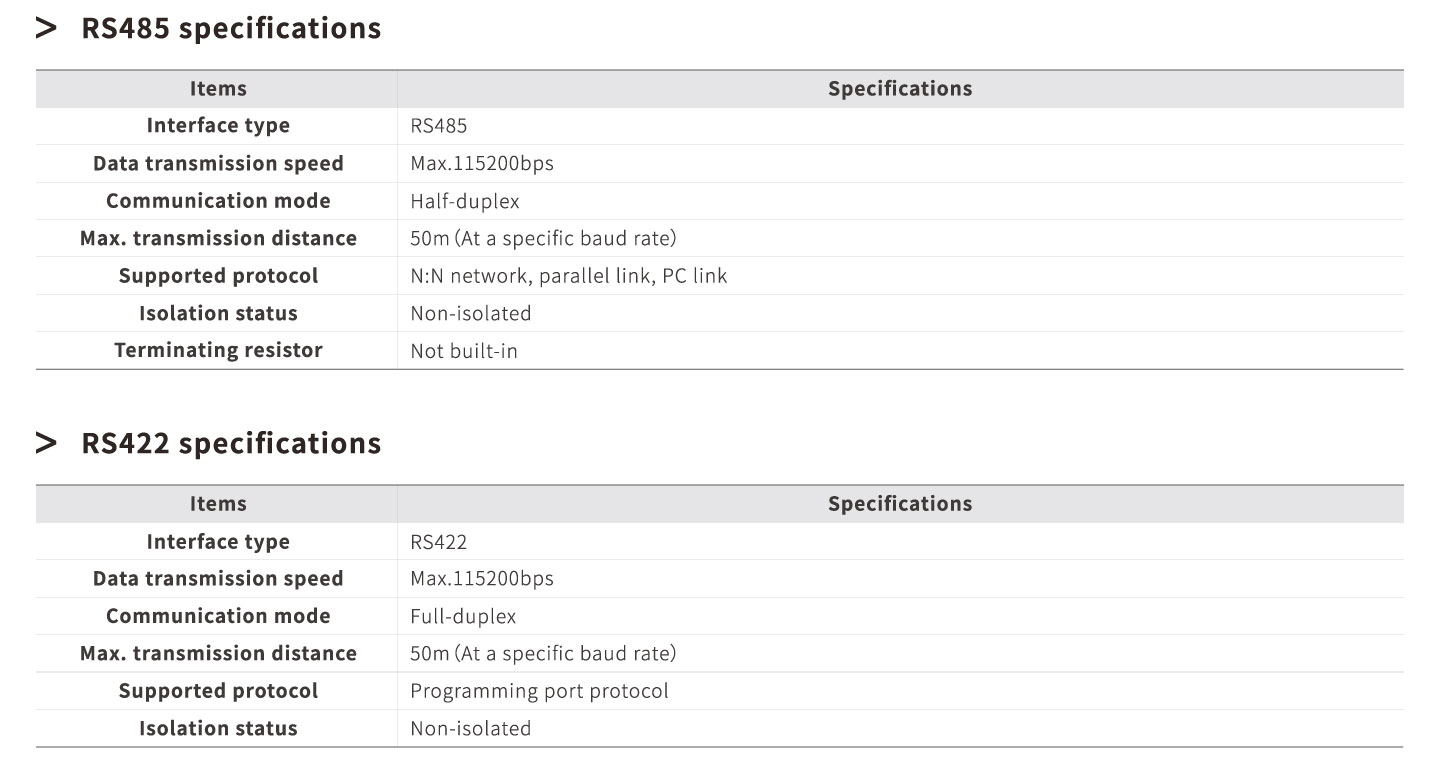

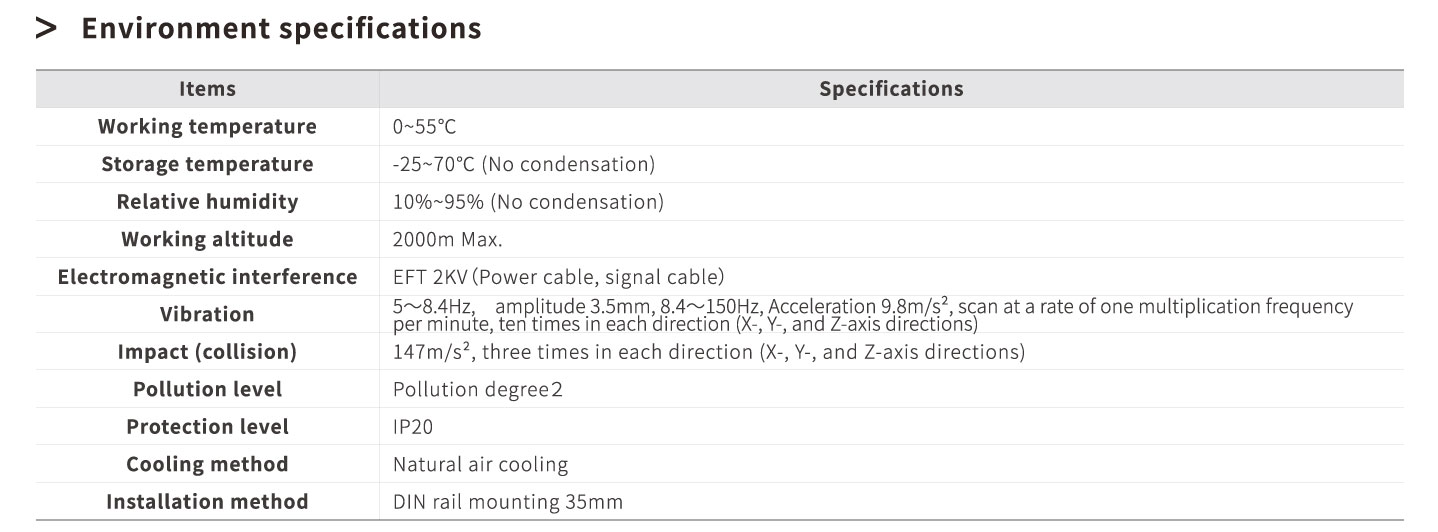

  • Other specifications

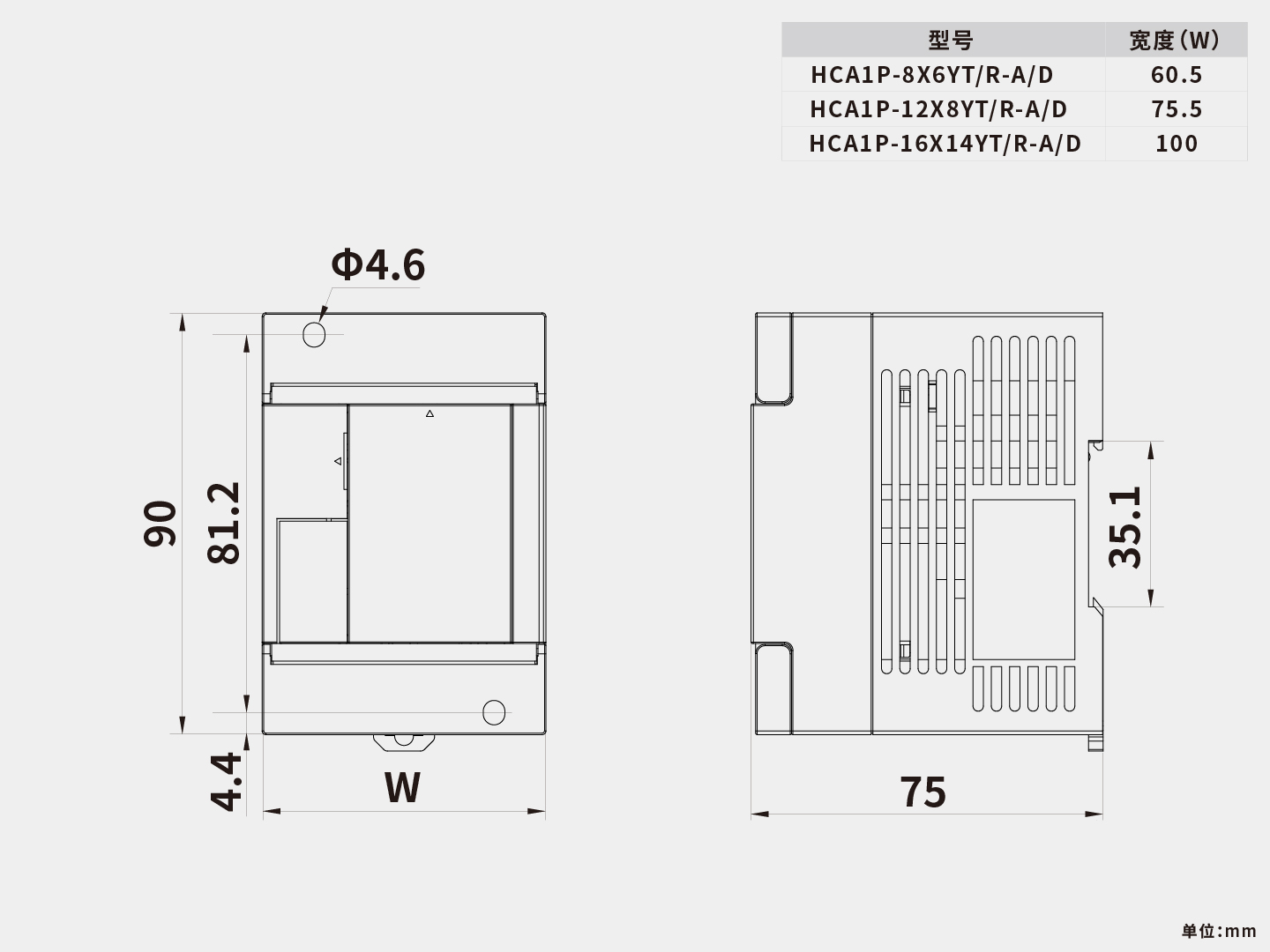

Product size
