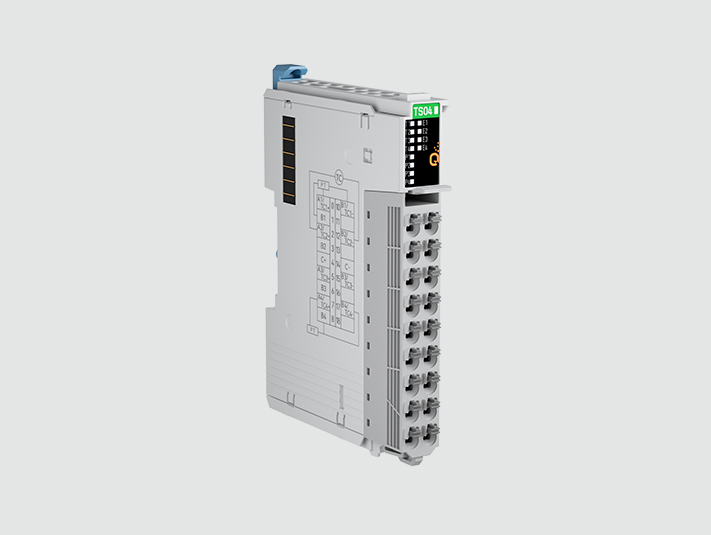

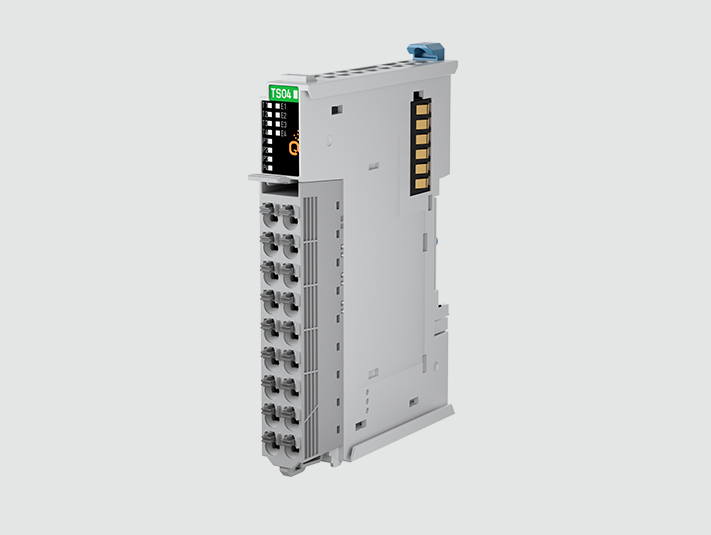

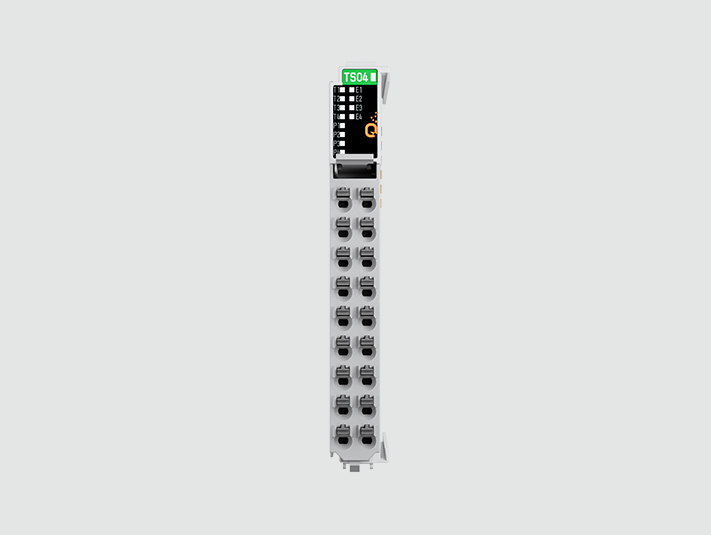

Temperature measuring

· Product series: QX-D4 series new extension IO
· Module type: Temperature measuring module
· Number of channels: 4-ch.
· Thermal couple: K,J,E,T,N,B,R,S (default K)
· Thermal resistance: PT100, PT1000, Ni100, Ni1000(default PT100); 3-wire mode

Product Features

  • Accuracy

    TC: full temperature 0~55℃: full range*(±0.1 %)± 4℃(Max. cold junction error is 4℃) PT: full temperature 0~55℃:±0.5℃

  • Safe and reliable

    Support input over-limit detection and disconnection detection.

  • Ultra-thin module

    13mm ultra-thin module, effectively saving space.

  • Removable terminal

    No wiring when replacing modules,PUSH IN, direct plug-in wiring.

Product Specifications

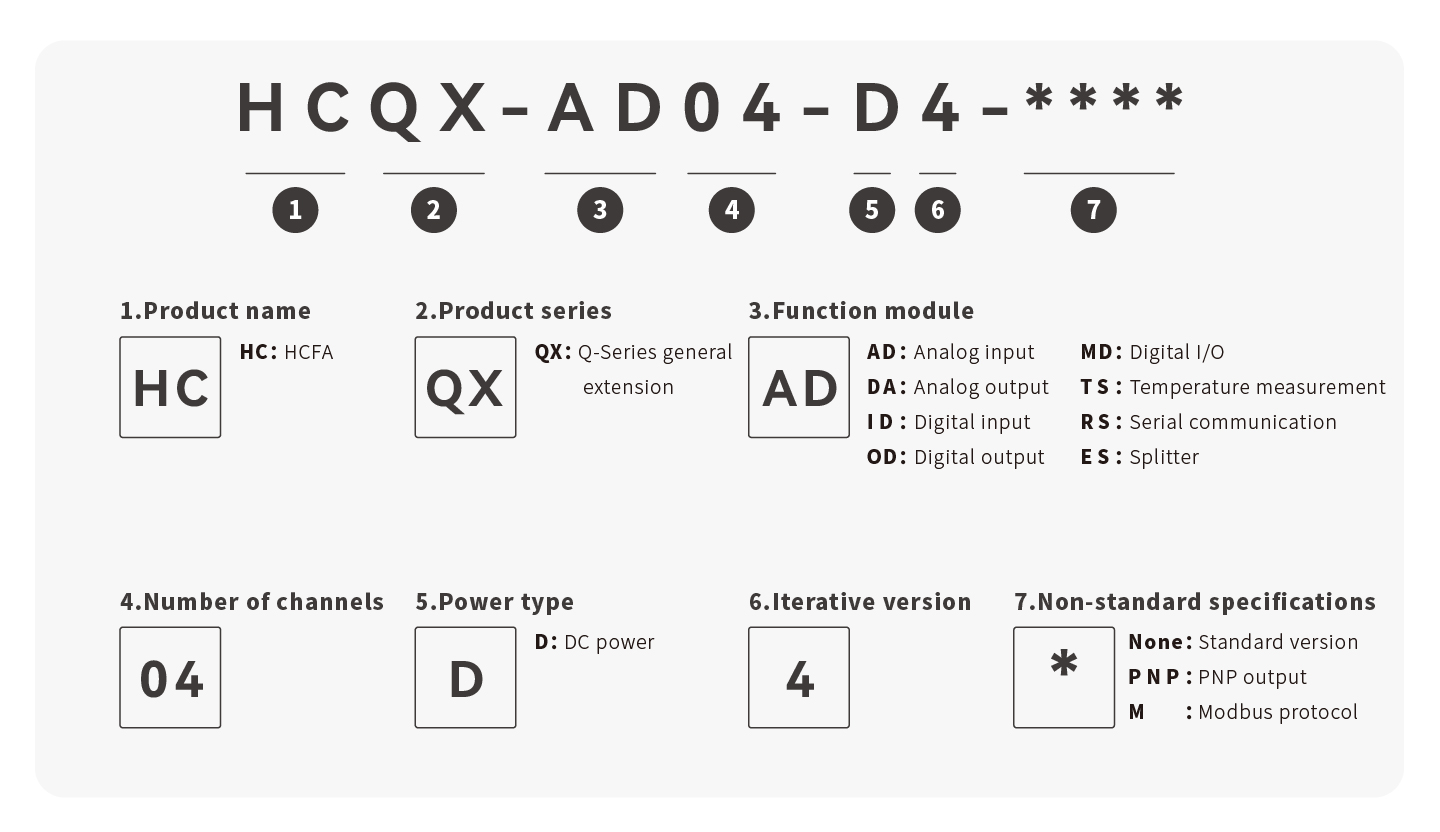

  • Naming rules

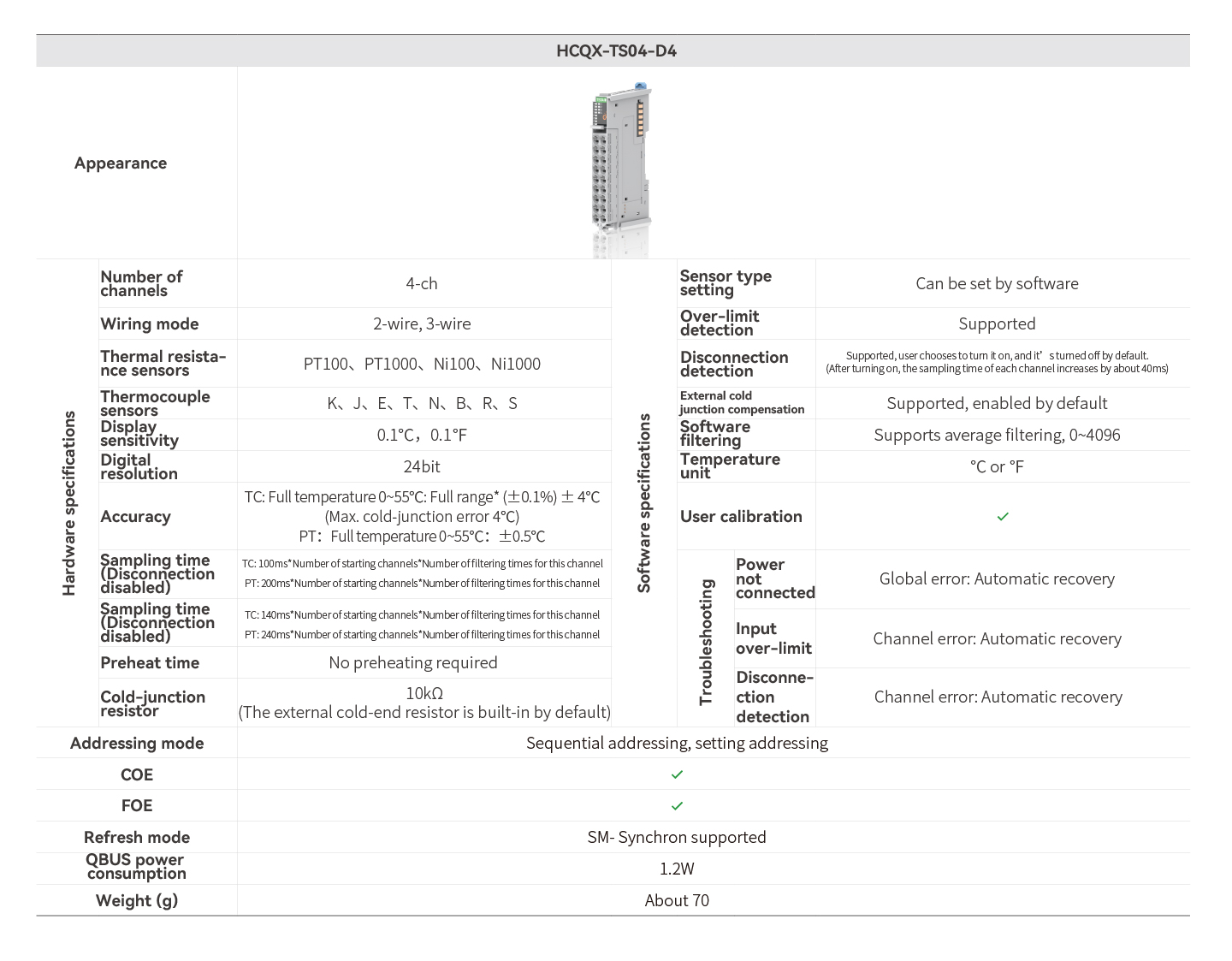

  • Specifications

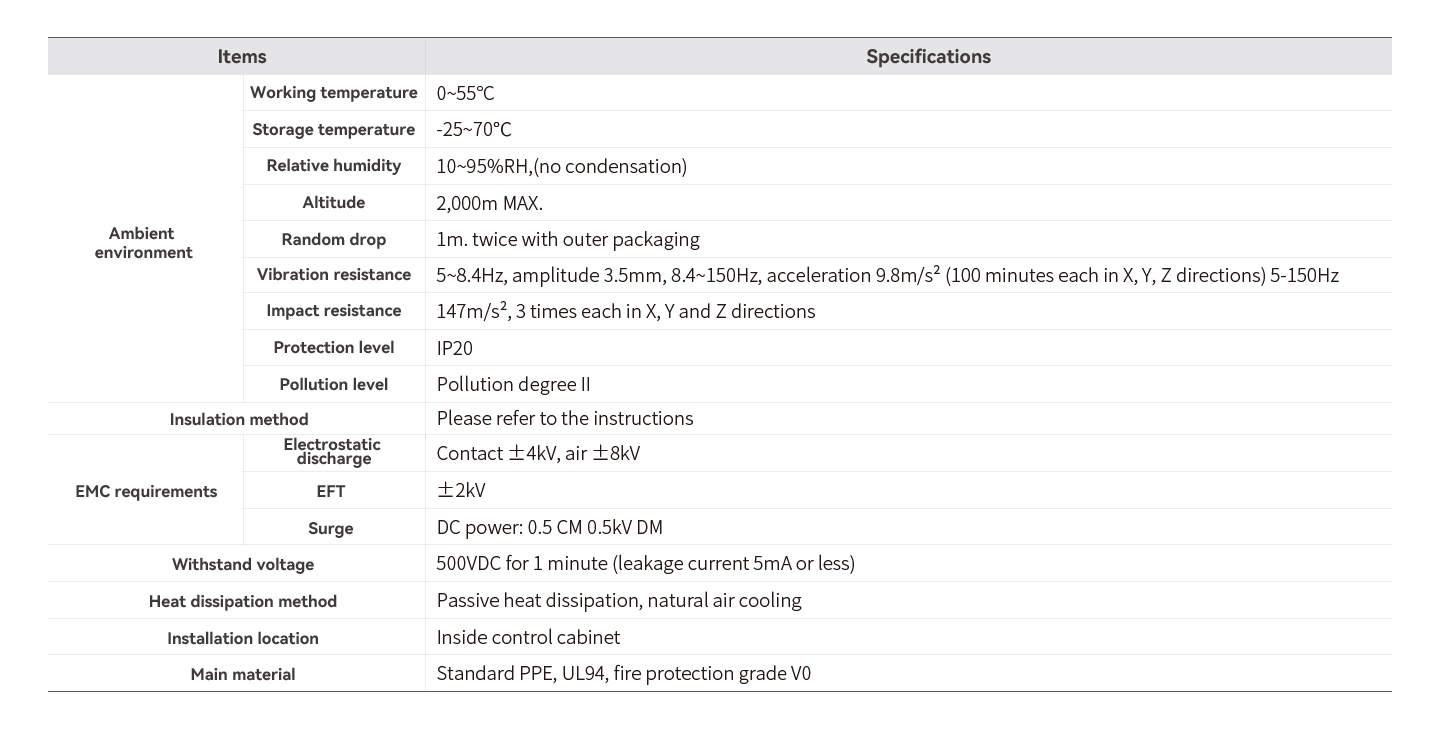

  • General specifications

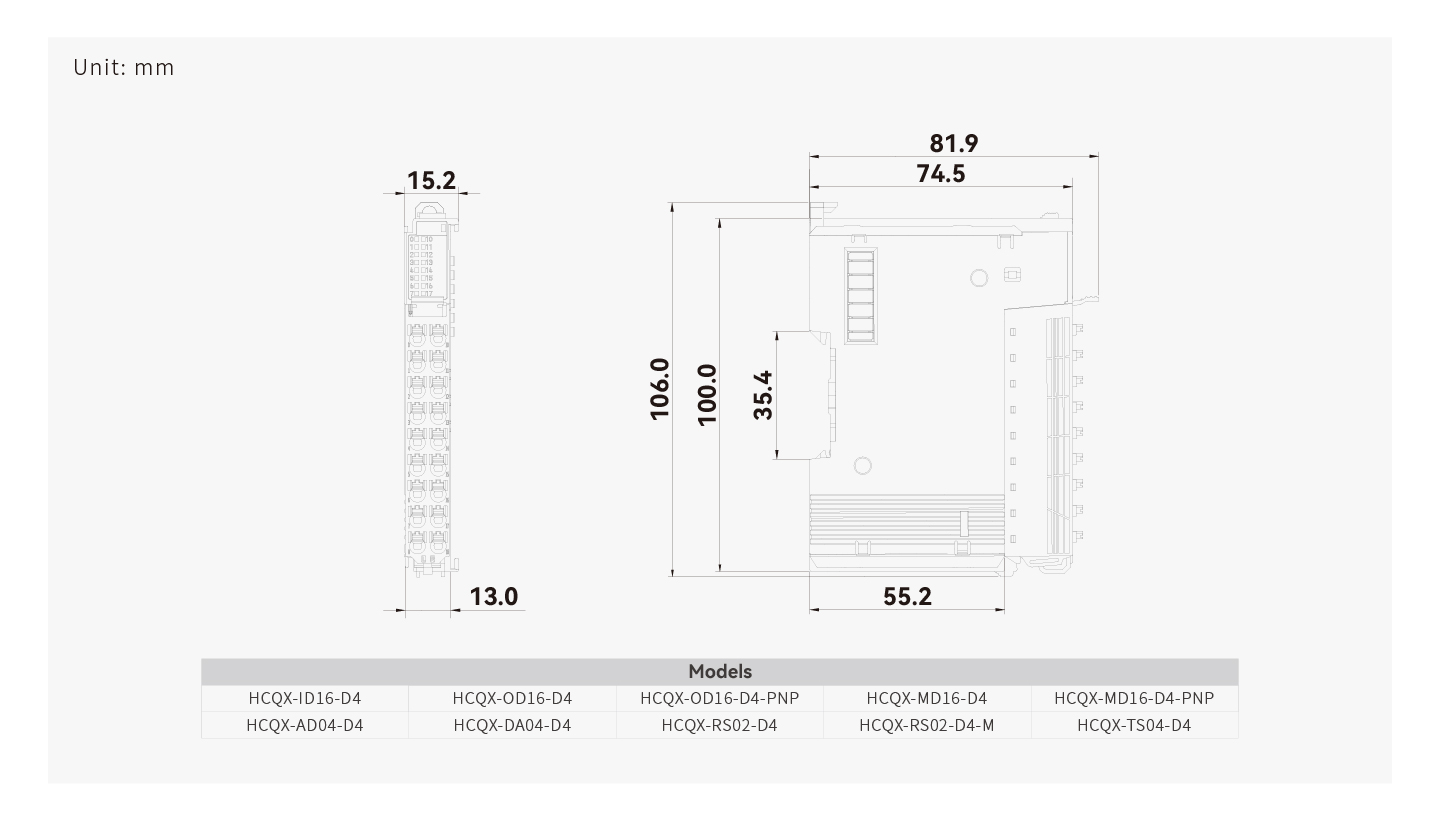

Product Size

Data Download

  • Catalog
  • Instruction
  • Drawing
  • Others
Download Type Name Updated Operation
Catalog Q-series Module Catalog 2023.8-V1.0(EN) 2024.07.01 Download
