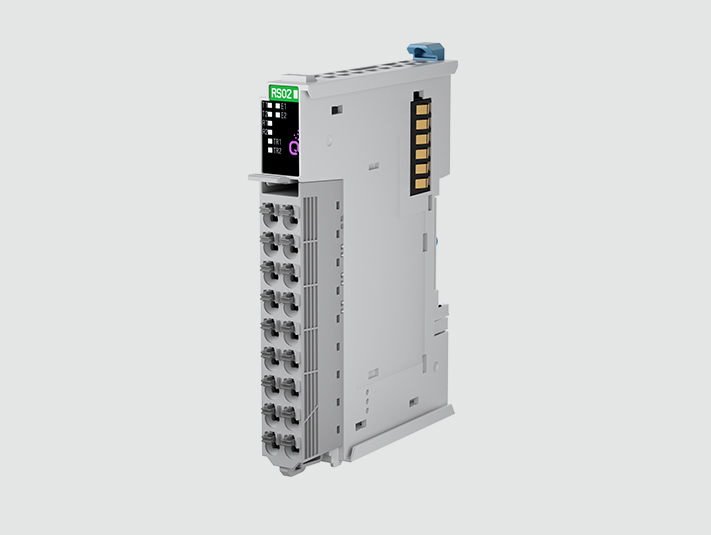

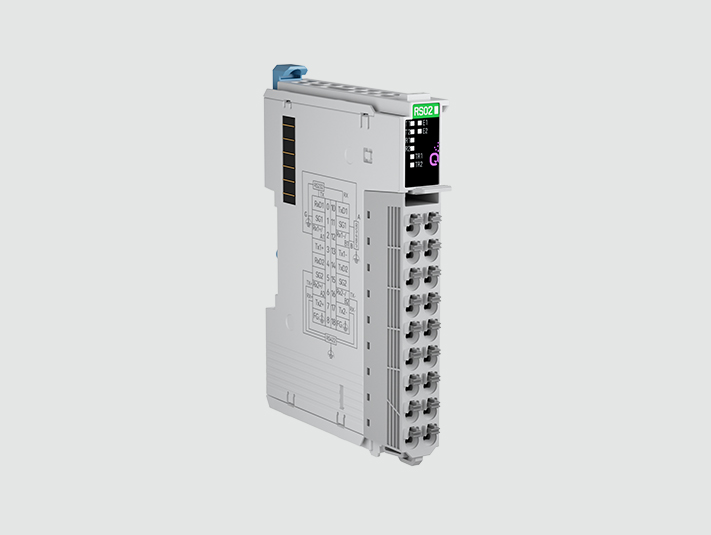

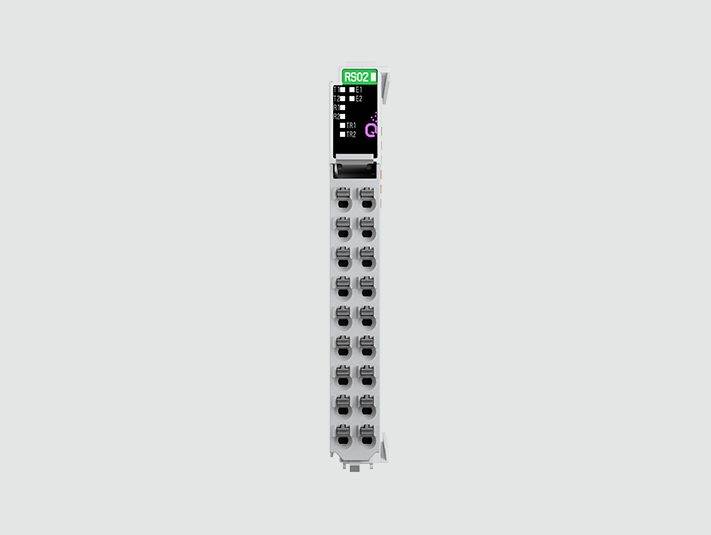

Serial communication

· Product series: QX-D4 series new extension IO
· Module type: Serial communication module
· Number of channels: 2-ch
· Model: HCQX-RS02-D4、HCQX-RS02-D4-M

Product Features

  • Protocols

    HCQX-RS02-D4: free protocol master station, support 32 slave stations; HCQX-RS02-D4-M: Modbus RTU master station, support 16 slave stations.

  • Serial communication

    RS232/RS485/RS422 (software optional).

  • Ultra-thin module

    13mm ultra-thin module, effectively saving space.

  • Removable terminal

    No wiring when replacing modules,PUSH IN, direct plug-in wiring.

Product Specifications

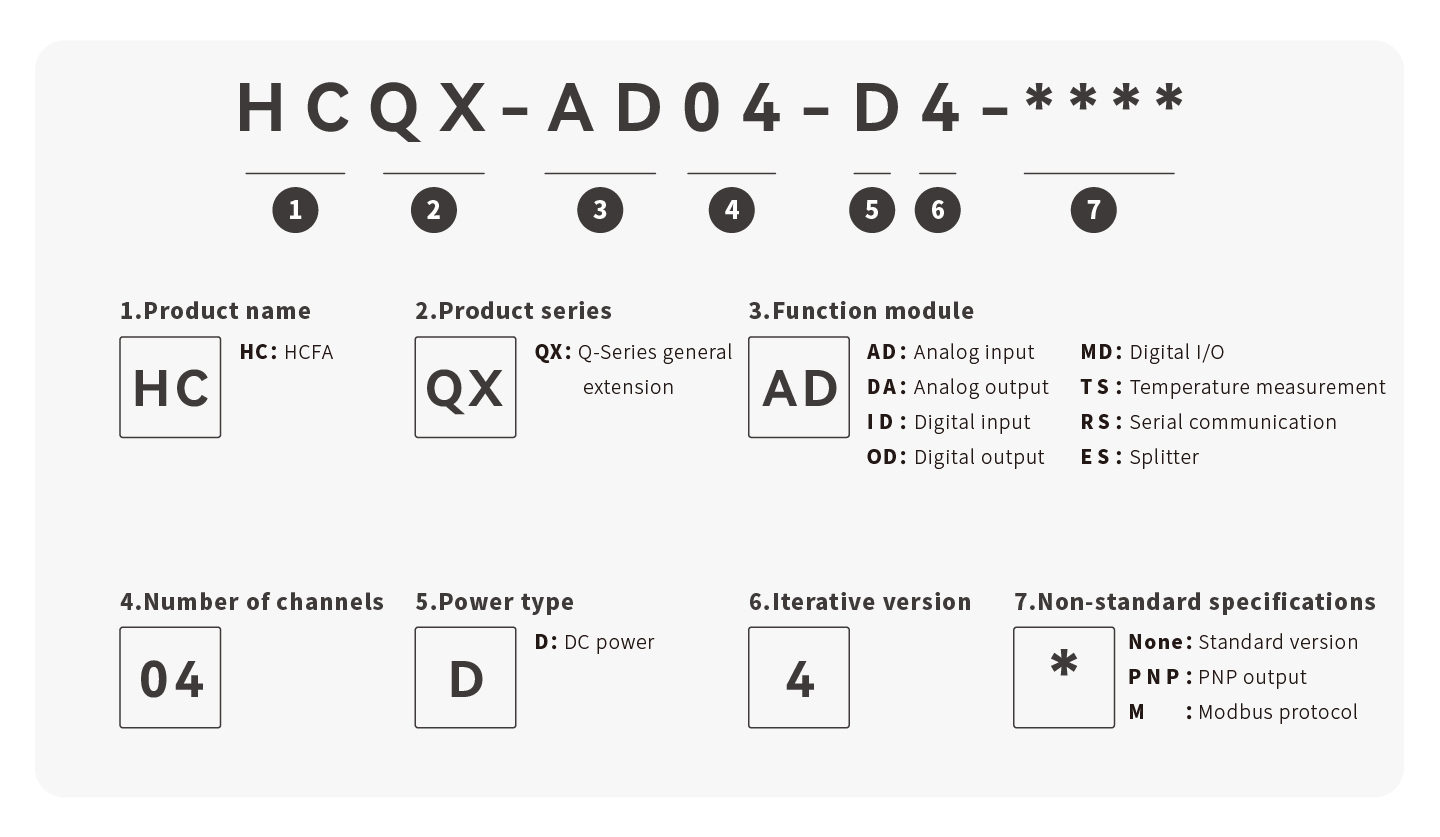

  • Naming rules

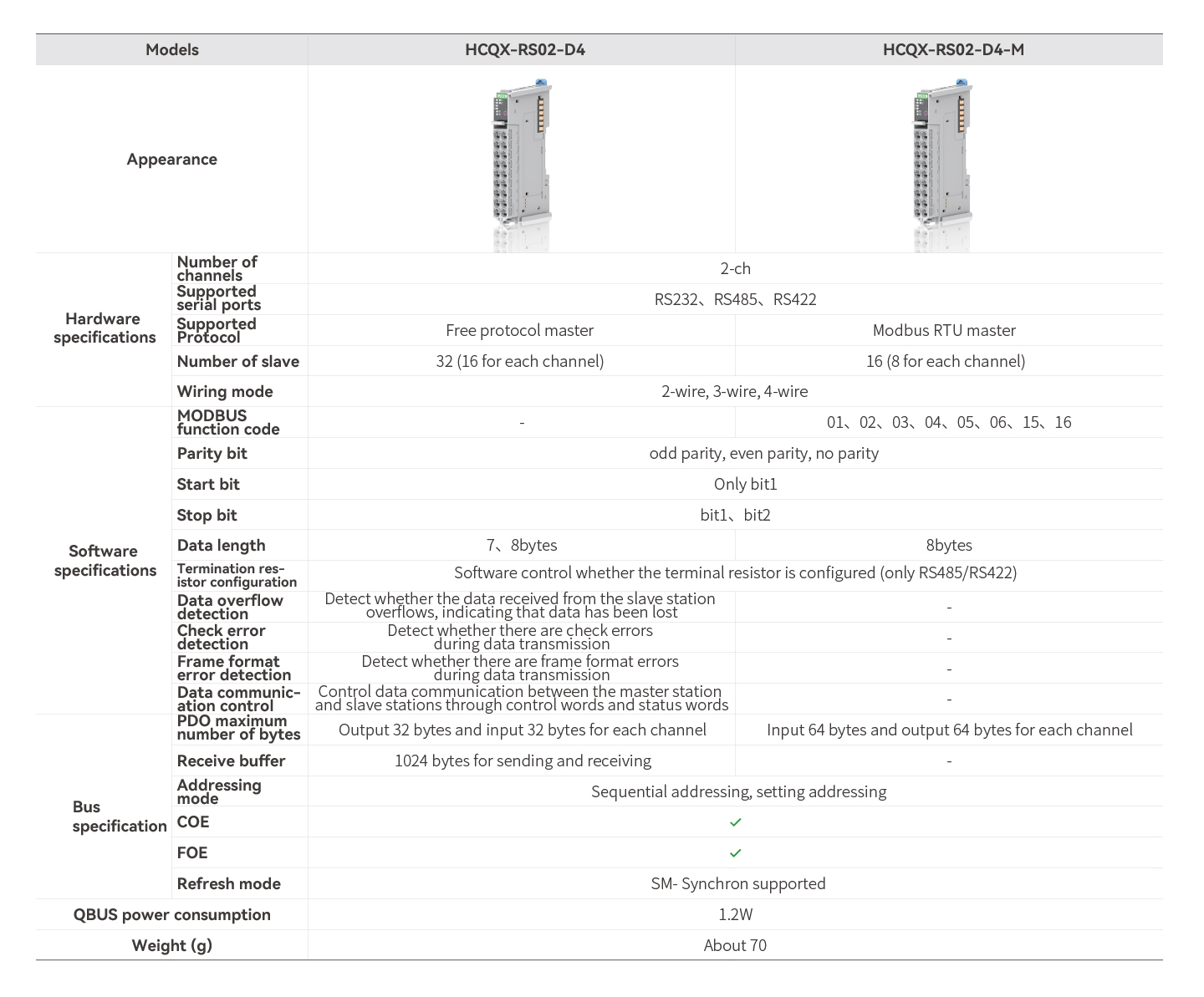

  • Specifications

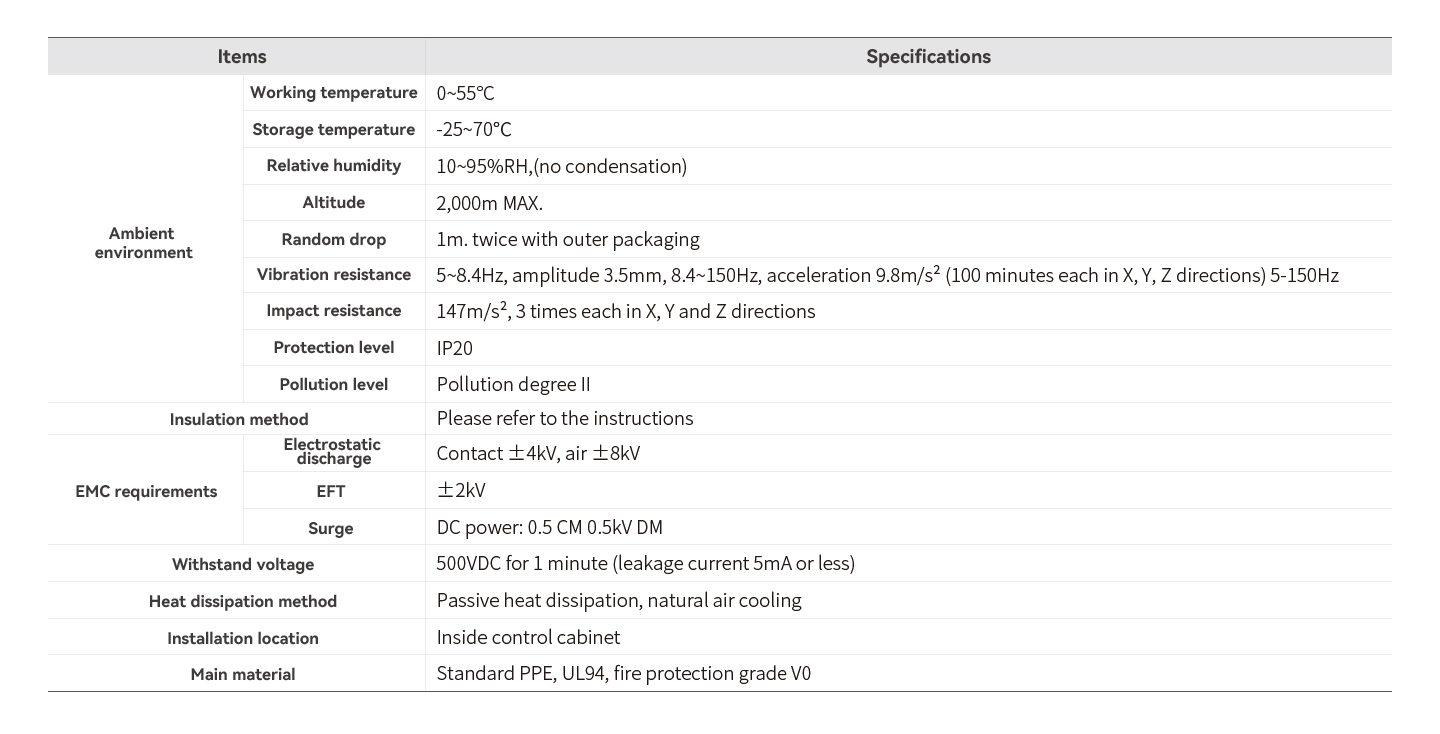

  • General specifications

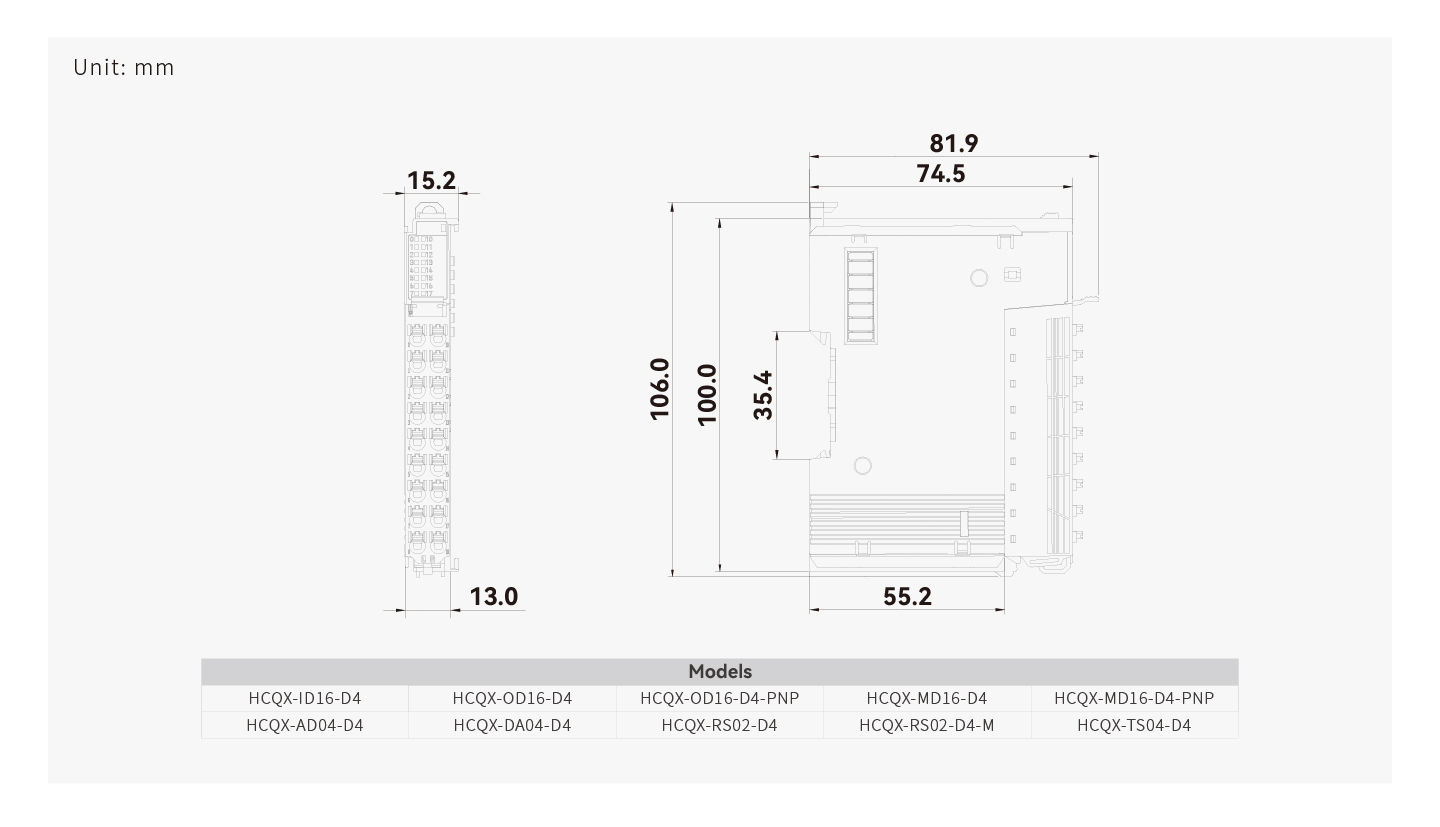

Product Size

Data Download

  • Catalog
  • Instruction
  • Drawing
  • Others
Download Type Name Updated Operation
Catalog Q-series Module Catalog 2023.8-V1.0(EN) 2024.07.01 Download
