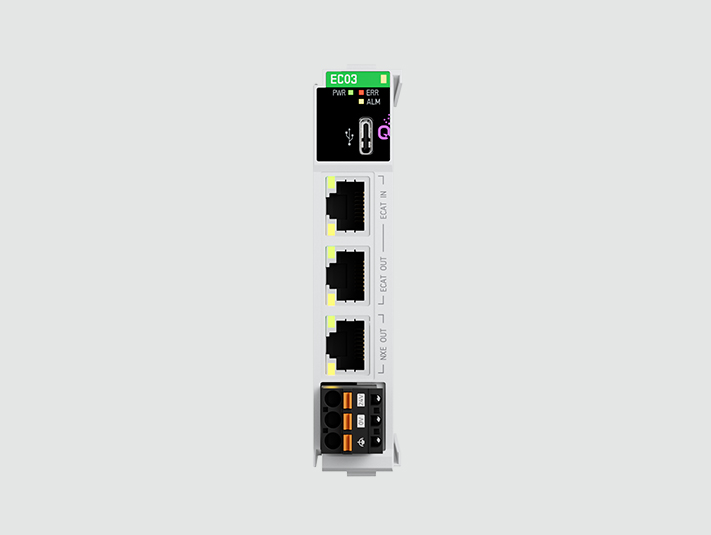

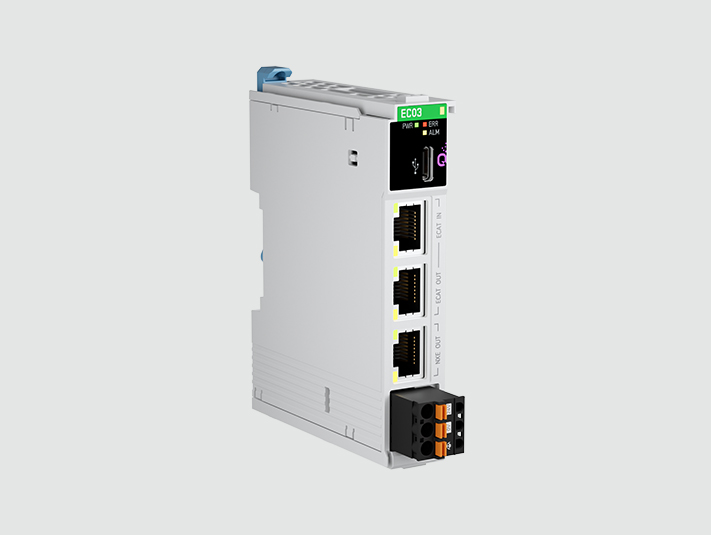

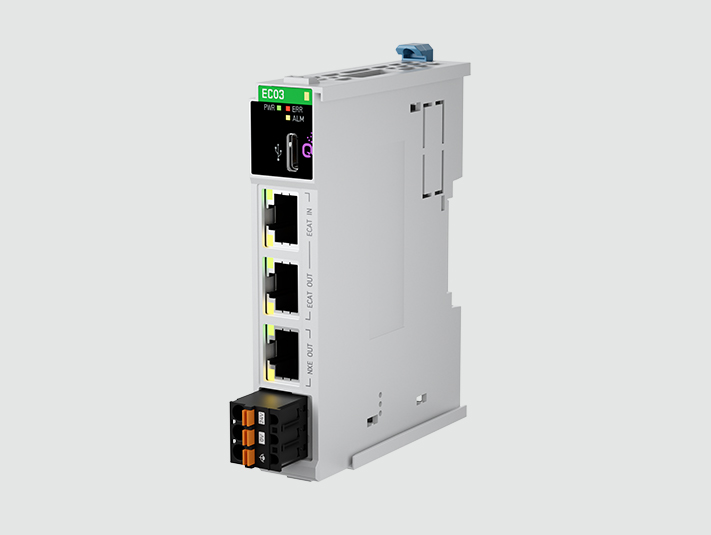

Coupler

· Product series: QX-D4 series new extension IO
· Module type: Coupler module
· Functions: Applicable to Q-series remote extension modules and EtherCAT master station.

Product Features

  • Rich specifications

    3 types of EtherCAT coupler, suitable for different application scenarios. EC02/EC03 couplers do not account for bus nodes.

  • High-precision control

    EC01 coupler minimum scan period 125us, meet quickest response.

  • Ultra-thin module

    22mm ultra-thin coupler, effectively saving space.

  • Removable terminal

    No wiring when replacing modules, PUSH IN, direct plug-in wiring.

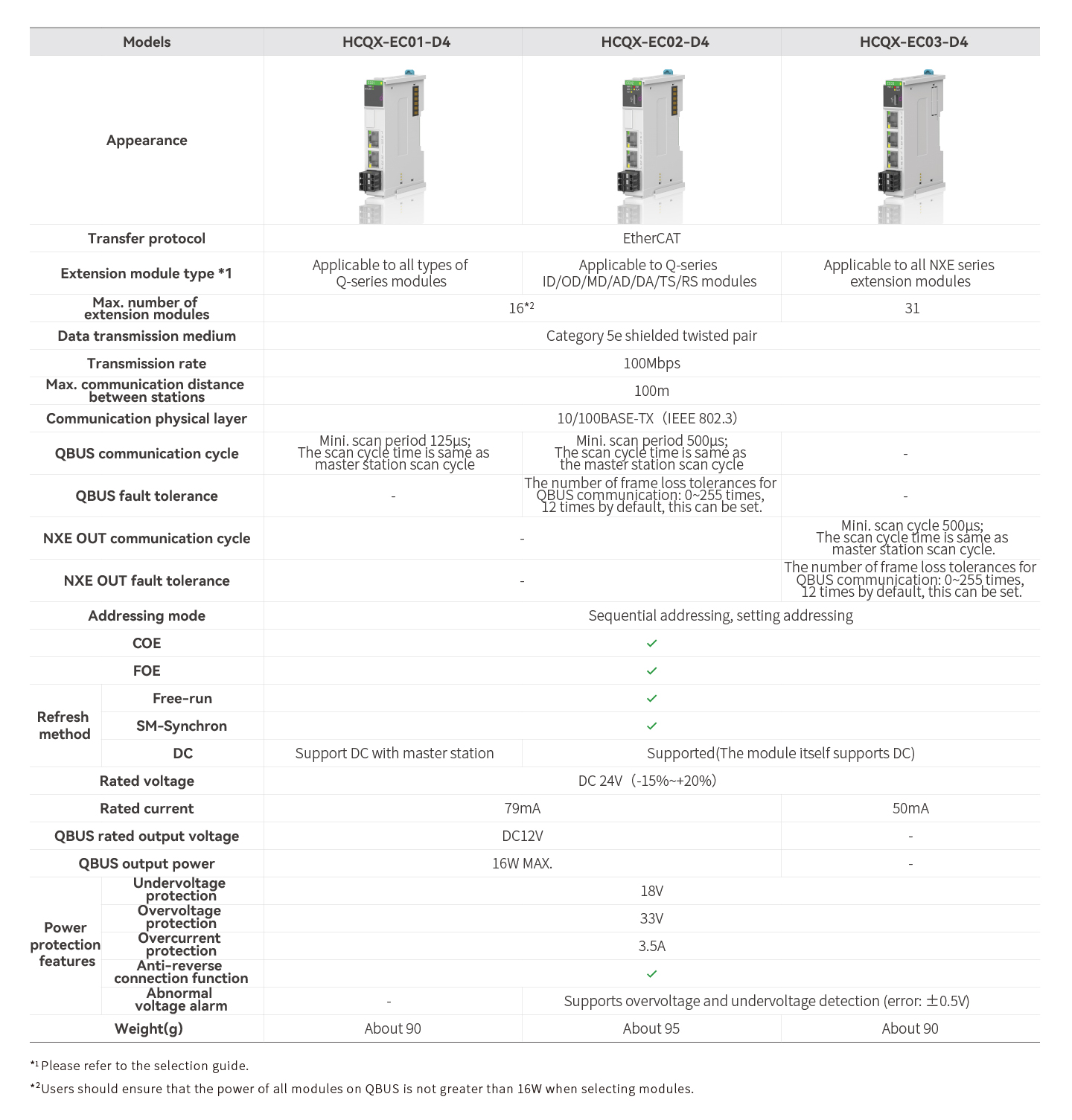

Product Specifications

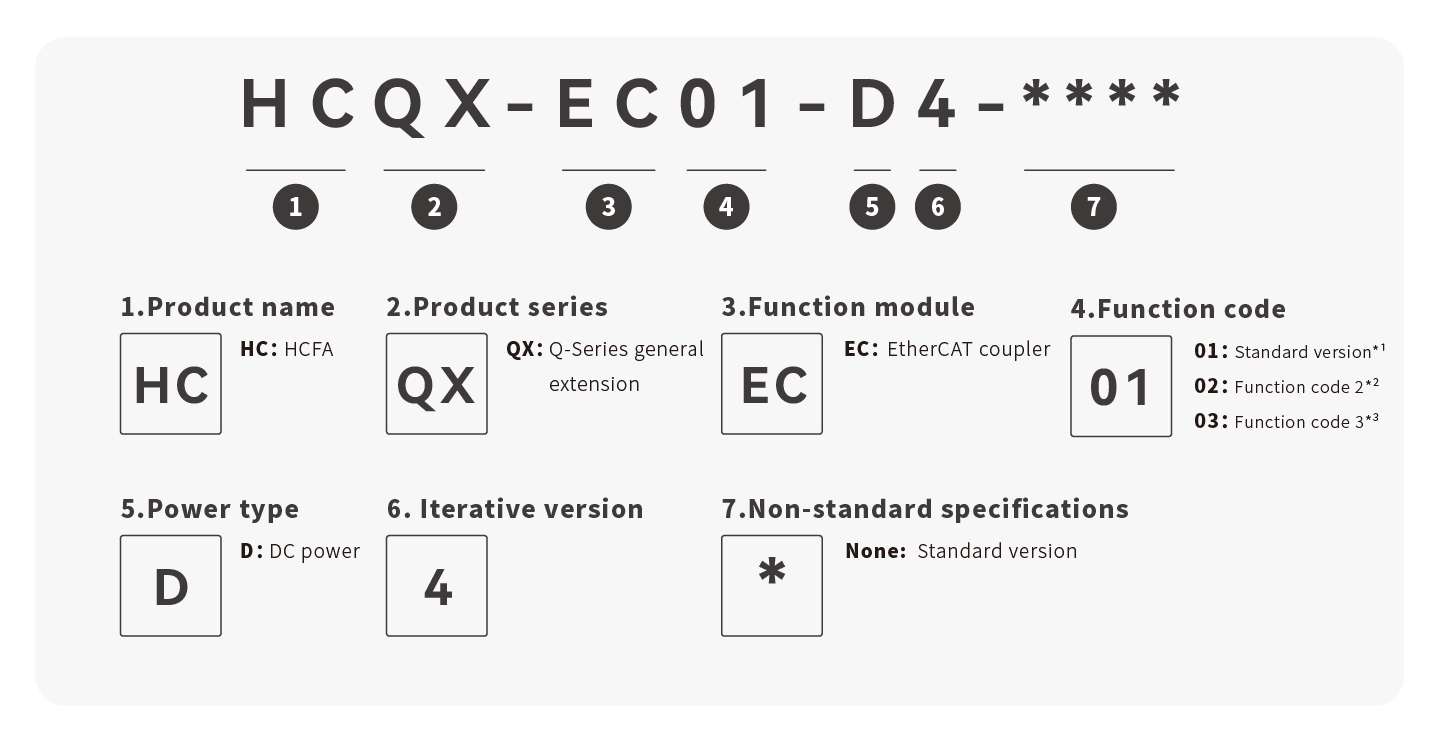

  • Naming rules
  • Specifications

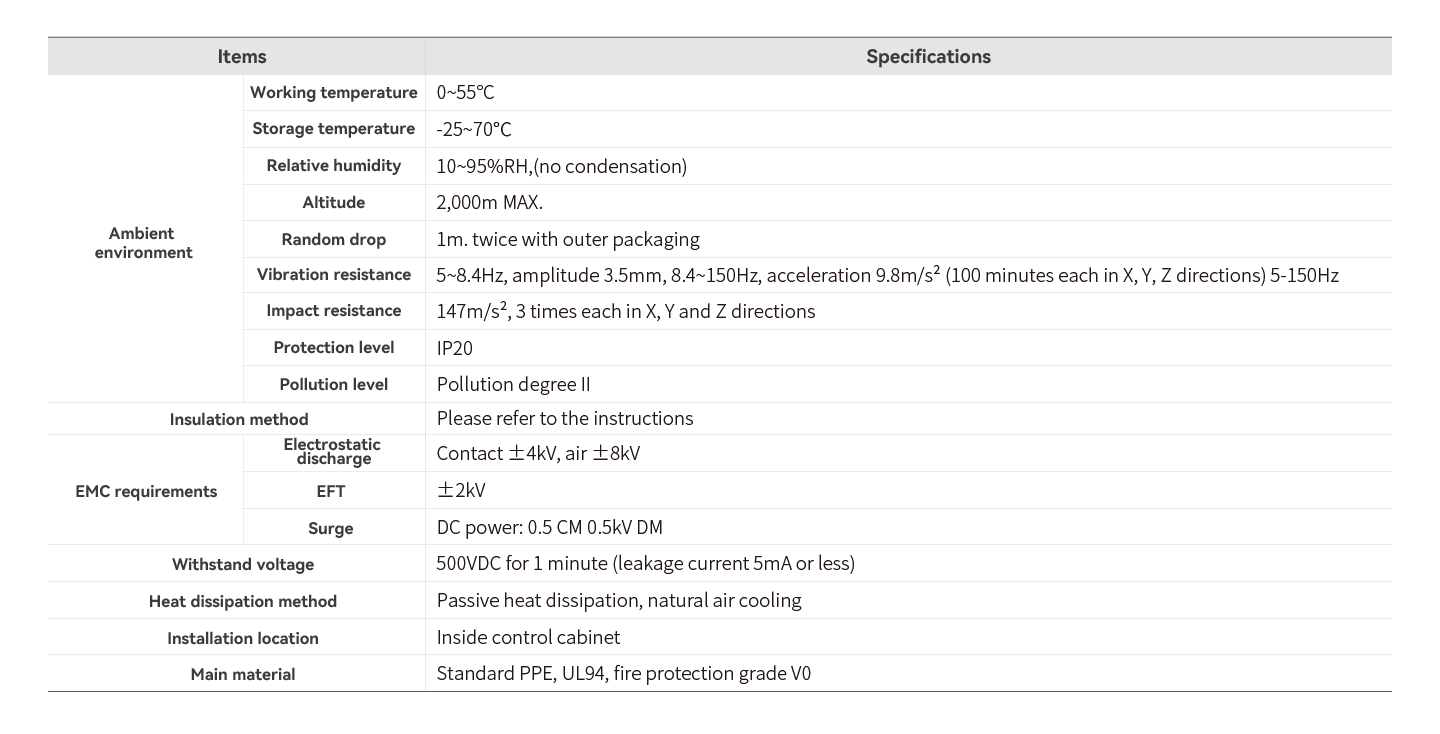

  • General specifications

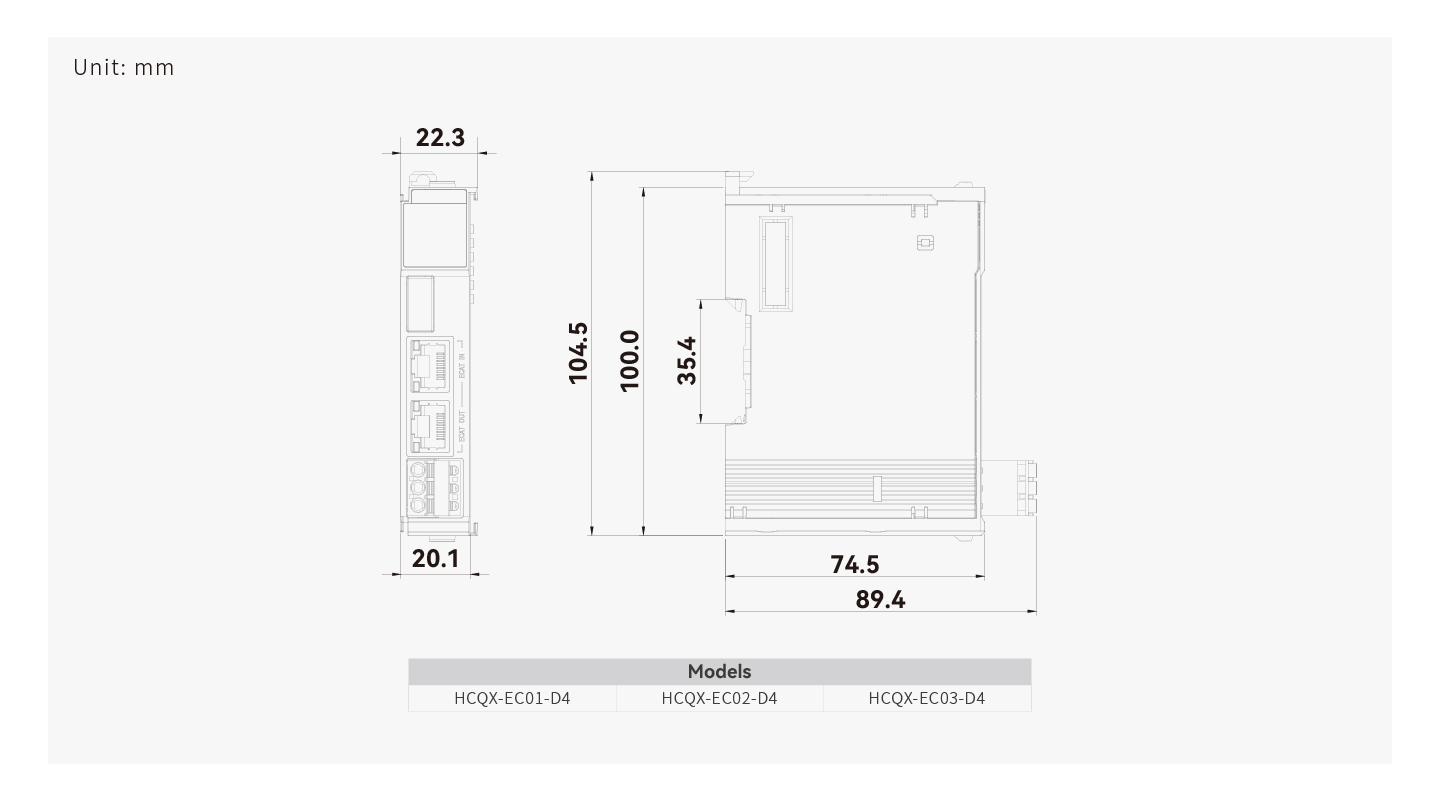

Product Size

Data Download

  • Catalog
  • Instruction
  • Drawing
  • Others
Download Type Name Updated Operation
Catalog Q-series Module Catalog 2023.8-V1.0(EN) 2024.07.01 Download
