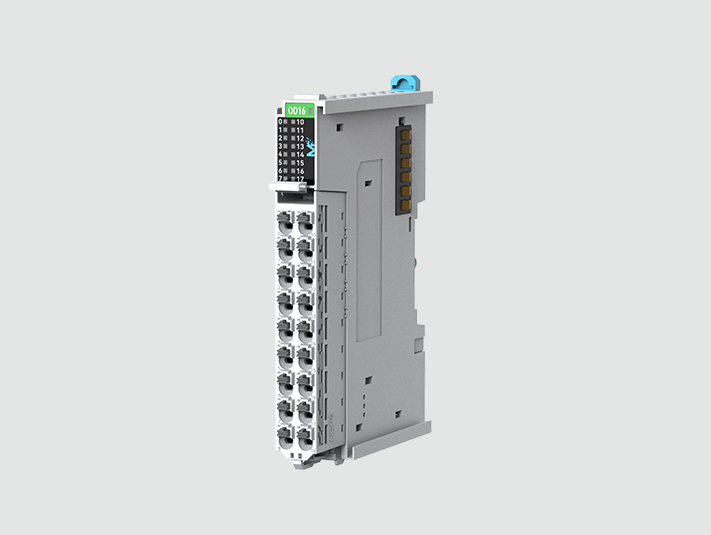

Digital quantity module

Product series: M-series new generation expansion module
Module type: Digital input/output/hybrid module
Number of channels: 16 channels
Input/output type: Input supports NPN and PNP, output supports NPN
Module models: HCMX-ID16-D, HCMX-OD16-D, HCMX-MD16-D

Product Features

  • Efficient assembly

    Removable terminals, direct replacement of terminals without dismantling wiring

    PUSH IN tool free direct insertion wiring

  • Lightweight size

    13mm slim and light size, easy to handle small usage environments

  • response time

    ON/OFF response time 100us

  • Stable, reliable, reassuring and easy to use

    Detailed fault diagnosis, quick positioning and analysis of problem causes

Product Specifications

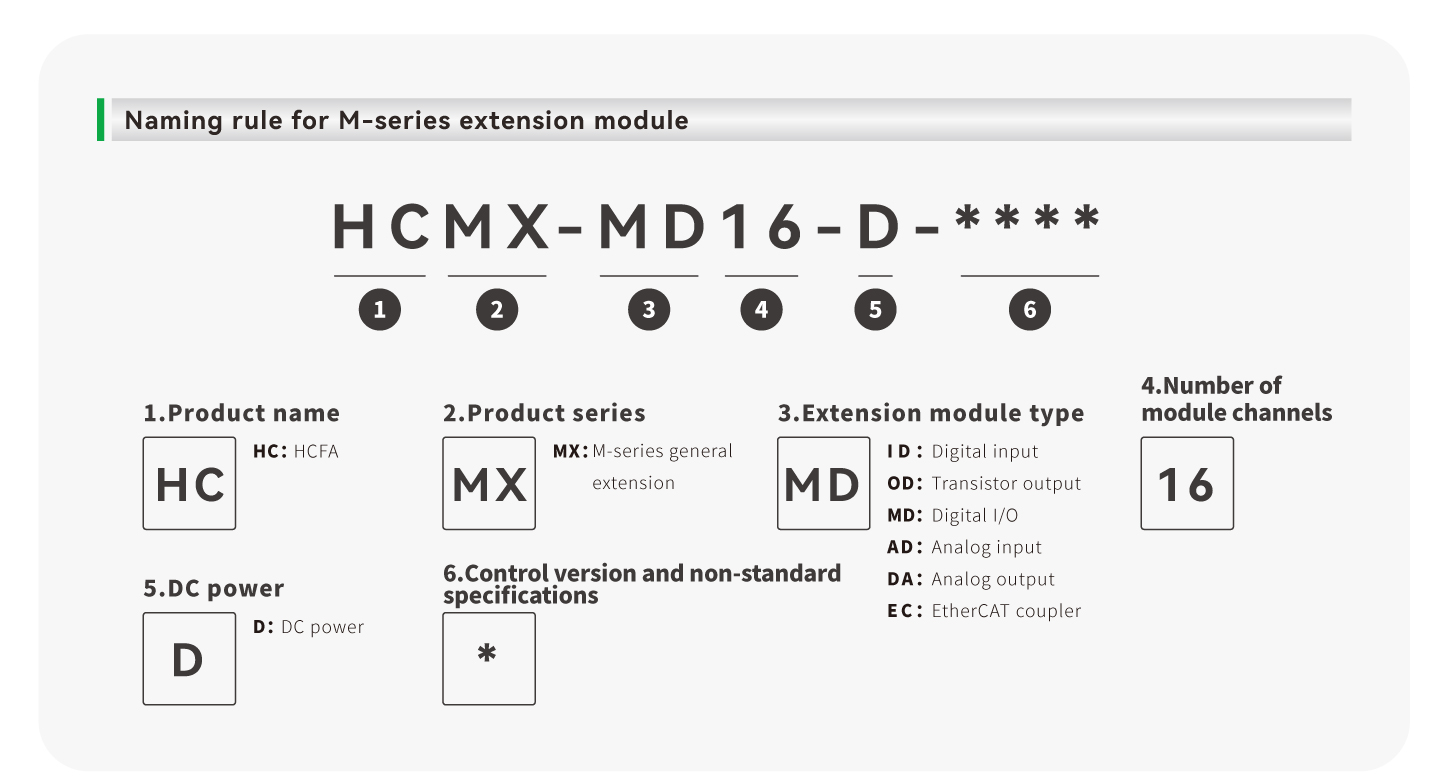

  • Naming

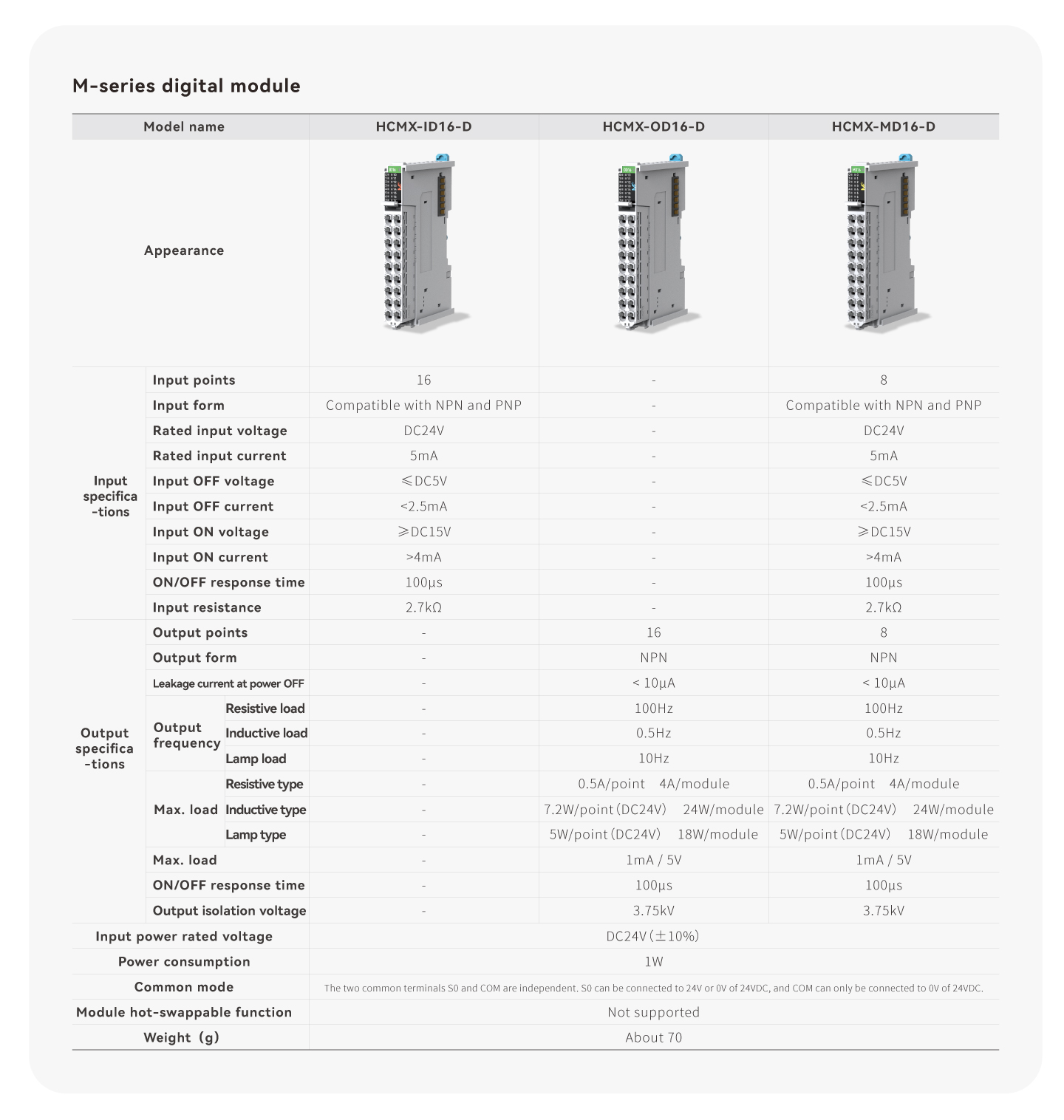

  • Performance

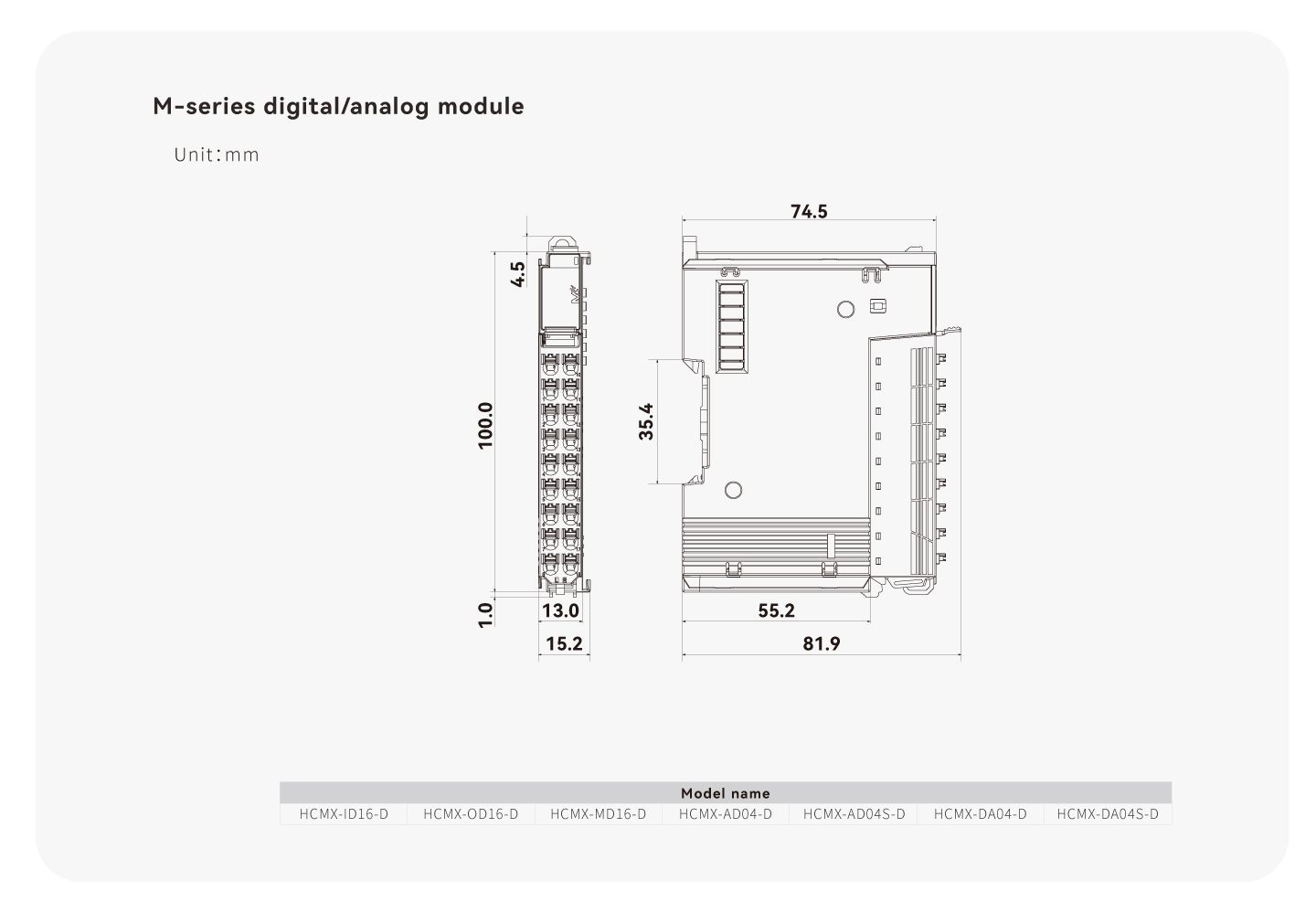

Product size

Data Download

  • Catalog
  • Instruction
  • Manual
  • Drawing
  • Software
  • Others
Download Type Name Updated Operation
Download Type Name Updated Operation
Instruction HCMX Universal Digital Quantity Module Installation and Use Manual V3.0(EN) 2025.01.13 Download
Instruction HCMXP-MD16-D Installation and Use Manual V2.0(EN) 2025.01.08 Download
Download Type Name Updated Operation
Manual Hardware manual V1.0 of HCMXE-MD16-D module 2025.04.25 Download
