Analog output
· Product series: QX-D4 series new extension IO
· Module type: Analog output module
· Number of channels: 4-ch

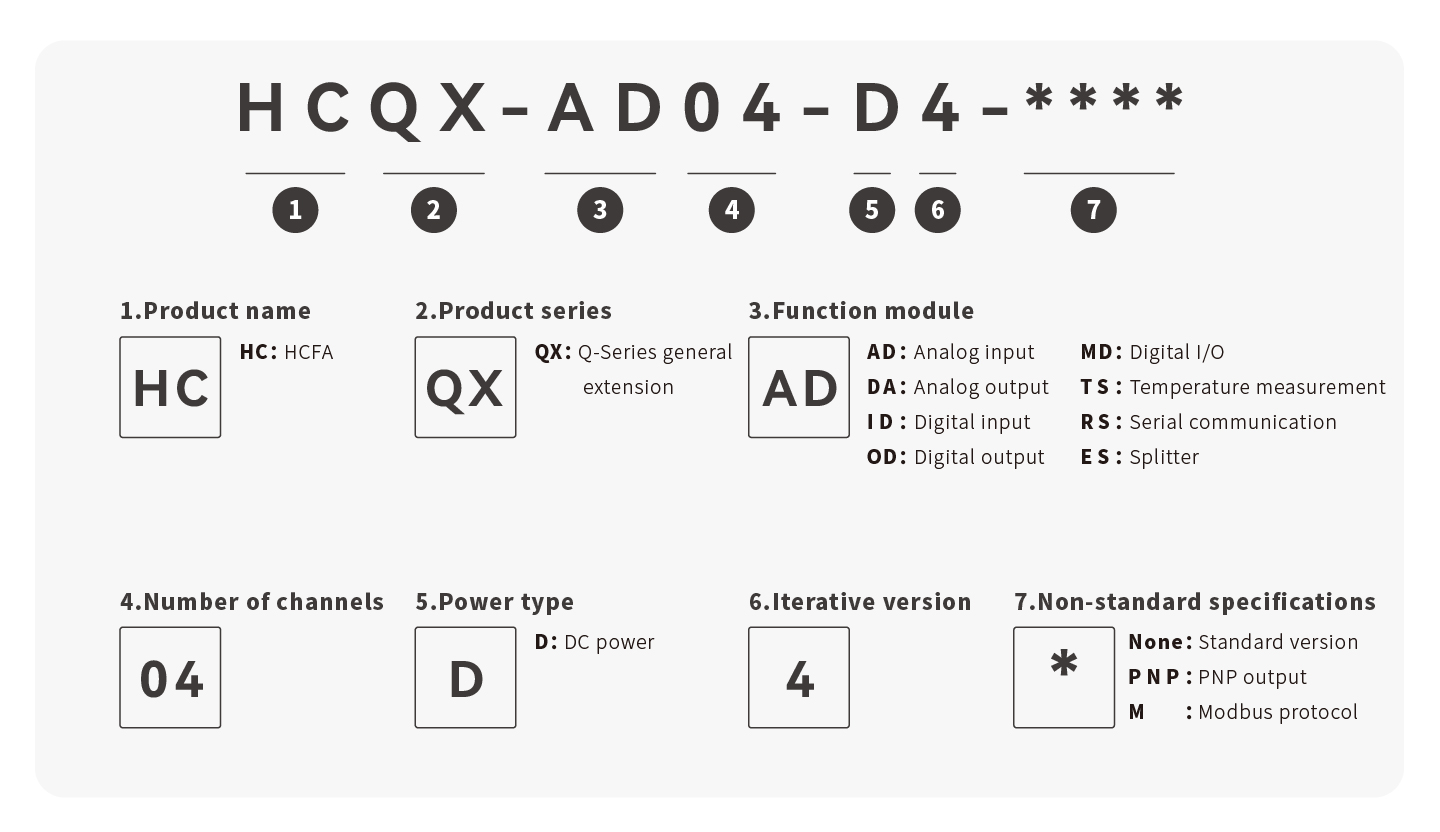

· Model: HCQX-DA04-D4
· Voltage input range: -10~10V、0~10V、-5~5V、0~5V、1~5V
· Current input range: 0~20mA、4~20mA
Product Features
-
-
Precise measurement
Resolution 16bit, accuracy<=±0.3%FSR
-
-
-
Conversion time
1ms/4-ch.
-
-
-
Ultra-thin module
13mm ultra-thin module, effectively saving space.
-
-
-
Removable terminal
No wiring when replacing modules,PUSH IN, direct plug-in wiring.
-

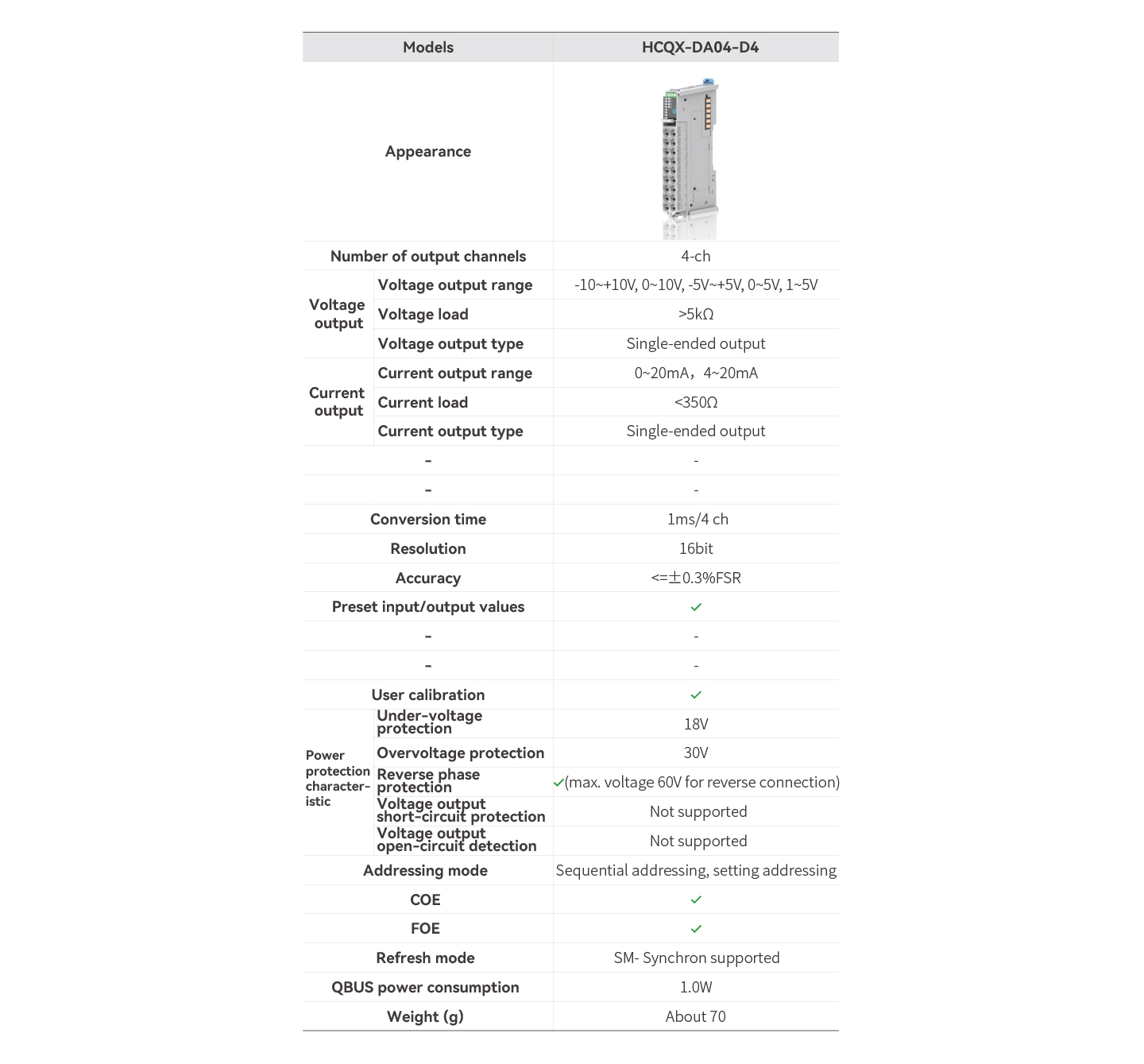

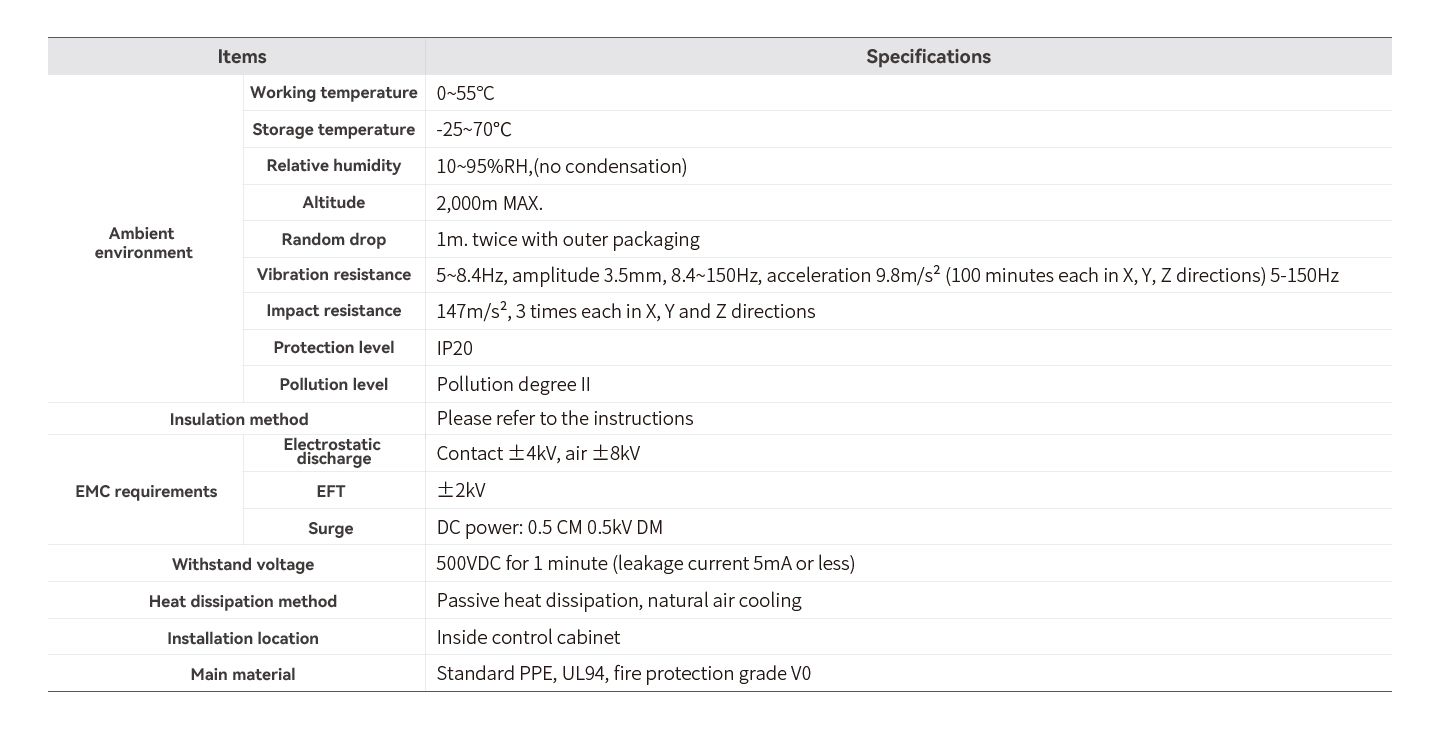

Product Specifications

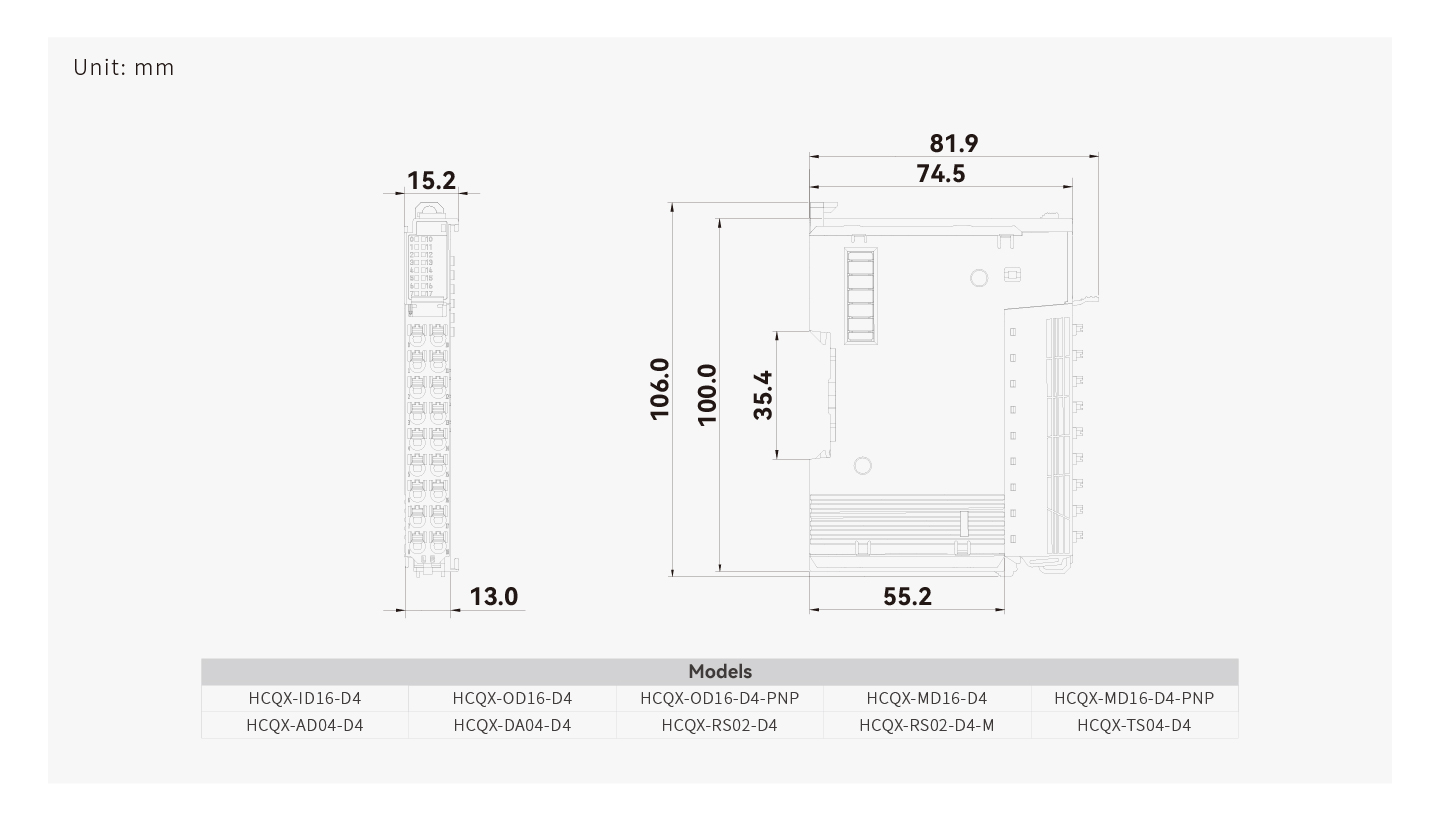

Product Size
