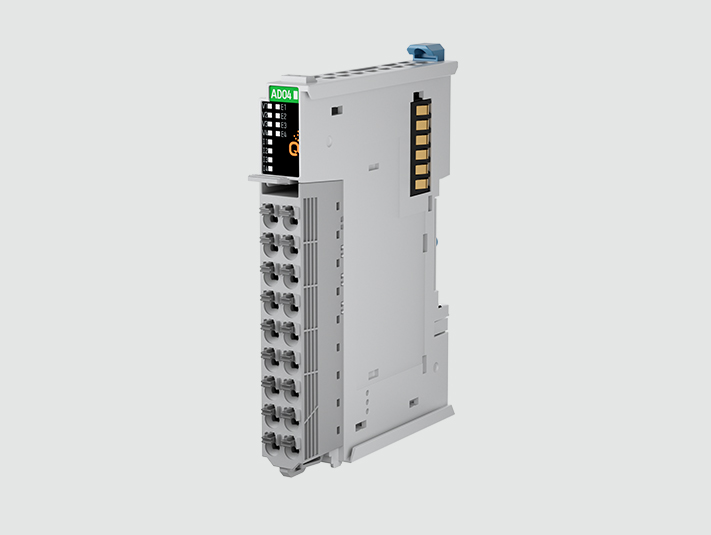

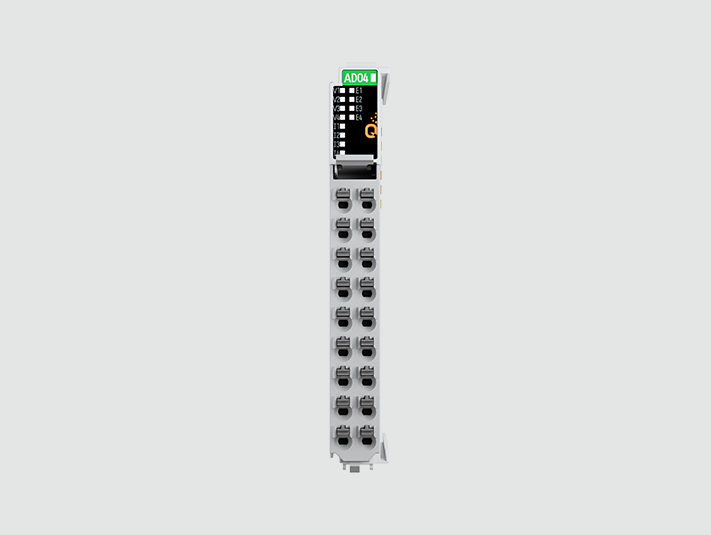

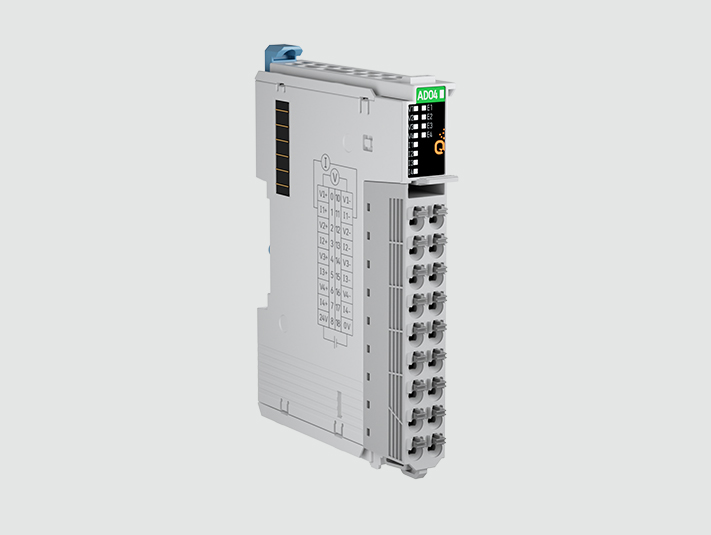

Analog input

· Product series: QX-D4 series new extension IO
· Module type: Analog input module
· Number of channels: 4-ch
· Model: HCQX-AD04-D4
· Voltage input range: -10~10V、0~10V、-5~5V、0~5V、1~5V
· Current input range: 0~20mA、4~20mA

Product Features

  • Precise measurement

    Resolution 16bit, accuracy<=±0.3%FSR

  • Conversion time

    1ms/4-ch.

  • Ultra-thin module

    13mm ultra-thin module, effectively saving space.

  • Removable terminal

    No wiring when replacing modules,PUSH IN, direct plug-in wiring.

Product Specifications

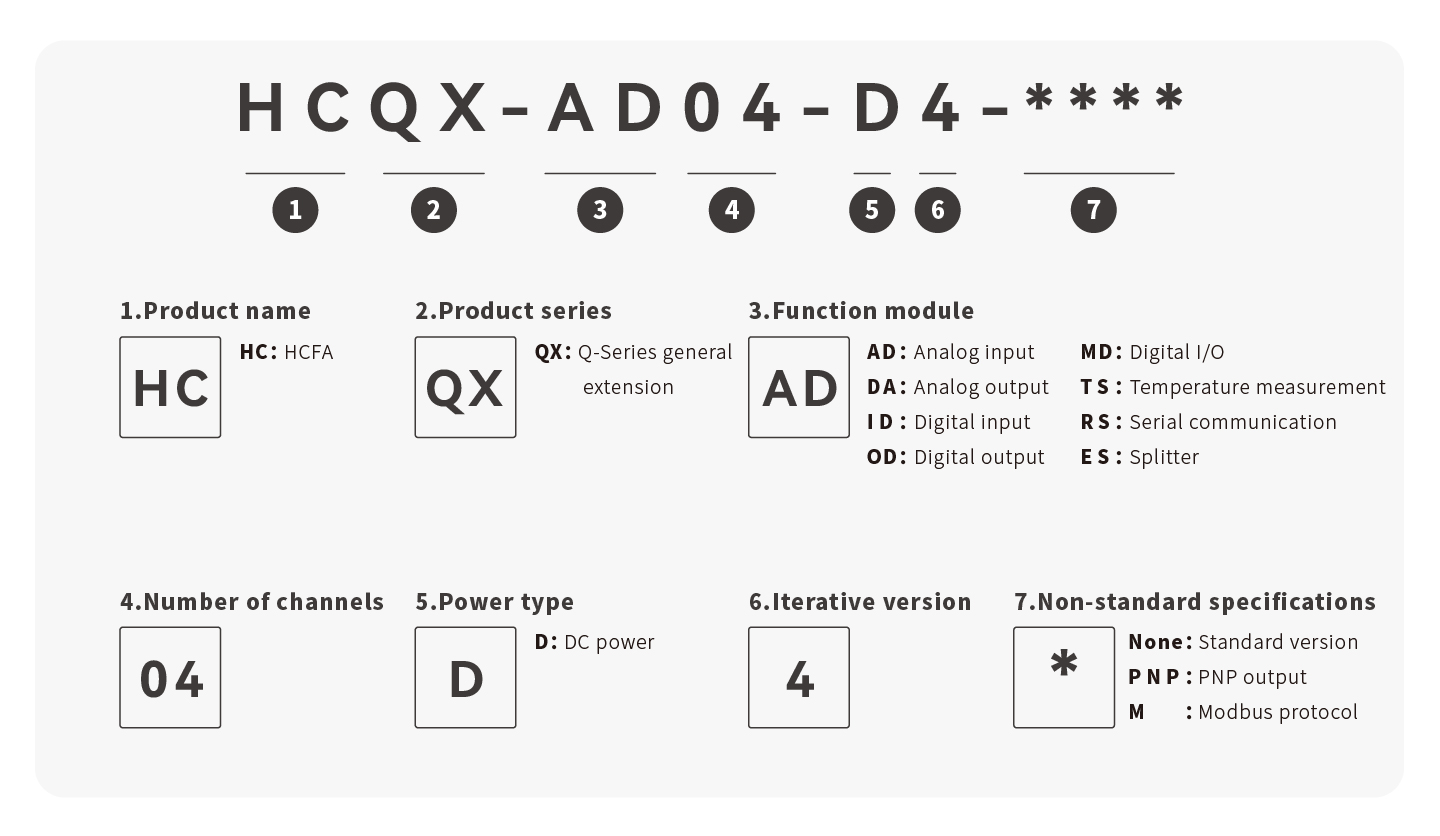

  • Naming rules

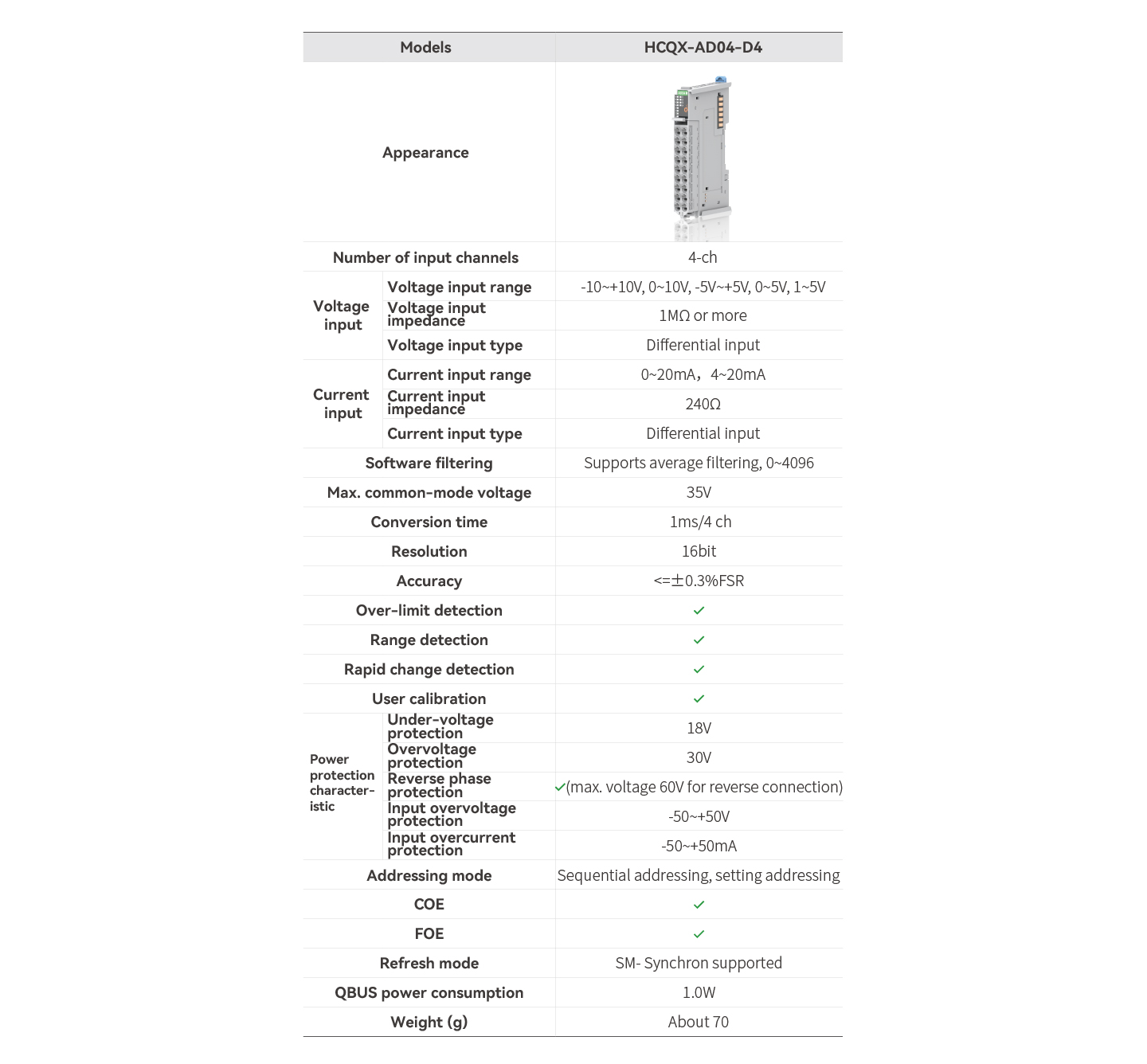

  • Specifications

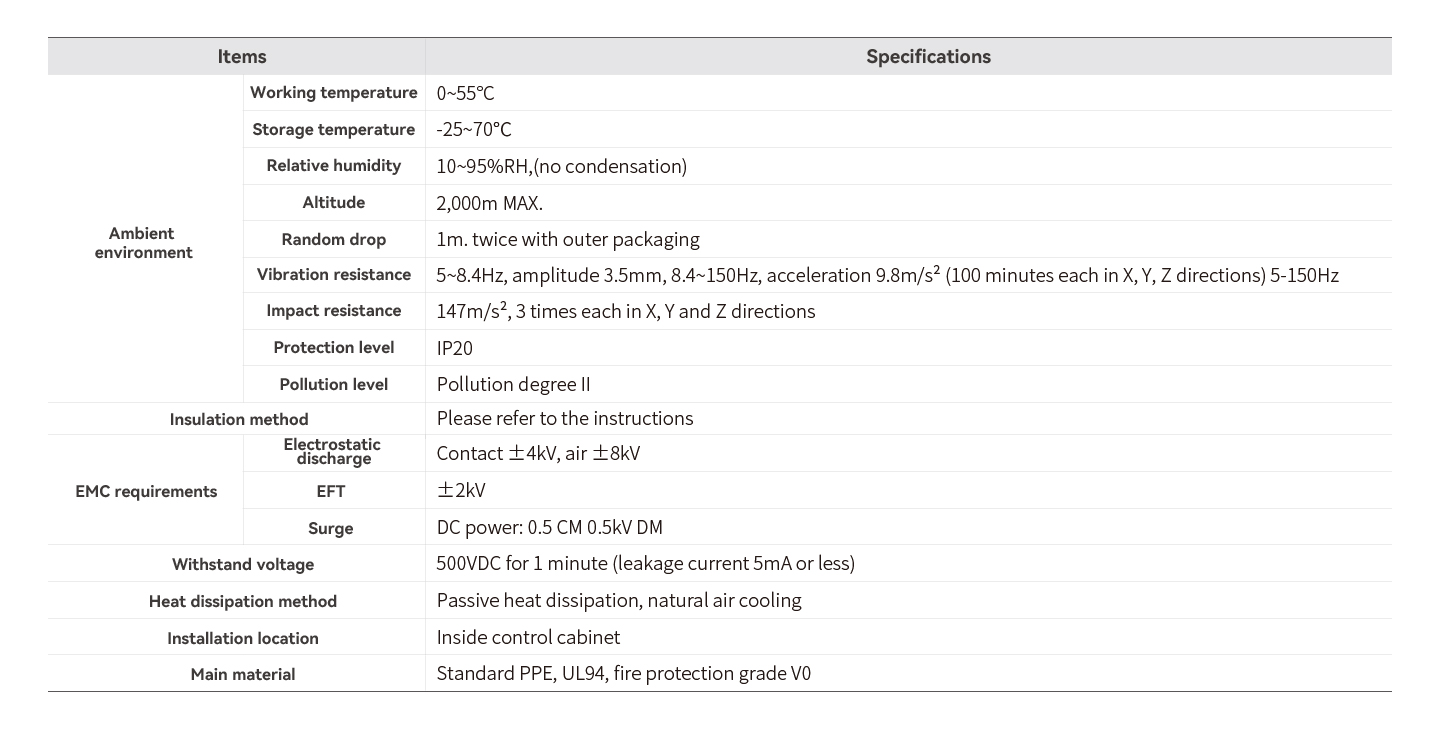

  • General specifications

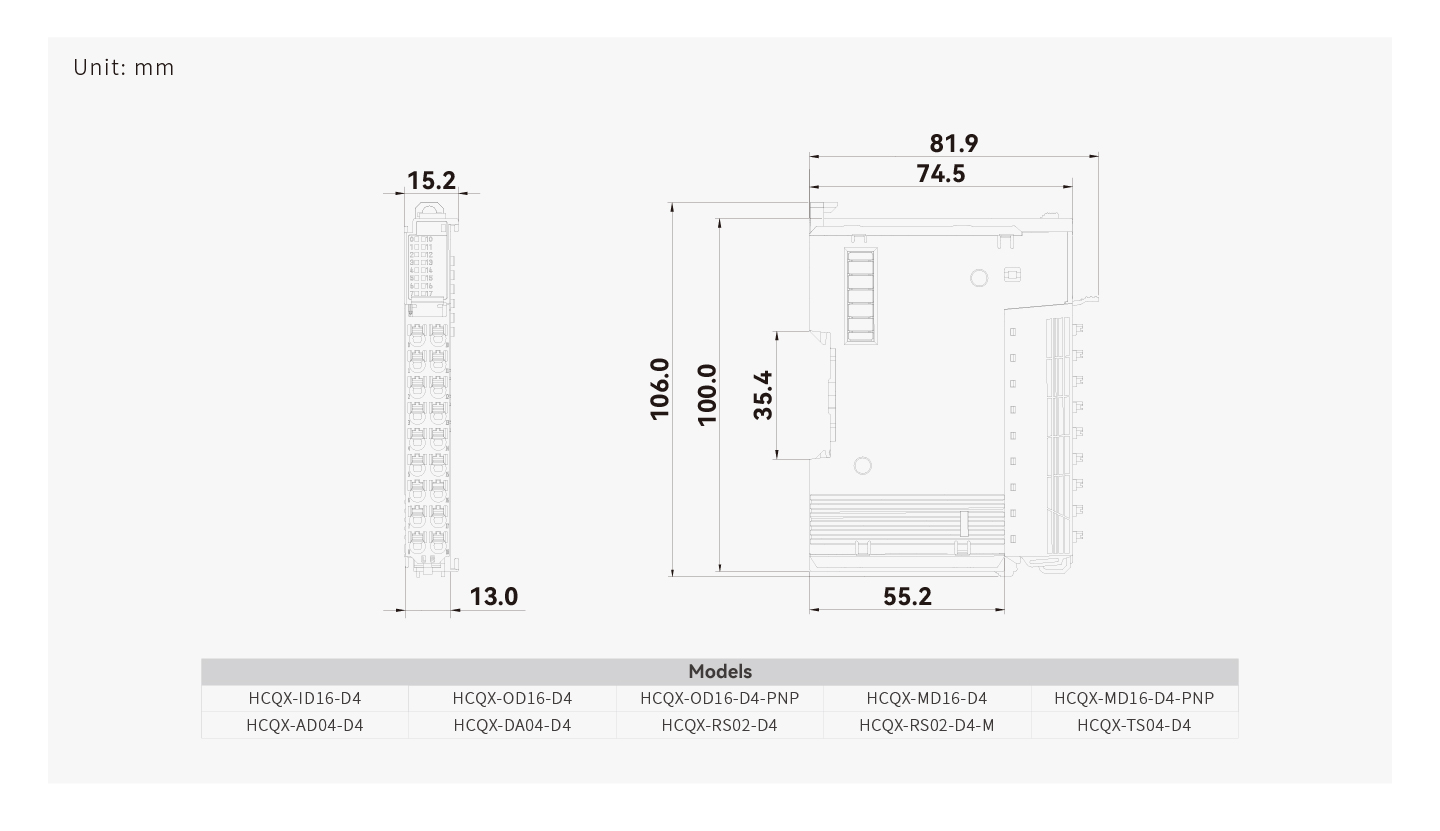

Product Size

Data Download

  • Catalog
  • Instruction
  • Drawing
  • Others
Download Type Name Updated Operation
Catalog Q-series Module Catalog 2023.8-V1.0(EN) 2024.07.01 Download
