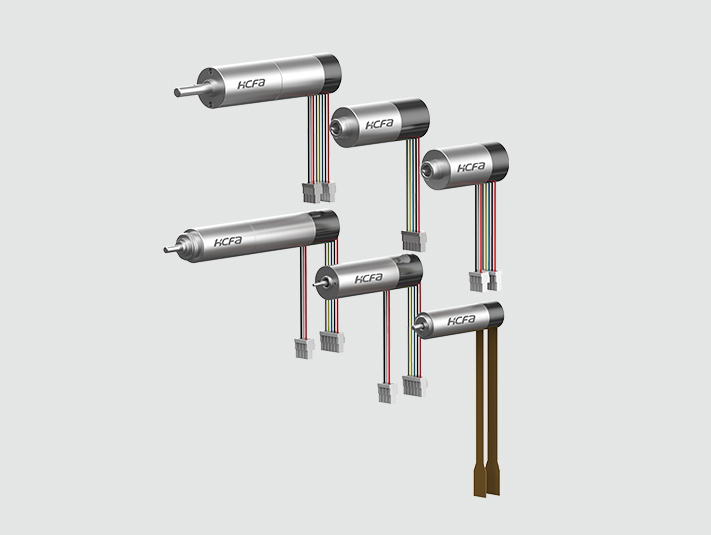

Hu-ECU Series

Basic introduction:
No cogging effect: The slots without iron cores react with the permanent magnets, allowing for smooth operation even at low speeds. With low vibration, low noise, and uniform torque, the rotor can be easily controlled at any position.
Compact structural design: The structural design is highly integrated, with highly integrated feedback and drive systems, small size, and high output.
Low loss and high efficiency: using high-performance materials, elegant magnetic circuit design, high power density
Safety and reliability: high-speed operation, long service life, no electromagnetic interference.

Recommended application scenarios:
Robot dexterous hand, industrial automation, biomedicine
Aerospace, 3C electronics, precision testing

Product Features

  • Hu-ECU08

    Diameter: 8mm

    Rated torque: 1.23mNm

    Rated speed: 25000rpm

  • Hu-ECU10

    Diameter: 10mm

    Rated torque: 1.2mNm

    Rated speed: 26000rpm

  • Hu-ECU12

    Diameter: 12mm

    Rated torque: 7.1mNm

    Rated speed: 25000rpm

  • Hu-ECU13

    Diameter: φ 13mm

    Rated torque: 4.2mNm

    Rated speed: 18000rpm

Product Specifications

  • Naming rules
  • Specification parameters
  • Design drawings

Data Download

  • Catalog
  • Instruction
  • Manual
  • Software
Download Type Name Updated Operation
Catalog Coreless Motor Catalog 2024.10 V1.0 2024.12.24 Download
