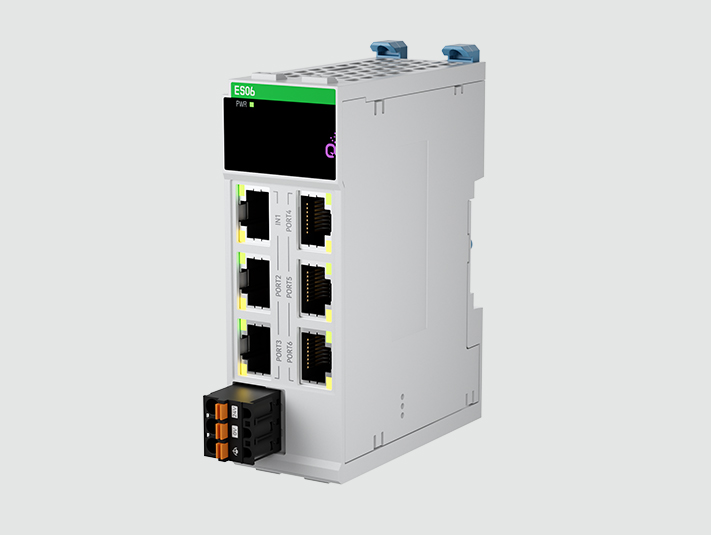

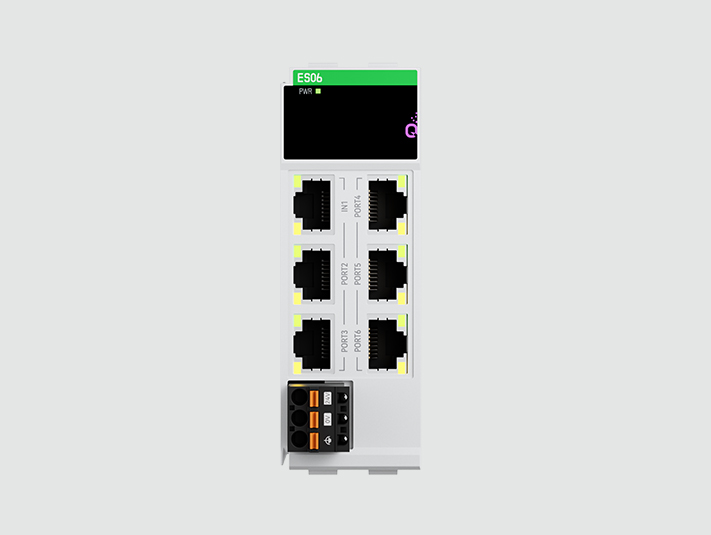

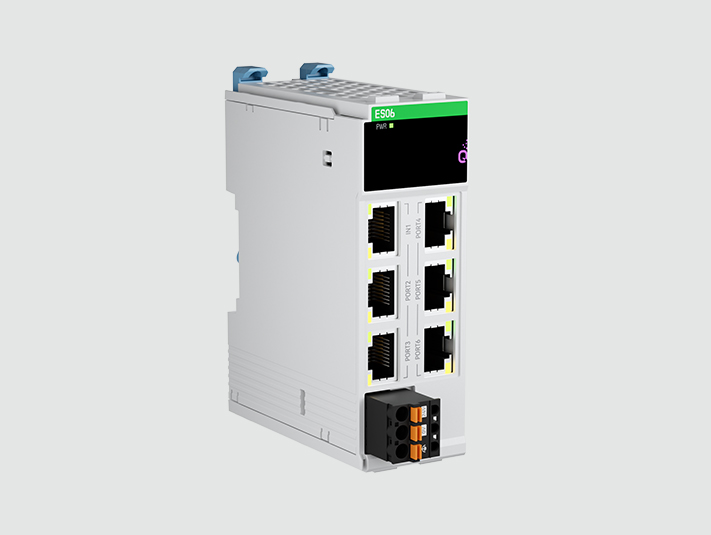

Splitter

· Product series: QX-D4 series new extension IO
· Module type: Splitter module
· Functions: 6-ch EtherCAT splitter, applicable to EtherCAT master station and slave station.

Product Features

  • Bus topology

    Support up to 2 ES06 splitter cascade, to meet complicated bus topology.

  • Topology structure

    Star topology/linear topology.

  • Ultra-thin module

    22mm ultra-thin module, effectively saving space.

  • Removable terminal

    No wiring when replacing modules,PUSH IN, direct plug-in wiring.

Product Specifications

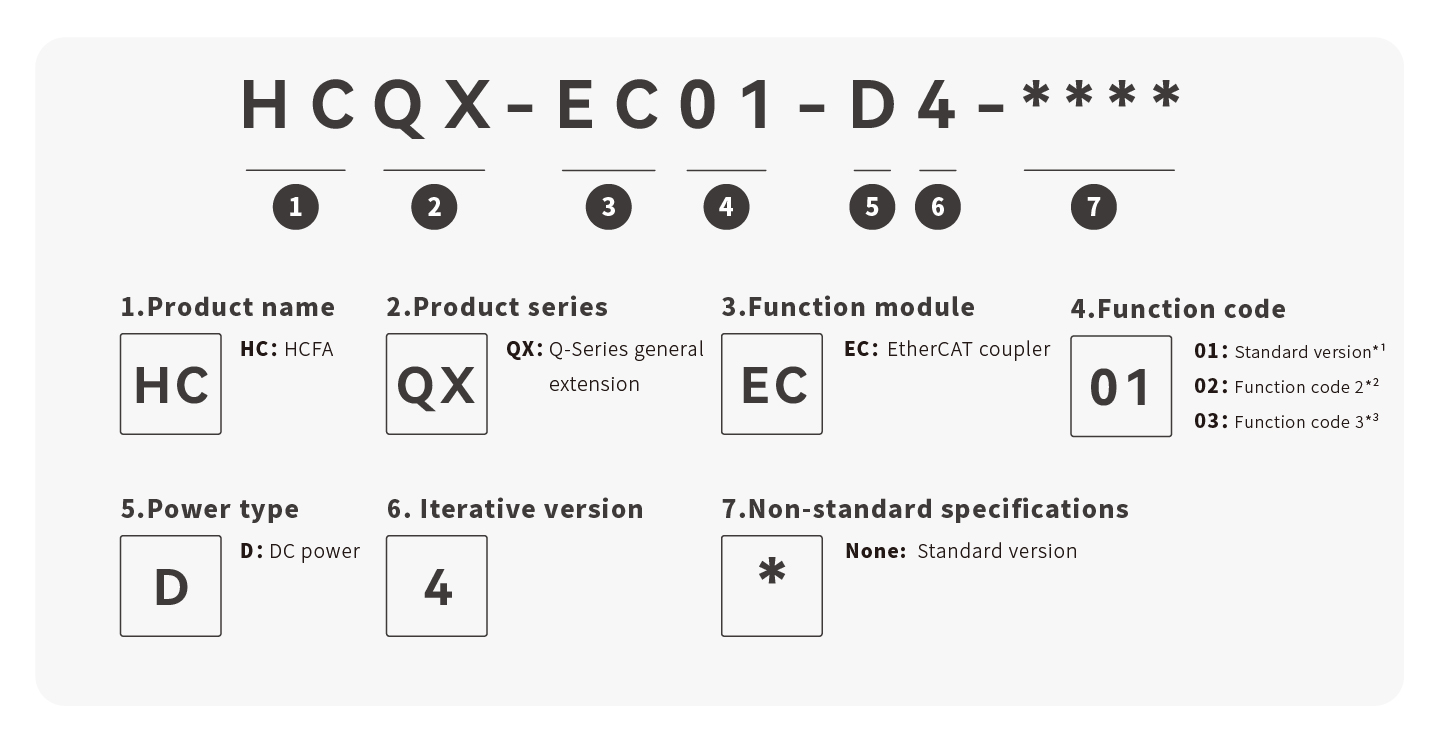

  • Naming rules

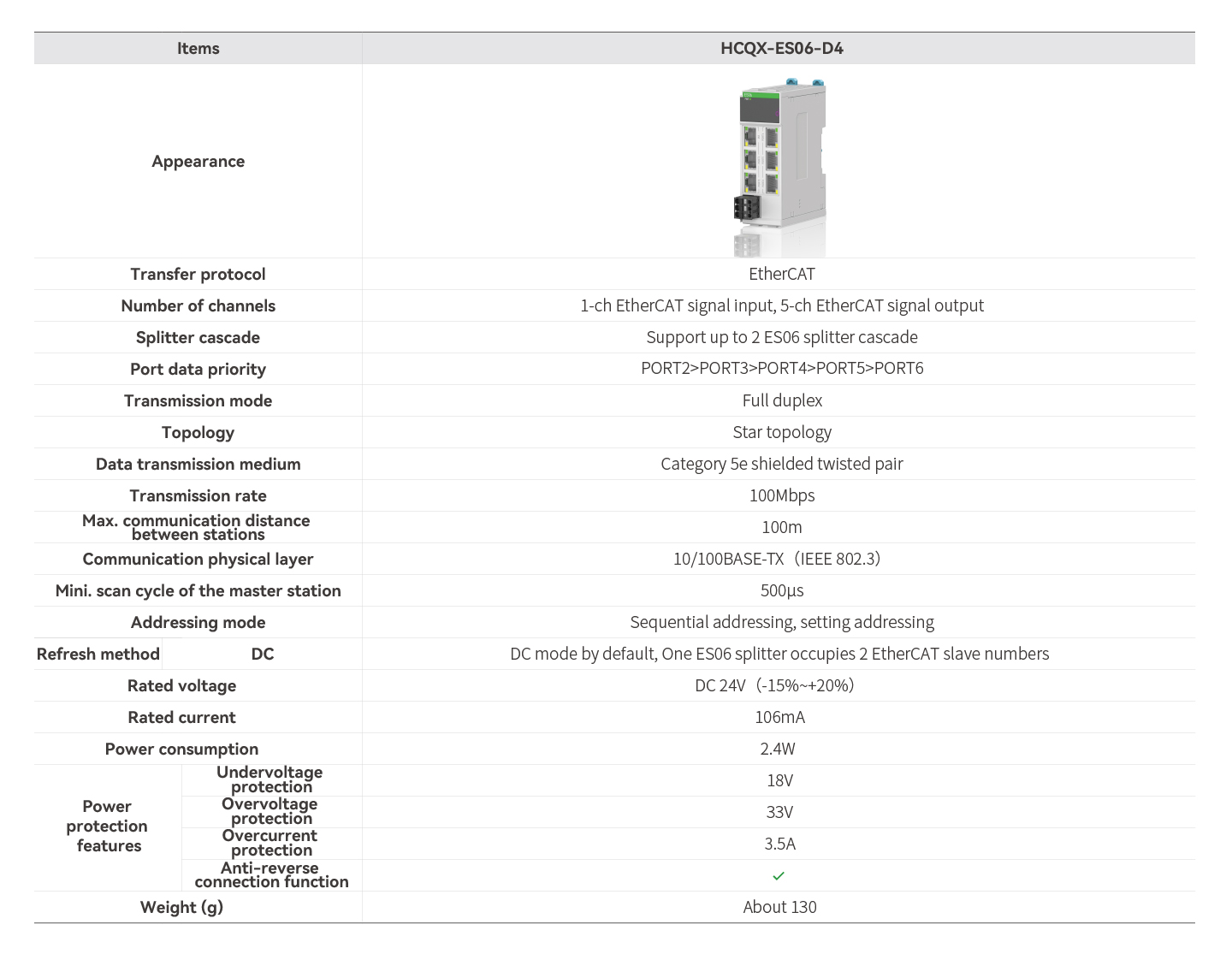

  • Specifications

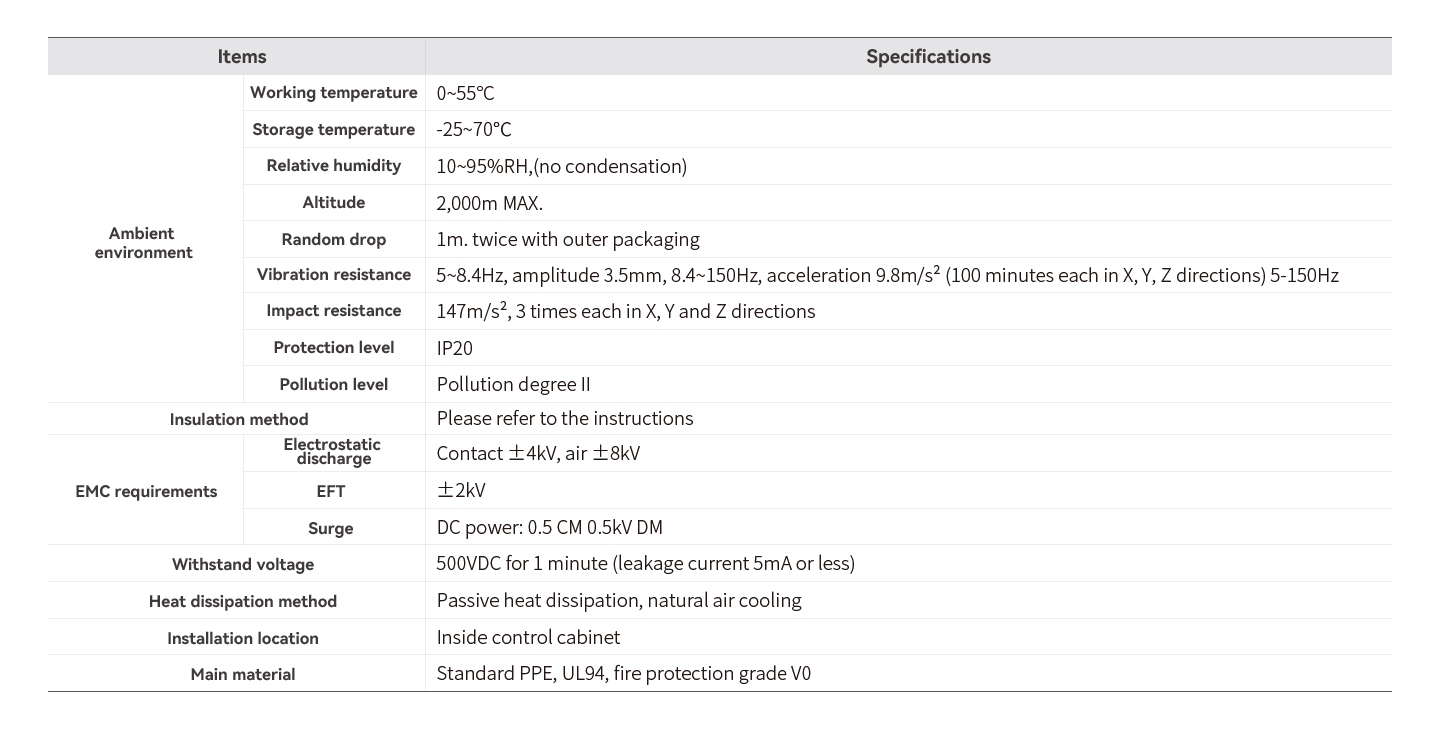

  • General specifications

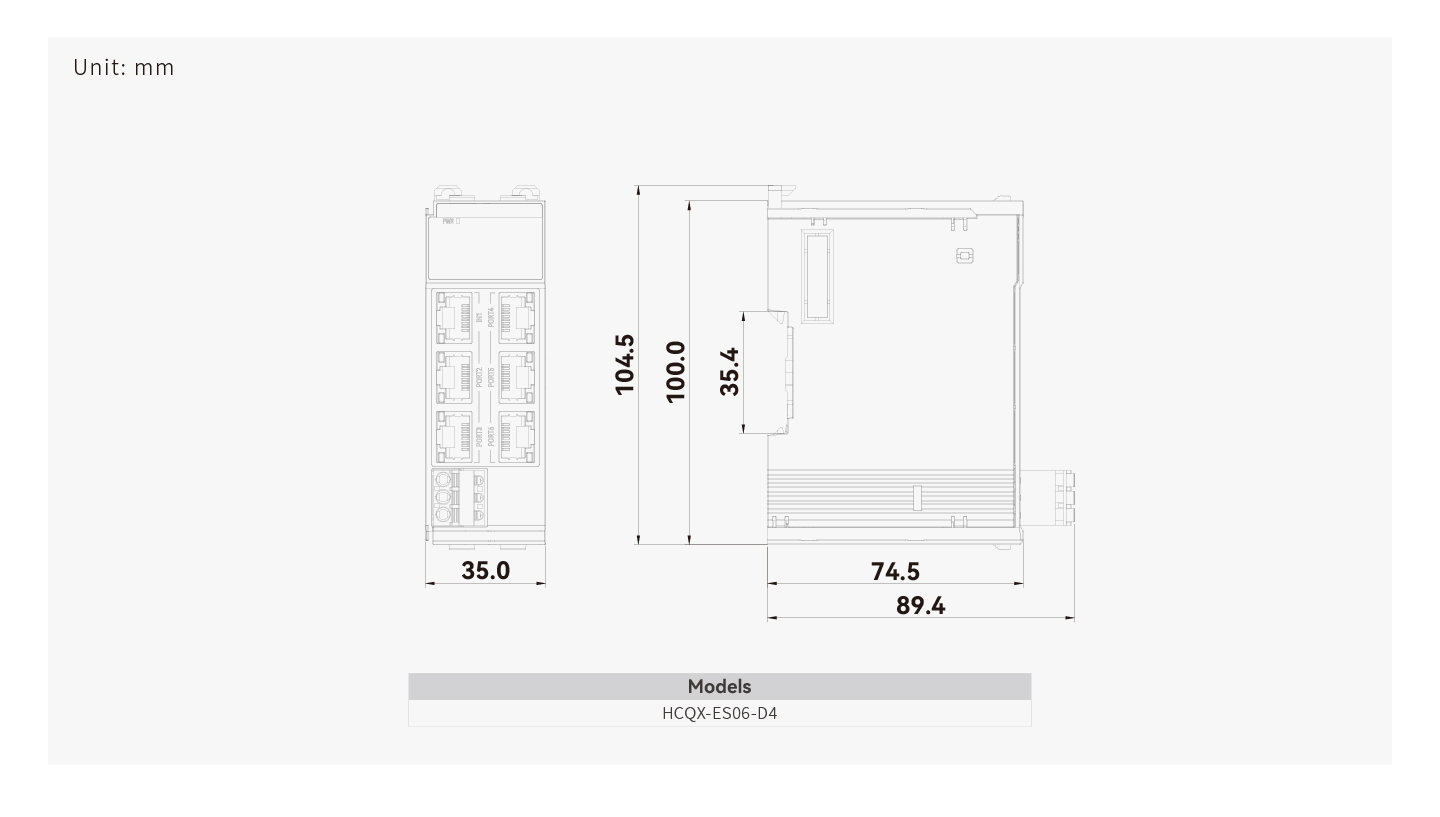

Product Size

Data Download

  • Catalog
  • Instruction
  • Drawing
  • Others
Download Type Name Updated Operation
Catalog Q-series Module Catalog 2023.8-V1.0(EN) 2024.07.01 Download
