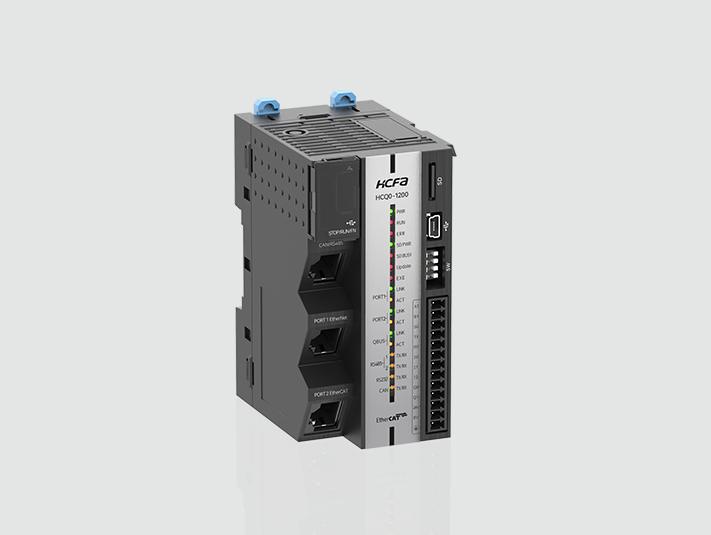

Q0
Product series: Basic bus type motion controller
Module Type: CPU units
Processor: A7*2, 650MHz, 1G DDR+2G EMMC
Support protocols: EtherCAT, CANOpen, Modbus TCP/PTU etc.
Product Features
-
-
High speed and high configuration
Built-in 2-core processor + FPGA architecture
EMMC+SD+USB3.0+DDR3 accelerator
-
-
-
Communication compatibility
Supports standard EtherCAT/CANOpen/Modbus TCP/Modbus RTU protocols
Complete communication interface
Ethernet Gps*2/EtherCAT interface/CAN and 3-way serial port built-in (RS485/RS232) WiFi and other options
Support Modbus Master-Slave mode
-
-
-
High ease of use
Standardized programming development: IEC61131-3 specification in 6 programming languages, using CODESYS platform
Flexible system configuration, up to 65535 slave stations
USB driver-free
12mm ultra-narrow direct pull module & push-in terminal
-
-
-
Motion Control
PLC OPEN-based standard motion control: linear/arc/spiral interpolation/electronic cam & flying shear & chasing shear/CNCG code control/Robot control
Ultra-short synchronization cycle: command execution can reach 1ns; 2ms with 8 axes, 4ms with 16 axes
-

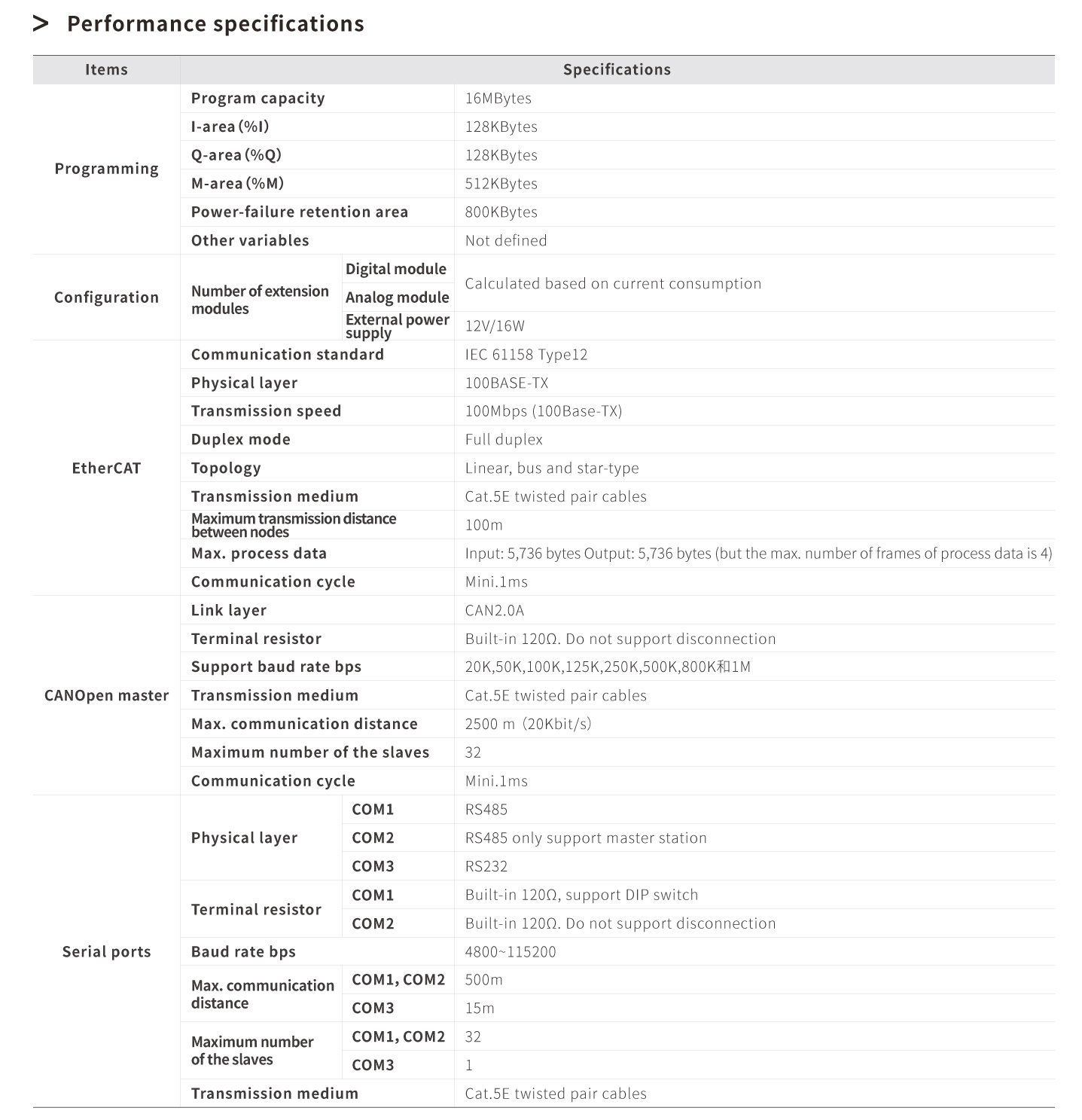

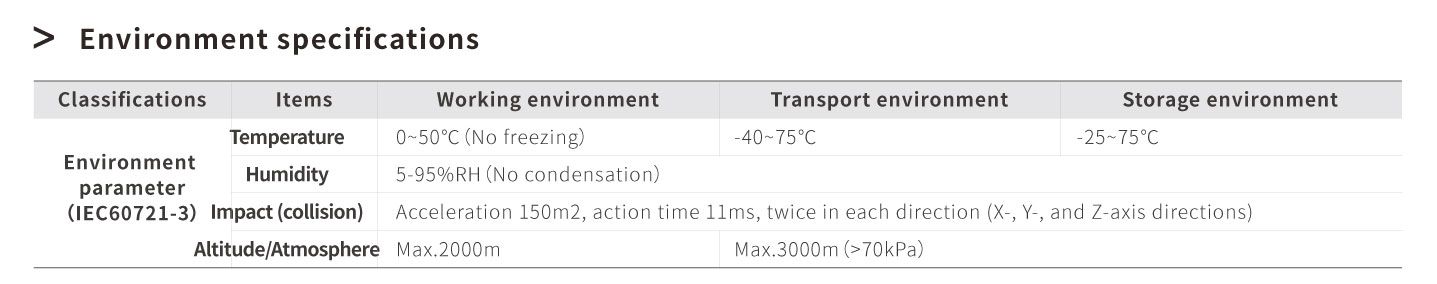

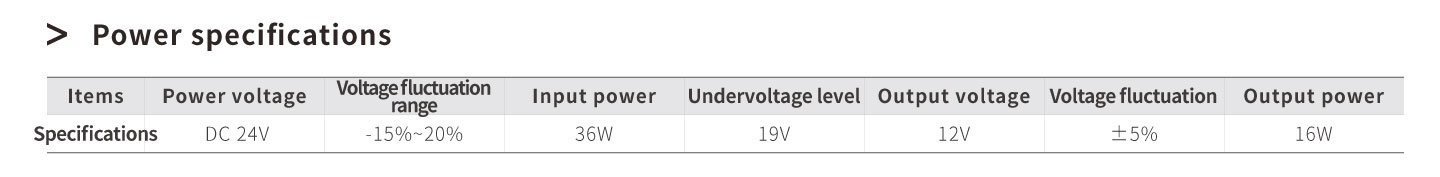

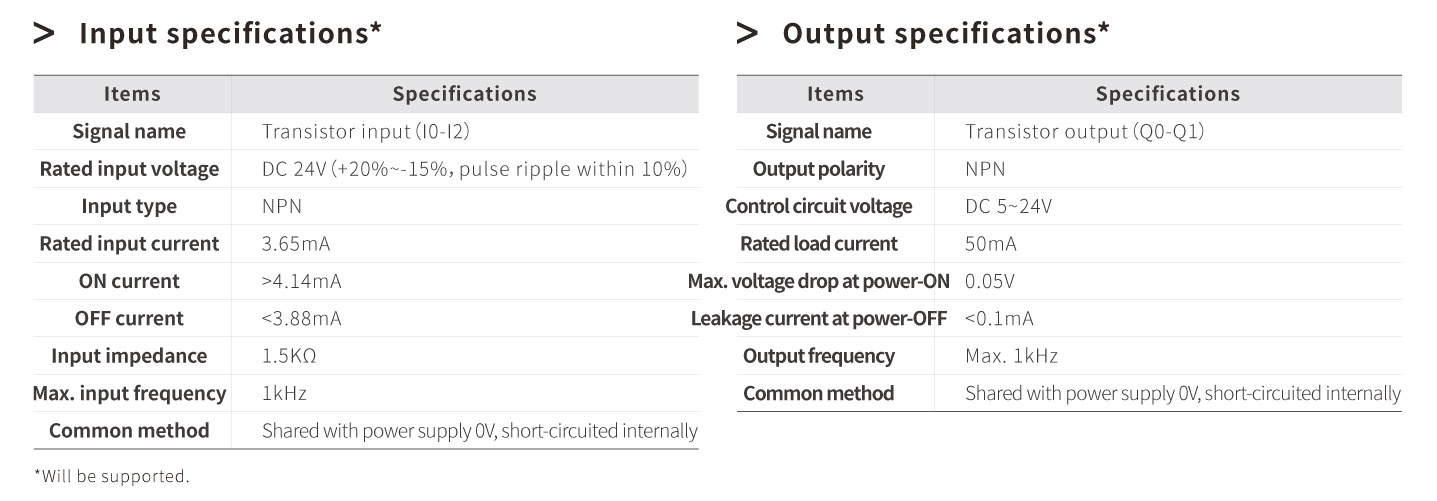

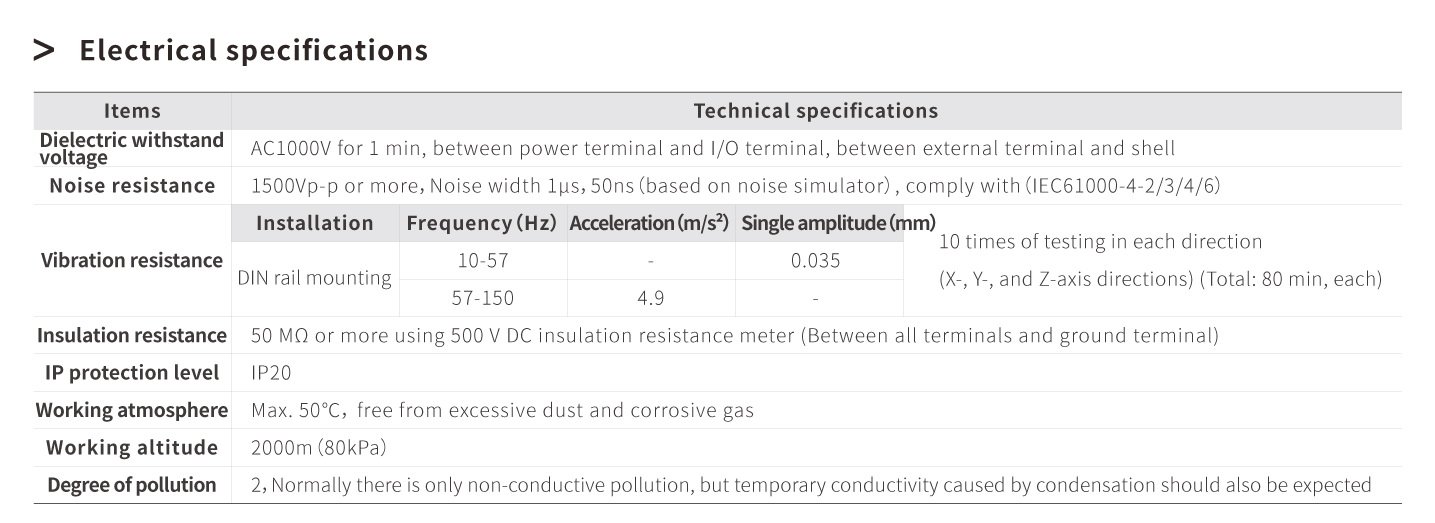

Product Specifications

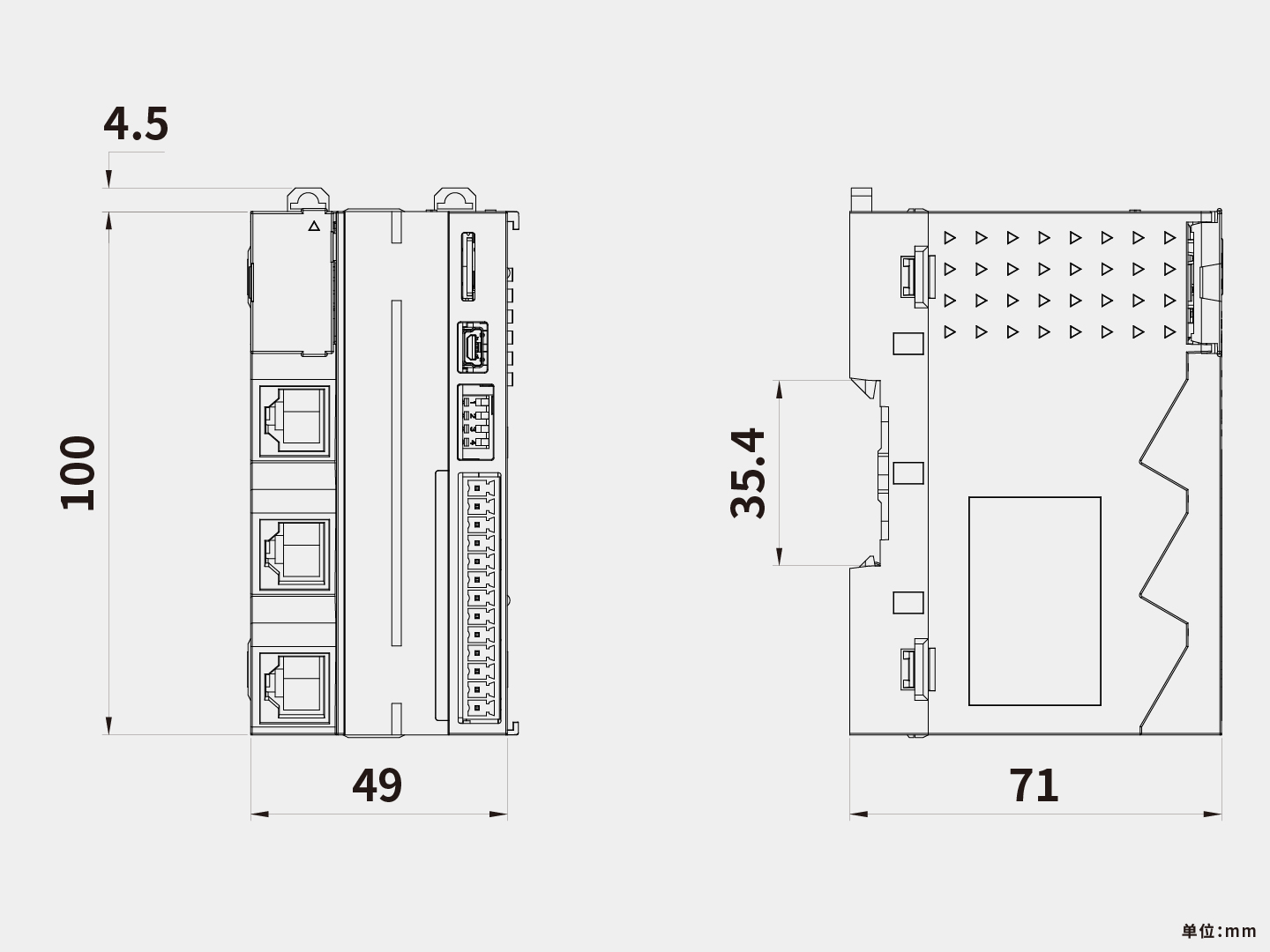

Product Size
