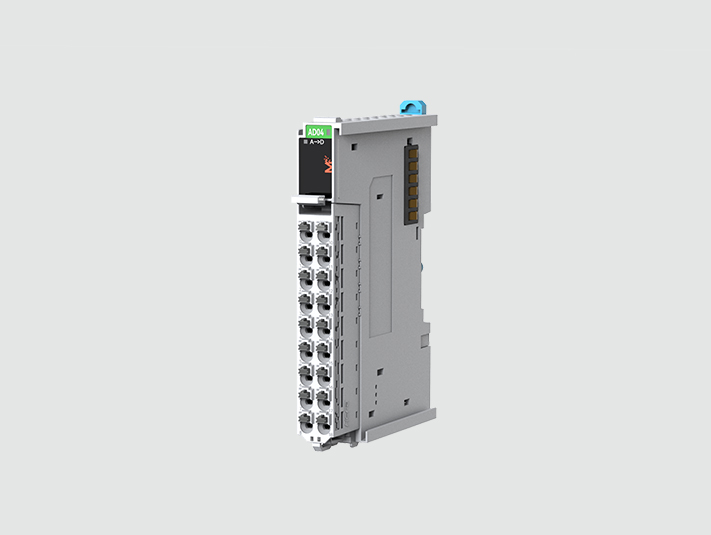

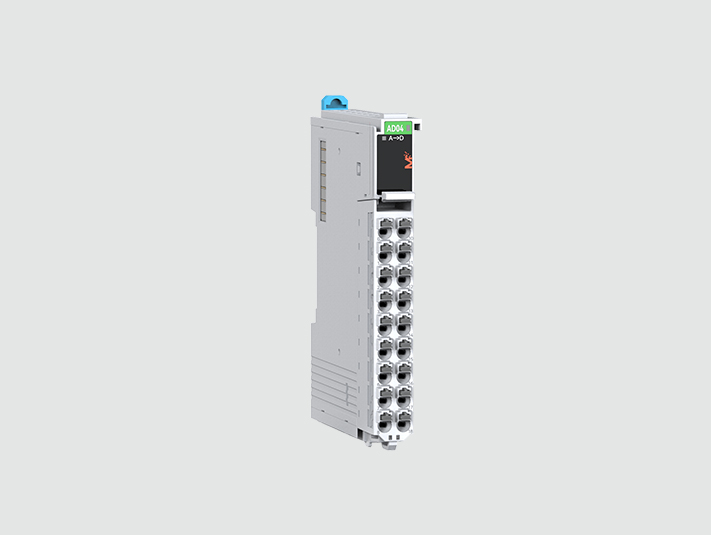

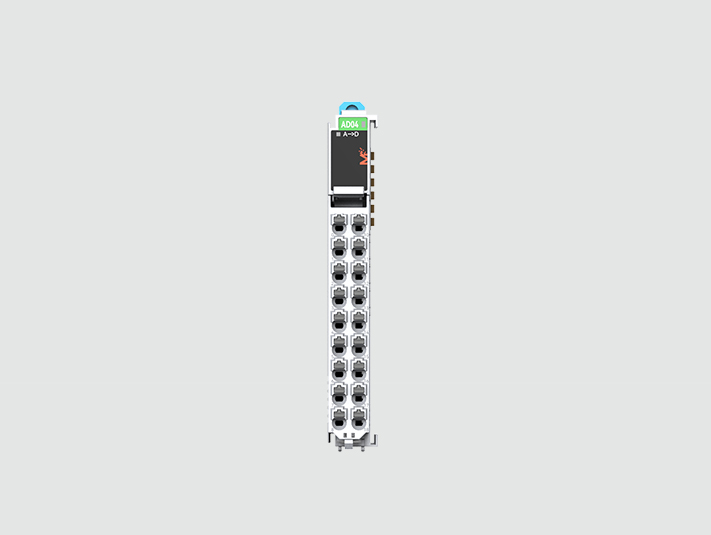

Analog input

Product series: M-series new generation expansion module
Module type: Analog input module
Number of channels: 4 channels
Voltage input range: -10~10V, -5~5V, 0~5V, 1~5V
Current input range: -20~20mA, 0~20mA, 4~20mA
Module models: HCMX-AD04-D, HCMX-AD04S-D

Product Features

  • High precision

    The HCQX-AD04-D4 module has a resolution of 16 bits and an accuracy of [room temperature 25 ℃: ± 0.1% (full range), full temperature range: ± 0.2% (full range)]

    The HCQX-AD04S-D4 module has a resolution of 14 bits and an accuracy of [room temperature 25 ℃: ± 0.5% (full range), full temperature range: ± 1% (full range)]

  • Efficient assembly

    Removable terminals, direct replacement of terminals without dismantling wiring

    PUSH IN tool free direct insertion wiring

  • Lightweight size

    13mm slim and light size, easy to handle small usage environments

  • Stable, reliable, reassuring and easy to use

    Detailed fault diagnosis, quick positioning and analysis of problem causes

Product Specifications

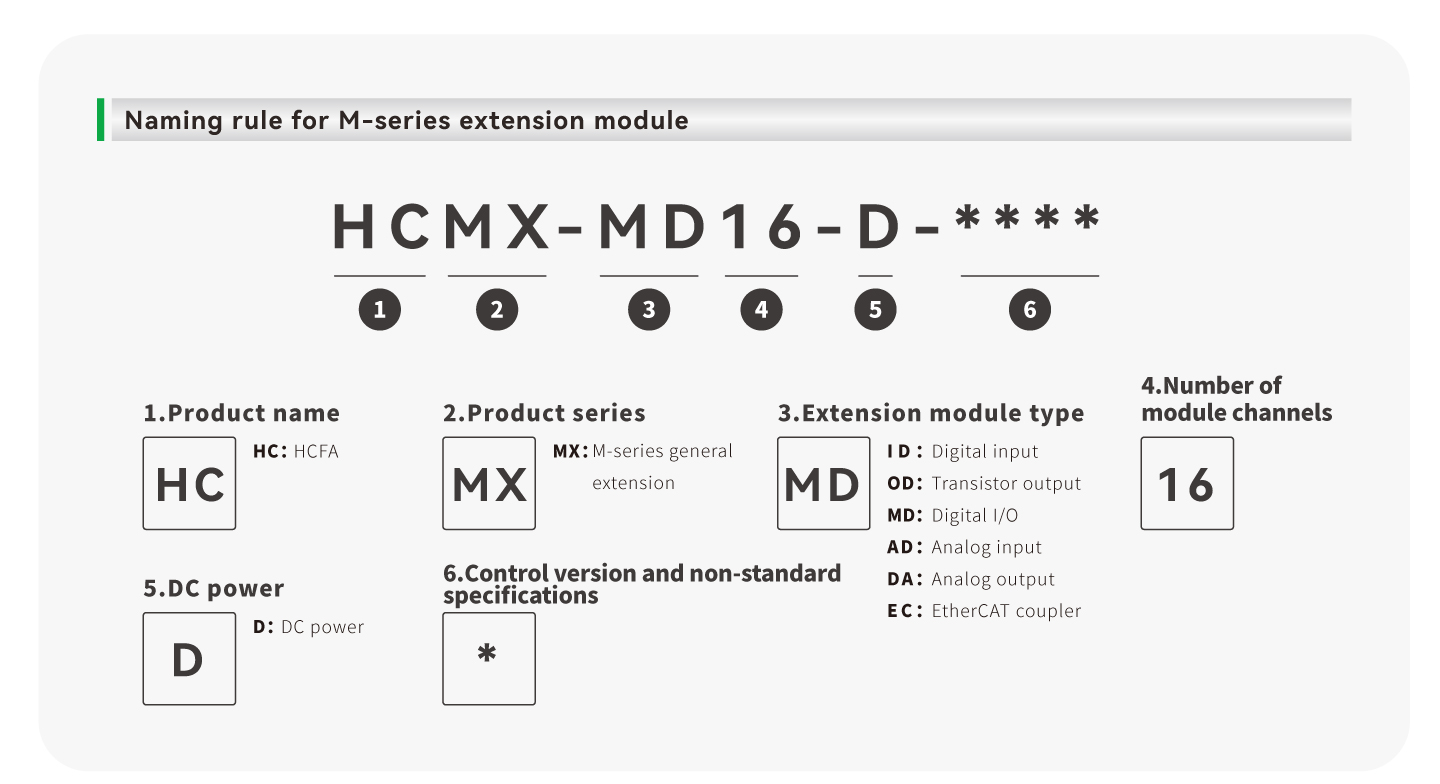

  • Naming

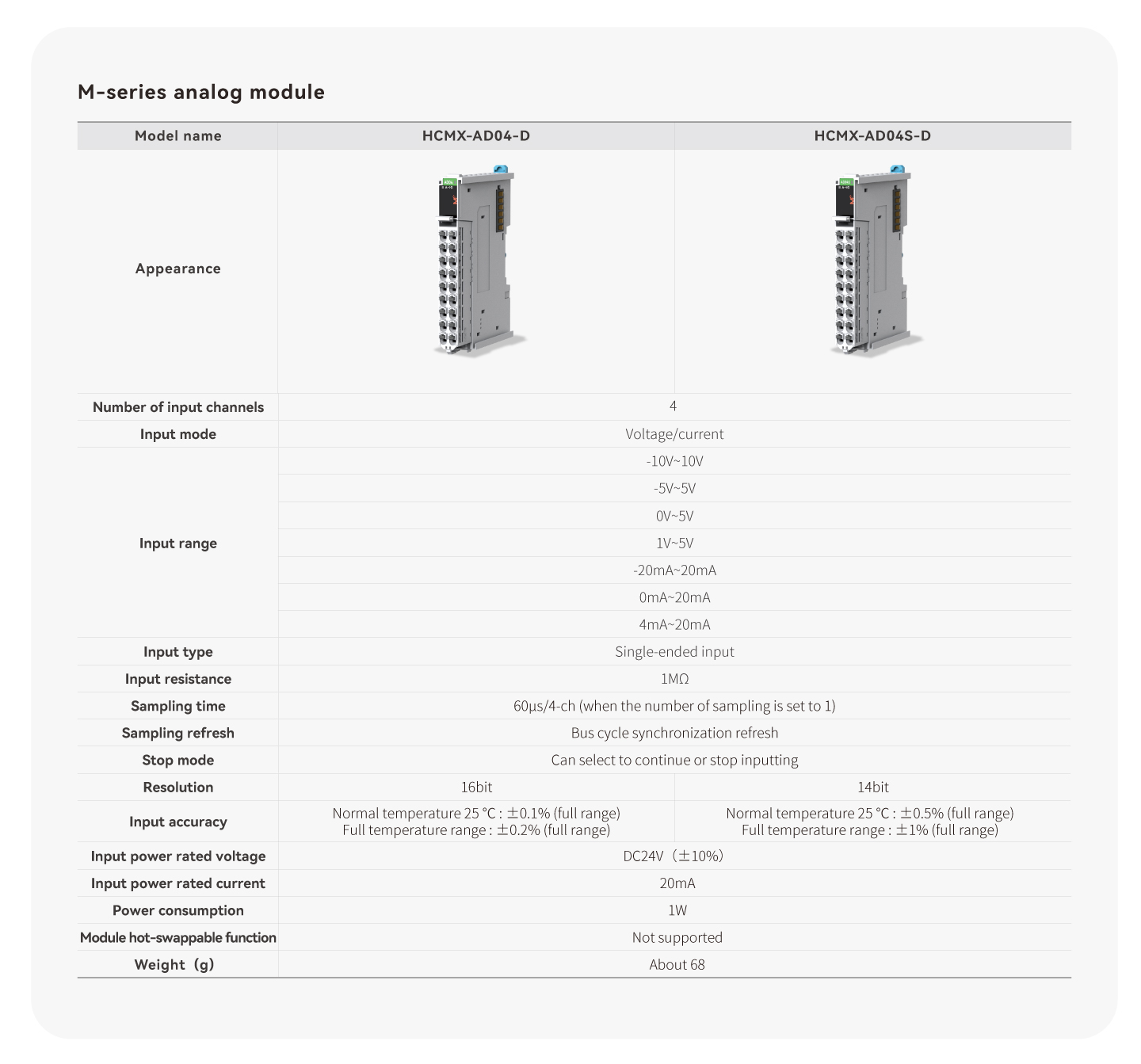

  • Performance

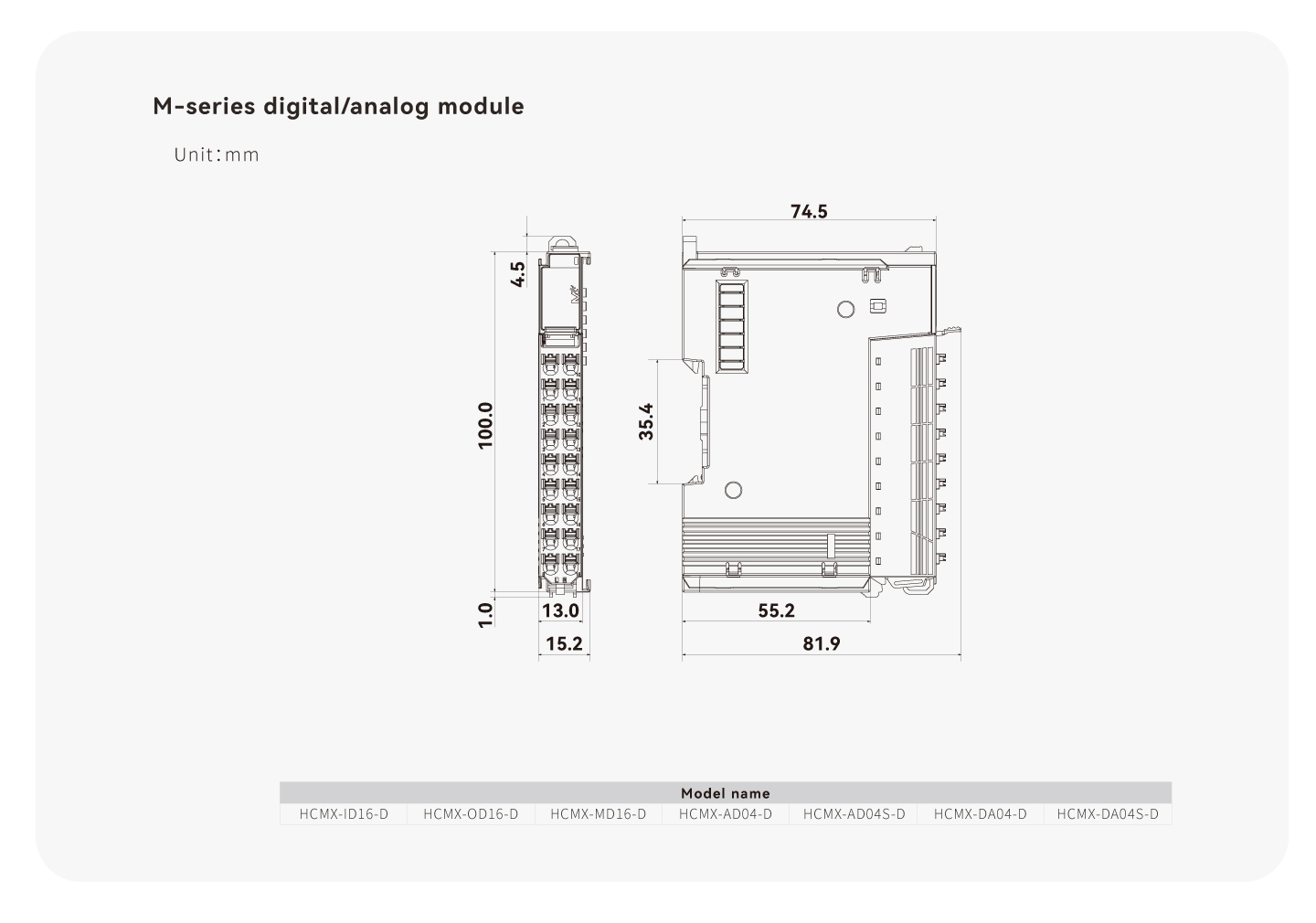

Product size
