Program Overview

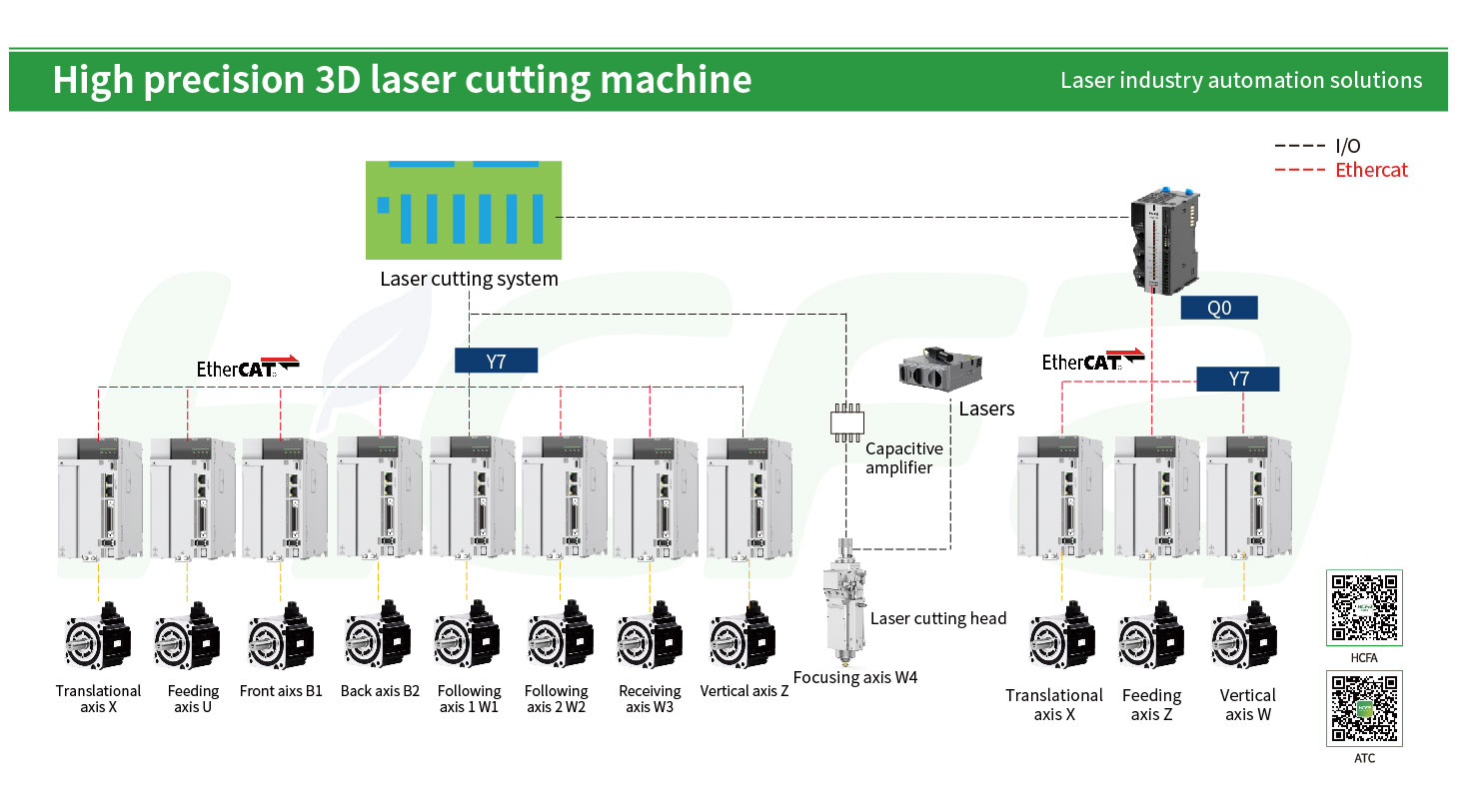

3D laser cutting machine is suitable for cutting a wide range of tubes, from simple round and square tubes to complex elliptical tubes, waist-shaped tubes, angle steel, universal beam and shaped tubes. Combined with the upper machine nesting software, it can realize the cutting of all kinds of shaped tubes and provide the whole set of loading and unloading control system, which is perfectly connected with the mainstream cutting system.

Our solution

Program Features

  • High speed and high precision

    23bit photoelectric encoder, conventional 4000rpm motor, running speed easily reaches 120m/min

  • High response

    Control loop calculation cycle as fast as 62.5us, speed loop bandwidth 3.5KHZ, positioning time <=1ms

  • High inertia, high torque

    MG series X6 motor, benchmarked against Yaskawa servo, realizes the perfect combination of high inertia and high torque

  • Complete power band

    From 50W to 7.5kw full coverage of all conventional power to meet the diversified needs of customers

  • Matching with many laser systems

    Perfectly match with control system of Friendess, Weihong, Beckhoff, Empower, Au3tech, PA, Fangling, etc. Support pulse, EtherCAT, M3, PROFINET bus control

  • Strong anti-interference ability

    Break the monopoly, the company‘s own research photoelectric encoder, anti-interference special treatment, more suitable for the harsh environment of laser cutting

  • Support customization

    Customize the loading and unloading actions and functions according to the actual requirements of customers.

  • Support a wide range of shaped tubes

    High servo response performance, support perfect cutting from large chamfering and small chamfering tubes
