Program Overview

Laser plane cutting machine is a laser emitted from the laser, through the optical path system, focused into a high power density laser beam. The laser beam irradiates the surface of the work piece, causing the work piece to reach the melting or boiling point, while the high pressure gas coaxial to the beam blows away the molten or vaporized metal

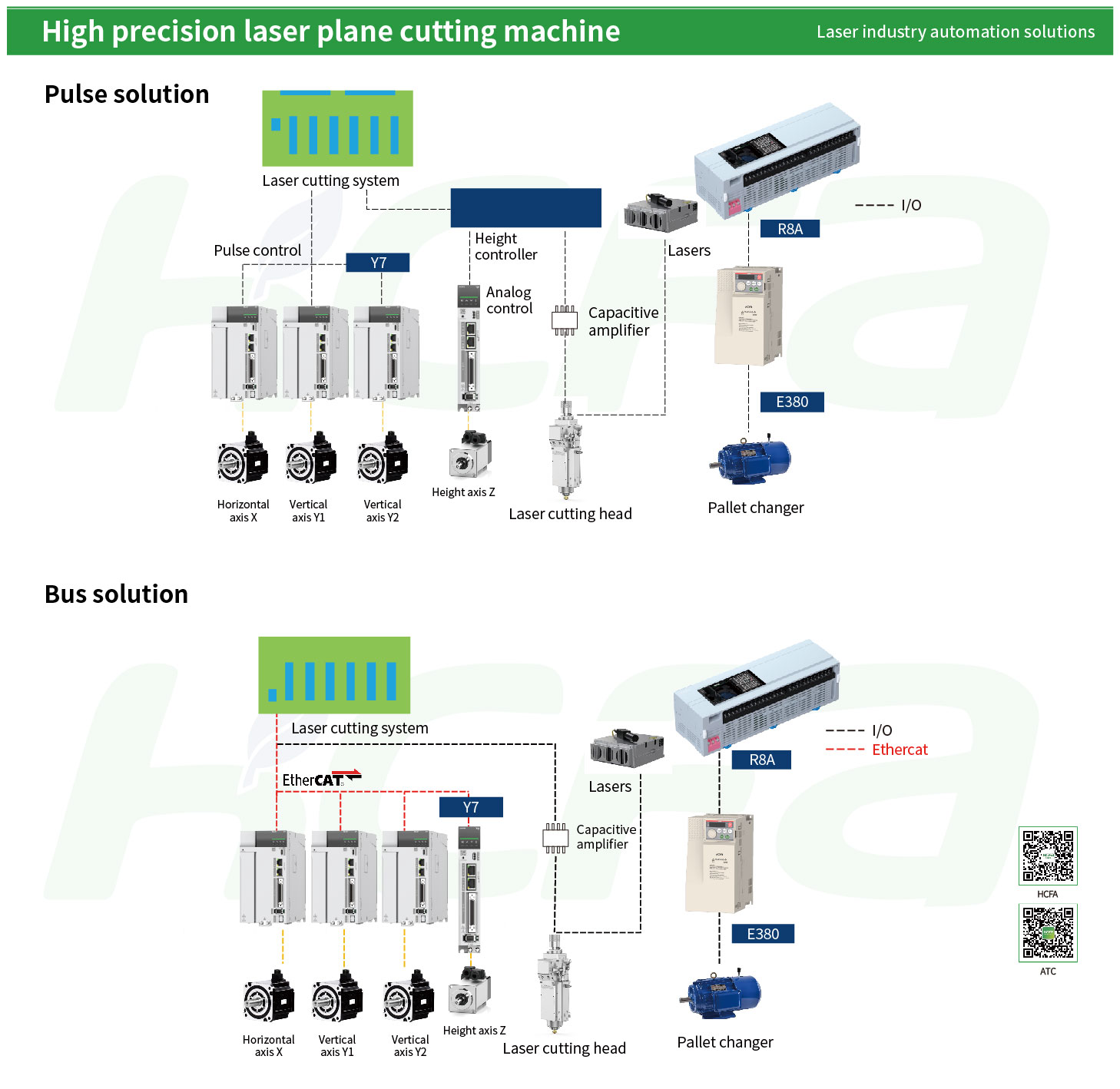

Our solution

Program Features

  • High speed and high precision

    23bit photoelectric encoder, conventional 4000rpm motor, running speed easily reaches 120m/min

  • High response

    Control loop calculation cycle as fast as 62.5us, speed loop bandwidth 3.5KHZ, positioning time <=1ms

  • High inertia, high torque

    MG series X6 motor, benchmarked against Yaskawa servo, realizes the perfect combination of high inertia and high torque

  • Complete power band

    MG series X6 motor, benchmarked against Yaskawa servo, realizes the perfect combination of high inertia and high torque

  • Matching with many laser systems

    Perfectly match with control system of Friendess, Weihong, Beckhoff, Empower, Au3tech, PA, Fangling, etc. Support pulse, EtherCAT, M3, PROFINET bus control

  • Strong anti-interference ability

    Break the monopoly, the company‘s own research photoelectric encoder, anti-interference special treatment, more suitable for the harsh environment of laser cutting
