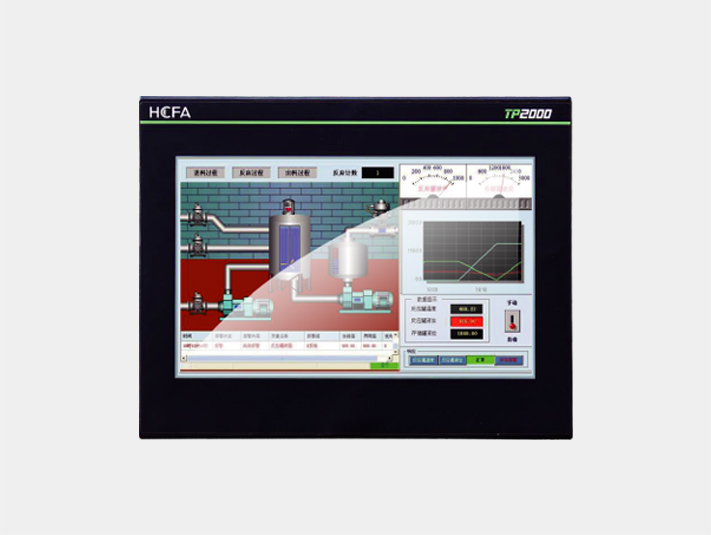

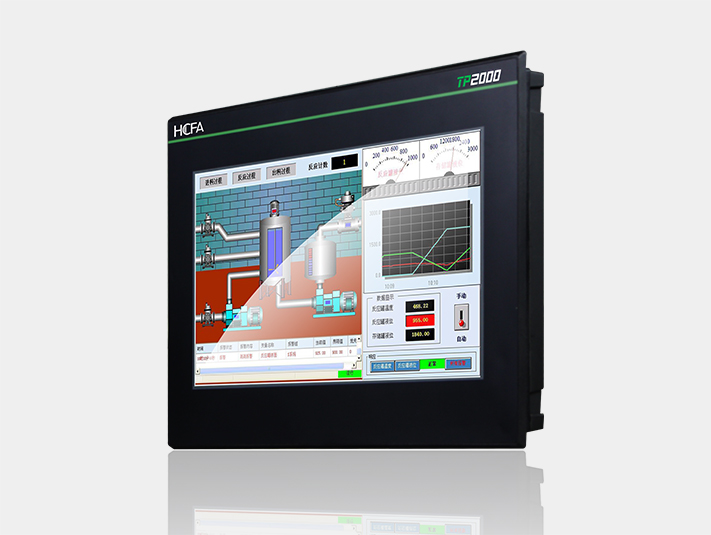

TP2510
Product Type: HMI Touch Screen
Screen size: 10.1 inch
Resolution: 800x400/480x272
Color: 24-bit
Hardware interface: RS232, RS485, Ethernet interface, SD card slot, USB2.0
Product Features
-
-
Performance
More powerful ARM platform performance with 50% improvement over previous generation
-
-
-
Interface
Rich variety of interfaces, Ethernet port / serial port / USB port / SD card to meet different field needs
-
-
-
Easy to operate
The new configuration software HCT Design is more convenient for human-machine interaction, more concise and convenient
-
-
-
Size
Full size, exquisite and compact appearance, easy to install
-

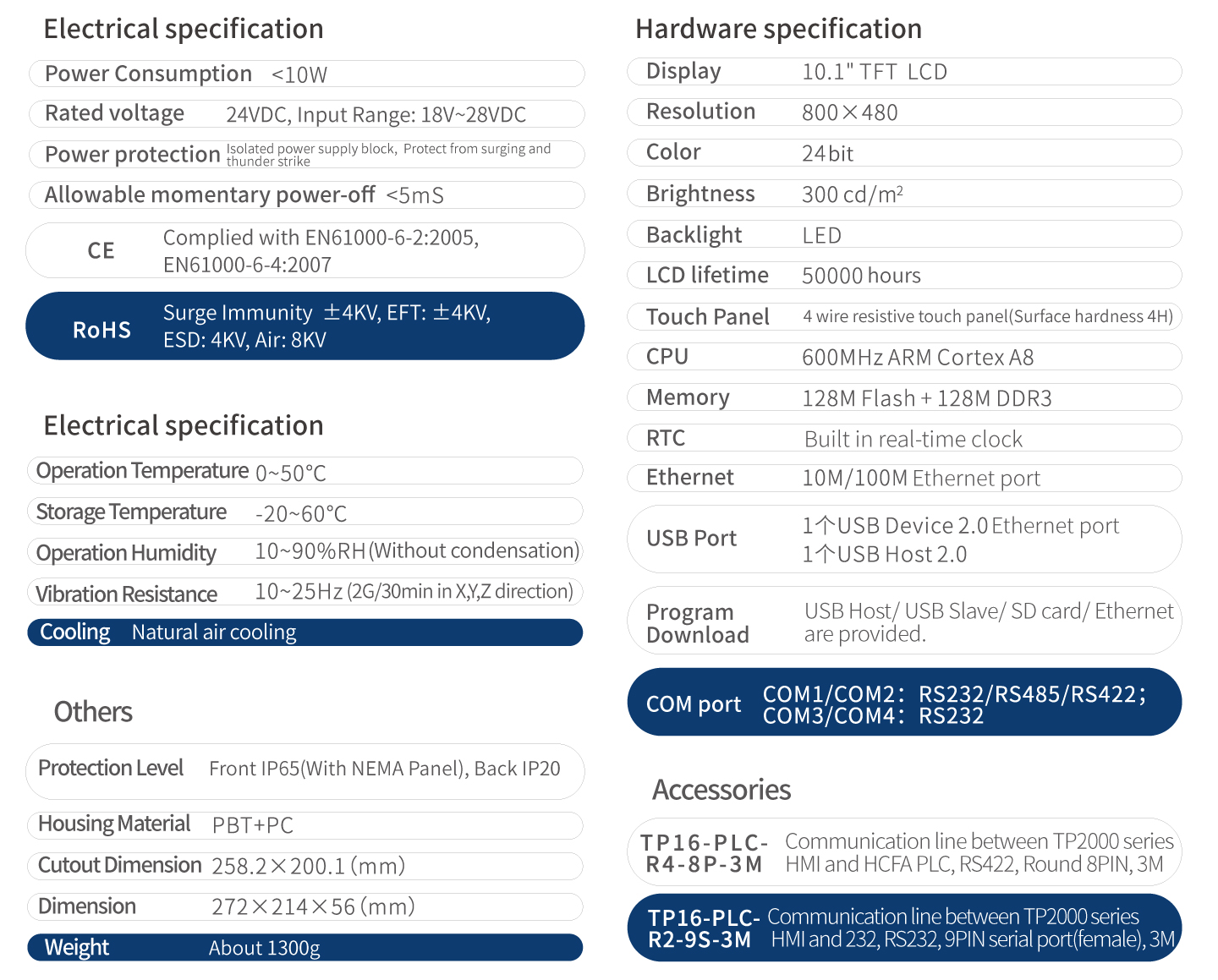

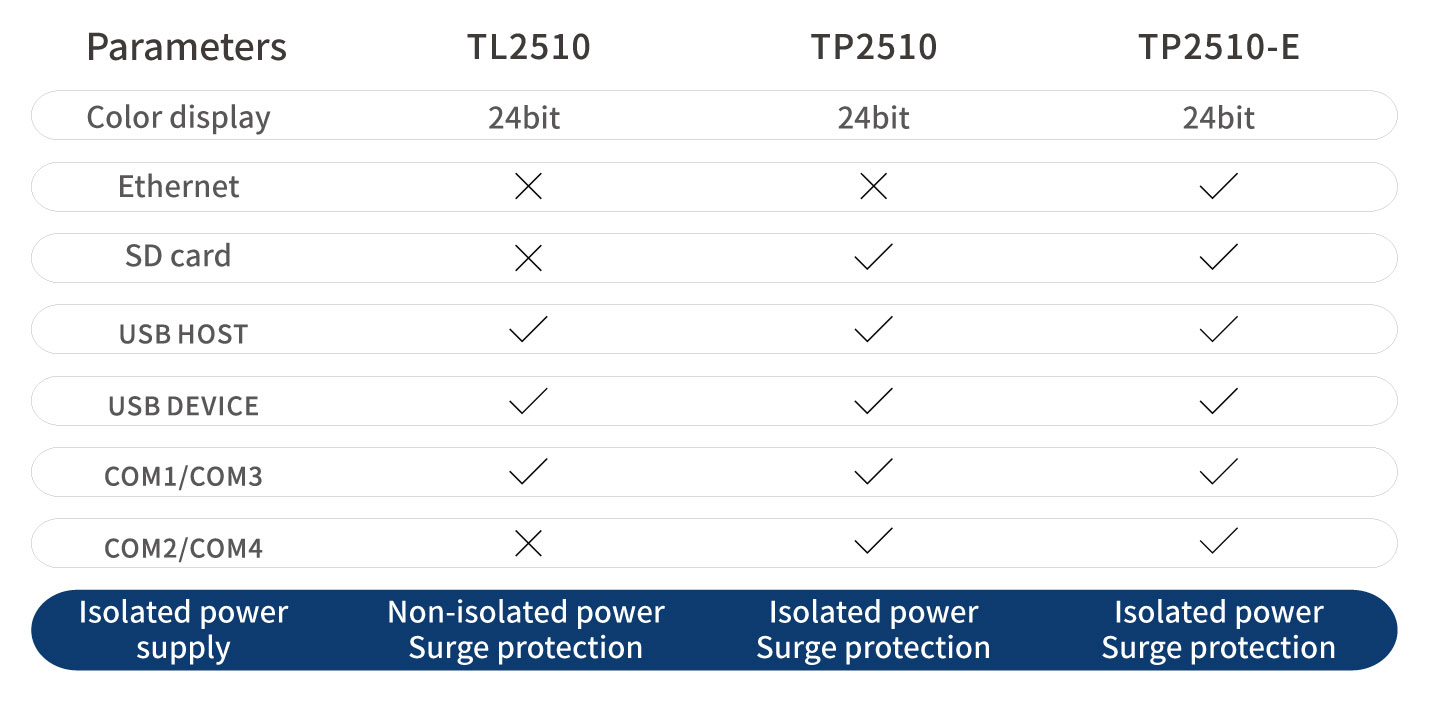

Product Specifications

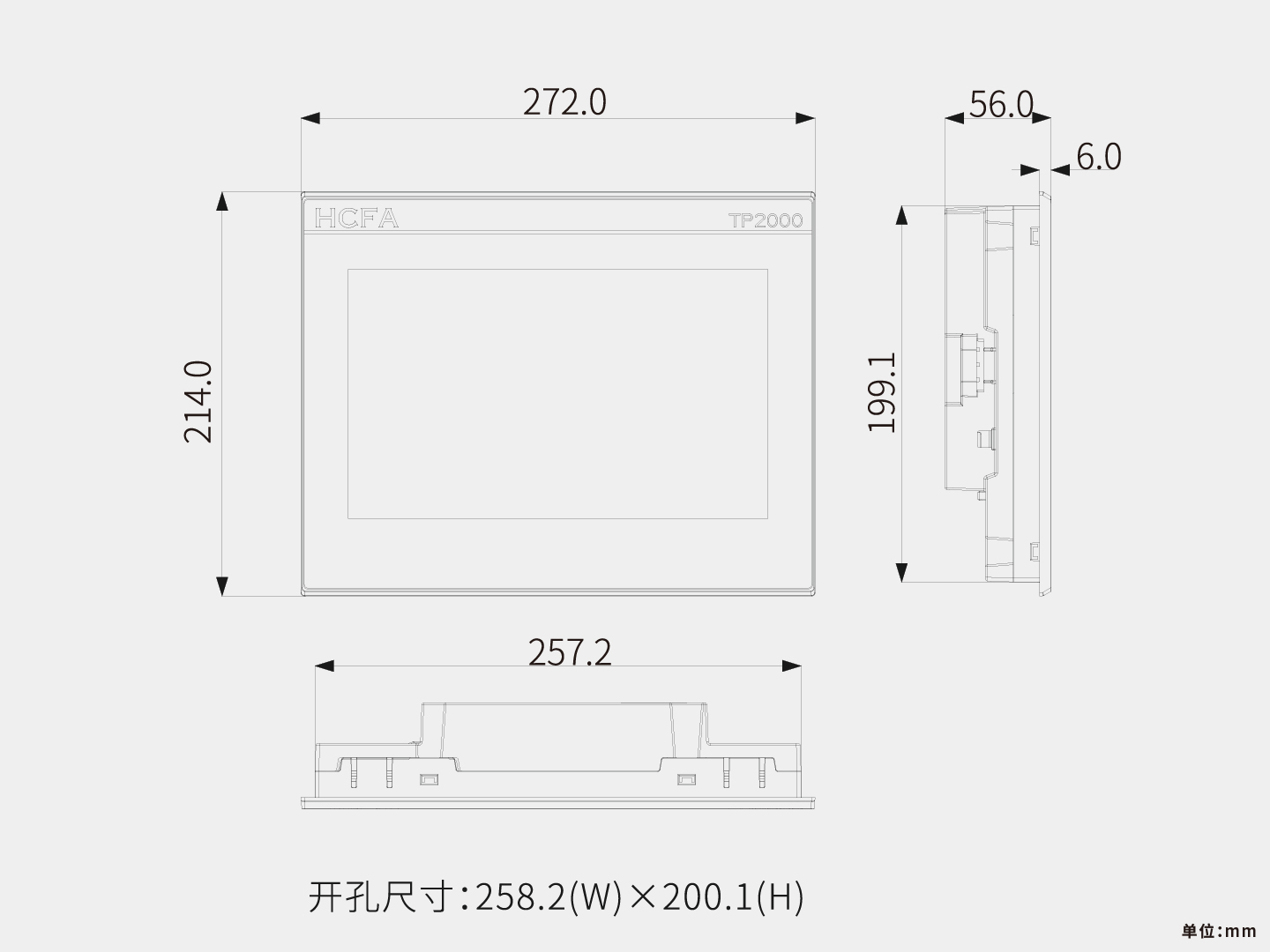

Product Size
Data Download
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Manual | HMI HCTDesigner User Manual（EN） | 2022.06.07 | Download |
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Instruction | TP2000 HMI HW INS V1.2(EN) | 2022.06.07 | Download |
| Download Type | Name | Updated | Operation |
|---|
| Download Type | Name | Updated | Operation |
|---|---|---|---|
| Software | HCTDesigner-2.5.10743.0（EN） | 2024.05.07 | Download |
| Download Type | Name | Updated | Operation |
|---|
