TP2507

Product Type: HMI Touch Screen
Screen size: 7 inch
Resolution: 800x400/480x272
Color: 24-bit
Hardware interface: RS232, RS485, Ethernet interface, SD card slot, USB2.0

Product Features

  • Performance

    More powerful ARM platform performance with 50% improvement over previous generation

  • Interface

    Rich variety of interfaces, Ethernet port / serial port / USB port / SD card to meet different field needs

  • Easy to operate

    The new configuration software HCT Design is more convenient for human-machine interaction, more concise and convenient

  • Size

    Full size, exquisite and compact appearance, easy to install

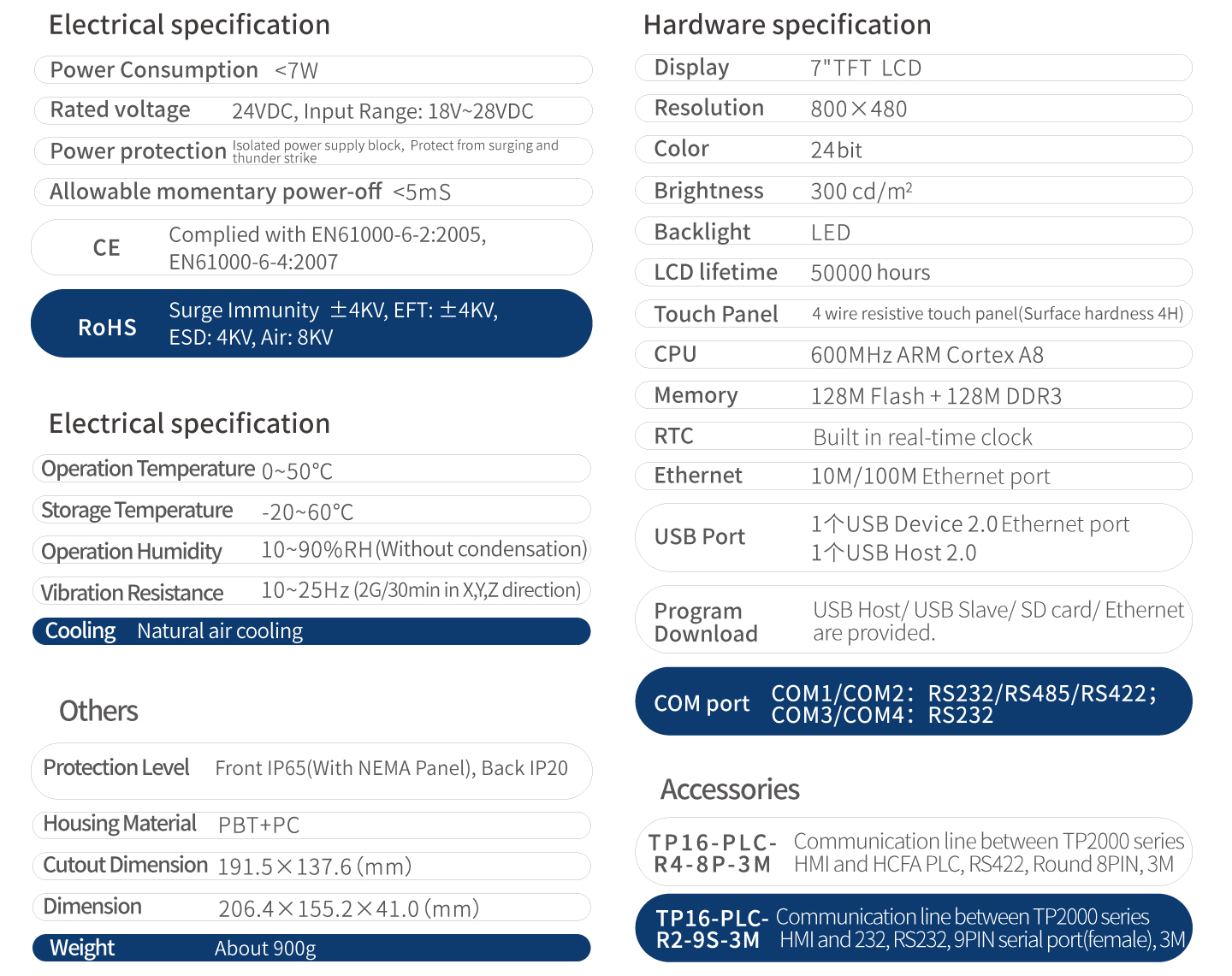

Product Specifications

  • BASIC PARAMETERS
  • CONFIGURATION PARAMETERS

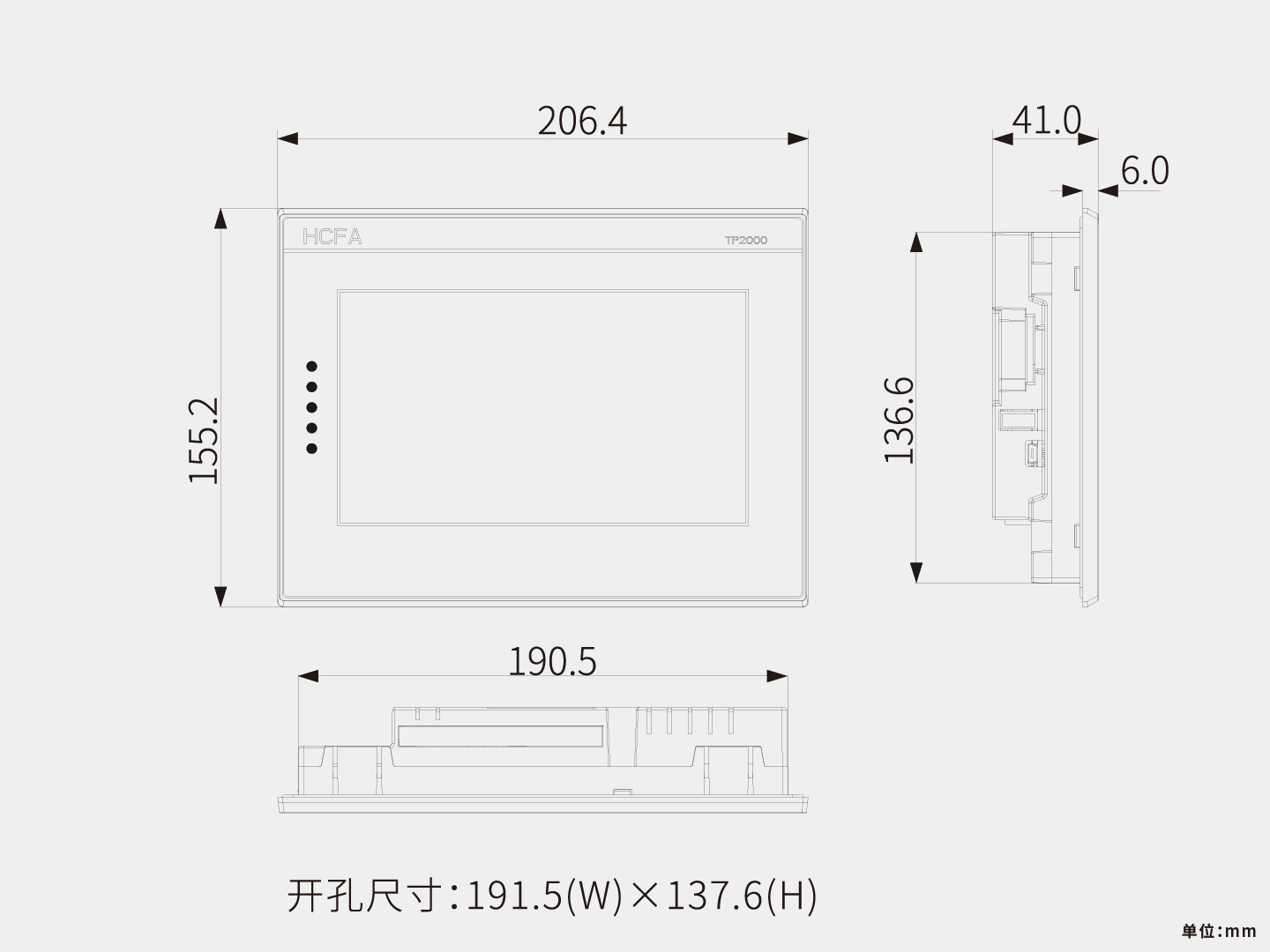

Product Size


Data Download

  • Catalog
  • Manual
  • Instruction
  • Drawing
  • Software
  • Others
Download Type Name Updated Operation
Catalog HMI Catalog 2023.6-V1.0(EN) 2024.03.07 Download
Catalog HMI Catalog 2023.6-V1.0 (RU) 2024.03.14 Download
Download Type Name Updated Operation
Download Type Name Updated Operation
Instruction TP2000 HMI HW INS V1.2(EN) 2022.06.07 Download
Download Type Name Updated Operation
Download Type Name Updated Operation
Software HCS-Studio(En) V2.08 2024.01.23 Download
Download Type Name Updated Operation
