Distributed digital quantity mixing

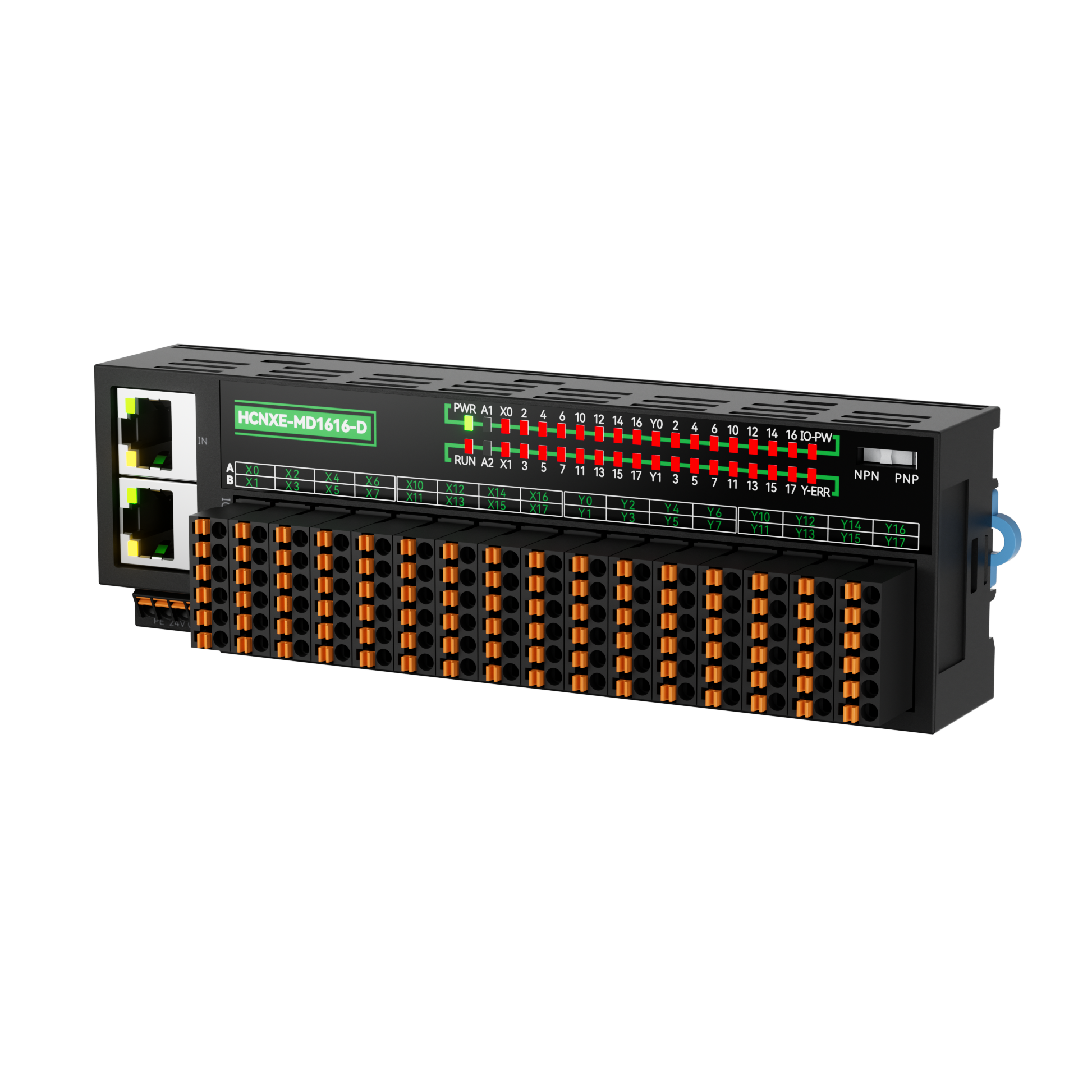

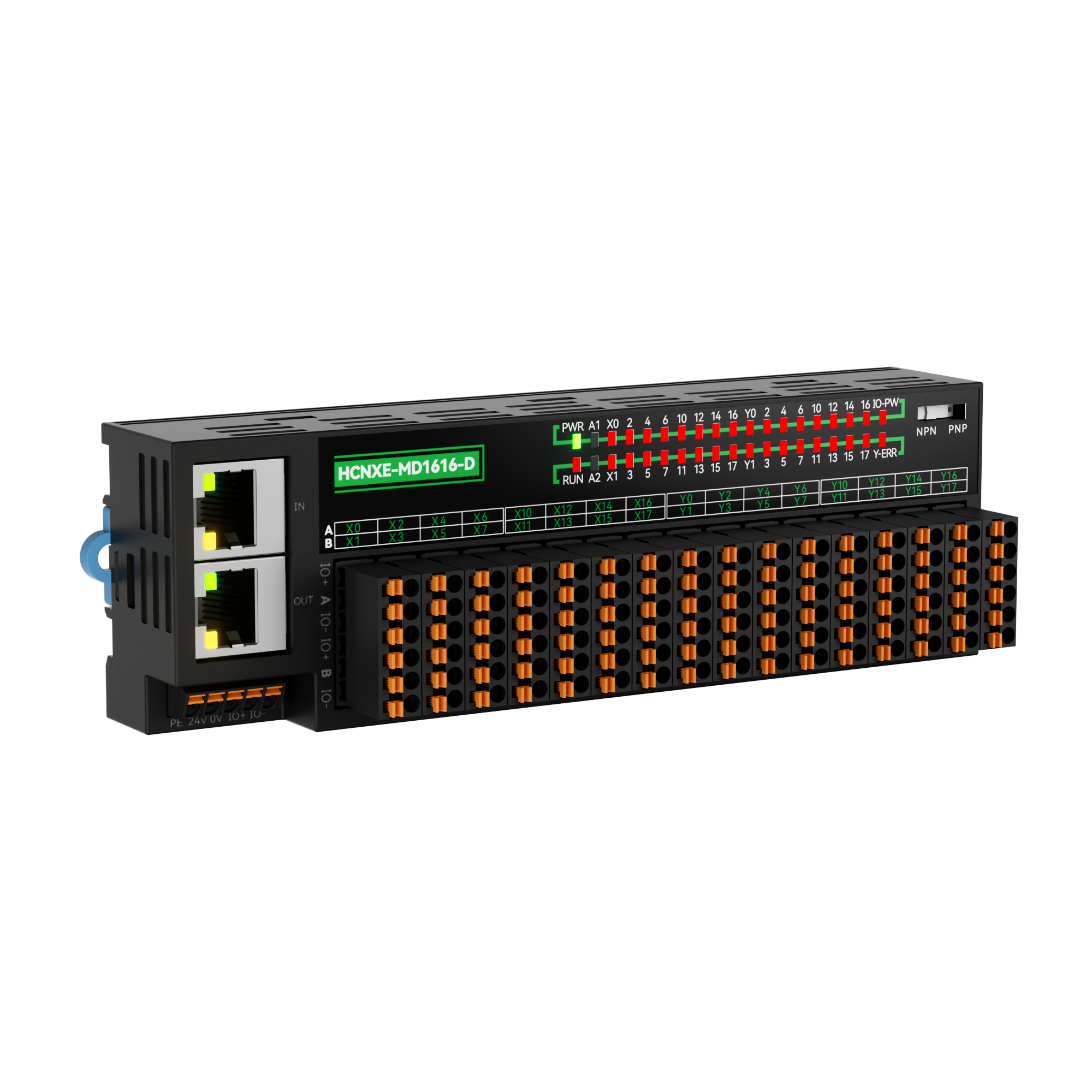

The NXE module boasts a maximum protection level of IP40 (after installing the protective cover), and supports external installation in electrical cabinets. The module itself is equipped with a reserved 24V power supply interface for sensors, allowing for nearby sensor installation. There are three types of digital hybrid modules: 16-point (8 inputs + 8 outputs), 32-point (16 inputs + 16 outputs), and 32-point (24 inputs + 8 outputs). The inputs support both 2-wire and 3-wire wiring methods, while the output points only support 2-wire wiring. The output points are equipped with overcurrent protection, overvoltage protection, overtemperature protection, and other related protections. The input form is compatible with NPN/PNP (switched by a toggle switch), while the output form supports NPN type.
