Distributed digital output

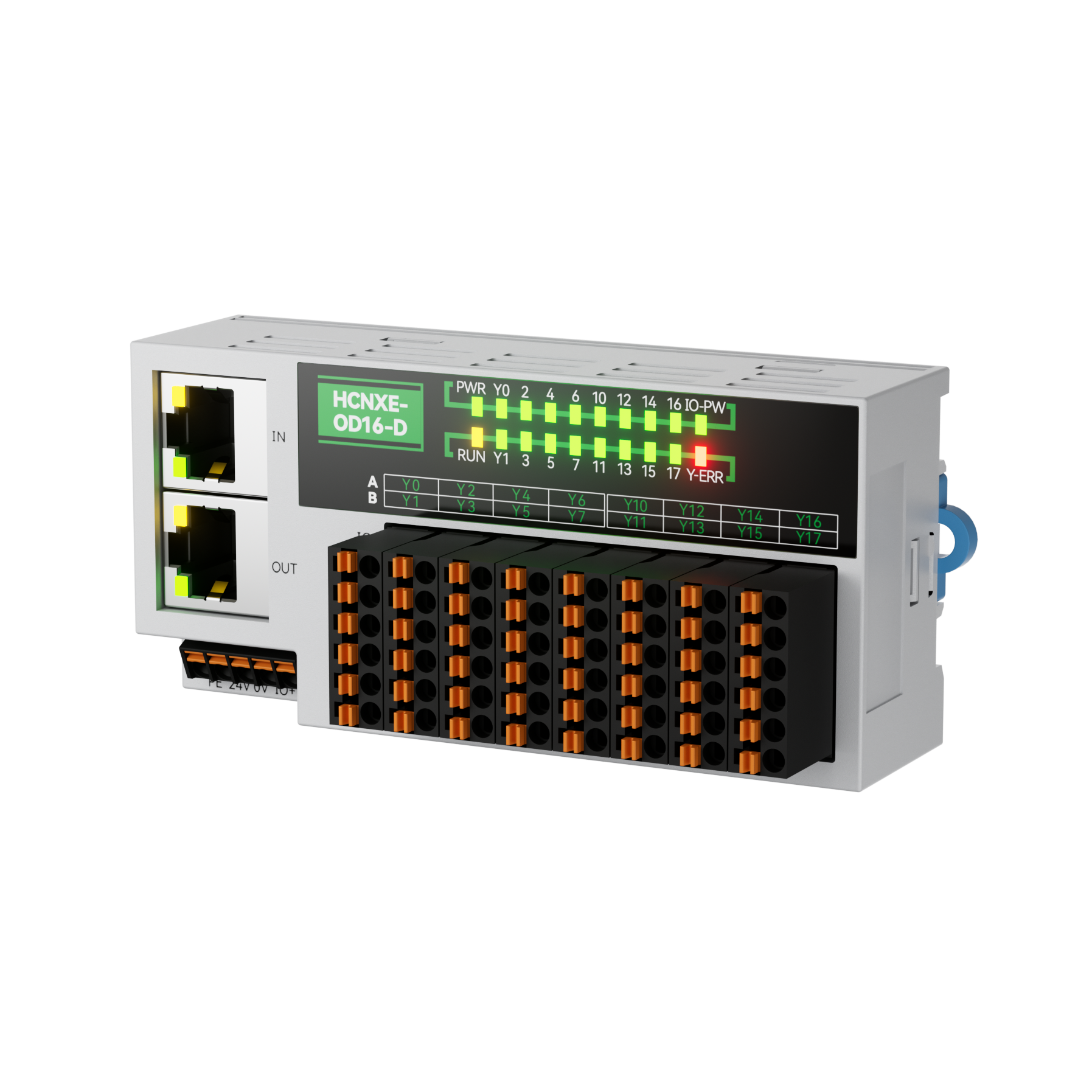

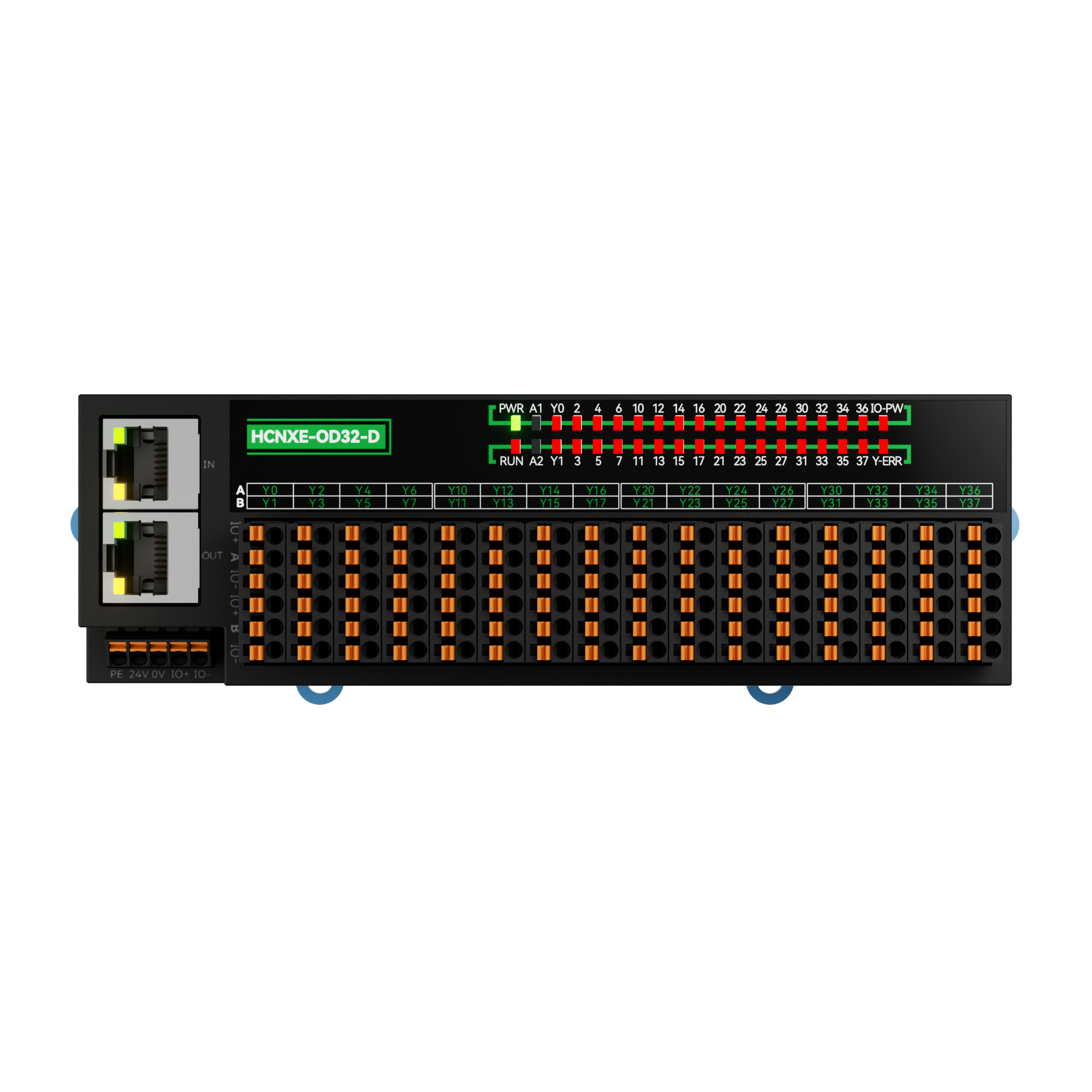

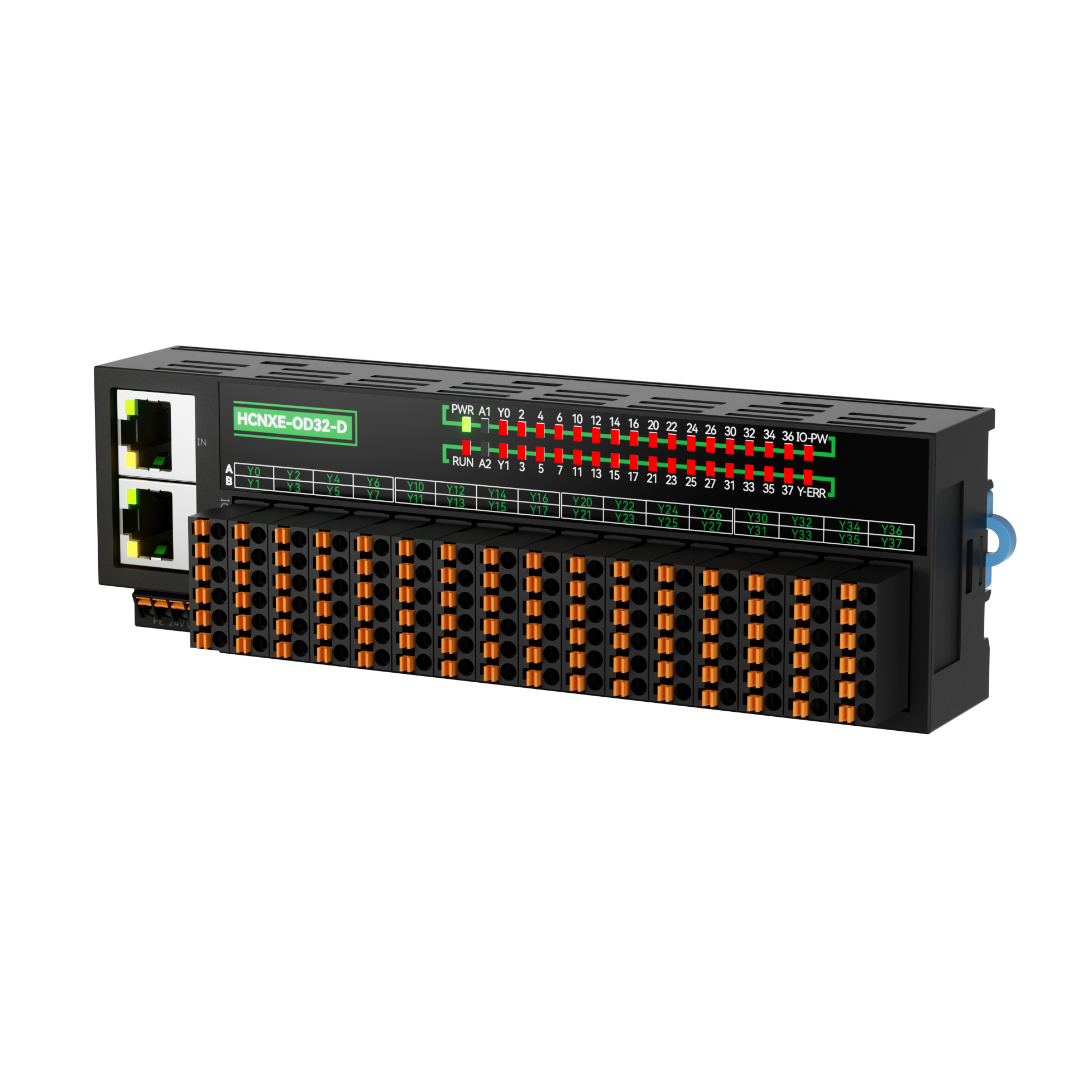

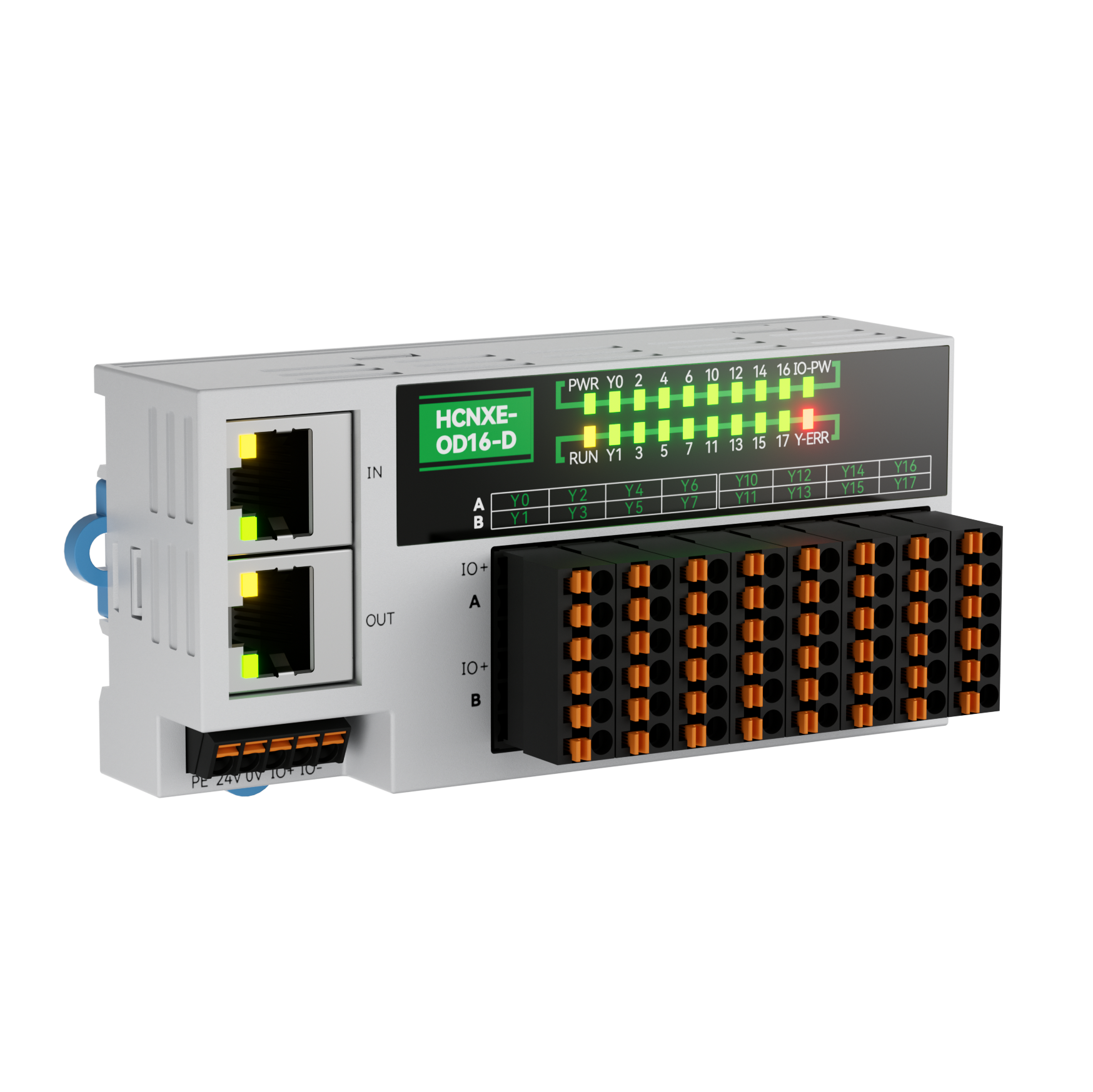

The NXE module boasts a maximum protection level of IP40 (after installing the protective cover), supports external installation in electrical cabinets, and can be installed near the nearest equipment. There are two types of digital output point modules, one with 16 points and the other with 32 points, both of which only support NPN output and a 2-wire wiring method. It features high protection, supporting overcurrent protection, overvoltage protection, overtemperature protection, etc. The rated load current is up to 0.5A per channel, and the rated load voltage is DC 24V (-15% to +20%).
