Distributed digital input

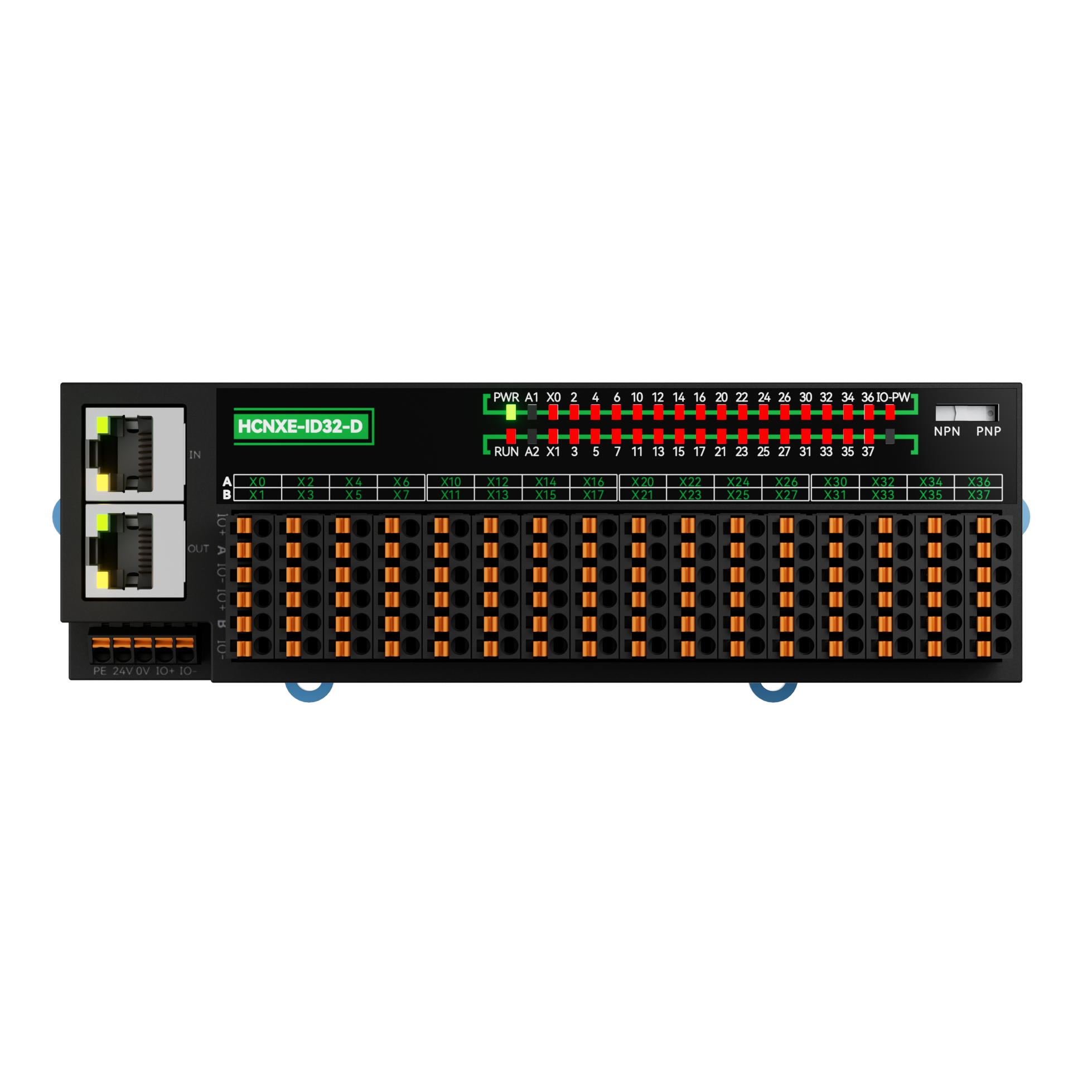

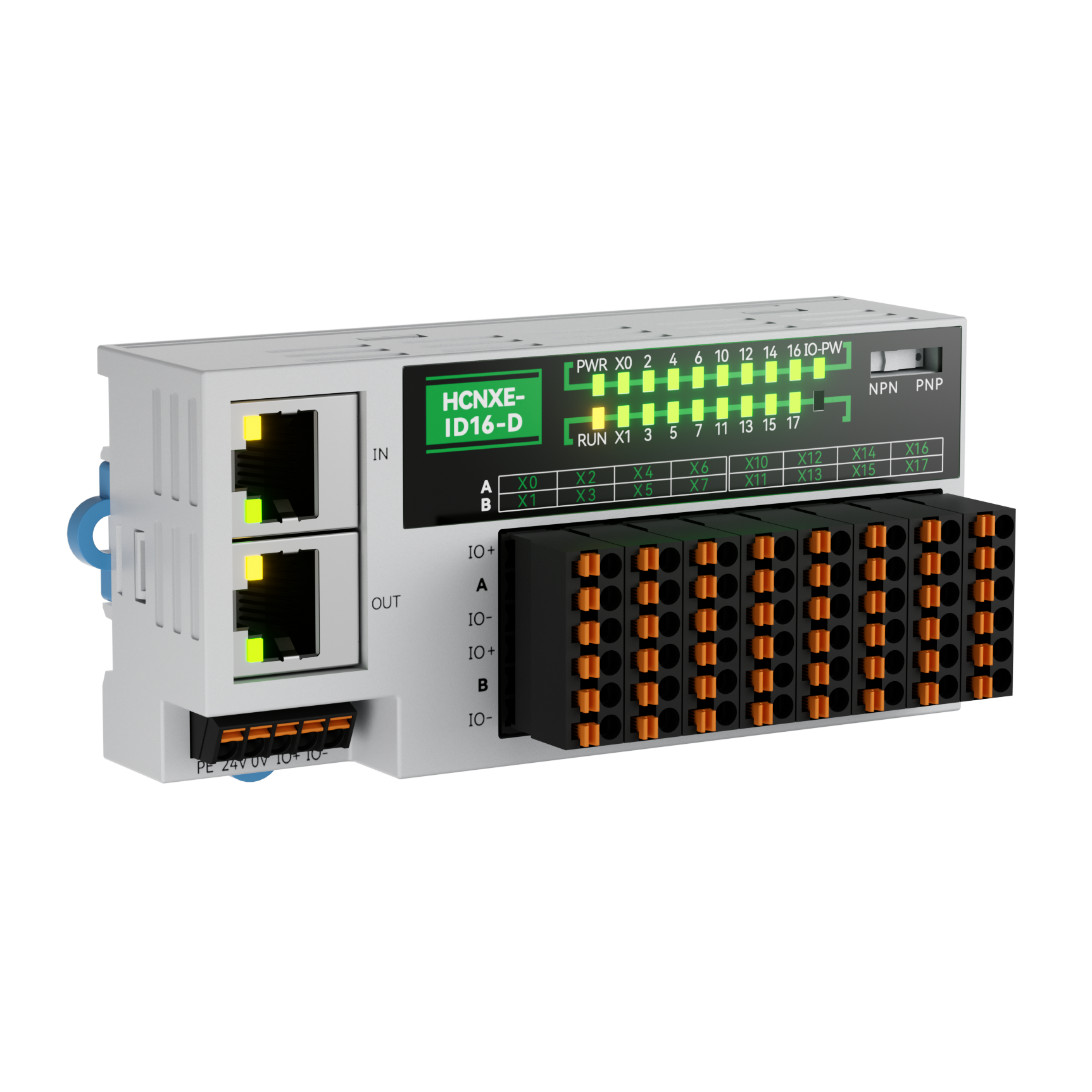

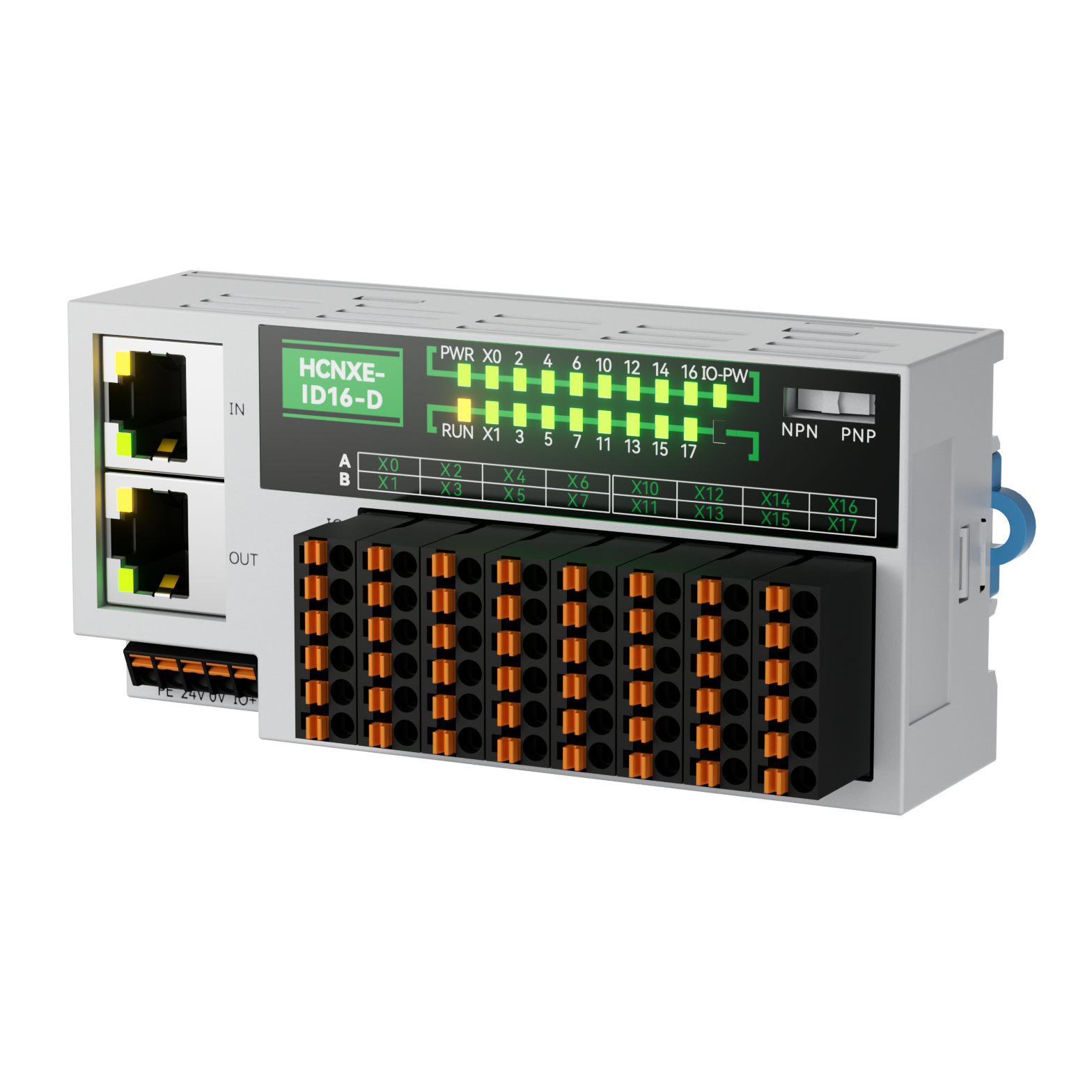

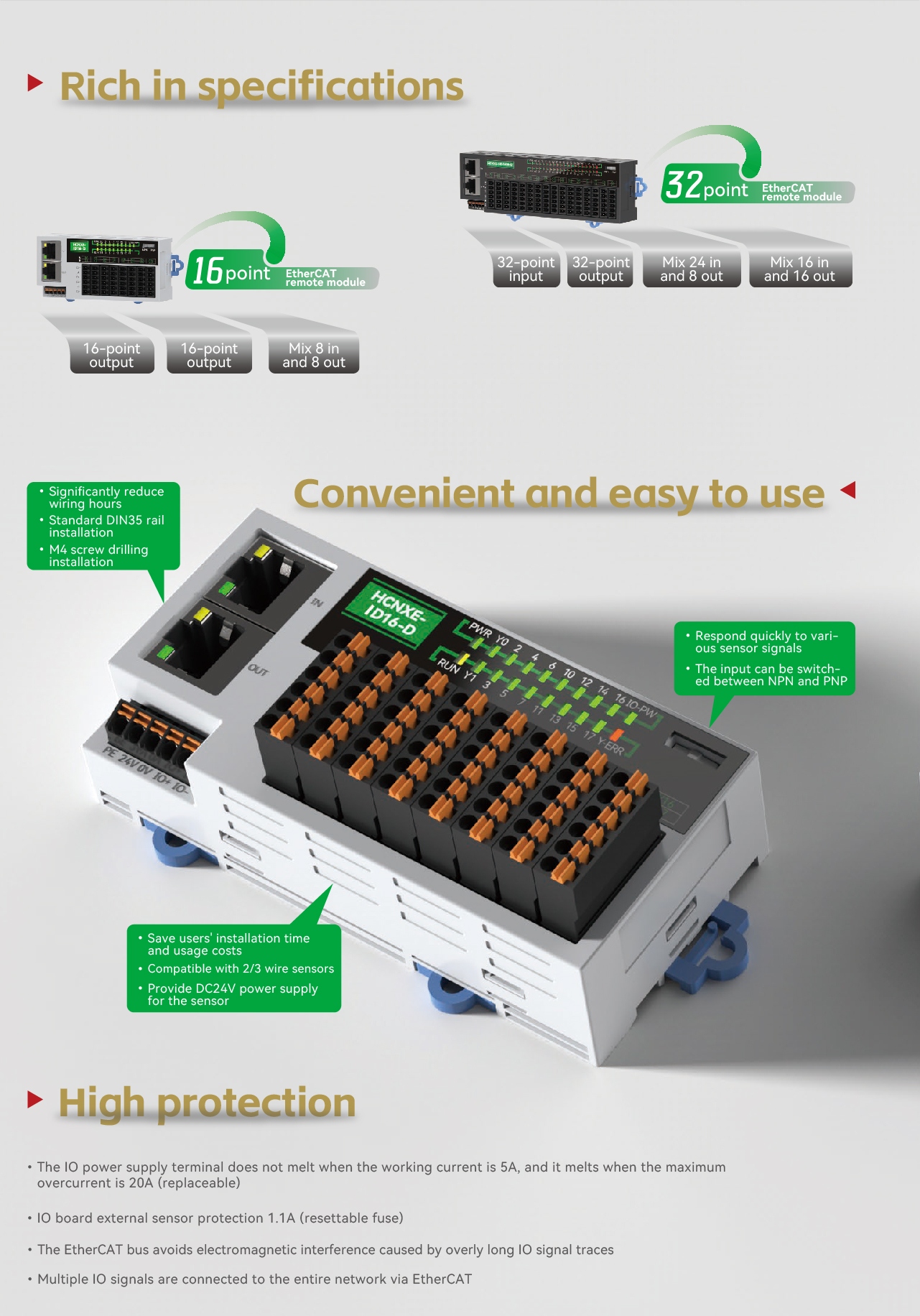

The NXE module boasts a maximum protection level of IP40 (after installing the protective cover), supports external installation in the electrical cabinet, and features a reserved 24V power supply interface for sensors on the main body, allowing for nearby sensor installation. There are two types of digital input modules, namely 16-point and 32-point modules. The module dip switch allows for switching between NPN/PNP, enabling quick response to various sensor signals. With high protection, the IO power supply terminal has a working current of 5A without fusing, and a maximum overcurrent of 20A (replaceable). The IO board provides external sensor protection of 1.1A (with recoverable fuse).
