Analog Input
Ultra-slim profile, detachable terminals, precise measurement, fast response

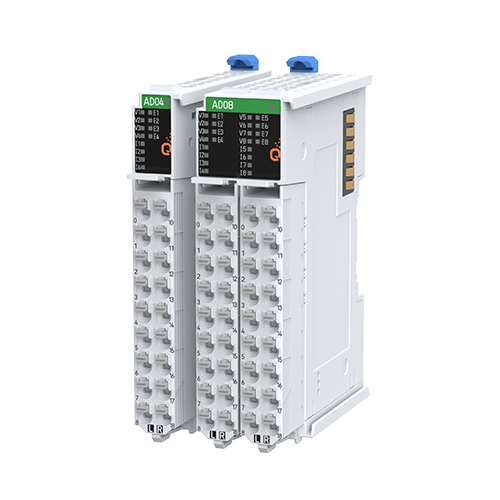

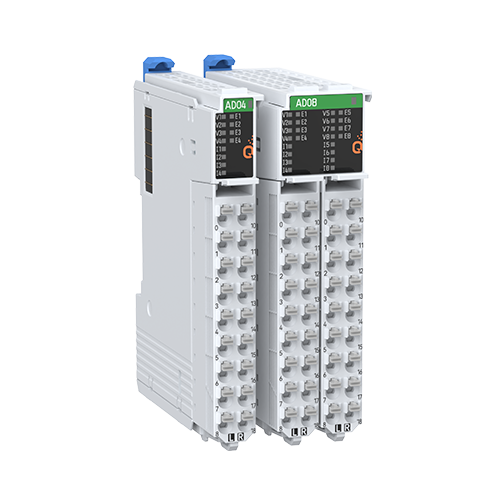

Two models of analog input modules are available, covering 4-channel and 8-channel analog input configurations, with a 16-bit resolution and an ultra-compact housing of just 13mm wide. They are equipped with detachable PUSH IN (tool-free) terminal blocks for wiring. The modules support 5 selectable voltage modes and 2 selectable current modes, along with a range of functions including software filtering, over-limit detection, range detection, abrupt change detection, and calibration.
Installation and Operation Instruction of Q Series Universal Analog Module V3.0
File type: pdf
Update date: 2026-02-10
Size: 1373KB
Installation and Operation Instruction of HCQX-AD08-D4 V2.0
File type: pdf
Update date: 2026-02-10
Size: 1625KB
