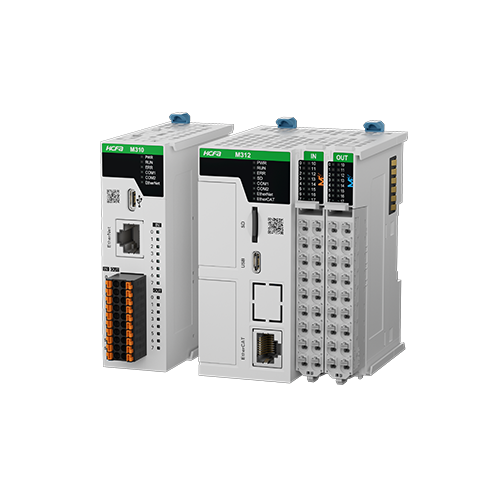

M300 Series

The M300 series is a basic motion control controller with a slim and lightweight body, featuring a minimum width of just 3cm, making it suitable for applications where space is at a premium. Some models come with built-in Ethernet ports, and the entire series supports serial communication. The M300 series can achieve 4-6 axis pulse output and 2-channel high-speed pulse input. The right side of the M300 series can accommodate up to 16 expansion modules, including the M312, which can expand two BD cards. It supports functions such as single-axis position/velocity, electronic gear/electronic cam/axis group/interpolation (linear, circular, spiral).
