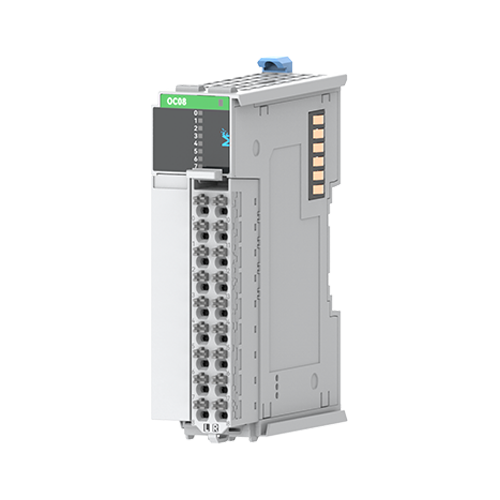

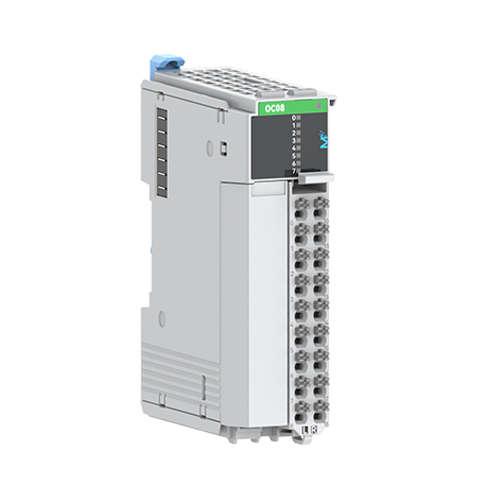

Relay output module
Slim and lightweight, stable and reliable, user-friendly, and ultra-fast response
This module is a relay output with 8-channel output points. The terminals are removable and PUSH IN (tool-free) wiring terminals. The rated load current (resistance) can reach 2A per point and 8A for the common terminal. The rated load voltage (control circuit voltage) supports DC30V or AC250V. The ON/OFF response time is 10ms, and the number of switching cycles is greater than 100,000!
