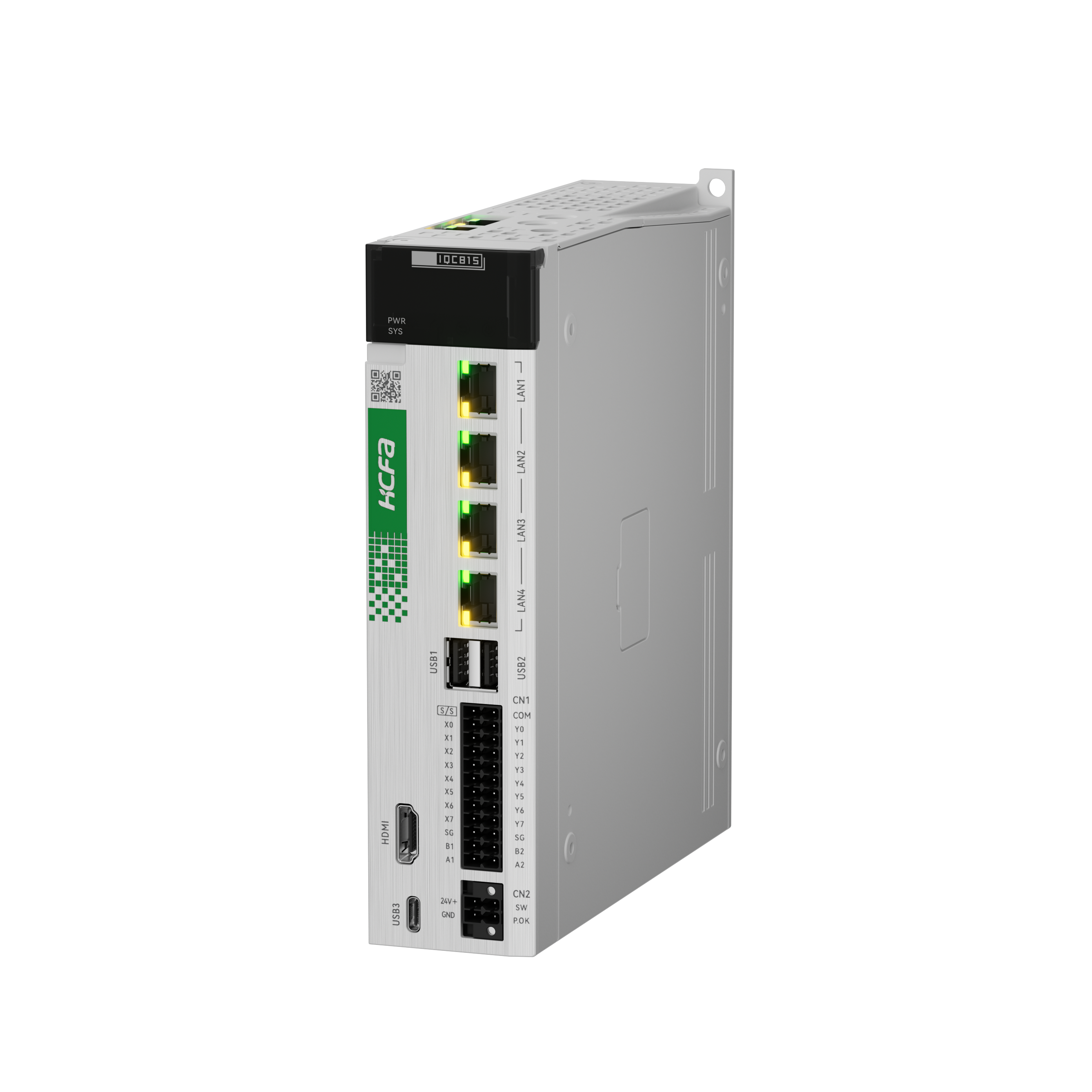

IQ800 Series
Dual-system, book-style integrated design, powerful computing power

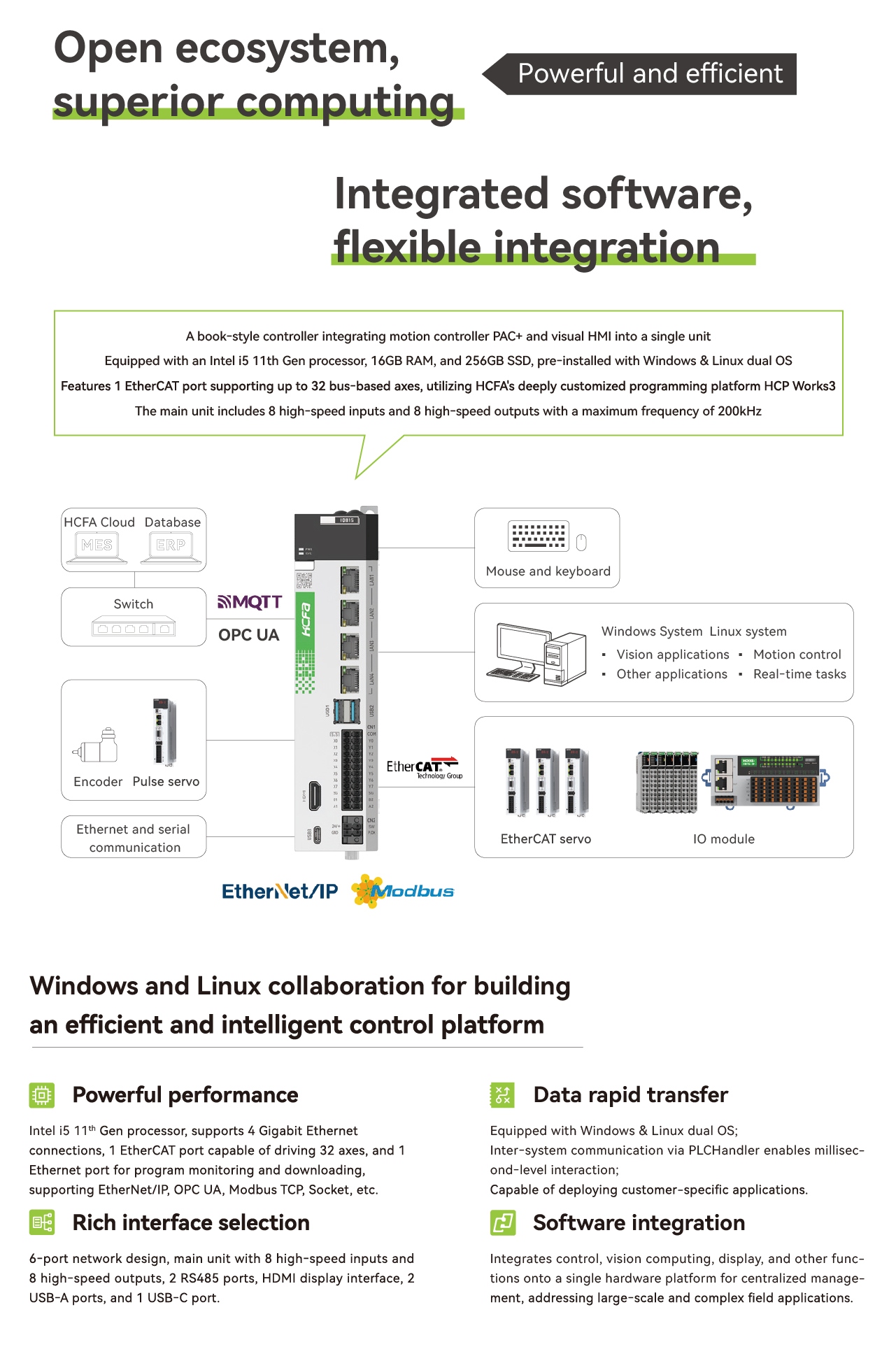

The book-style IPC, IQ800 series, integrates the motion controller PAC+ with a visual HMI into a book-style controller. It utilizes an Intel i5 11th generation processor, 16GB RAM, and a 256GB solid-state drive, pre-installed with Windows&Linux dual systems. It supports one EtherCAT channel, can handle up to 32 bus axes, and employs the programming platform HCP Works3 developed by Hechuan. The main unit comes with 8 high-speed inputs and 8 high-speed outputs, with a maximum frequency of 200KHz.
